Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle
which is equipped with a television viewer or screen that is located in
the motor vehicle at any point forward of the back of the driver’s seat, or
that is visible, directly or indirectly, to the driver while operating the
vehicle. In the interest of safety, the unit should never be installed where
it is visible, directly or indirectly, by the operator of the motor vehicle. If
your vehicle is equipped with a wireless rear seat audio system or any
other wireless IR device, power system off in order to operate the DVD
headrest system. If system is powered on, the two systems may interfere
with each other canceling out or creating undesirable audio through the
wireless headphones.
Safety Precaution
For safety reasons, when changing video discs it is recommended that
the vehicle not be in motion, and that you do not allow children to
unfasten safety belts to change discs or make any adjustments to the
system. System adjustments can be accomplished using the remote
control unit, while safety belts remain fastened. Enjoy your
entertainment system but remember that safety of all passengers remains
the number one priority.
Wireless Headphones
This unit includes a built-in dual channel infrared transmitter for use
with a wireless headphone. The volume can then be adjusted with the
controls on each headset. The wireless headphone must be used within a
line of sight from the transmitter as infrared transmission, like visible
light, travels only in a straight line.
Wired Headphones
There is a one-eighth inch headphone jack on the device that can be
used with any standard stereo headphone. Remove and save the
protective plastic cover to access the jacks. Remember to replace the
cover when the jacks are not in use.
A/V Input
An external AV device such as a DVD player, video game device, or other
audio/video device may be connected to the unit by using the “AV
INPUT” port consisting of three RCA jacks (Yellow: Video, Red: Audio-R,
White: Audio-L). To display and listen to the video/audio signal of this
external source, connect the video source RCA cables to the AV inputs
on the monitor. The video source overrides any other video source for
that monitor.
Audio System129
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Wireless FM Transmitter
Your device may be equipped with an external FM transmitter, which
allows you to listen to the audio signal by tuning your vehicle’s FM radio
to the selected frequency and turning SOUND AROUND on with the
remote. Whenever the SOUND AROUND is on, broadcast radio reception
may be poor. Performance varies based on geographic location. Turning
SOUND AROUND off allows normal radio reception.
How to use the FM Transmitter
Power up your system and place a disc in monitor “A”. While pointing
your remote at the monitor press the “DVD A” button directly under the
red “POWER” button on your remote control. Next press the “Sound
Around ON/ OFF” button to turn FM transmission on or off as desired.
Three buttons to right is the “Sound Around SELECT” button which
cycles through six possible stations (88.3, 88.7, 89.1, 89.5, 89.9, and
90.3MHz) for broadcasting audio to your radio. Once you’ve selected a
frequency, you must then tune your radio to the corresponding
frequency. Try each station frequency until you achieve a clear audio
signal.
Console Controls
Note:Do not use any solvents or cleaning materials when cleaning the
video device.
Note:Do not use any abrasive cleaners, that may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is
dirty.
Note:Lock the LCD screen in the fully closed position when not in use.
Note:Do not put pressure on the screen.
Note:Caution children to avoid touching or scratching the screen, as it
may become dirty or damaged.
130Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

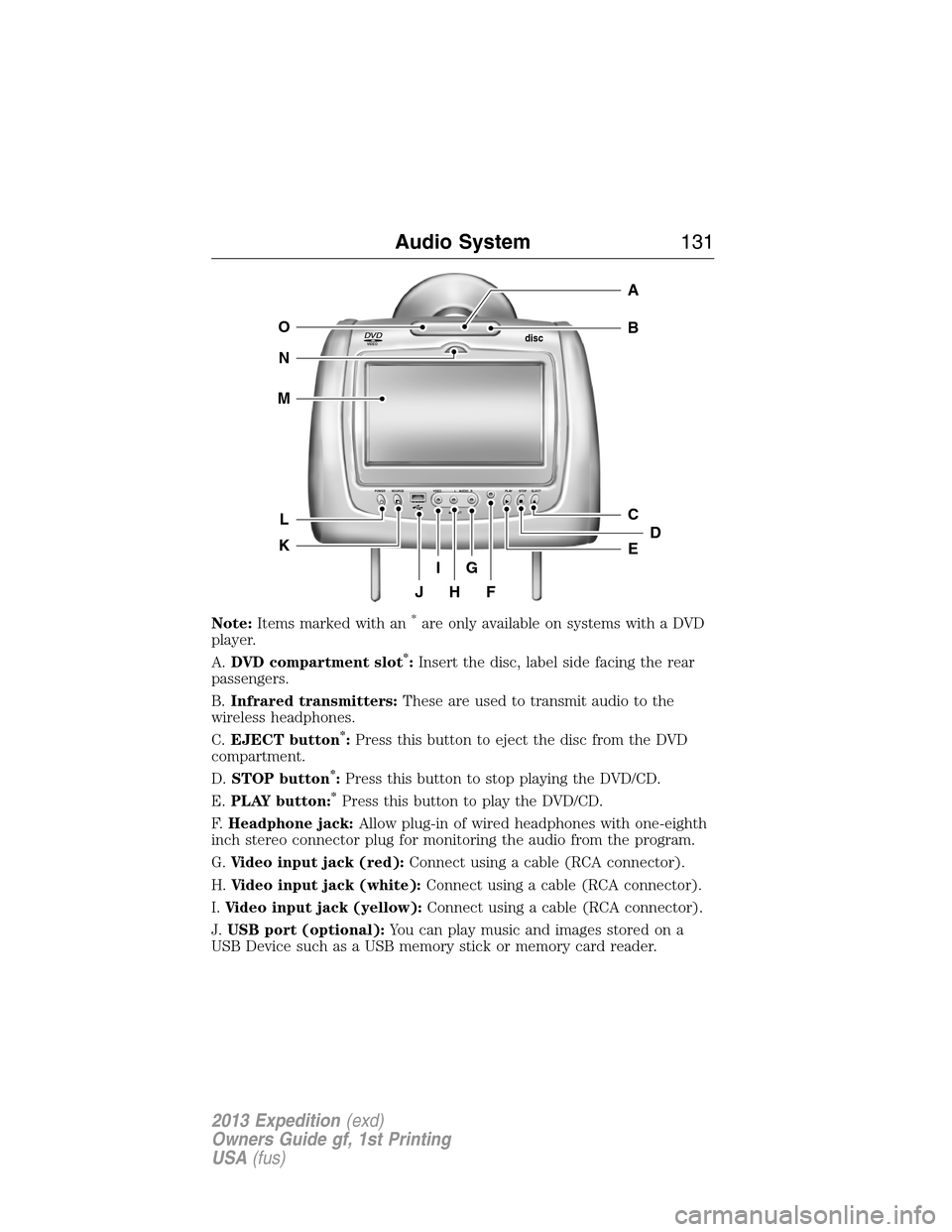

Note:Items marked with an*are only available on systems with a DVD
player.
A.DVD compartment slot
*:Insert the disc, label side facing the rear
passengers.
B.Infrared transmitters:These are used to transmit audio to the
wireless headphones.
C.EJECT button
*:Press this button to eject the disc from the DVD
compartment.
D.STOP button
*:Press this button to stop playing the DVD/CD.
E.PLAY button:
*Press this button to play the DVD/CD.
F.Headphone jack:Allow plug-in of wired headphones with one-eighth
inch stereo connector plug for monitoring the audio from the program.
G.Video input jack (red):Connect using a cable (RCA connector).
H.Video input jack (white):Connect using a cable (RCA connector).
I.Video input jack (yellow):Connect using a cable (RCA connector).
J.USB port (optional):You can play music and images stored on a
USB Device such as a USB memory stick or memory card reader.
VIDEOdisc
POWER SOURCE VDEO L RAUDIO PLAY STOP ELECT
AV INPUT
HFJ
IG
C
B
A
E
DL
N
M
O
K
Audio System131
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

K.SOURCE button:Press this button to select between Monitor A,
Monitor B, AUX/TV (if available), and AUX 2 (if available).
L.POWER button:Press this button to turn the system on or off.
M.TFT LCD panel:Seven-inch TFT LCD panel.
N.Level lock and release latch:Allows the user to adjust the viewing
angle of the LCD panel or lock the panel into the secure position.
O.IR sensor - forward sensor eye:Allows the remote control to
navigate the OSD (On-screen display) on the device.
Remote Control
Note:The remote control incorporates an infrared sensor that relays
signals from the remote control to be controlled simply by pointing its
remote control at the remote sensor eye. This provides control of auxiliary
equipment such as a video DVD player. The infrared sensor cannot relay
signals from any other manufacturer’s remote control to its respective
component connected to the AUX input, such as a DVD player. In this
case, you must use the remote control supplied with the device.
Installing the Battery
Before attempting to operate your remote control, install the batteries as
follows:
1. Turn the remote control face down. Press down on the ridged area of
the battery cover and slide it off.
2. Install two AAA batteries. Make sure that proper polarity (+ or -) is
observed.
3. Slide the cover back until it clicks.
Note:Always make sure that the batteries are inserted with the positive
and negative terminals in the correct direction as shown in the battery
compartment.
Note:Different types of batteries have different characteristics. Do not
mix different types.
Note:Do not mix old and new batteries. Mixing old and new batteries can
shorten battery life and/or cause chemical leaks from the old batteries.
Note:When batteries fail to function, replace them immediately.
Note:Keep the batteries out of the reach of children. Should the
batteries be swallowed, immediately consult a doctor. Also, when
disposing of used batteries, please comply with governmental regulations
or environmental public institution rules that apply in your country/area.
Note:Remove the batteries if the remote control is not used for a month
or longer.
132Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

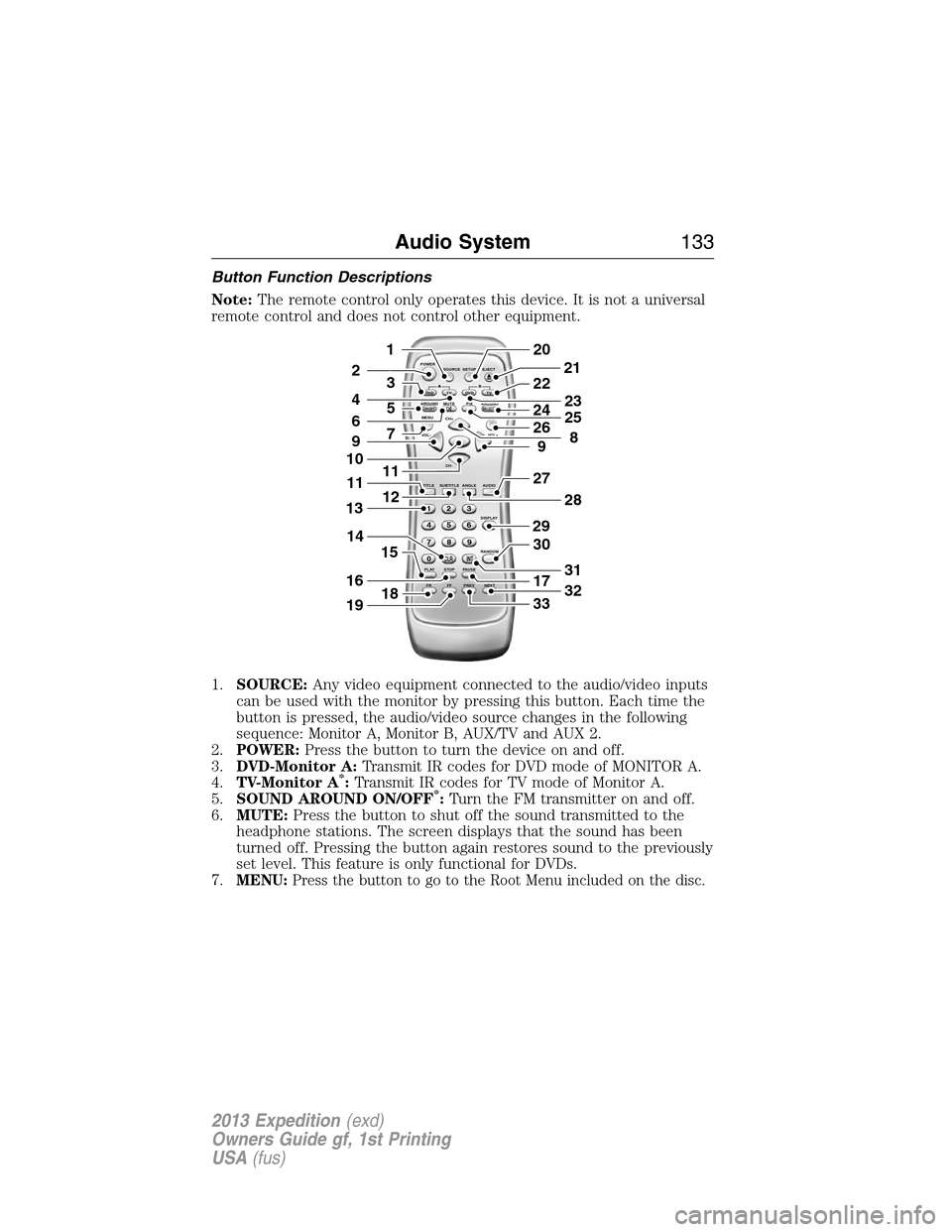

Button Function Descriptions
Note:The remote control only operates this device. It is not a universal
remote control and does not control other equipment.
1.SOURCE:Any video equipment connected to the audio/video inputs
can be used with the monitor by pressing this button. Each time the
button is pressed, the audio/video source changes in the following
sequence: Monitor A, Monitor B, AUX/TV and AUX 2.
2.POWER:Press the button to turn the device on and off.
3.DVD-Monitor A:Transmit IR codes for DVD mode of MONITOR A.
4.TV-Monitor A
*:Transmit IR codes for TV mode of Monitor A.
5.SOUND AROUND ON/OFF*:Turn the FM transmitter on and off.
6.MUTE:Press the button to shut off the sound transmitted to the
headphone stations. The screen displays that the sound has been
turned off. Pressing the button again restores sound to the previously
set level. This feature is only functional for DVDs.
7.
MENU:Press the button to go to the Root Menu included on the disc.
POWER
SOURCE
A
SOUND
AROUNDSOUND
AROUND MUTE
MENU REPEAT
CH+
CH-
TITLE SUBTITLE ANGLE AUDIO
DISPLAY
RANDOM
PLAY
123
6 5 4
789
0
CLR INT
FR FF PREV NEXTSTOP PAUSE VOL- VOL+PIX A
D
VD
ON/OFFSELECT
TV DVD TVSETUP EJECTB
5
9
29
27
30
17
33
28
32
31
201
2
7
11
12
4
3
15
21
22
24
2625
8
23
6
9
10
16
13
18
11
14
19
Audio System133
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

8.UP/DOWN:
•For DVD: Navigation button, you can use this button to move the
select bar to items among the menu or file list.
•For TV: Use these buttons to advance to the next higher or lower
channel.
•For OSD: Increase or decrease the setting of selected item.
9.LEFT/RIGHT:Navigation button; you can use this button to move the
select bar to one of the items in the menu or file list.
10.ENTER:Makes a selection or begins playback of the disc.
11.TITLE:Navigate the title menu included in the disc.
12.SUBTITLE:If the current disc has different subtitles options,
pressing this button brings up the menu. Press this button repeatedly
until you have reached your desired subtitles option.
13.Numbers:Decimal numbers: 0 to 9.
14.CLR:Press this button to clear any incorrect numeric input from the
number keypad.
15.P L AY:Press this button to play a disc that is inserted into the DVD
Player.
16.STOP:Stop playing the movie or songs.
•Pressing STOP once, then PLAY, resumes disc playback.
•Pressing STOP twice, then PLAY, resumes from the beginning of
the disc.
17.PAUSE:Press this button to pause the playback of the CD or DVD.
18.FR (Fast Rewind):Press this button to search disc backward
continuously. There are five speed options to choose: 2X, 4X, 8X, 16X,
and 32X.
19.FF (Fast Forward):Press this button to search disc forward
continuously. There are five speed options to choose: 2X, 4X, 8X, 16X,
and 32X.
20.SETUP:Navigate the Setup Menu. Refer toHow to use the DVD
on-screen display (OSD) menufor more information.
21.EJECT:Eject or load a disc.
22.TV-Monitor B
*:Transmit IR codes for TV mode of Monitor B.
23.DVD-Monitor B:Transmit IR codes for DVD mode of Monitor B.
24.SOUND AROUND SELECT
*:Select a FM transmitter channel.
25.PIX:Each time the button is pressed, the picture adjustment OSD,
cycles through bars for BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, and RESET. Once the desired
adjustment bar is displayed, use the UP/DOWN button to adjust the
setting. The bar display automatically disappears if no adjustments are
made within six seconds or if any button is pressed.
134Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

26.REPEAT:Press this button to switch the repeat mode by ALL, TITLE,
CHAPTER and cancel the repeat mode while playing DVD-video.
Other disc types such as VCD, CD, and SVCD only have two repeat
modes that can be selected: TRACK and ALL.Note:Both repeat
functions of VCD and SVCD need the PBC status set to ON when
available.
27.AUDIO:Press this button if the current disc has different language
options. Press this button repeatedly until you have reached your
desired language option.
28.ANGLE:View with a different camera angle (the button takes effect
only on the DVD that supports frames with multiple angles). Press
this button repeatedly until you have reached your desired viewing
angle.
29.DISPLAY:Shows information on the screen including title,
chapter/track, time elapsed, and time remaining, or turn off the
display.
30.RANDOM:Play titles randomly.
31.INT (Intro/Scan):Press this button to play each audio file for
10 seconds to scan/review the files.
32.NEXT:When a disc has more than one Chapter, Track, or File, you
can move to another Chapter/Track/File. Press the button briefly
during play to select the next Chapter for DVD-video or Track/File for
VCD, SVCD, MP3, CD, etc.
33.PREV:When a disc has more than one Chapter, Track, or File, you
can move to another Chapter/Track/File. Press this button briefly
during play to step back to the previous Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
*If available
Turning the Device On and Off
1. Pivot the screen downward until a comfortable viewing angle is
reached.
2. Press the POWER button on the lower-left corner of the front panel
or the remote control to turn the device on or off. When in use, the
controls are lit.
3. After the device has been turned on and is displaying a picture,
adjust the viewing angle by pivoting the screen to optimize the
picture quality.
4. Remember to turn the device off and pivot the LCD panel to the
locked position when not in use.
Audio System135
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

DVD Basics
To get the most use out of each DVD, make sure you read this section
completely.
Regional Coding
Both the DVD player and disc are coded by region. These regional codes
must match in order for the disc to play. If the codes do not match, the
disc does not play by default. The system is preset to the region code
designated for your area by the DVD Copy Control Association. Other
regions may not be played in this system.
Loading and Playing Discs
When you press the POWER button the system turns on in DVD mode.
Place the disc about halfway into the disc compartment slot, with the
disc’s label facing the rear of the vehicle. player, do NOT insert the disc
at an angle. The disc must be inserted straight into the player.
The disc loads automatically and begin to play. (Some discs may start at
the root menu, where play must be selected to start movie.)
Depending on the disk and playback location on the disc, the icon may
be displayed in the upper-left corner of the screen indicating that still
playback is not possible.
Notes
•To keep a disc clean, do not touch its surface. Handle the disc by its
edge.
•Keep your discs in their cases or disc magazines when not in use.
Also, do not subject disc to heat/high temperature. Avoid leaving
them in a parked vehicle or on a dashboard/rear tray.
•
Do not attach labels, or use discs with sticky ink/residue. Such discs may
stop spinning when used, causing a malfunction, or may ruin the disc.
•Do not use any discs with labels or stickers attached. The following
malfunctions may result from using such discs:
•Inability to eject a disc (due to a label or sticker peeling off and
jamming the eject mechanism).
•Inability to read audio data correctly (i.e., playback skipping, or no
playback) due to heat shrinking of a sticker or label causing a disc to
warp.
•Before playing, clean the discs with a commercially available cleaning
cloth. Wipe each disc from the center out. Do not use solvents such as
benzene, thinner, commercially available cleaners, or antistatic spray
intended for analog discs.
•Use only normal, round discs. If you insert irregular, non-round, shaped
discs they may jam in the DVD player or not play properly.
136Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)
