2013 FORD EXPEDITION Owners Manual

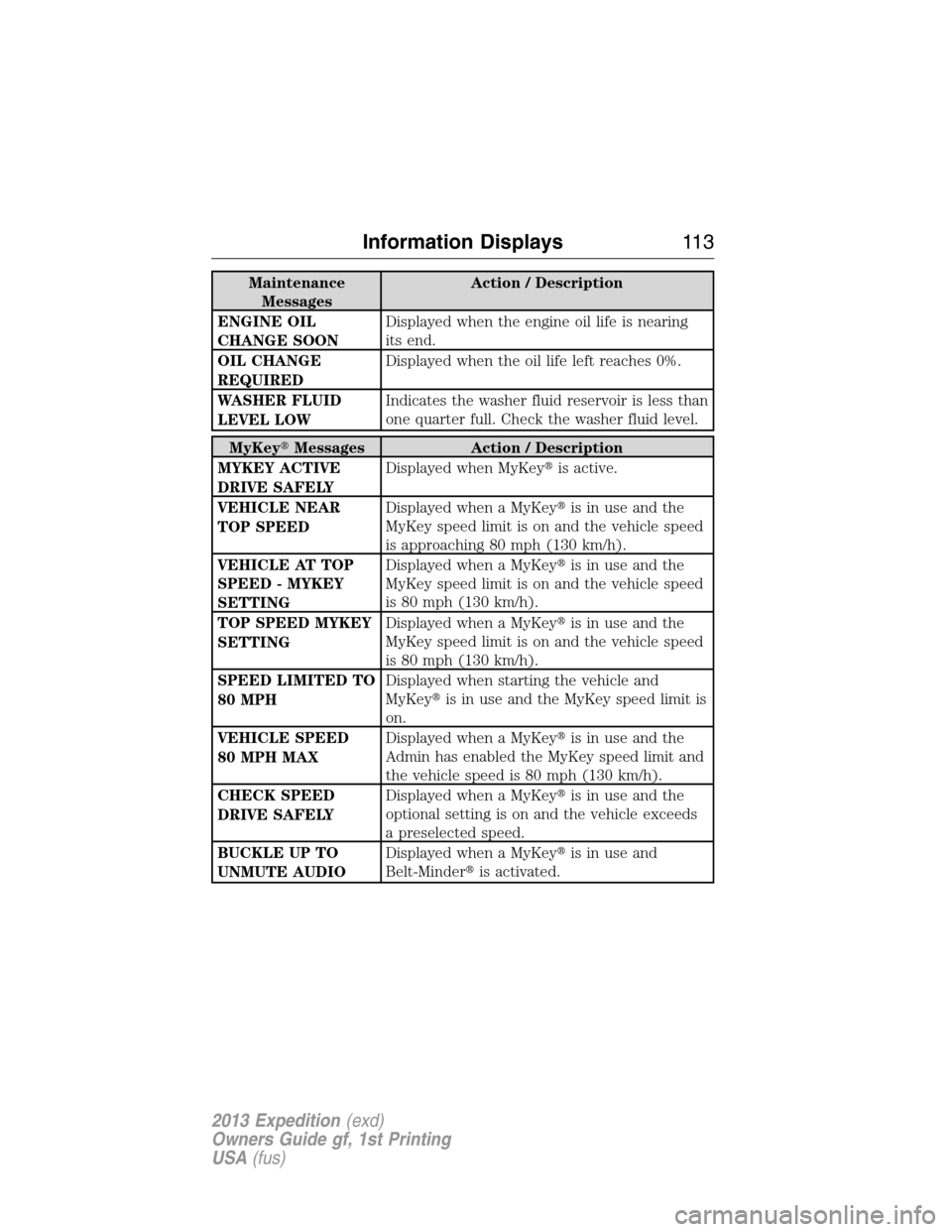

Maintenance
MessagesAction / Description
ENGINE OIL
CHANGE SOONDisplayed when the engine oil life is nearing
its end.
OIL CHANGE
REQUIREDDisplayed when the oil life left reaches 0%.
WASHER FLUID
LEVEL LOWIndicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level.
MyKeyMessages Action / Description
MYKEY ACTIVE
DRIVE SAFELYDisplayed when MyKeyis active.
VEHICLE NEAR
TOP SPEEDDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is approaching 80 mph (130 km/h).
VEHICLE AT TOP
SPEED - MYKEY
SETTINGDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is 80 mph (130 km/h).
TOP SPEED MYKEY
SETTINGDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is 80 mph (130 km/h).
SPEED LIMITED TO
80 MPHDisplayed when starting the vehicle and
MyKeyis in use and the MyKey speed limit is
on.
VEHICLE SPEED
80 MPH MAXDisplayed when a MyKeyis in use and the
Admin has enabled the MyKey speed limit and
the vehicle speed is 80 mph (130 km/h).
CHECK SPEED
DRIVE SAFELYDisplayed when a MyKeyis in use and the
optional setting is on and the vehicle exceeds
a preselected speed.
BUCKLE UP TO
UNMUTE AUDIODisplayed when a MyKeyis in use and
Belt-Minderis activated.
Information Displays11 3
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

MyKeyMessages Action / Description
KEY COULD NOT
PROGRAMDisplayed when an attempt is made to
program a spare key using two existing
MyKeys.
ADVTRAC ON
MYKEY SETTINGDisplayed when a MyKeyis in use when
trying to disable the AdvanceTracsystem and
the optional setting is on.
Park Aid Messages Action / Description
CHECK PARK AIDDisplayed when the transmission is in R
(Reverse).
Suspension
MessagesAction / Description
AIR SUSPENSION
OFFDisplayed when the air suspension is off.
CHECK AIR
SUSPENSIONDisplayed when the air suspension system is
not operating properly. If this message is
displayed while driving, pull off the road as
soon as safely possible.
Tire Messages Action / Description
LOW TIRE
PRESSUREDisplays when one or more tires on your
vehicle have low tire pressure.
TIRE PRESSURE
MONITOR FAULTDisplays when the tire pressure monitoring
system is malfunctioning. If the warning stays
on or continues to come on, contact your
authorized dealer.
TIRE PRESSURE
SENSOR FAULTDisplayed when a tire pressure sensor is
malfunctioning, or your spare tire is in use.
For more information on how the system
operates under these conditions. If the
warning stays on or continues to come on,
contact your authorized dealer as soon as
possible.
11 4Information Displays
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Trailer Messages Action / Description
TRAILER SWAY
REDUCE SPEEDDisplayed when the trailer sway control has
detected trailer sway.
4WD Messages Action / Description
4X4 SHIFT IN
PROGRESSDisplayed when the 4X4 system is making a
shift.
FOR 4X4 LOW
SHIFT TO NDisplayed when 4X4 LOW is selected and the
vehicle is stopped.
FOR 4X4 LOW
SLOW TO 3 MPHDisplayed when 4X4 LOW is selected while the
vehicle is moving.
TO EXIT 4X4 LOW
SHIFT TO NDisplayed when 2WD is selected while the
vehicle has been stopped in 4X4 LOW.
TO EXIT 4X4 LOW
SLOW TO 3 MPHDisplayed when 2WD is selected while the
vehicle is operating in 4X4 LOW.
SHIFT DELAYED
PULL FORWARDMay display when shifting to or from 4X4
LOW.
Information Displays11 5
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

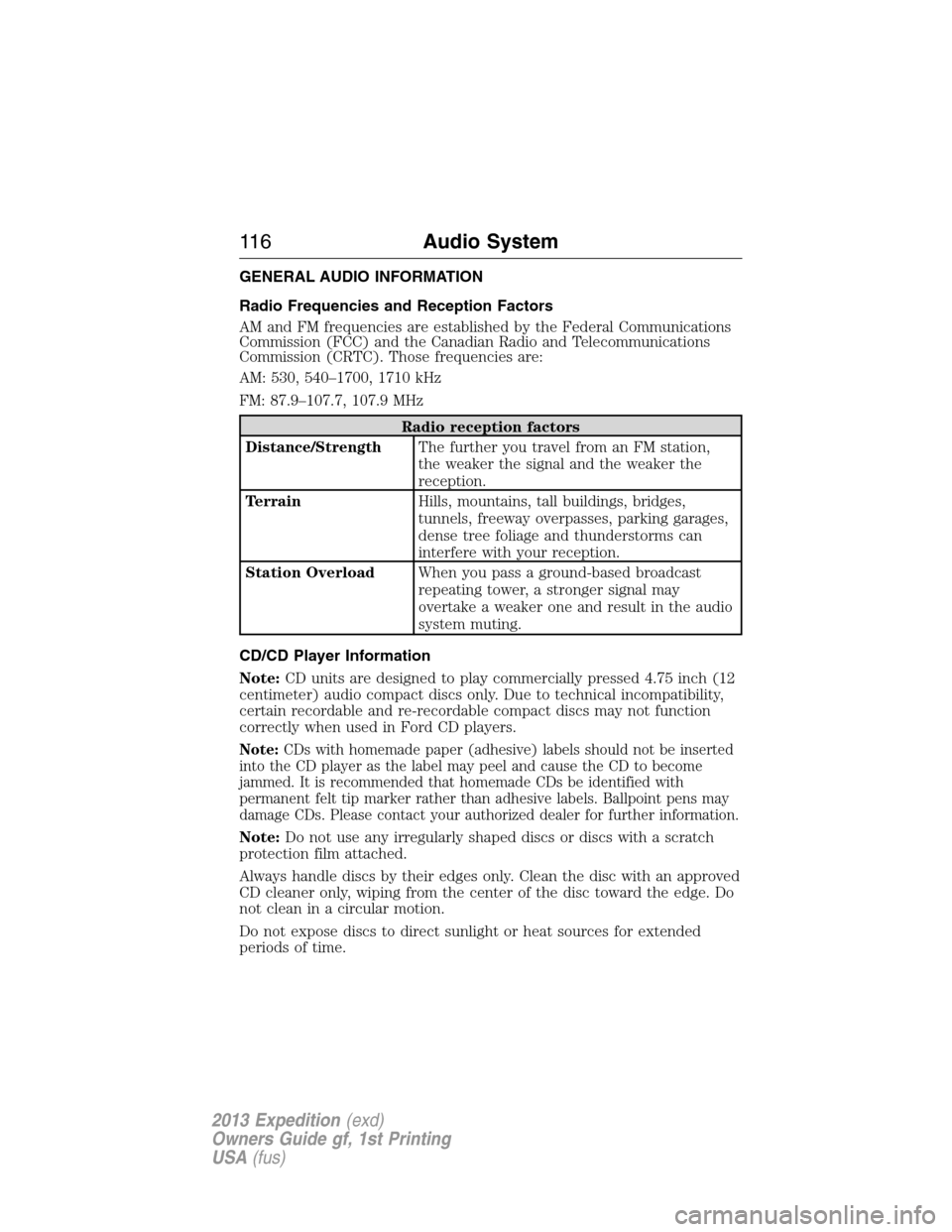

GENERAL AUDIO INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors
Distance/StrengthThe further you travel from an FM station,
the weaker the signal and the weaker the
reception.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with your reception.
Station OverloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the audio
system muting.
CD/CD Player Information
Note:CD units are designed to play commercially pressed 4.75 inch (12
centimeter) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not function
correctly when used in Ford CD players.
Note:CDs with homemade paper (adhesive) labels should not be inserted
into the CD player as the label may peel and cause the CD to become
jammed. It is recommended that homemade CDs be identified with
permanent felt tip marker rather than adhesive labels. Ballpoint pens may
damage CDs. Please contact your authorized dealer for further information.
Note:Do not use any irregularly shaped discs or discs with a scratch
protection film attached.
Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only, wiping from the center of the disc toward the edge. Do
not clean in a circular motion.
Do not expose discs to direct sunlight or heat sources for extended
periods of time.
11 6Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files may
be present, (files with extensions other than mp3), only files with the
.mp3 extension are played; other files are ignored by the system. This
enables you to use the same MP3 disc for a variety of tasks on your work
computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files are played, regardless of being in a
specific folder). In folder mode, the system only plays the .mp3 files in
the current folder.
Audio System11 7
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

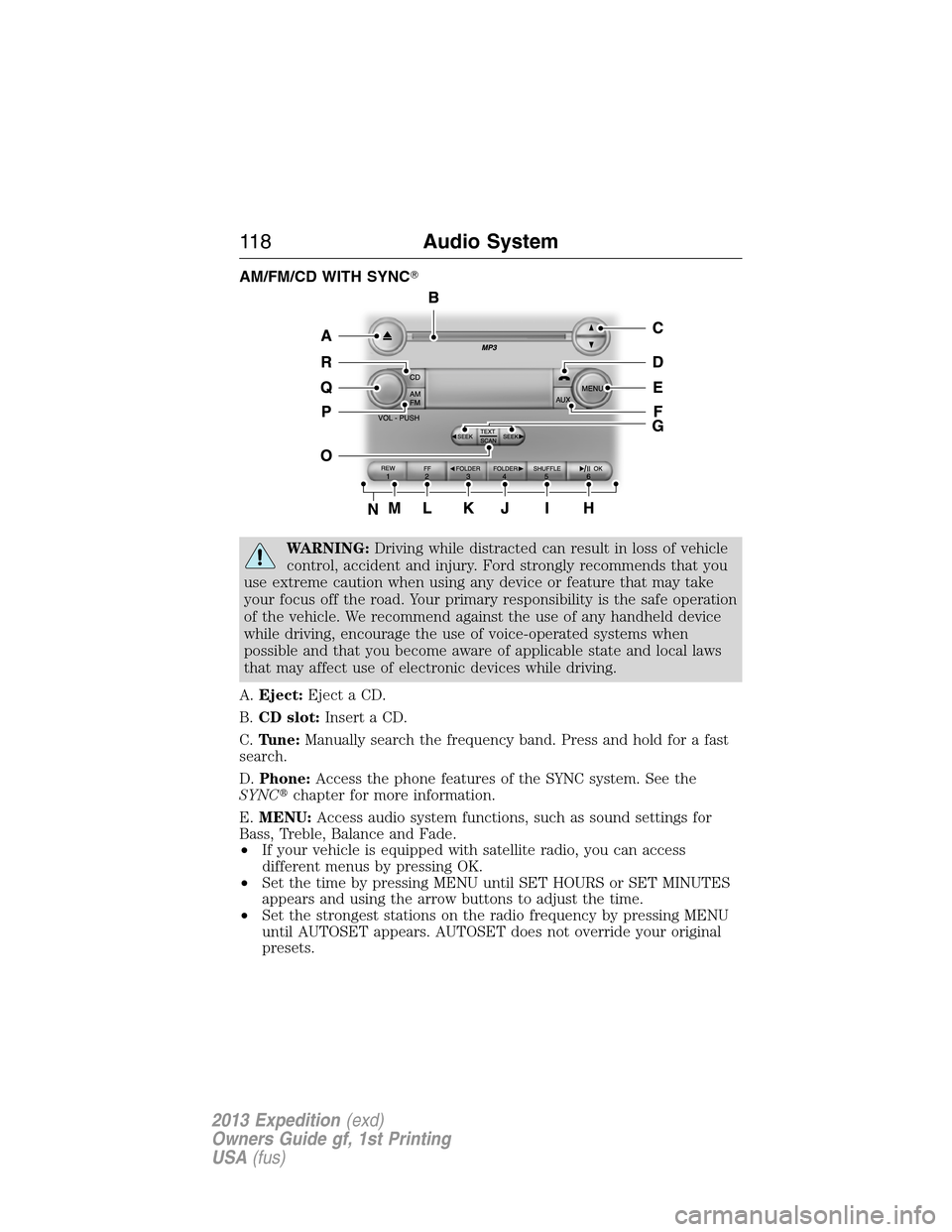

AM/FM/CD WITH SYNC
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
A.Eject:Eject a CD.
B.CD slot:Insert a CD.
C.Tune:Manually search the frequency band. Press and hold for a fast
search.
D.Phone:Access the phone features of the SYNC system. See the
SYNCchapter for more information.
E.MENU:Access audio system functions, such as sound settings for
Bass, Treble, Balance and Fade.
•If your vehicle is equipped with satellite radio, you can access
different menus by pressing OK.
•Set the time by pressing MENU until SET HOURS or SET MINUTES
appears and using the arrow buttons to adjust the time.
•Set the strongest stations on the radio frequency by pressing MENU
until AUTOSET appears. AUTOSET does not override your original
presets.
11 8Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

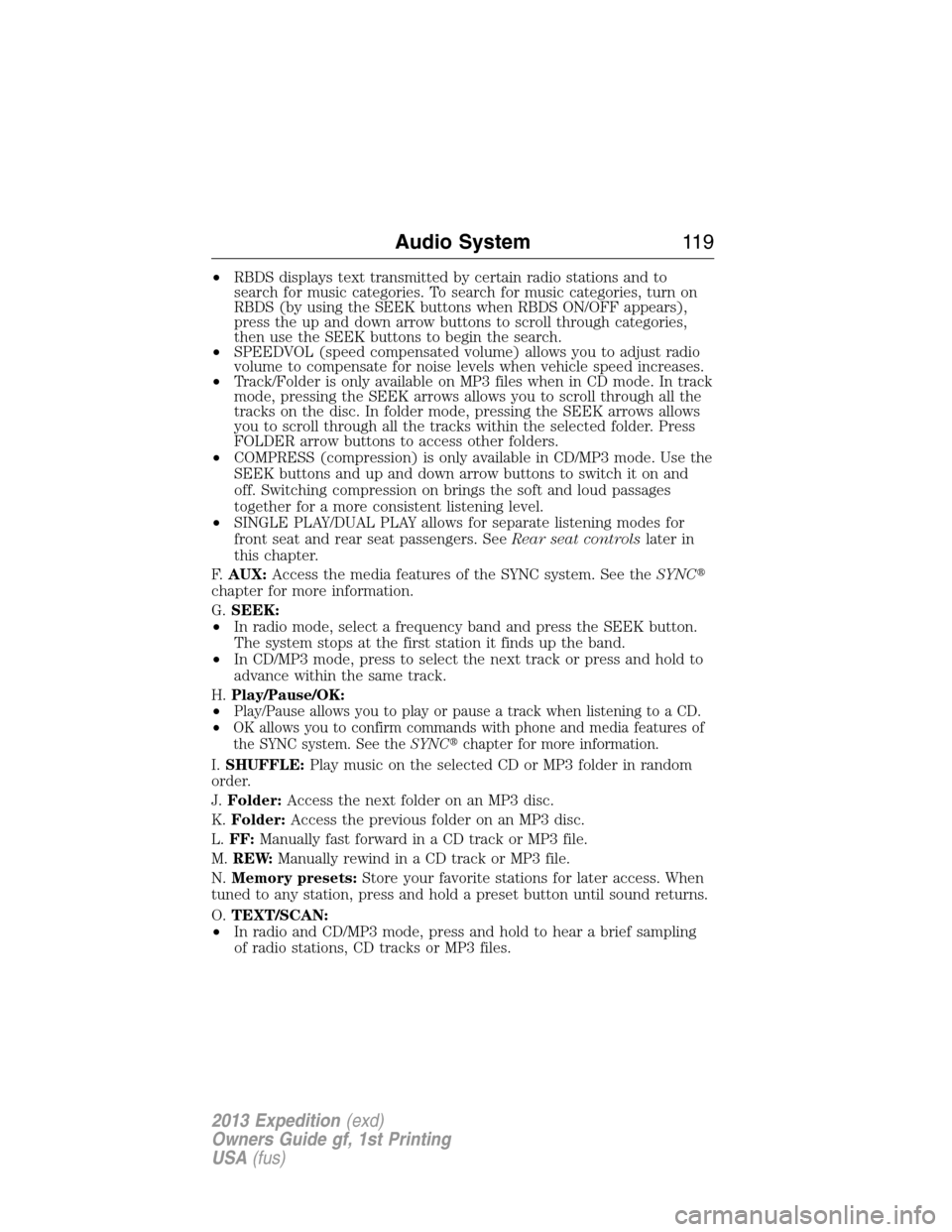

•RBDS displays text transmitted by certain radio stations and to
search for music categories. To search for music categories, turn on
RBDS (by using the SEEK buttons when RBDS ON/OFF appears),
press the up and down arrow buttons to scroll through categories,
then use the SEEK buttons to begin the search.
•SPEEDVOL (speed compensated volume) allows you to adjust radio
volume to compensate for noise levels when vehicle speed increases.
•Track/Folder is only available on MP3 files when in CD mode. In track
mode, pressing the SEEK arrows allows you to scroll through all the
tracks on the disc. In folder mode, pressing the SEEK arrows allows
you to scroll through all the tracks within the selected folder. Press
FOLDER arrow buttons to access other folders.
•COMPRESS (compression) is only available in CD/MP3 mode. Use the
SEEK buttons and up and down arrow buttons to switch it on and
off. Switching compression on brings the soft and loud passages
together for a more consistent listening level.
•SINGLE PLAY/DUAL PLAY allows for separate listening modes for
front seat and rear seat passengers. SeeRear seat controlslater in
this chapter.
F.AUX:Access the media features of the SYNC system. See theSYNC
chapter for more information.
G.SEEK:
•In radio mode, select a frequency band and press the SEEK button.
The system stops at the first station it finds up the band.
•In CD/MP3 mode, press to select the next track or press and hold to
advance within the same track.
H.Play/Pause/OK:
•
Play/Pause allows you to play or pause a track when listening to a CD.
•OK allows you to confirm commands with phone and media features of
the SYNC system. See theSYNCchapter for more information.
I.SHUFFLE:Play music on the selected CD or MP3 folder in random
order.
J.Folder:Access the next folder on an MP3 disc.
K.Folder:Access the previous folder on an MP3 disc.
L.FF:Manually fast forward in a CD track or MP3 file.
M.REW:Manually rewind in a CD track or MP3 file.
N.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
O.TEXT/SCAN:
•In radio and CD/MP3 mode, press and hold to hear a brief sampling
of radio stations, CD tracks or MP3 files.
Audio System11 9
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

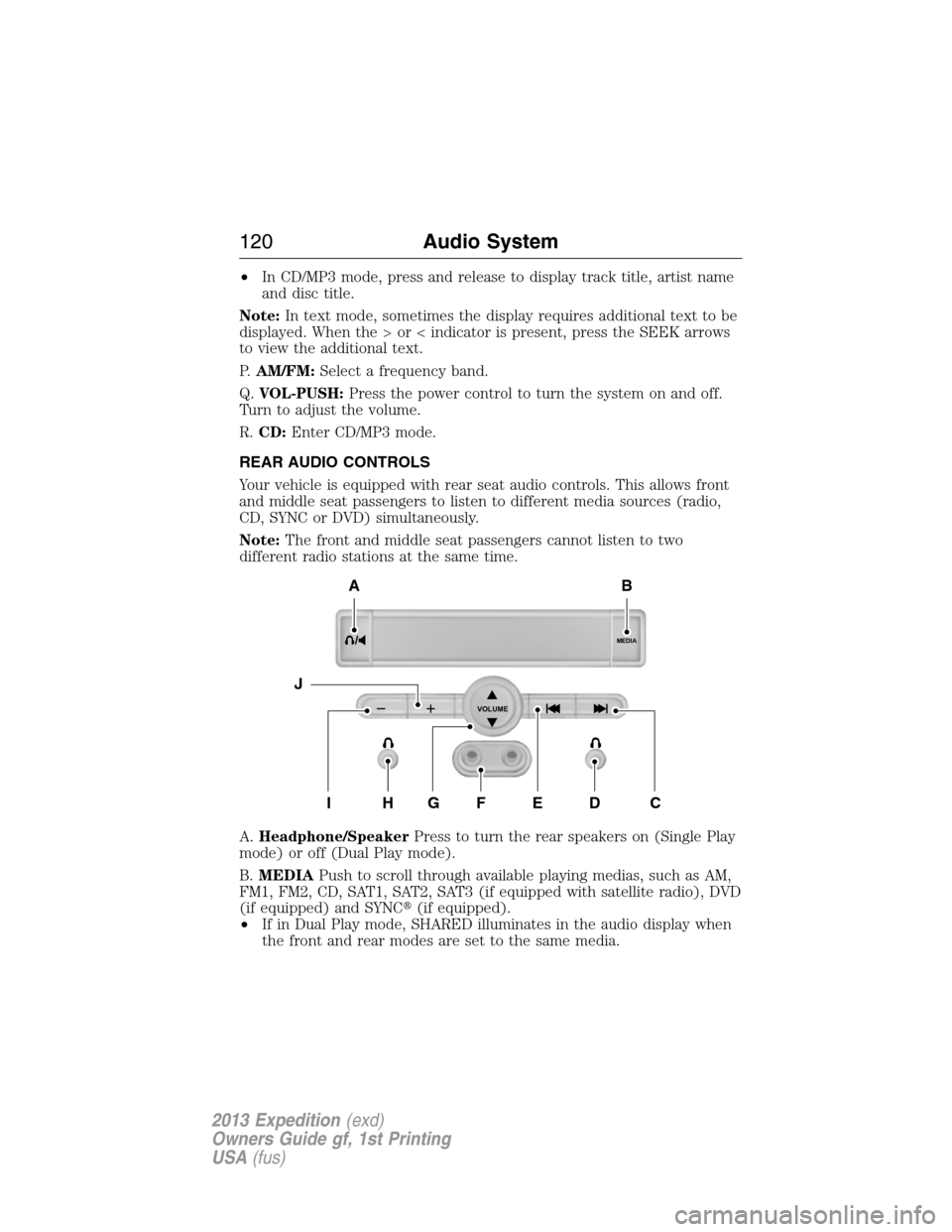

•In CD/MP3 mode, press and release to display track title, artist name
and disc title.
Note:In text mode, sometimes the display requires additional text to be
displayed. When the > or < indicator is present, press the SEEK arrows
to view the additional text.
P.AM/FM:Select a frequency band.
Q.VOL-PUSH:Press the power control to turn the system on and off.
Turn to adjust the volume.
R.CD:Enter CD/MP3 mode.
REAR AUDIO CONTROLS
Your vehicle is equipped with rear seat audio controls. This allows front
and middle seat passengers to listen to different media sources (radio,
CD, SYNC or DVD) simultaneously.
Note:The front and middle seat passengers cannot listen to two
different radio stations at the same time.
A.Headphone/SpeakerPress to turn the rear speakers on (Single Play
mode) or off (Dual Play mode).
B.MEDIAPush to scroll through available playing medias, such as AM,
FM1, FM2, CD, SAT1, SAT2, SAT3 (if equipped with satellite radio), DVD
(if equipped) and SYNC(if equipped).
•If in Dual Play mode, SHARED illuminates in the audio display when
the front and rear modes are set to the same media.
MEDIA
VOLUME
B
HFGEDCI
A
J
120Audio System
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)
