REMOTE START CLIMATE OPERATION (C-MAX ENERGI ONLY)
The climate control system adjusts the cabin temperature during remote
start.
You cannot adjust the system during remote start operation. Turn the
ignition on to return the system to its previous settings. You can now
make adjustments. You will need to turn certain vehicle-dependent
features back on, such as:
•heated seats
•heated mirrors
•heated rear window.
You can adjust the settings using the information display controls.
See theInformation Displayschapter.
Automatic Climate Systems
Automatic Settings
You can set the climate control to operate in AUTO mode through the
information display setting: Remote Start > Climate Control > Heater –
A/C > Auto. The climate control system automatically sets the interior
temperature to 72°F (22°C).
In hot weather, the system is set to 72°F (22°C).
In moderate weather, the system either heats or cools (based on
previous settings). The rear defroster, heated mirrors and heated
seats do not automatically turn on.
In cold weather, the system is set to 72°F (22°C). The rear defroster and
heated mirrors automatically turn on.
Last Settings
You can set the climate control to operate using the last climate control
settings through the information display setting: Remote Start > Climate
Control > Heater – A/C > Last Settings. The climate control system
automatically uses the settings last selected before you turned off the
engine.
Heated and Cooled Devices
The climate control system controls other heated and cooled devices
inside the vehicle. You can switch these devices on (if available, and
selected toAUTOin the information displays) during remote start.
Heated devices usually switch on during cold weather, and cooled
devices during hot weather.
156Climate Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Programming HomeLink to a Genie Intellicode 2 garage door
opener
Note:The Genie Intellicode 2 transmitter must already be programmed
to operate with the garage door opener.
Programing the transmitters
To program HomeLink to the transmitter you must first put the
transmitter into programming mode. To do this:
A. Red LED
B. Green LED
1. Press and hold one of the buttons on the hand-held transmitter for
10 seconds. The LED light will change from green to green and red.
2. Press the same button twice to confirm the change to Programming
mode. If done properly the LED light will appear red.
3. Hold the transmitter within 1–3 inches (2–8 centimeters) of the
button on the sun visor you want to program.
4. Press and hold both the programmed Genie button on the hand-held
transmitter and the button on the sun visor you want to program.
The indicator light on the sun visor will flash rapidly when the
programming is successful.
Note:the Genie transmitter will transmit for up to 30 seconds.
If HomeLink does not program within 30 seconds the Genie transmitter
will need to be pressed again. If the Genie transmitter LED displays
green and red, release the button until the LED turns off before pressing
the button again.
Once HomeLink has been programmed successfully, the Genie
transmitter must be changed out of program mode. To do this:
1. Press and hold the previously programmed Genie button on the
hand-held transmitter for 10 seconds. The indicator light will change
from red to red and green.
2. Press the same button twice to confirm the change. If done correctly
the LED will turn green.
BA
Universal Garage Door Opener (If Equipped)169
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

IGNITION SWITCH (IF EQUIPPED)
0 (Off):The ignition is off.
Note:When you switch the ignition off and leave your vehicle, do not
leave your key in the ignition. This could cause your vehicle battery to
lose charge.
I (Accessory):Allows the electrical accessories, such as the radio, to
operate while the engine is not running.
Note:Do not leave the ignition key in this position for too long.
This could cause your vehicle battery to lose charge.
II (On):All electrical circuits are operational and the warning lamps and
indicators illuminate.
III (Start):Cranks the engine.
KEYLESS STARTING (IF EQUIPPED)
Note:The keyless starting system may not function if the key is close to
metal objects or electronic devices such as cellular phones.
Note:A valid key must be located inside your vehicle to switch the
ignition on and start the engine.
Note:When locking your vehicle, any remote controls left inside the
vehicle may become disabled. A message may appear in the information
display indicating that there is no key detected if you try to start the
engine. Press the unlock button on the remote control to enable it, and
then start the engine.
Starting and Stopping the Engine175
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

PLUG-IN POWER MODE AND HYBRID MODE (C-MAX ENERGI ONLY)
C-MAX Energi vehicles must be plugged in regularly for optimal use of
the high voltage battery’s extended range capability. When you charge
your vehicle you add electrical energy which is then used to propel the
vehicle in Plug-in Power Mode. Your estimated electric range in this
mode is shown in an enhanced battery gauge on the instrument panel
display. Electric only operation is maximized in plug-in power mode.
System conditions may require engine operation, however, plug-in power
will be used whenever possible.
When your plug-in power has been depleted, the powertrain system will
automatically switch to hybrid mode. Your battery gauge will show an
electric range of zero before transitioning to a simple battery graphic
upon entering hybrid mode. Hybrid mode uses both the gasoline engine
and electric motor to power your vehicle and maximize fuel economy as
with C-MAX Hybrid.
EV MODES (C-MAX ENERGI ONLY)
Your vehicle contains selectable EV modes through the EV
button on the center console.
These modes are available when the vehicle can run under high voltage
battery power. With the vehicle in driving mode you can change EV
modes with each press of the EV button. The current mode will be
displayed in the left hand instrument cluster screen.
Auto EV
This mode provides an automatic use of high-voltage battery
power during the drive, staying in electric mode when possible
and running the engine when needed. This mode will be the
only one available if the plug in power has been depleted.
AUTO
182Unique Driving Characteristics
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

EV Now
This mode provides an electric only driving experience using
plug-in power. The left-hand information display will change to an
Energy Use screen that supplies EV specific tools and functions.
The vehicle may accelerate more slowly and the top speed may be lower
than in Auto EV. At any time, the engine may be enabled by using one of
the following methods:
1. Press the OK button on the left 5–way steering wheel control while
viewing the EV screen. The vehicle will automatically exit override after
the timer has expired and the engine shuts down.
2.
Press the accelerator pedal fully. A pop up message statingPress OK to
Enable Enginewill appear. Press OK on the left steering wheel button to
activate as needed. The message will disappear if the accelerator pedal is
released.
3. Press the EV button. This will change the mode to EV Later and
permit engine operation
The vehicle may automatically enter Engine Enabled mode if system
conditions require it. A messageEngine Enabled for System
Performancewill display if this occurs. This is normal function, and
your vehicle will return to EV Now when possible.
The vehicle may enter Enable Engine mode if the climate control is in a
defrost mode and the outside temperature is cold. A messageEngine
Enabled Due to Defrostwill display if this occurs. If defrost is not
needed, select a different climate control mode to permit EV Now.
There is a blue EV icon that is displayed in the left-hand information
display when EV Now is enabled. If the vehicle is in the Engine Enabled
mode, the EV icon will be yellow.
EV Now will automatically exit when the Plug in power has been depleted.
EV Later
This mode saves the high voltage battery plug in power for
future use (for example, your initial drive is at high speeds on
open roads, but later your drive will be at low speeds in an
urban area). Your vehicle will run the engine as needed and
keep most of the high voltage battery plug in power for later use in Auto
EV or EV Now mode.
There is a white EV Later icon that appears on the left-hand information
display when EV Later is enabled.
EV
Unique Driving Characteristics183
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

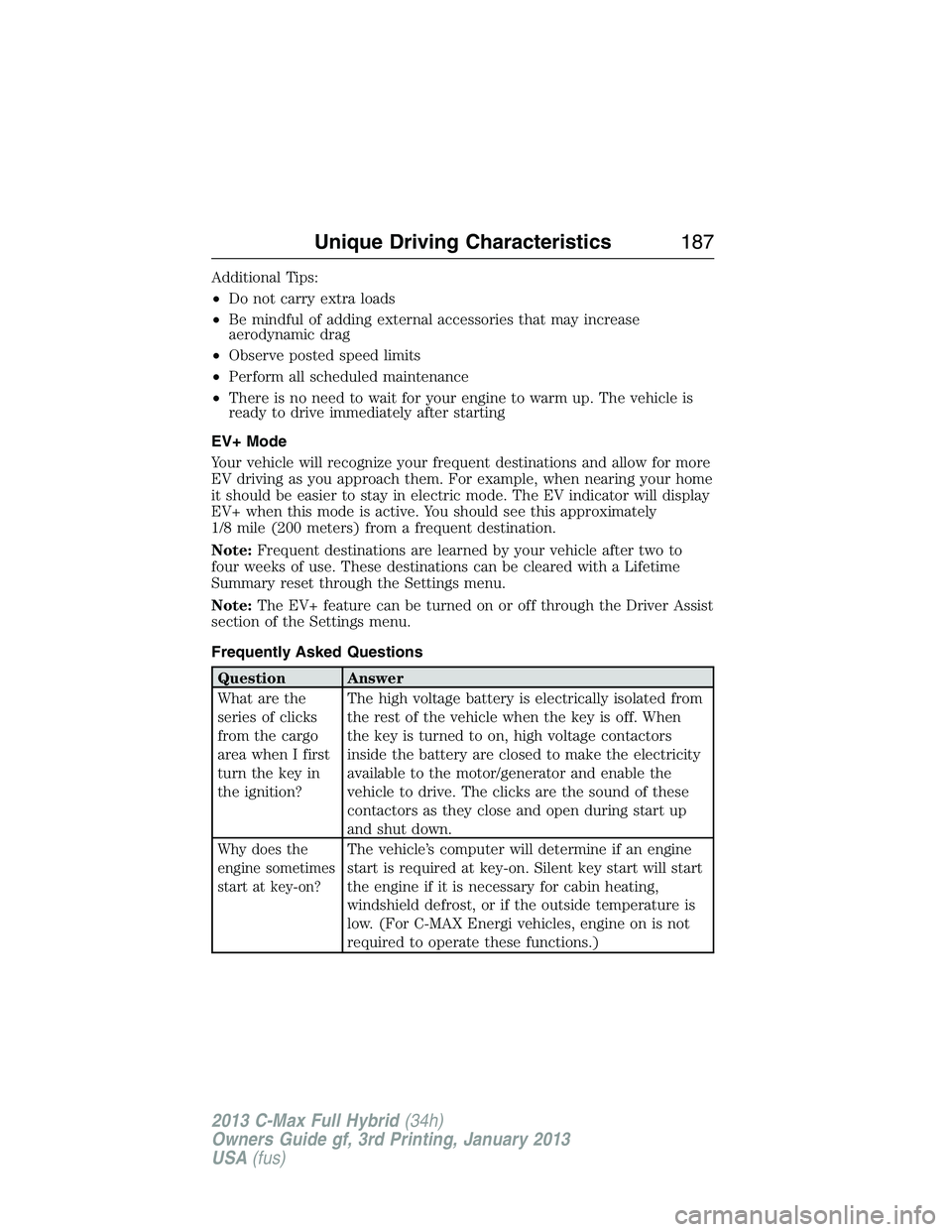

Additional Tips:
•Do not carry extra loads
•Be mindful of adding external accessories that may increase
aerodynamic drag
•Observe posted speed limits
•Perform all scheduled maintenance
•There is no need to wait for your engine to warm up. The vehicle is
ready to drive immediately after starting
EV+ Mode
Your vehicle will recognize your frequent destinations and allow for more
EV driving as you approach them. For example, when nearing your home
it should be easier to stay in electric mode. The EV indicator will display
EV+ when this mode is active. You should see this approximately
1/8 mile (200 meters) from a frequent destination.
Note:Frequent destinations are learned by your vehicle after two to
four weeks of use. These destinations can be cleared with a Lifetime
Summary reset through the Settings menu.
Note:The EV+ feature can be turned on or off through the Driver Assist
section of the Settings menu.
Frequently Asked Questions
Question Answer
What are the
series of clicks
from the cargo
area when I first
turn the key in
the ignition?The high voltage battery is electrically isolated from
the rest of the vehicle when the key is off. When
the key is turned to on, high voltage contactors
inside the battery are closed to make the electricity
available to the motor/generator and enable the
vehicle to drive. The clicks are the sound of these
contactors as they close and open during start up
and shut down.
Why does the
engine sometimes
start at key-on?The vehicle’s computer will determine if an engine
start is required at key-on. Silent key start will start
the engine if it is necessary for cabin heating,
windshield defrost, or if the outside temperature is
low. (For C-MAX Energi vehicles, engine on is not
required to operate these functions.)
Unique Driving Characteristics187
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Octane Recommendations
Regular unleaded gasoline with a
pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer
fuels posted as Regular with an
octane rating below 87, particularly
in high altitude areas. Fuels with octane levels below 87 are not
recommended.
Regular unleaded gasoline with a pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer fuels posted as “Regular” with an
octane rating below 87, particularly in high altitude areas. Fuels with
octane levels below 87 are not recommended.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
Fuel Freshness Mode (Energi Vehicles Only)
This feature helps keeps the fuel system functional and the fuel fresh.
If you operate your vehicle mainly in plug-in power mode using
electricity from plugging in without refueling, the gasoline in your tank
eventually becomes old. Old fuel can damage the engine and fuel system.
To prevent the fuel from becoming old, your vehicle will automatically
enter fuel freshness mode. In fuel freshness mode operates, your vehicle
will operate in hybrid mode causing the gasoline engine to run in order
to consume the fuel in the fuel tank.
Note:
If new fuel is not added during an 18 month period, fuel freshness
mode will consume fuel until about 1 gallon (3.8 liters) is left in the tank.
During fuel freshness mode:
•The information display screen will indicate that fuel freshness mode
is active.
•The vehicle will only run in hybrid mode. EV Now mode will not be
available.
•Most of the plug-in power will be stored until fuel freshness mode is
completed.
87(R+M)/2 METHOD
192Fuel and Refueling
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

If the fuel fill inlet was not properly closed, a Check Fuel Fill Inlet
message may appear on the information display screen. At the next
opportunity, do the following:
1. Safely pull off the road.
2. Put the vehicle inP(Park) and turn the ignition off.
3. Open the fuel filler door and remove any visible debris from the fuel
fill opening.
4. Insert either the fuel fill nozzle or the fuel fill funnel provided with the
vehicle several times to dislodge any debris and/or allow the inlet to
close properly.
If this action corrects the problem, the message may not reset
immediately. It may take several driving cycles for the message to turn
off. A driving cycle consists of an engine start-up (after four or more
hours with the engine off) followed by city/highway driving. Continuing
to drive with the message on may cause the service engine soon lamp to
turn on as well.
Using the Easy Fuel™ Capless Fuel System (C-MAX Energi Only)
WARNING:The fuel system may be under pressure. Insert the
fuel nozzle slowly. If you hear a hissing sound near the fuel filler
door, do not refuel until the sound stops. Otherwise, fuel may spray
out, which could cause serious personal injury.
Note:Your vehicle features a locking fuel door and an Easy Fuel™
system which has a auto-sealing feature that locks the fuel tank refueling
valve. Before you can refuel your vehicle you must first press the button
located on your instrument panel. Pressing this button will unlock the
fuel tank refueling valve allowing the fuel filler door to open so that the
fuel filler nozzle can be inserted into the fuel tank. This could take up to
15 seconds before the fuel filler door pops open allowing the insertion of
the fuel filler nozzle. In the event that the fuel valve does not unlock
automatically you can pull the manual override lever located in the
trunk. This will open the refueling door and allow access to fill your
vehicle.
Fuel and Refueling195
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
