2013 FORD C MAX Owners Manual

You can use your keyfob to view the vehicles charge status at any
time by pressing the unlock button. The light ring will light up the
corresponding quadrant(s) so that the current state of charge can be
determined. If the charge is below 25 percent the light ring will not
illuminate. Don’t forget to press the lock button on your keyfob to
re-lock the vehicle.
The light ring will also display the current state of charge when opening
the doors.
Charging
Note:The vehicle must be inP
(Park) to charge the high-voltage
battery.
To charge your high-voltage battery:
1. Put the vehicle inP(Park) and
power down the vehicle.
2. With your thumb, press the indentation located on the charge port
door and the door will rotate open.
3. Plug the charging coupler into the vehicles charge port receptacle and
make sure the button “clicks” confirming that it is completely engaged.
4. Verify that the cord acknowledgement feature activates. This indicates
the beginning of a normal charge cycle.
5. If using a 240 volt charging station, follow the instructions on the
charge station to begin the charging process.
When charging, the light ring will display how far along the charge is:
•When the top right quadrant is pulsing the charge is between
0–25 percent.
•When the top right quadrant is solidly lit and the bottom right
quadrant is pulsing the charge is between 25–50 percent.
•When both right side quadrants are solidly lit and the bottom left
quadrant is pulsing the charge is between 50–75 percent.
•When three quadrants are solidly lit and the top left quadrant is
pulsing the charge is between 75–100 percent.
•When the entire ring is solidly lit, the charge is complete.
Note:The illuminated ring will shut off one minute after reaching a full
charge.
208High Voltage Battery
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Waiting to Charge
Note:SeeCharge Settingsin theMyFord TouchChapter for more
information.
When Value Charge has been selected charging may not begin upon
plugging in. The vehicle may delay charging to take advantage of
off-peak electricity rates. The vehicle will optimize the charge schedule
to be complete by the next GO Time.
When waiting to charge (not actively charging), the light ring will
indicate the present state of charge of the high voltage battery as
follows:
•When the top right quadrant is shut off the charge is between
0–25 percent.
•When the top right quadrant is solidly lit and the bottom right
quadrant is shut off the charge is between 25–50 percent.
•When both right side quadrants are solidly lit and the bottom left
quadrant is shut off the charge is between 50–75 percent.
•When three quadrants are solidly lit and the top left quadrant is shut
off the charge is between 75–100 percent.
•When the entire ring is solidly lit, the charge is 100 percent.
Note:When the vehicle is Waiting to Charge the light ring will shut off
one minute after displaying the present state of charge. When the vehicle
automatically begins charging the light ring will turn on and display how
far along the charge is per the section above.
Note:If a vehicle charging system fault is detected at any point in a
charge cycle the entire light ring will flash continuously for one minute
and then shut off. If this happens unplug, and then re-plug the charging
coupler into the charge port receptacle. If the problem persists contact
your authorized dealer.
The light ring illumination conditions can be modified. See theCharge
Port Light Ring Settingsin theMyFord Touchchapter.
High Voltage Battery209
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Disconnecting the Charging
Coupler
Note:Do not pull the wall plug
from the wall while the vehicle is
charging. Doing so may damage the
outlet and the cord.
To disconnect the charging coupler:
1. Press the button on the charging
coupler with your thumb.
2. While holding the button, remove
the charging coupler from the vehicle’s charge port receptacle.
3. Close the charge port door by pressing the indentation on the charge
port door. Continue pressing the indentation while the door rotates
counter clockwise and closes.
Convenience Charging and MyFord® Mobile
The setting up of the charging convenience features is primarily done with
the MyFord Mobile smart phone application. Visit myfordmobile.com for
more complete information and to set up your MyFord Mobile account.
Your electric vehicle also has some convenience features to improve your
charging experience:
•Value Charge:The vehicle schedules charging at the lowest available
utility rates. Contact your utility company to see what rates are
available.
•Charge Now:Fully charge your vehicle at the quickest rate.
The vehicle starts charging immediately after you connect the
charging plug into the vehicle.
•
My GO Time:Setting My GO times through the MyFord Mobile
application allows you to set charging schedules and cabin preconditioning
settings so your vehicle is ready to drive when you are. By setting a My
GO time the vehicles charge can be completed before your next set drive
time. A calendar view allows you to program two My GO Times per day
for each of the seven days of the week. Remember, your vehicle must be
plugged in for My GO time to work.
•Cabin Preconditioning:Get the most miles out of every charge by
preconditioning your vehicle while it’s still plugged in and charging.
Use your smart phone to set the cabin temperature and departure
time before you leave so you use energy from your home wall outlet
instead of your battery to heat or cool your vehicle.
210High Voltage Battery
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

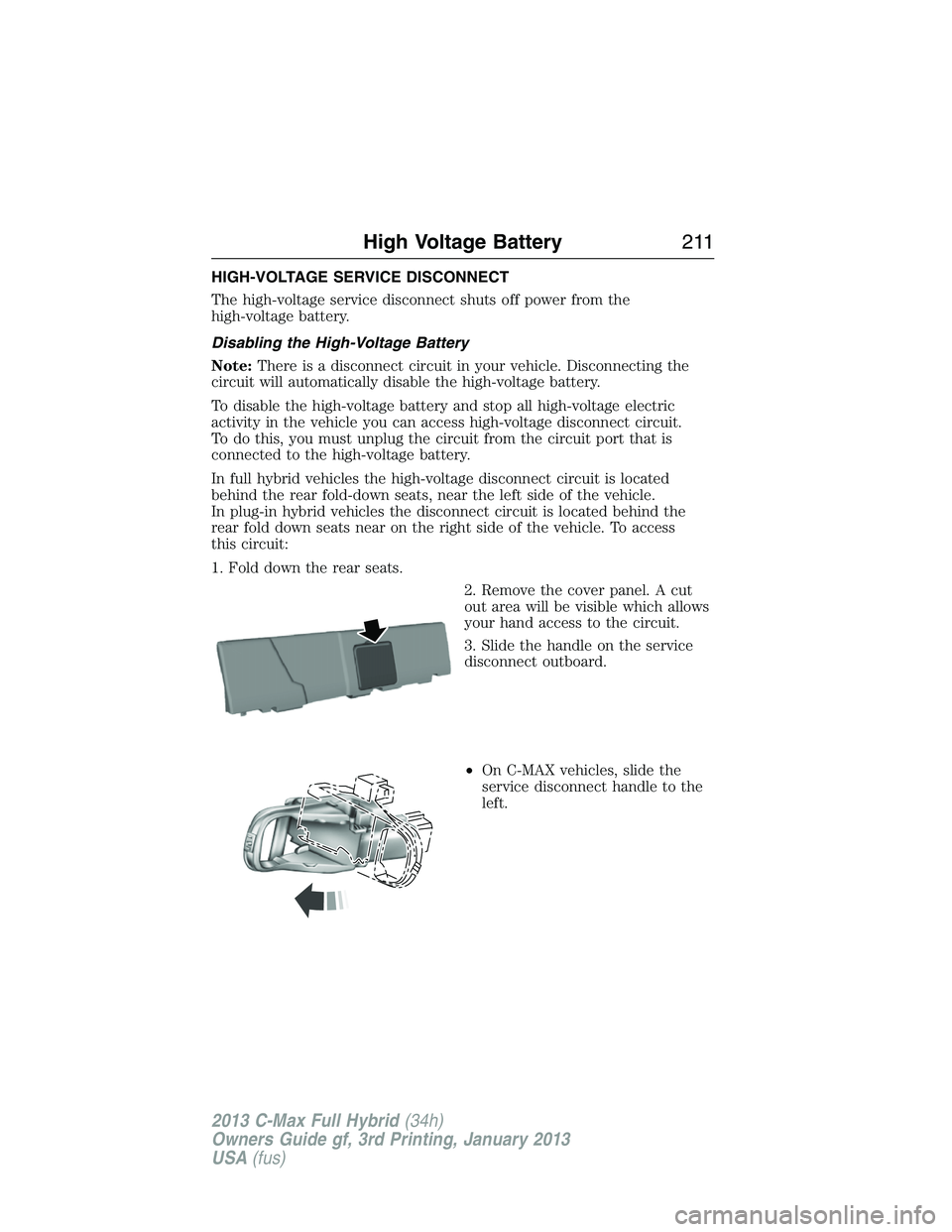

HIGH-VOLTAGE SERVICE DISCONNECT
The high-voltage service disconnect shuts off power from the
high-voltage battery.
Disabling the High-Voltage Battery
Note:There is a disconnect circuit in your vehicle. Disconnecting the
circuit will automatically disable the high-voltage battery.
To disable the high-voltage battery and stop all high-voltage electric
activity in the vehicle you can access high-voltage disconnect circuit.
To do this, you must unplug the circuit from the circuit port that is
connected to the high-voltage battery.
In full hybrid vehicles the high-voltage disconnect circuit is located
behind the rear fold-down seats, near the left side of the vehicle.
In plug-in hybrid vehicles the disconnect circuit is located behind the
rear fold down seats near on the right side of the vehicle. To access
this circuit:
1. Fold down the rear seats.
2. Remove the cover panel. A cut
out area will be visible which allows
your hand access to the circuit.
3. Slide the handle on the service
disconnect outboard.
•On C-MAX vehicles, slide the
service disconnect handle to the
left.
High Voltage Battery211
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

•On C-MAX Energi vehicles, slide the
service disconnect handle to the right.
4. Pull the handle toward you and
remove the circuit from the vehicle
to disable the high-voltage battery.
Reverse this procedure to reinstall the service disconnect.
Reactivating the high-voltage battery
Note:If you have manually disconnected your high-voltage shutoff
circuit you will need to reconnect the circuit before it can be reactivated.
The vehicle will detect if the electrical system is safe and reactivate
automatically.
212High Voltage Battery
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

AUTOMATIC TRANSMISSION
WARNING:Always set the parking brake fully and make sure
the gearshift is latched inP(Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle
WARNING:When parking, do not use the gearshift in place of
the parking brake. Always set the parking brake fully and make
sure that the gearshift is securely latched inP(Park). Turn off the
ignition whenever you leave your vehicle. Never leave your vehicle
unattended while it is running. If you do not take these precautions,
your vehicle may move unexpectedly and injure someone.
P (Park)
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
1. Start the engine
2. Release the parking brake
3. Press the brake pedal
4. Move the gearshift lever into the
desired gear
To put your vehicle inP(Park):
1. Come to a complete stop
2. Move the gearshift lever and securely latch it inP(Park)
R (Reverse)
With the gearshift lever inR(Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out ofR
(Reverse).
N (Neutral)
With the gearshift lever inN(Neutral), the vehicle is free to roll; hold
the brake pedal down while in this position. Because of the unique
nature of the hybrid vehicle, the engine will not start in theN(Neutral)
position.
The vehicle does not charge the high voltage battery in theN(Neutral)
position. Do not idle the vehicle inN(Neutral) for extended periods as
this will discharge your high voltage battery.
PRNDL
Transmission213
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

D (Drive)
The normal driving position for the best fuel economy.
D (Drive) with Grade Assist
Press the transmission control switch on the side of the gearshift lever to
activate grade assist and cancel overdrive.
Grade assist:
•The grade assist lamp in the instrument cluster is
illuminated.
•Provides additional grade braking with a combination of engine
motoring and high-voltage battery charging to help maintain vehicle
speed when descending a grade.
•As the vehicle determines the amount of engine motoring and
high-voltage battery charging, you may notice the engine speed
increasing and decreasing to help maintain your vehicle speed when
descending a grade.
Press the transmission control switch again to return to normalD
(Drive).
•The grade assist lamp in the instrument cluster will not be illuminated.
L (Low)
•Provides maximum engine braking.
•The transmission may be shifted intoL(Low) at any vehicle speed.
PRNDL
214Transmission
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Brake-Shift Interlock
WARNING:Do not drive your vehicle until you verify that the
brake lamps are working.
WARNING:When doing this procedure, you will be taking the
vehicle out of park which means the vehicle can roll freely.
To avoid unwanted vehicle movement, always fully set the parking
brake prior to doing this procedure. Use wheel chocks if appropriate.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown and the brake lamps are working properly, the
following procedure will allow you to move the gearshift lever from
P (Park):
1. Apply the parking brake, turn the
ignition key to the off position and
remove the key.
2. Using a screwdriver (or similar
tool), carefully pry off and remove
the passenger side access cover.
Remove the fastener, then remove
the console side panel to expose the
inside of the shifter assembly.
Transmission215
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
