2013 CITROEN NEMO DAG Handbook (in English)

15
FAMILIARISATION
Familiarisation

PASSENGER SAFETY


Passenger's front airbag

The passenger's front airbag is deactivated by
means of the MENU button, located to the left
of the steering wheel.

Seat belt not fastened



A.
Driver's seat belt not fastened warning
lamp.



118



122



Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.



108


1.
Press the MENU button.

2.
Select "Bag" and confi rm by pressing the
MENU button.

3.
Select "OFF" and confi rm by pressing the
MENU button.

4.
Select "YES" and confi rm by pressing the
MENU button.

16

Familiarisation

DRIVING SAFELY


Electronic gearbox


Display in the instrument panel
Moving off



50
This fi ve-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.

N.
neutral.

R.
reverse.

M +/-.
sequential mode.

A.
automated mode.

E.
economy programme. The gear and the driving mode selected
appear in the instrument panel screen.

N:
neutral.

R:
reverse gear.

1 2 3 4 5:
gears engaged.

AUTO:
automatic mode.

E:
economy programme. Select position N
and press the brake pedal
fi rmly while starting the engine.
Start the engine.
Select the manual or automated mode (move
to the middle position, then long press to the
left) or reverse (position R
) using the gear
lever.
Release the parking brake.
Release the brake pedal, then move off.

17
FAMILIARISATION
Familiarisation

Going into engine STOP mode


Stop & Start



- with a manual gearbox;
press the clutch
pedal,

- with an electronic gearbox;



●
gear lever in position A
or M
, release
the brake pedal,

●
or gear lever in position N
and the brake
pedal released, move the gear lever to
position A
or M
,

●
or engage reverse.

Going into engine START mode

DRIVING SAFELY


Deactivation/Reactivation


- with a manual gearbox;
with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,

- with an electronic gearbox;
with the
vehicle stationary, maintain pressure on
the brake pedal or put the gear lever in
position N
.
You can deactivate the system at any time by
pressing the "S - OFF"
button; the warning
lamp in the button comes on, accompanied by
a message in the instrument panel screen.
The system is automatically reactivated every
time the engine is started with the key. In certain circumstances, START mode may be
invoked automatically; a message appears in
the instrument panel screen, accompanied by
the "S"
warning lamp, which fl ashes for a few
seconds then goes off.
Before refuelling, before doing anything
under the bonnet or before leaving the
vehicle, you must switch off the ignition
with the key. In certain circumstances, STOP mode may
not be available; a message appears in the
instrument panel screen, accompanied by the
"S"
warning lamp, which fl ashes for a few
seconds then goes off.



55



56




57

The "S"
warning lamp comes on in
the instrument panel and the engine
goes into standby: The "S"
warning lamp goes off and
the engine restarts:
Automatic stopping of the engine is only
possible after a speed of about 6 mph
(10 km/h) has been exceeded, to avoid
repeated stopping of the engine when
driving slowly.
17

18

Familiarisation

DRIVING SAFELY


Cruise control



1.
Cruise control mode Selection/Off.

2.
Decreasing of the programmed value.

3.
Programming of a speed/Increasing of the
programmed value.

4.
Cruise control off/resume.
In order to be programmed or activated, the
speed of the vehicle must be higher than
18 mph (30 km/h), with at least second gear
engaged in the gearbox.



44


1.
STOP
position - Off.

2.
MAR
position - Ignition on.

3.
AV V
position - Start.


Ignition switch

The cruise control mode appears in the
instrument panel when selected.
Display in the instrument panel

Cruise control



STARTING

Avoid attaching heavy objects to the
key which could weigh on the key when
in the ignition switch; this could cause
malfunctions.



34

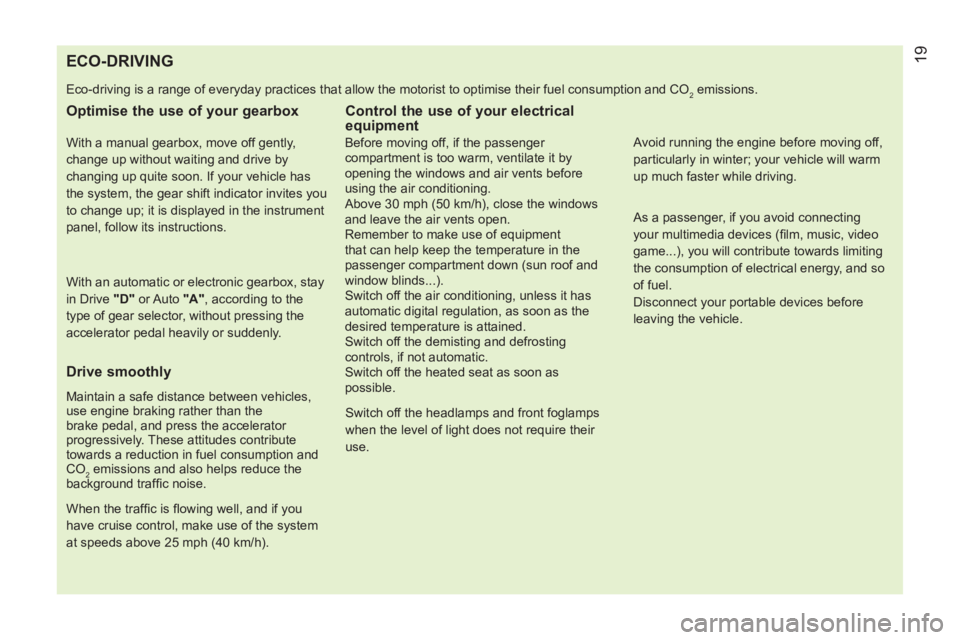

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites you
to change up; it is displayed in the instrument
panel, follow its instructions.

With an automatic or electronic gearbox, stay
in Drive "D"
or Auto "A"
, according to the
type of gear selector, without pressing the
accelerator pedal heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These attitudes contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffi c noise.

When the traffi c is fl owing well, and if you
have cruise control, make use of the system
at speeds above 25 mph (40 km/h).



Control the use of your electrical
equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sun roof and
window blinds...).
Switch off the air conditioning, unless it has
automatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
19


Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.

20


Limit the causes of excess
consumption

Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refi t your summer tyres.



Observe the recommendations on
maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil fi lter, air fi lter...) and observe the
schedule of operations recommended by the
manufacturer.


When refuelling, do not continue after the 3 rd
cut-off of the nozzle to avoid any overfl ow.

At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

21
1
READY TO GO



Instruments and controls


INSTRUMENT PANELS



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Fuel gauge.

4.
Coolant temperature.

5.
Rev counter.


Instrument panel with level 1 screen
Instrument panel with level 2 screen

Instrument panel level 1 screen



- Time.

- Miles/Kilometres travelled.

- Trip computer/range, fuel consumption,
average speed.

- Headlamp beam height.

- Programmable overspeed warning.

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's
airbag.



Instrument panel level 2 screen



- Time.

- Date.

- Radio.
- Miles/Kilometres travelled.

- Ambient temperature.

- Modes and gear engaged on the
electronic gear control gearbox.

- Trip computer/range, fuel consumption,
average speed.

- Headlamp beam height.

- Programmable overspeed warning.

- Selection of the display language.

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's
airbag.

- Activation or deactivation of automatic
door locking on moving off.

22



Instruments and controls


WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They go off almost immediately. When
the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning lamp


is
indicates
Solution - action
Service on temporarily. minor faults. Contact a CITROËN dealer or a qualified
workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and
contact a CITROËN dealer or qualified
workshop.
Parking brake
Brake fluid level on.

that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by CITROËN
dealers.
continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park, switch off the ignition
and contact a CITROËN dealer or qualifi ed workshop.

Low engine oil level on. that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN or a qualified workshop.
continuously on, even
though the level is
correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
CITROËN or a qualified workshop.
Coolant temperature on with the needle in
the red zone. an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Contact a CITROËN or a qualified workshop.
