2013 AUDI TT warning light

128 Airbag system
Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection.
& WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
-Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
-Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer. -
Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position.
-Always use the built-in coat hooks only for lightweight clothing. Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer.
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~
page 130, Child Safety.
-Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through ..,.

-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard
Child Safety 131
(FMVSS) 208 as applicable at the time your
vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­ cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and si ze. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight -sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the ..,.
•
•

Model
Evenflo First Choice
1 204
Graco Infant 8457
Graco Snug ride
-M anufactured on or
a fter
December 1, 1999
December 1, 1999
September 25, 2007
Peg Perego Primo Vi -September 25, 200 7
aggio SIP IMUN00US
Subpart C -Forward -fa cing and
c on vert ible child restraint s
Model
Britax Roundabout
E9L02xx
Cosco Touriva 02519
Cosco Summit Deluxe
High Back Booster
2 2-262
Manufactured on or
after
September 25, 2007
December 1, 1999
September 25, 2007
Cosco High Back Boos- September 25, 2007
ter 22-209
E venflo Tribu te V
379xxxx
Evenflo Medallion 25 4
Evenflo Generations
352xxxx
Graco ComfortSport
Graco Toddler Safety
Seat Step 2
Graco Platinum Cargo
& WARNING
September 25, 2007
December 1, 1999
September 25, 2007
September 25, 2007
September 25, 2007
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the front pas­
senger seat and install it proper ly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
yo ur authorized Aud i dealer immediate­
ly.
Child Sa fet y 133
'
(D Tips
The child seats listed in categories A to C
have been statically tested by A udi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the dr iver, you are responsible for the safe­
ty of everybody in the vehicle, especially ch il­
dren:
... Always use the right chi ld safety seat for
each child and always use it properly
¢page 135.
... Always carefully fo llow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the child
safety seat.
... When usi ng the veh icle sa fe ty belt to ins tall
a child safety se at, you m ust first act ivate
the convertib le locking retractor on the
safety belt to p revent the child safety seat
from mov ing
¢ page 140 .
... Push the ch ild safety seat down with your
full weight to get the safety be lt really tight
so that the seat cannot move forwa rd or
sideways mo re than one inch (2.5 cm) .
... If a strap o r tethe r is be ing used to t ie the
child safety seat to the fron t passenger
s eat, make sure tha t it is not so tight that it
causes the weight-sensing ma t to measure
more weight than is act ually on the seat.
... Sec ure unused safety belts on the rear seat
¢page 135.
Always remember : Even tho ugh yo ur vehicle is
equipped with an Advanced Airbag system, all c h il dren, especially those 12 years and young­
er, shou ld always r ide in the back seat proper -
ly restra ined for the ir age and size. .,. •
•

as possible before installing the child
restraint.
- Always make sure that nothing pre­
vents the front passenger's seat from
be ing moved to the rearmost position
in its fore and aft adjustment range.
- Always make sure that the backrest is
in the upr ight position.
- Always buck le the child safety seat firmly
in place even if a child is not sitting in it.
A loose ch ild safety seat can fly around
dur ing a sudden stop or in a col lision .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
¢page 100, Safety
belts,¢ page 108, Airbag system
and
¢ page 130, Child Safety.
A WARNING
To reduce t he ris k of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child rest raint is installed on the front pas ­
senger seat and the ignition is switc hed
on.
- Take the child restraint off t he fro nt pas­
senger seat and install it properly at one of the rear seat positions if the
PASSEN ·
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Secure unused safety belts on the rear
seat
F ig. 112 Schematic overv iew: keep un used safety belts
away from children in child safety seats. • outer rear
safety belt,
Child S afety 13 5
If a child safety seat is used on the rea r bench,
especially with LATCH universal lower ancho­
rages, the unused safety belts
must be se ­
cured so that the child in the child restraint
cannot reach them
¢ &.
-Fasten th e un used safety be lt behind the
child seat and let the be lt ret ractor wind up
the safety belt webbing.
A WARNING
A child in a chi ld safety seat installed with
the LATCH lower anchorages or with the
standard safety belt or a child in a booster
seat on the rea r seat co uld p lay w ith un­
used rear seat safety belts and become en­
tang led. This cou ld cause the chi ld ser ious
personal injury and even dea th.
- Always secure unused rear sea t safe ty
be lts ou t of re ach o f chi ldren in child
seats such as by fastening the un used
safety belt behind the ch ild seat and let­
ting the belt retracto r wind up the web­
bing.
Child safety seats
Infant seats
Babies and infants up to about one year old
and 20 lbs . or
9 kg need special rearward-fac­
ing child restraints that support the back,
neck and head in a crash .
Fig. 1 13 Schema tic overv iew: rea rward-facing infant
seat, properly installed on the rear seat
.,. When usi ng the vehicle safety belt to install
a child safety seat, you must first activate
the convertib le locki ng retractor on the
safety bel t to p reven t the child safe ty seat
Ill>-

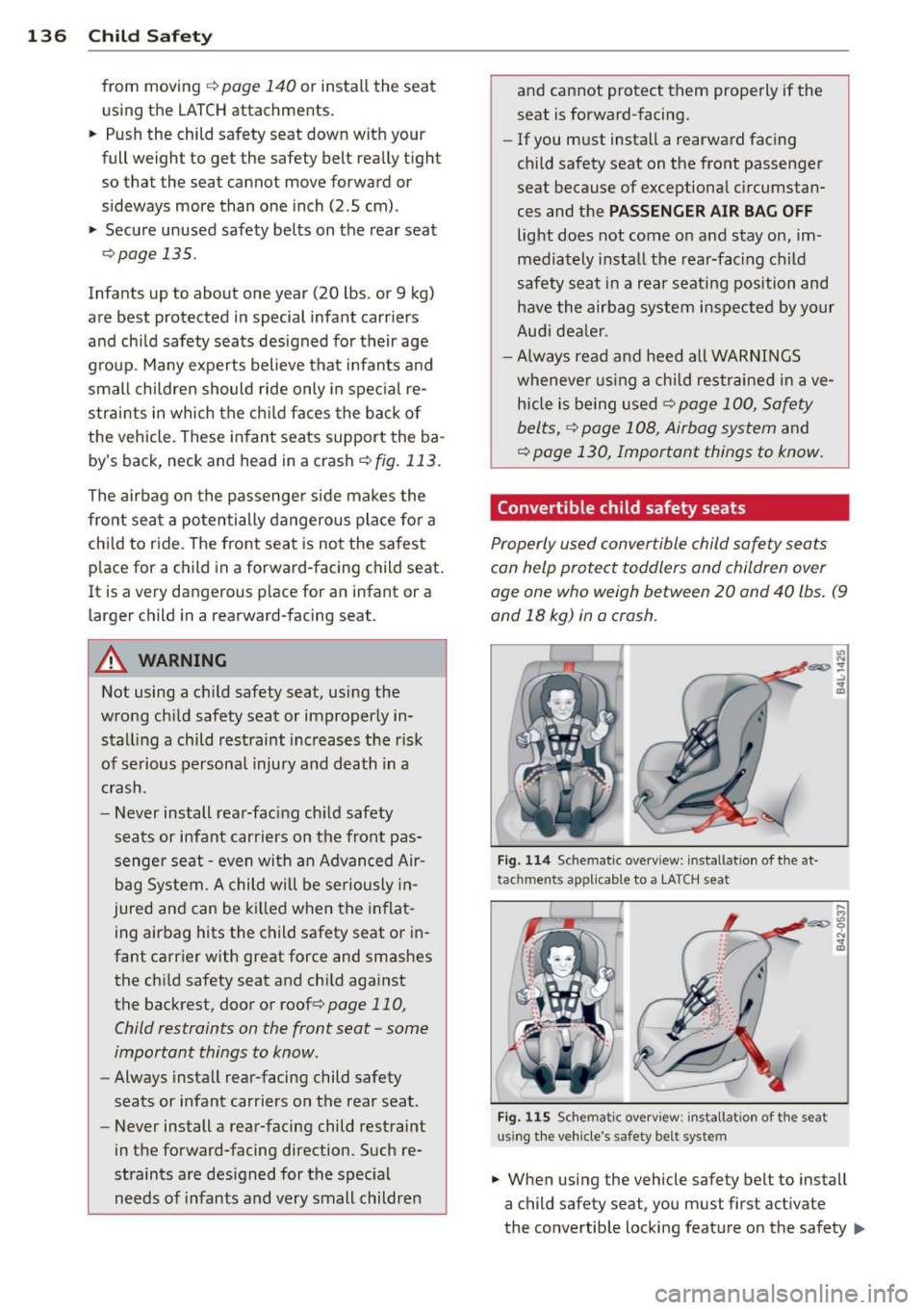

136 Child Safet y
from moving ¢ page 140 or install the seat
using the LATCH attachments .
• Push the child safety seat down with your
full weight to get the safety belt really t ight
so that the seat cannot move forward or
sideways more than one inch (2 .5 cm) .
• Secure unused safety be lts on the rear seat
¢ page 135.
Infants up to about one year (20 lbs . or 9 kg)
a re best protected in special infant carriers
a nd chi ld safety seats designed for their age
group. Many experts believe that i nfants a nd
small children should ride only in spec ial re­
strai nts in which the ch ild faces the back of
the vehicle . These infant seats support the ba­
by's back, neck and head in a cras h¢
fig . 113 .
The airbag on the passenger side makes the
front seat a po tentially dangerous place for a
chi ld to r ide. The front seat is not the safest
p lace for a child in a forward-facing child seat.
It is a very dangerous p lace for an infant or a
larger child in a rearward-facing seat .
A WARNING
Not using a child safety seat, using the
wrong ch ild safety seat or improperly in­
stall ing a child restraint inc reases the risk
of serious persona l injury and d eath in a
c rash .
- Never install rear-fac ing ch ild safety
seats or infant carriers on the front pas­ senger seat -even wi th an Advanced Air­
bag System. A child w ill be seri ously in­
jured an d can be k illed when the inflat­
ing airbag hits the child safety seat o r in­
fant ca rr ier with great force and smashes
the ch ild safety seat and ch ild aga inst
the backrest, doo r or roof ¢
page 110,
Child restraints on the front seat -some
important things to know.
- Always install rear-facing child safety
seats or infant car riers on the rear seat.
- Never install a rear-facing child restraint
in t he forward-facing direction. Such re­
straints are des igned for the spec ial
needs of infants and very small childre n and cannot protect them properly if the
seat is forward-facing.
-
If you must install a rearwa rd facing
child safety seat on the front passenger
seat because of exceptional c ircumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come o n and stay on, im­
mediately insta ll the rear-fac ing ch ild
safety seat in a rear seating position and
have the airbag system inspe cted by your
Aud i dea le r.
- Always read a nd heed a ll WAR NINGS
whenever us ing a chi ld re strained in ave­
hicle is be ing used
¢ page 100, Safety
belts, ¢page 108, Airbag system
and
¢ page 130, Important things to know .
Convertible child safety seats
Properly used convertible child safety sea ts
can help protect toddlers and childr en ov er
age one who weigh between 20 and 40 lbs . (9
and 18 kg) in a crash.
Fig . 1 14 Sc hema tic overview: instal lat ion of the at·
t ac hme nts applicab le to a LA TCH sea t
Fig. 115 Sc hemat ic overview: installa tion of t he sea t
us ing t he ve hicle 's safety be lt sys te m
• When using the vehicle safety belt to install
a child safety seat, you must first activate
the convertible locking feature on the safety ..,_

belt to prevent the child safety seat from
moving
r::!> page 140 or insta ll th e seat using
the LA TCH attachments .
"' Push the child safety seat down w ith your
full weigh t to get the safety belt really t ight
so that the seat cannot move forward or s ideways more than one inch (2 .5 cm)
r::!> page 140 .
"' If the child safety seat is equ ipped with a
tether strap, attach it to the tether anchors
r::!> page 147 .
.. Secure unused safety belts on the rear seat
r::!> page 13 5 .
A toddler or child is usually too large for an in ­
fant restraint if it is more than one year o ld
and weighs more than 20 lbs . (9 kg) .
Todd le rs and c hildren who are older than one
year up to abo ut 4 years o ld and weigh more
than 20 lbs. (9 kg) up to 40 lbs . (18 kg) must
a lways be properly restrained in a chi ld safety
seat certified for their size and weight
r::!> fig. 114 and r:::>fig. 115.
The airbag on the passenge r side makes the
front seat a potentially dangerous place for a
chi ld to ride. The front seat is not the safest
p lace for a child in a forward-facing child safe­
ty seat.
It is a very dangerous place for an in­
fant or a larger child in a rearward-fac ing seat.
A WARNING
Not using a ch ild safety seat , using the
w rong chi ld safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death in a
co llision or other emergency s ituation.
- Children on the front seat of any car,
even with Advanced A irbags, can be seri­
o usly injured or even killed when an air­
bag inf lates . A child in a rearward-facing
child safety seat insta lled on the front
passenger seat w ill be seriously injured
and can be killed if the front airbag in­
flates -even with a n Advanced Airbag
System.
- The inflating a irbag w ill hit the child
safety seat or infant carrier with great
-

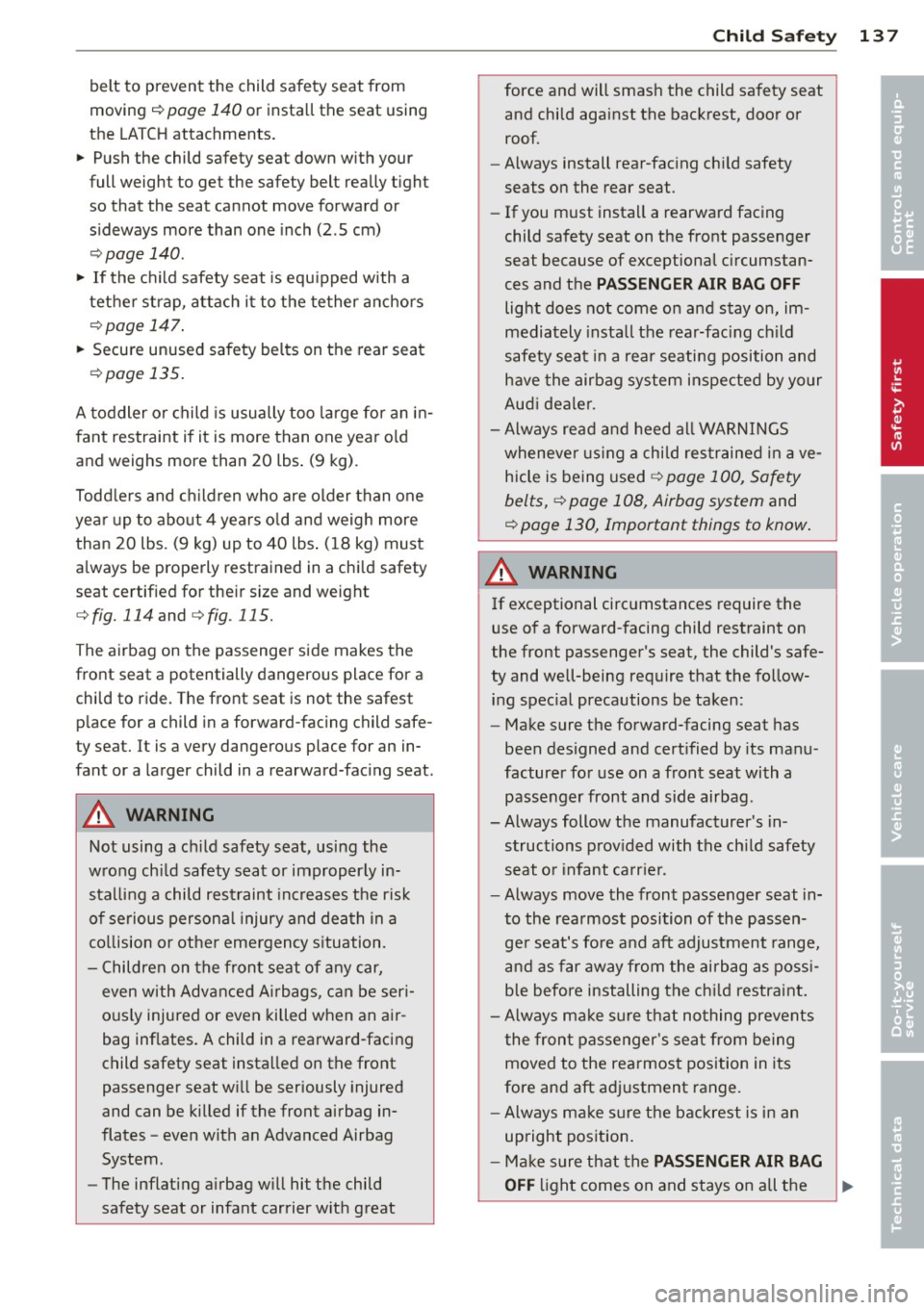

Child Sa fet y 137
force and will smash the child safety seat
and child against the backrest, door or
roof.
- Always install rear-facing ch ild safety
seats on the rear seat .
- If you must insta ll a rearwa rd facing
child safety seat on the front passenger
seat because of exceptiona l circumstan­
ces and the
PA SS ENGER AIR BAG OFF
light does not come on and stay on, im ­
mediately insta ll the rear-fac ing ch ild
safety seat i n a rea r seating position and
h ave the airbag system inspected by your
Aud i dea le r.
- Always read and heed al l WARNINGS
wheneve r using a child res trained in ave­
hicle is being used
r=:> page 100, Safety
belts,
c:> page 108, Airbag system and
r::!> page 130, Important things to know .
A WARNING
If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's safe ­
ty and well-being require that the follow­ ing spec ial precautions be taken:
- Make sure the forward-facing seat has
been designed and cert ified by its manu­
facturer for use on a front seat with a passenger front and side airbag .
- Always follow t he manufacturer's in ­
structions p rov ided with the ch ild safety
seat o r infant ca rr ier .
- Always move the front passenger seat in­
to the rearmost position of the passen­
ge r seat's fo re and aft adjustment range,
a nd as far away from the ai rbag as possi­
b le before installing the ch ild restraint.
- Always ma ke sure that no thing prevents
the front passenger 's seat from being
moved to the rearmost position in its
fore and aft adj ustment range.
- Always ma ke sure the backrest is in an
up right position .
- Ma ke sure that the
PASSENGER AIR BAG
-
OFF li ght comes on and stays on all the ~
•
•

In o rder for the airbag to offer protection, it is
important t hat all vehicle occupants, especia l­
l y any children, who must be in the front seat
because of exceptional circumstances, be
pro perly restrained and as far away from the
airbag as poss ible. By keep ing room between
the child's body and the front of the passen­
ger c om partment, the airbag can inflate com­
p letely and provide supp lemental p rotection
in certa in frontal col lis ions.
A WARNING
Not using a booster seat, us ing the boos­
ter seat improperly, incorrect ly installing a
booster seat or using the vehicle safety
belt improperly increases the risk of seri­
ous personal injury and death in a collision
or other emergency s ituation. To help re­
duce the risk of ser ious personal injury
and/or death:
- The shoulder be lt must lie as close to the
center of the child's co llar bone as poss i­
ble and must lie and snug on the upper
body.
It must never lie across the throat
o r neck. The lap belt must l ie across the
pelvis and never across the s tomach o r
abdomen. Make sure the belt lies flat
and snug. Pull on the be lt to tighten if
necessary.
- Failure to properly route safety belts
over a child's body will cause severe inju­
ries in an acc ident or other emergency
situation
¢page 100.
-Children on the front seat of any car,
even with Advanced A irbags, can be seri­
ous ly injured or even killed when an a ir­
bag inflates.
- Never let a child stand or knee l on any
seat, for examp le the front seat.
- Never let a child ride in the ca rgo area of
your vehicle.
- Always remember that a ch ild lean ing
forward, sitt ing s ideways or out of posi­
t ion in any way during an acc ident can be
struck by a deploying airbag . This will re­
sult in se rious personal injury or death.
- If you must install a booster seat on the
front passenger seat because of excep-
-
Child Sa fet y 139
tional circ umstances the PASSENGER
AIR BAG OFF
li ght m ust come on and
stay on, whenever the ignition is switch­
ed on .
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, perform
the checks descr ibed
¢ page 119, Moni­
toring the Advanced Airbag System .
-Take the chi ld restraint off the front pas­
senger seat and install it prope rly at one
of the rear seat positions if the
PASSEN ­
GER AIR BAG OFF
lig ht does not stay on
wheneve r the ignit ion is swi tched on.
- Always read and heed all WAR NINGS
wheneve r us ing a child res trained in ave­
hicle is being used
¢page 100, Safety
belts,
¢ page 108, Airbag system and
¢ page 130, Important things to know .
Booster seats on the rear seat
Children who are about 7 years and older, who
weigh mo re than SS lbs . (25 kg) and are not
ta ller than 4'11" (1.5 m) are best protected
when properly rest rained on the rear seat.
D ue to limited rear seat head clearance c hil ­
dren 4'3" (1.3 m) and taller must not use
booster seats o n the rear seat of your Aud i TT
Coupe. The rear seat of your Audi TT Coupe
has been specially designed to permit ch ildren
who are betwee n 4'3" ( 1.3 m) and 4'11" ( 1.5
m) tall (about 7 to 12 years old) to use the
available th ree -point lap and s hou lde r safety
belts.
A WARNING
~ -
- T he rear sea t area is too sma ll to safely
transport passengers tal le r than 4 '11"
(1.5 m).
- Persons taller than 4'11" (1. 5 m) as well
as children in booster seats who are too
close to the rear window and roof can
suffer severe head and neck inju ries
when t he rear lid is closed or in a crash.
- The minimum clearance between the
passengers' heads and the rear w indow
•
•

interior. The child can be seriously in­
jured or killed.
- Never install rear-facing child safety
seats or infant carriers on the front pas­
senger seat. A child will be seriously in­
jured and can be killed when the passen­ ger airbag inflates .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, door or
roof.
- Always install rear-facing child safety
seats or infant carriers on the rear seat.
- Forward -facing child safety seats or in ­
fant carriers installed on the front pas­
senger's seat may interfere with the de­
ployment of the airbag and cause serious
injury to the child.
-It is safer to install a forward-facing
child safety seat on the rear seat.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used~
page 130. Special
precautions apply when installing a child
safety seat on the front passenger seat
~ page 110, Child restraints on the front
seat -some important things to know.
_&. WARNING
Always take special precautions if you
must install a forward or rearward-facing
child restraint on the front passenger's
seat in exceptional situations:
- Whenever a forward or rearward-facing
child restraint is installed on the front
passenger seat, the
PASSENGER AIR
BAG OFF
light must come on and stay on
whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, perform
the checks described
~page 119, Moni­
toring the Advanced Airbag System.
- Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASS EN-
Child Safety 141
GER AIR BAG OFF light does not stay on
whenever the ignition is switched on.
- Improper installation of child restraints
can reduce their effectiveness or even
prevent them from providing any protec­
tion.
-An improperly installed child restraint can interfere with the airbag as it de­ploys and seriously injure or even kill the
child.
- Always carefully follow the manufactur­
er's instructions provided with the child
safety seat or carrier.
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can cause injury in a crash.
_&. WARNING
Forward-facing child restraints:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Never put the forward-facing child re­
straint up, against or very near the in­
strument panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the forward-facing child restraint. The backrest must be adjusted to an upright
position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on .
_&. WARNING
Rearward-facing child restraints:
- A child in a rearward-facing child safety
seat installed on the front passenger
seat will be seriously injured and can be killed if the front airbag inflates - even
with an Advanced Airbag System .
•
•
