Opening and closing
Power locking system
General description
The power locking system locks or unlocks all
doors and the rear lid simultaneously.
You can lock and unlock the vehicle centrally.
You have the following choices:
- Remote master key~
page 34,
-Door handles with convenience key*
O? page 35 ,
-Lock cylinder at the dr iver's door
r=> page 36 , or
- Power loc king switc h inside
<:!> page 35.
Automatic locking
The automat ic locking feature locks all the ve ­
hi cle doors and the rear lid when you drive
faster than 9 mph (15 km/h).
The car is unlocked again once the ignition key
is removed . In addition, the vehicle can be un ­
locked if the opening fu nction in the power
locking system sw itch or at one of the door
l eve rs is actuated. The Au to Lo ck function can
be turned o n and off in the rad io or
MMI*
r=> page 36 .
Additionally, in the event of a c rash with air­
bag deployment the doors are automatically
u nl ocked to a llow access to the veh icle.
Selective unlocking
When you lock the vehicle, the power locking
system w ill lock the doors and the rear lid.
W hen unlocking, you ca n set in the rad io or
M MI* whethe r
only the dr iver's door or the
enti re ve hicle should be unlocked
r=> page 3 6.
Anti -theft alarm warning system
If the a nti-theft alarm warning system de­
tects a brea k-in into t he vehicle, acoust ic and
visua l wa rning sig na ls are triggered .
The an ti- theft warn ing system is act ivated au ­
tomatically when you lock the vehicle .
It is de­
activated when u nlocking using the remote
Opening and clo sin g 31
key, w ith the mechan ica l key, and when you
switch on the ignition.
T he al arm a lso t urns off w hen t he a la rm cy cl e
has expired.
Turn signals
When you u nlock the ve hicle, the turn signals
flash twice, when yo u lock it once . If they do
not flash, one of the doo rs, the luggage com ­
partment lid or the hood is not lo cked or the
ignition is s till sw itched on.
Unint entionally locking yourself out
In the follow ing cases there safeg uards to
prevent you lock ing you r remote master key in
t h e ve hicl e:
- The vehicle does not loc k w ith the power
lock ing switc h
r=> page 35 if the drive r's
door is open .
- On veh icles with convenience key*, if the
most recently used master key is in the lug­
gage compartment, the rear lid is a utomat i­
cally u nlocked again after it is closed.
Do not lock your veh icle w ith the remote mas­
te r key o r convenience key* unt il all doors a nd
the rear lid a re closed . In this way you avoid
l ocking yo urse lf o ut accidentally .
_&. WARNING
-
-When you leave the veh icle, alw ays re ­
move the ignition key an d take it with
you. This wi ll prevent passengers (chil­
dren, for example) from acc identally be ­
ing locked in the vehicle should they acci­
dentally press the power locking switch in the front doors .
- Do not leave ch ildren inside the vehicle
unsuperv ised. In an emergency it would
be imposs ible to open the doors from
the o utside w itho ut the key .
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
v ehicle occupants from the outside.

34 Openin g and clo sing
@ For the sake of the environment
Dispose of dead batteries proper ly so as
not to pollute the environment.
@ Tips
The replacement battery must be the
same specification as the original.
Emergency unlocking of the ignition key
In the event of malfunctions in the electrical
system, it may happen that you cannot re­ move the ignition key .
,. Remove the me chanical key c> page 33.
,. Lock the vehicle using the mechanical key
i=>page 36.
,. Have the electrical system inspected by an
authorized Audi dealership.
Locking and unlocking the vehicle with
the remote control
Fig . 20 Remote master key: funct ion buttons
,. Press button 0 to unlock the vehicle
c>fig. 20.
,. Press button ff) to l ock the vehicle c> A in
General description on page 31.
,. Press b utton cs briefly to unlock the rear
lid.
,. Press the but to n
cs for a t least one second
to open t he rear lid.
,. Push the red
I PANIC I button to activate the
panic function . The horn sounds and the
tu rn signals flash . Push the red
I PANIC I but­
ton again to deactivate the panic function.
If the vehicle is unlocked and no door, the rear
lid or the hood is opened within 60 seconds, the vehicle locks itself again automatica
lly.
T his feature prevents the vehicle from being
accidentally left unlocked over a long period
of time.
It depends on t he settings in the radio or
MMI * whether the entire vehicle is unlocked
or on ly certain doors¢
page 36.
On vehicles wi th a utomatic transm ission, the
selector lever must be in the P position, other­
wise the vehicle cannot be locked.
.&_ WARNING
--
Read and follow all WARNINGS ¢ & in
General description on page 31.
(D Tips
- In order to make sure the locking f unc­
tion is work ing, you should a lways keep
your eye on the vehicle to make s ure it is
properly locked .
- Do not use the remote cont rol if yo u are
inside the car, otherw ise you may unin­
tentionally lock the vehicle, and then you
would set off the anti-theft alarm whe n
you try to sta rt the engine or open a
door. In case this happens anyhow, push
the unlock button@.
- Use the pa nic function o nly if you a re in
an eme rgency s ituation.
-Add itiona l remote co ntrol key functions
¢ page 40.

222 Check ing and filling
• Read the brake fluid leve l from the brake
fluid reservoir ¢
fig. 179, ¢ fig. 175. The
brake f lu id leve l must be between the "MIN"
and "MAX" markings.
The brake fluid reservoir is located at the rear partition of the engine compartment on the
left side ¢
page 214 .
The fluid level may drop slightly after some
time due to the automatic adjustment of the brake pads . This is not cause for alarm .
I f the brake fluid level falls
considerably be­
l ow the "MIN" mark, the brake wa rning/indi ­
cator light (U .S . mode ls:
1111 , Canadian
models :. ) will come on
¢ page 15. Do not
continue to operate the vehicle. The complete brake system should be thoroughly checked
by an authorized Audi dealer or qualified
workshop and the cause corrected . If the
brake fluid level is too low, the b rake war ning/
i ndicato r light w ill illuminate . Contact an au­
thor ized Audi dealer
imm ediately .
@ Tips
The brake f lu id reservoir is located unde r­
neath the cove r.
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid absorbs moisture from the a ir . If
the water content in the brake fluid is too
h igh, corrosion in the brake system may result
after a per iod of t ime . The bo iling po int of the
b rake fluid w ill also decrease considerably and
dec rease braking per formance.
Therefore, the brake flu id must be changed
e ver y two ye ars. A lways use new b rake fluid
which confo rms to Fede ral Motor Vehicle
S tanda rd "FMVSS 116 DO T 4".
The brake flu id reservoir can be difficult to
r each, therefo re , we recommend that yo u
have the brake fl uid changed by yo ur au tho r­
i z ed
Audi dealer . Your dealer has the co rrec t tools, the
right brake flu id and t he know -how
to do this for you.
A WARNING
'-
- Brake flu id is poisonous. It must be stor-
ed only in the closed or igina l container
out of the reach of children!
- Brake failure can res ult from o ld or inap­
propriate brake f lu id. Observe these pre­
cautions:
- Use only brake f luid that meets SA E
spe cifi cat ion
J 17 03 and conforms to
Federa l Motor Vehi cle Standard 1 16.
Always chec k with yo ur authorized A udi
dealer to make sure yo u are using the
correct brake fluid. The cor rect type of
brake flu id is also ind icated on the
brake f lu id reservoir.
- The brake fluid must be new. Heavy use
of the brakes can cause a vapor lock if
the brake fluid is left i n the system too
long . This can se riously affect the effi­
c iency of the brakes as well as your
safety . T his could result in an accident.
W Note
Brake fluid will damage the pai nt of you r
vehicle .
@ For the sake of the environment
Because of the prob lem of proper disposal
of brake fluid as well as the spec ial too ls
r equired and the necessary expertise, we
r ecommend that yo u have the brake flu id
changed by yo ur autho rized Aud i dea le r.
Battery
General information
U nder normal operat ing cond itions, the bat­
te ry in your Audi does not need any ma inte­
nance. With
high outside temperatu res or
long da ily drives we recommend that you have
the e lectrolyte leve l che cked by an autho riz ed
A udi dealer or qu alified workshop. The elec­
tro ly t e level should also be checked e ach time
the battery is charged
¢ page 225. ...

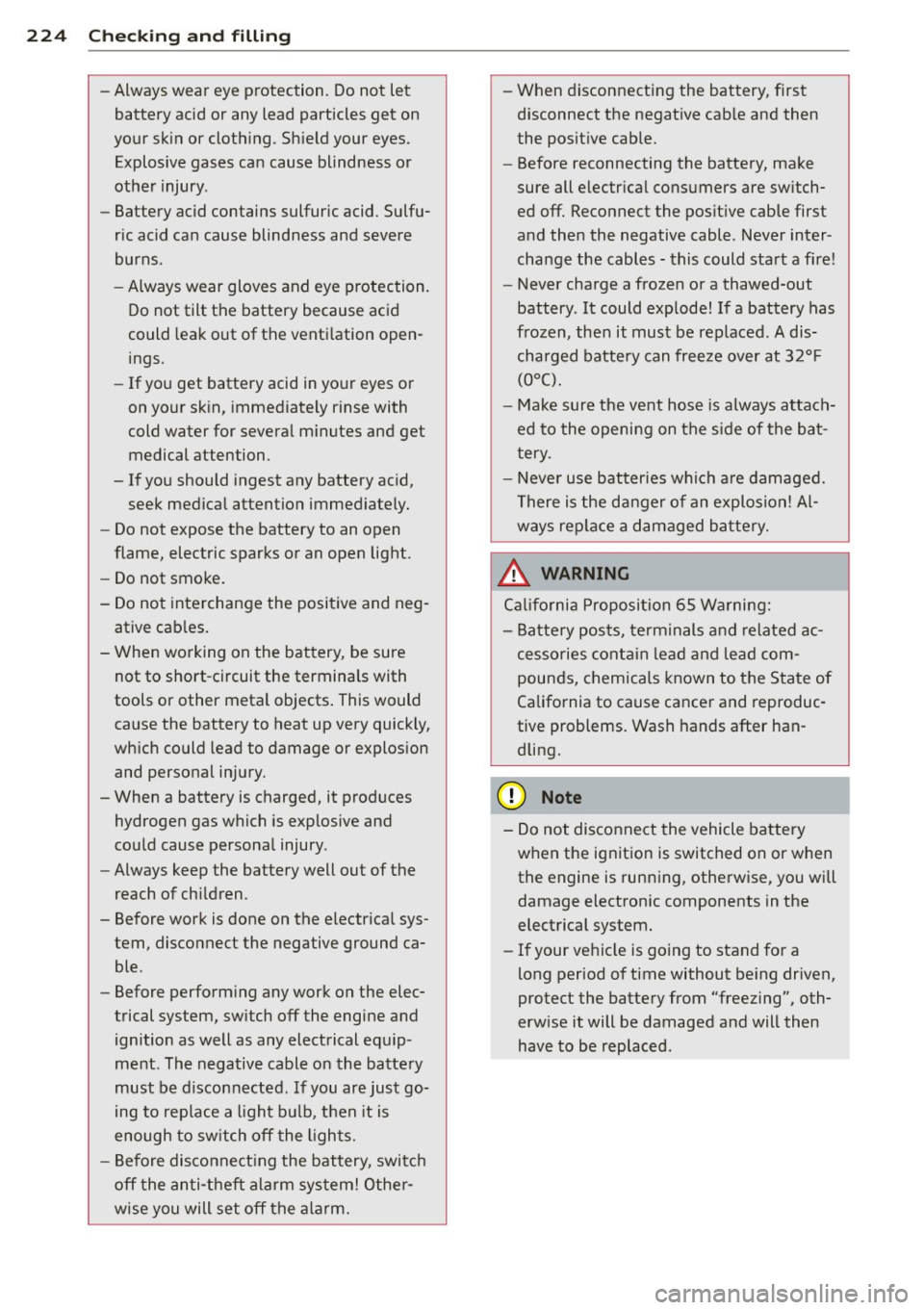

224 Checking and filling
-Always wear eye protection. Do not let
battery acid or any lead particles get on
your skin or clothing . Shield your eyes .
Explosive gases can cause blindness or
other injury .
- Battery acid contains sulfuric acid . Sulfu­
ric acid can cause blindness and severe
burns .
- Always wear gloves and eye protection.
Do not tilt the battery because acid
could leak out of the ventilation open­
ings.
- If you get battery acid in your eyes or
on your skin, immediately rinse with
cold water for several minutes and get
medical attention .
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light.
- Do not smoke.
- Do not interchange the positive and neg-
ative cables.
= When working on the battery , be sure
not to short-circuit the terminals with
tools or other metal objects. This would cause the battery to heat up very quickly,
which could lead to damage or explosion
and personal injury.
- When a battery is charged, it produces hydrogen gas which is explosive and
could cause personal injury .
- Always keep the battery well out of the
reach of children .
- Before work is done on the electrical sys­ tem, disconnect the negative ground ca­ble.
- Before performing any work on the elec­
trical system, switch
off the engine and
ignition as well as any electrical equip ­
ment . The negative cable on the battery
must be disconnected . If you are just go­
ing to replace a light bulb, then it is
enough to switch
off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you will set off the alarm. -
When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
- Before reconnecting the battery, make
sure all electrical consumers are switch­
ed off. Reconnect the positive cable first
and then the negative cable . Never inter ­
change the cables - this could start a fire!
- Never charge a frozen or a thawed-out
battery .
It could explode! If a battery has
frozen, then it must be replaced . A dis­
charged battery can freeze over at 32°F
(QOC).
-Make sure the vent hose is always attach­
ed to the opening on the side of the bat­
tery .
- Never use batteries which are damaged.
There is the danger of an explosion! Al­
ways replace a damaged battery.
A WARNING
California Proposition 6S Warning:
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems. Wash hands after han­
dling.
(D Note
- Do not disconnect the vehicle battery
when the ignition is switched on or when the engine is running, otherwise, you will
damage electronic components in the
electrical system.
- If your vehicle is going to stand for a
long period of time without being driven,
protect the battery from "freezing", oth­
erwise it will be damaged and will then
have to be replaced .

256 Fuses a nd bulb s
I
I
-No. Consumer
6 Headlight range control sys-
tern/cornering light
7 Headlight (cornering light) Control modules (electro-
mechanical parking brake,
8 shock absorber, quattro sport, trailer hitch), DCDC
converter
9 Adaptive cruise control
10 Shift gate
11 Side assist
1 2 Headlight range control,
parking system
13 Airbag
14 Rear wiper (allroad)
15 Aux
iliary fuse (instrument
panel)
1 6 Auxiliary fuse terminal 15
(engine area)
Fu se pa nel@ (brown)
2
3
4
5
6
7 Brake light sensor
Fuel pump
Clutch sensor
Left seat heating with/w ith­
out seat ventilation
ESC
Horn
Front left door (window reg-
8 ulator, central locking, mir­
ror, switch, lighting)
Two-door models: rear left
w indow regulator, Four-door
11 models: rear left door (win-
dow regulator, central lock-
ing, switch,
lighting)
12 Rain and light sensor
Fu se p ane l© (red)
3 Lumbar support
4 Dynamic steering
5 Interior lighting (Cabriolet)
Amps
5/7,5
7,5
5
s
5
5
5
5
15
10
40
5
25
5
-
15/30
5
15
30
30
25
30
5
10
35
5
No . Consumer
6
7
8
9
Windshield washer system,
headlight washer system
Vehicle electrical system
control module 1
Vehicle electr ical system
control module
1
Left rear window regulator
motor (Cabriolet)/sunroof
Amps
35
20
30
7,5/20
10 Vehicle e
lectr ical system
30
control module 1
11
Right rear window regulator
7,5/20 (Cabriolet)/sun shade motor
12 Anti-theft alarm warning
system 5
Right cockpit fuse assignment
Fig.
199 Right cockpit: fuse panel wit h plastic cl ip
No . Consume r Amps
F use panel@ (bl ac k)
5 Steering column switch
5
module
.. -.. -
7
Term inal 15 diagnos tic con-
nector
5
8 Gateway (Databus diagnos-
5
tic interface) ...

274 Index
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 2 71
Active rollover p rotection system ... .. . 130
Retract ing ro llover protection . . . . . . . . 13 1
AC (automatic climate control) ... .. .. .. 71
Adapt ive cruise control . . . . . . . . . . . . . . . . 94
C leaning sensors/camera . ... .. .... . 198
Messag es . .... .. ..... ... .. .. .... . 101
Request for dr iver intervention . . . . . . . . 99
Setting the driving program .. .. .. .. . . 99
Adapt ive dampers .......... .... .... . 107
Adapt ive light ................ ... .... 52
Adaptive Lig ht (defective) ... .. .. .... .. 22
Adding Eng ine coolant ................... .
E ng ine oil . .... .. ..... ... .. .. .... .
Windshield washer fluid ... .. .. .... .
Addit ional accessories
Addit ives 220
21
7
226
271
Eng ine oil .. ............. .. .. .. .. . 217
Ad justab le steering column . ... .. .... .. 75
Adjusting Air dist ribution (automatic climate con -
trol) . .. .. .. ............. .. .. .... .. 72
I ns trument illum inat ion . .. .. .. .. .. .. S5
Steering column .. ..... ... .. .. .... .. 75
Temperature (automatic climate control) 72
A irbag
War ning/ indicato r ligh ts ... .... .... .. 20
A irbag system . . . . . . . . . . . . . . . . . 140, 159
Advanced Airbag System ........ ... . 144
Advanced Airbag System components . 147
Care . .. .. ... ....... ........ ..... . 153
C hil dren . ............... .. .. .. .. . 162
Ch ild restr aints ........... .. .. .. .. . 163
Components (front airbags) .. .... .. . 1 47
Danger of fitting a child safety seat on
the front passenger seat . . . . . . . . . . . . 141
Disposal . .... ........... .. .. .... . 153
Front airbags . . . . . . . . . . . . . . . . 144, 145
H ow do the front airbags work? . . . . . . 149
H ow many airbags does my vehicle
have? .... ................... ... . 147
H ow the Advanced Airbag System com-
po nents work together ............. 148
I mpor tan t safety instructions on the
knee airbag system .. ... .. .. .. .... . 15 7 Important things to know ....
.... . .. 140
Indicator light ... .. ... ..... ... .. .. 151
Knee airbags ... .. ... .. ..... ... .. .. 155
Monitoring .... .. ............. .... 151
PASSENGER AIR BAG OFF light ....... 151
Repairs ......... .. .............. . 153
Safety instructions ..... ....... ... .. 153
S ide a irbags . .. .. .......... ....... 158
We ight-sensing mat ........... .. .. 162
When m ust t he system be inspected? . 151
all-wheel drive .. .. .......... ....... 184
Alloy wheels . ..... .. .... .... ... .. .. 200
All wheel d rive
Winter tires . .. .. .. ........... .. .. 242
Alternator
refer to Generator . . . . . . . . . . . . . . . . . . 17
Anti-freeze
refer to Engine coolant system ....... 219
An ti-lock brak ing system ............. 179
Warning/ind icator lights ..... ... .. .. . 19
An ti-slip regulation ................ . 179
Anti -theft alarm warning system ... .. .. . 31
Anti-theft systems El ectronic immob il iz er .......... .. .. . 37
Armrest .......... .. .............. .. 64
Ashtray . ... .... .. ... .. .. ..... .. . .. . 66
Aste risk
What does it mean when something is ma rked wit h an aster is k? . . . . . . . . . . . . . . 6
Audi braking guard
refer to b rak ing guard ............... 94
Audi drive select .. .. ................ 107
Adaptive dampers ............. .... 107
Description .. ... . ... ... .... ... .. .. 107
Dynam ic steering . ................ . 107
Setting the dr iv ing mode ........... . 108
Spo rt diffe rential .............. .... 10 7
Audi Serv ice Repair Manuals and Litera-
ture .............................. 269
AUTO Automatic climate control . . . . . . . . . . . . 72
Automat ic head lights . . . . . . . . . . . . . . . 52
A ut o Lock . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Automat ic be lt retractor . ....... ... .. 136
Automatic car wash
refer to Washing ... ... ..... ... .. .. 195
