2013.5 Peugeot 308 CC Owner's Manual - RHD (UK. Australia)

4
!
i
63
ACCESS

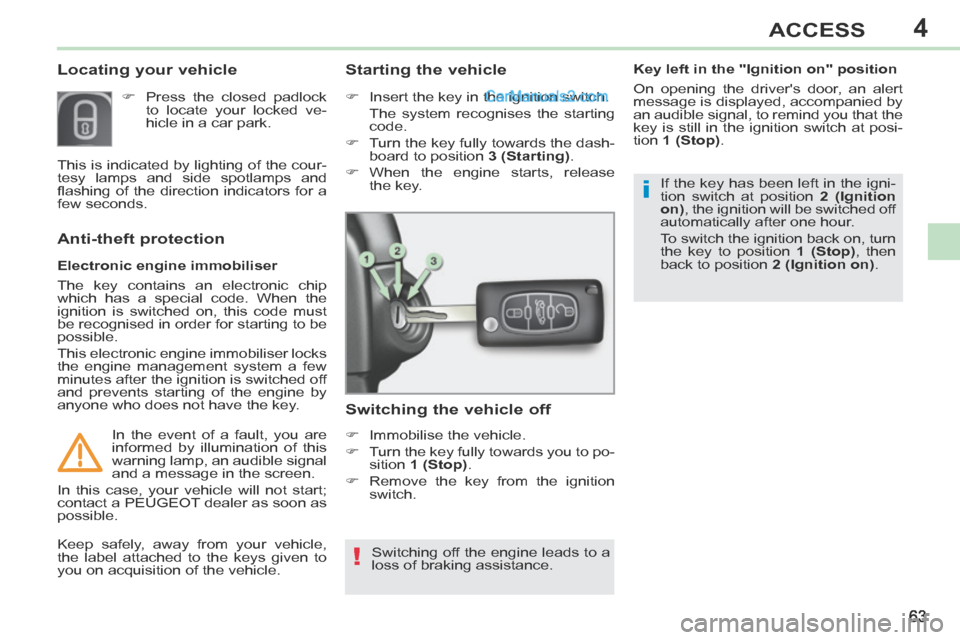

Locating your vehicle
 Press the closed padlock to locate your locked ve-
hicle in a car park.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
This is indicated by lighting of the cour-
tesy lamps and side spotlamps and
fl ashing of the direction indicators for a
few seconds.
Starting the vehicle
 Insert the key in the ignition switch.
The system recognises the starting
code.
 Turn the key fully towards the dash- board to position 3 (Starting) .
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to po-sition 1 (Stop) .
 Remove the key from the ignition switch.
Switching off the engine leads to a
loss of braking assistance.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle. If the key has been left in the igni-
tion switch at position
2 (Ignition
on) , the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop) , then
back to position 2 (Ignition on) .
Key left in the "Ignition on" position
On opening the driver's door, an alert
message is displayed, accompanied by
an audible signal, to remind you that the
key is still in the ignition switch at posi-
tion
1 (Stop) .

4
64
ACCESS

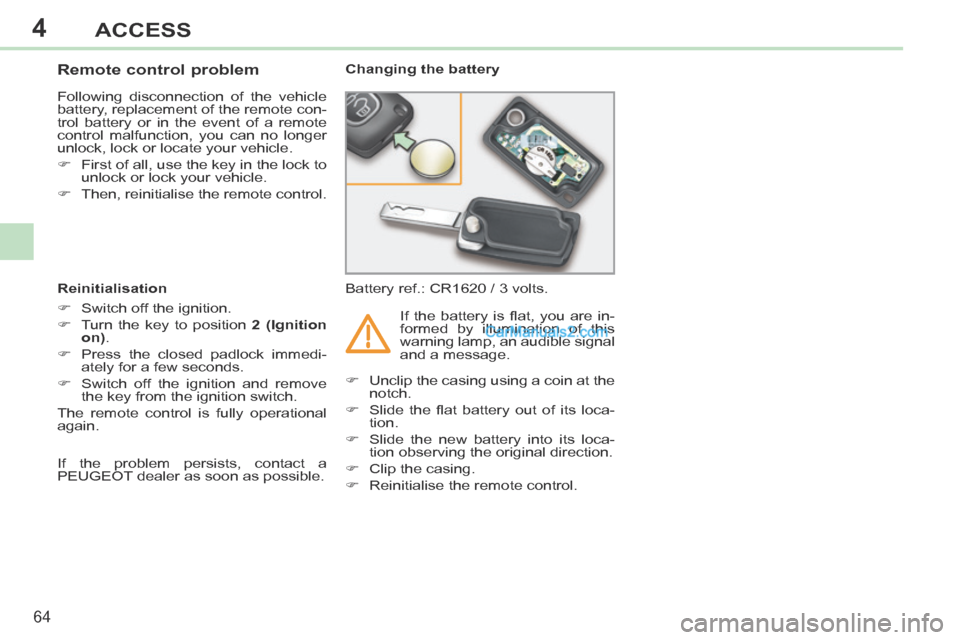

Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control. Changing the battery
Battery ref.: CR1620 / 3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition
on) .
 Press the closed padlock immedi- ately for a few seconds.
 Switch off the ignition and remove the key from the ignition switch.
The remote control is fully operational
again.  Unclip the casing using a coin at the
notch.
 Slide the fl at battery out of its loca- tion.
 Slide the new battery into its loca- tion observing the original direction.
 Clip the casing.
 Reinitialise the remote control. If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.

4
!
65
ACCESS

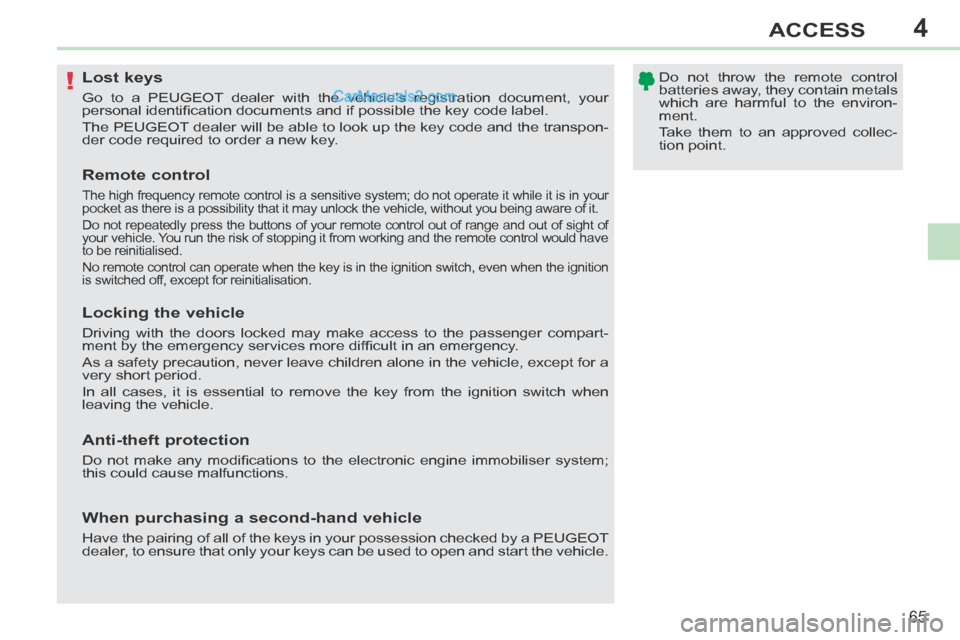

Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your
p ersonal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transpon-
der code required to order a new key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not operate \
it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without\
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range \
and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, ev\
en when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a
very short period.
In all cases, it is essential to remove the key from the ignition switch\
when
leaving the vehicle.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicl\
e.

4
!
i
66
ACCESS

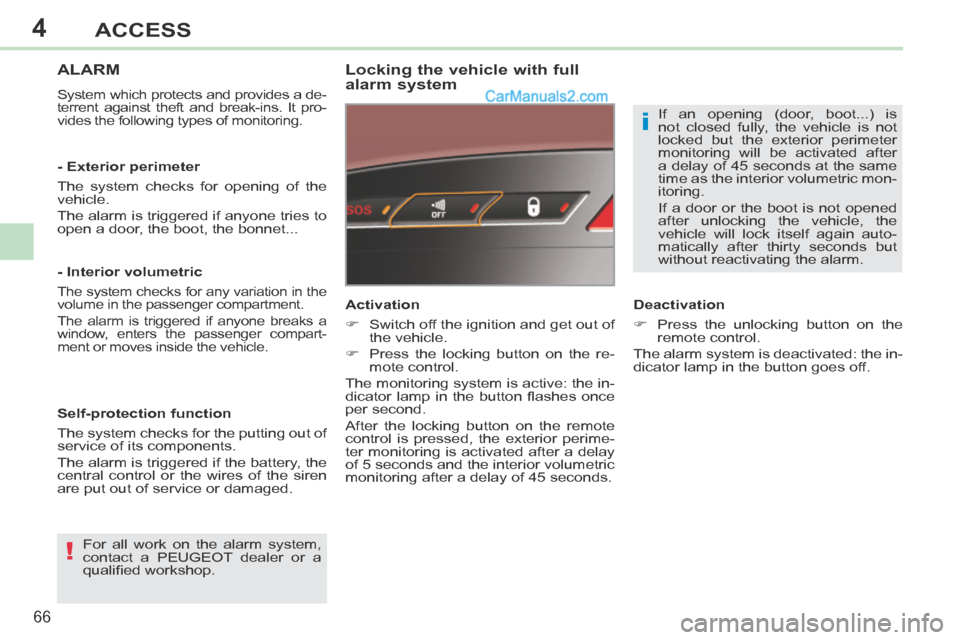

ALARM
System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring.
Locking the vehicle with full
alarm system
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualifi ed workshop. Activation
 Switch off the ignition and get out of
the vehicle.
 Press the locking button on the re- mote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
monitoring after a delay of 45 seconds.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compart-
ment or moves inside the vehicle.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Deactivation
 Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp in the button goes off. If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after
a delay of 45 seconds at the same
time as the interior volumetric mon-
itoring.
If a door or the boot is not opened
after unlocking the vehicle, the
v ehicle will lock itself again auto-
matically after thirty seconds but
without reactivating the alarm.

4
!
i
67
ACCESS

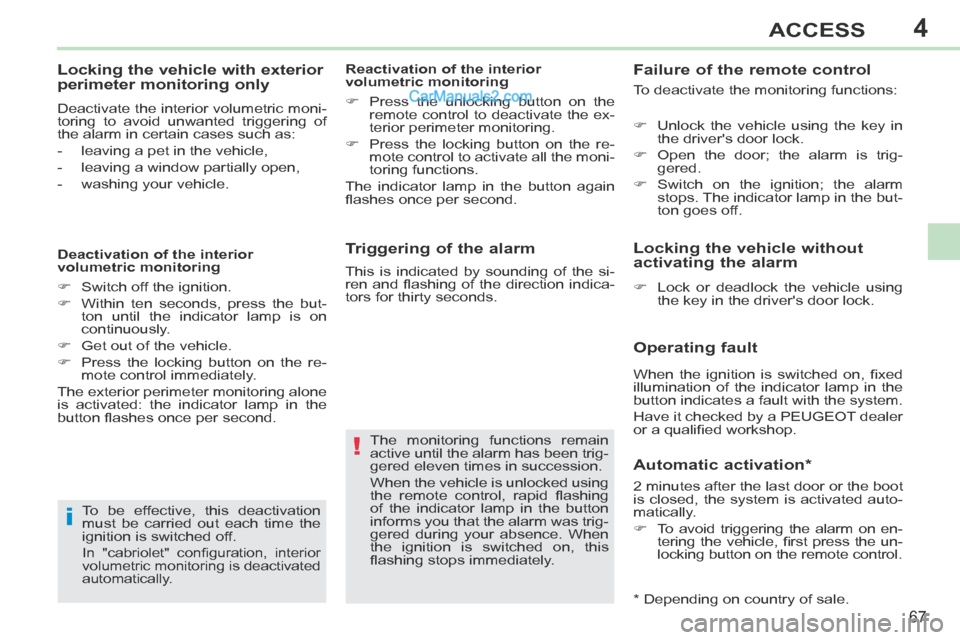

Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
 Unlock the vehicle using the key in the driver's door lock.
 Open the door; the alarm is trig- gered.
 Switch on the ignition; the alarm stops. The indicator lamp in the but-
ton goes off.
 Lock or deadlock the vehicle using the key in the driver's door lock.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
In "cabriolet" confi guration, interior
volumetric monitoring is deactivated
automatically.
Deactivation of the interior
volumetric monitoring
 Switch off the ignition.
 Within ten seconds, press the but- ton until the indicator lamp is on
continuously.
 Get out of the vehicle.
 Press the locking button on the re- mote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
Locking the vehicle with exterior
perimeter monitoring only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle. Reactivation of the interior
volumetric monitoring
 Press the unlocking button on the
remote control to deactivate the ex-
terior perimeter monitoring.
 Press the locking button on the re- mote control to activate all the moni-
toring functions.
The indicator lamp in the button again
fl ashes once per second.
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for thirty seconds.
Operating fault
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a fault with the system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Automatic activation *
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.
 To avoid triggering the alarm on en- tering the vehicle, fi rst press the un-
locking button on the remote control.
* Depending on country of sale.

4
i
i
68
ACCESS
The rear windows do not have an
automatic mode or safety anti-
pinch function for closing.
The electric window controls re-
main operational for about 45 sec-
onds after switching off the ignition
or until the vehicle is locked after
opening a door.
If it is not possible to operate the pas-
senger's window from the driver's
control panel, carry out the operation
from the passenger's door panel.

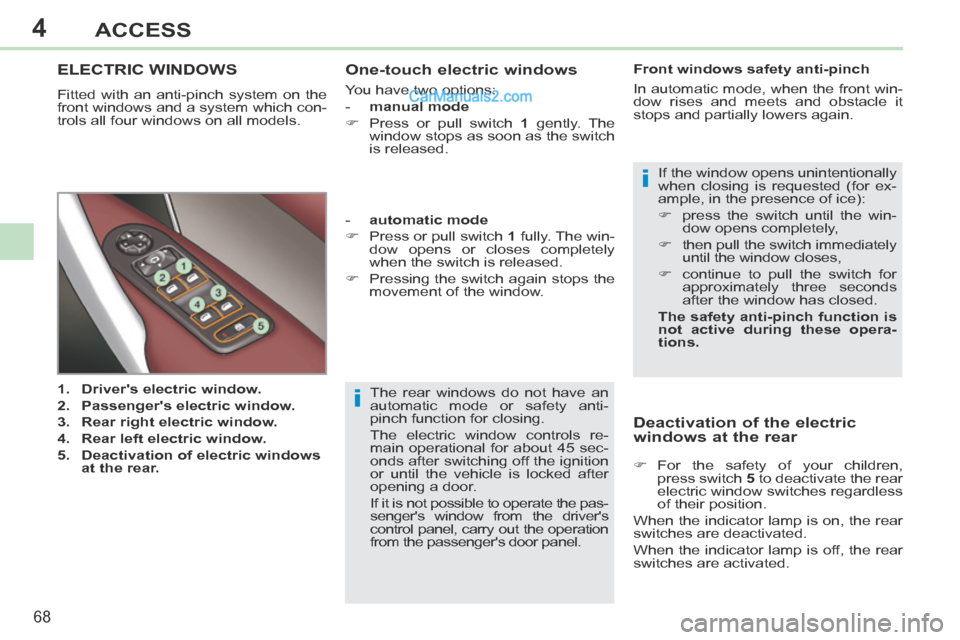

ELECTRIC WINDOWS
Fitted with an anti-pinch system on the
front windows and a system which con-
trols all four windows on all models.
1. Driver's electric window.
2. Passenger's electric window.
3. Rear right electric window.
4. Rear left electric window.
5. Deactivation of electric windows at the rear. If the window opens unintentionally
when closing is requested (for ex-
ample, in the presence of ice):
 press the switch until the win-
dow opens completely,
 then pull the switch immediately until the window closes,
 continue to pull the switch for approximately three seconds
after the window has closed.
The safety anti-pinch function is
not active during these opera-
tions.
Front windows safety anti-pinch
In automatic mode, when the front win-
dow rises and meets and obstacle it
stops and partially lowers again.
- automatic mode
 Press or pull switch 1 fully. The win-
dow opens or closes completely
when the switch is released.
 Pressing the switch again stops the movement of the window.
One-touch electric windows
You have two options:
- manual mode
 Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
Deactivation of the electric
windows at the rear
 For the safety of your children, press switch 5 to deactivate the rear
electric window switches regardless
of their position.
When the indicator lamp is on, the rear
switches are deactivated.
When the indicator lamp is off, the rear
switches are activated.

4
!
i
i
69
ACCESS

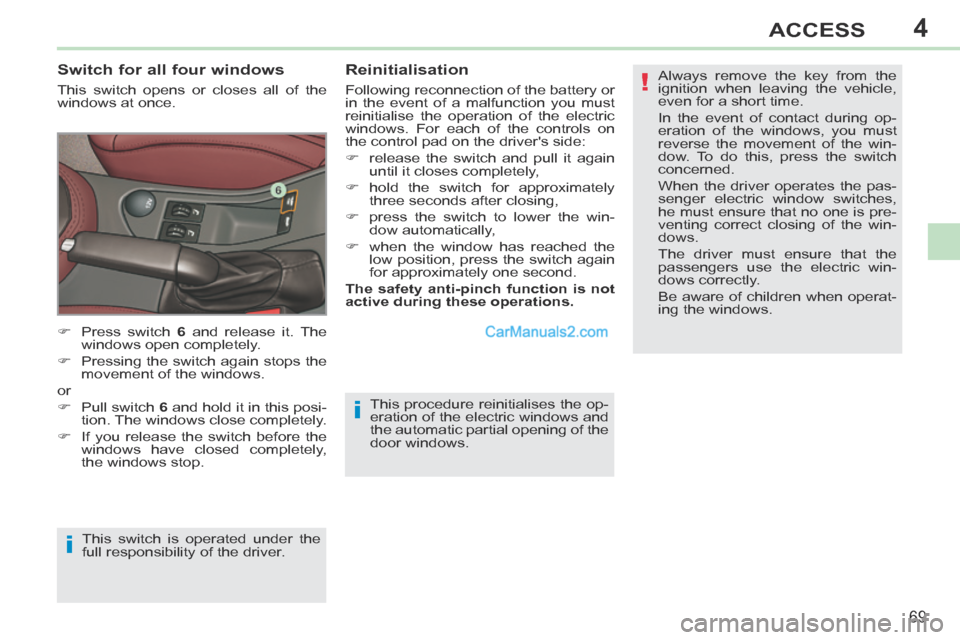

This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows .
Switch for all four windows
This switch opens or closes all of the
windows at once. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is pre-
venting correct closing of the win-
dows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows. For each of the controls on
the control pad on the driver's side:
 release the switch and pull it again
until it closes completely,
 hold the switch for approximately three seconds after closing,
 press the switch to lower the win- dow automatically,
 when the window has reached the low position, press the switch again
for approximately one second.
The safety anti-pinch function is not
active during these operations.
 Press switch 6 and release it. The
windows open completely.
 Pressing the switch again stops the movement of the windows.
or
 Pull switch 6 and hold it in this posi-
tion. The windows close completely.
 If you release the switch before the windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver.

4
!
i
i
i
i

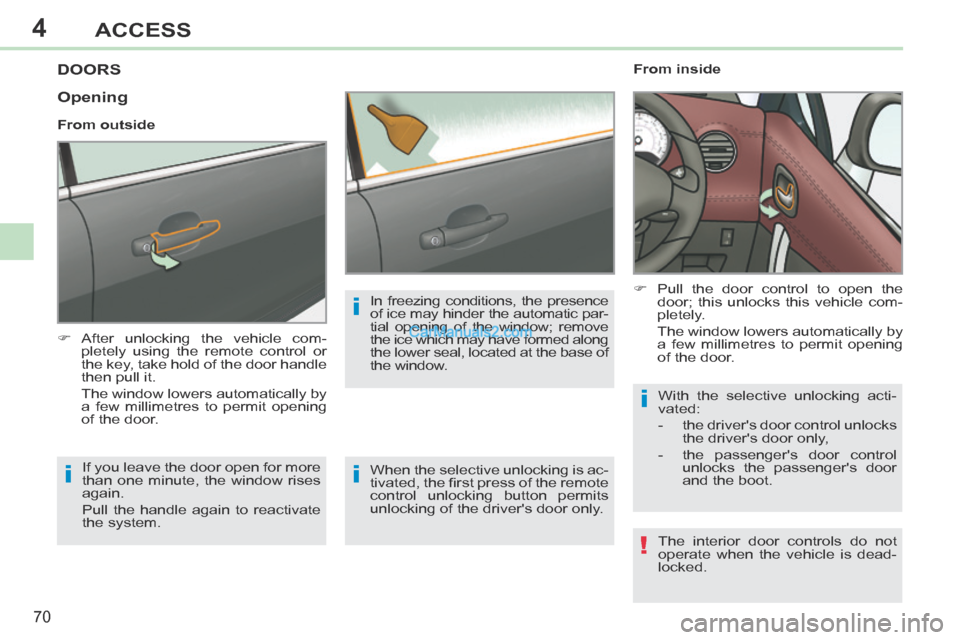

70
ACCESS
DOORS
 After unlocking the vehicle com-pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by a few millimetres to permit opening
of the door. From inside
 Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the passenger's door control unlocks the passenger's door
and the boot.
In freezing conditions, the presence
of ice may hinder the automatic par-
tial opening of the window; remove
the ice which may have formed along
the lower seal, located at the base of
the window.
