2013.5 Peugeot 308 CC Owner's Manual - RHD (UK. Australia)

!
i
!
i
!
7
FAMILIARISATION
ACCESS
Retractable roof operations
Opening the roof  Pull this control until the roof opening operation is com-
plete.
Closing the roof  Press this control until the roof closing operation is
complete. Change to "cabriolet" confi guration:
- the four windows lower partially,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
Change to "coupé" confi guration:
- the four windows lower partially,
- the boot opens,
- the roof unfolds and locks automati-
cally,
- the boot closes.
To ensure that the roof operates cor-
rectly, do not release the control while
the roof is moving.
However, in the event of any danger,
release the control, the roof stops; then,
once the danger had been eliminated,
complete the movement required.
Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed
workshop. The electric window controls and
the control for all four windows are
deactivated while the roof is in op-
eration.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows close.
The roof's electronic control unit
may stop the operation in prog-
ress as a precaution (example:
door movement and roof opera-
tion in quick succession). In this
case, release the control then op-
erate it again to complete the re-
quired operation.

 87, 88  85 56 233
 179
8
FAMILIARISATION

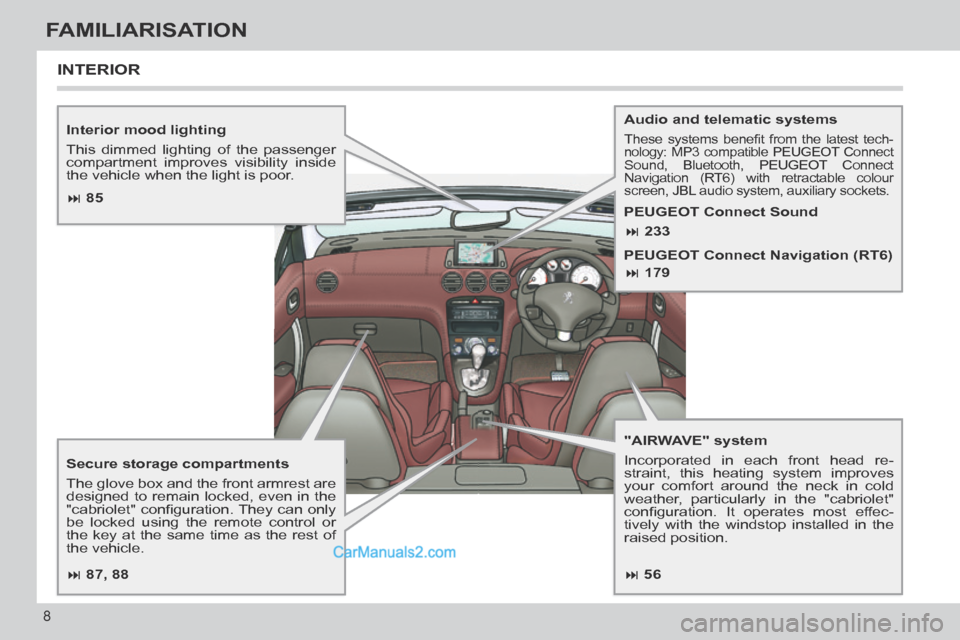

Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
confi guration. It operates most effec-
tively with the windstop installed in the
raised position. Audio and telematic systems These systems benefi t from the latest tech-nology: MP3 compatible PEUGEOT Connect Sound, Bluetooth, PEUGEOT Connect
Navigation (RT6) with retractable colour
screen, JBL audio system, auxiliary sockets.
Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
"cabriolet" confi guration. They can only
be locked using the remote control or
the key at the same time as the rest of
the vehicle.
INTERIOR
PEUGEOT Connect Sound
PEUGEOT Connect Navigation (RT6)

9
FAMILIARISATION
1. Steering lock and ignition.
2. Audio and telematics system steering mounted control.
3. Wipers / screenwash / trip computer control stalk.
4. Instrument panel.
5. Driver's front airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. 12 V accessory socket.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11 . Passenger's front airbag
deactivation switch.
12. Manual headlamp height adjustment.
Stop & Start button.
13. Side adjustable air vent.
14. Front side window demisting vent.
15. Speaker (tweeter).
16. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control / speed limiter switches.
3. Lighting and direction indicator control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's front airbag.
8. Glove box / Audio/video sockets / Fusebox.
9. Bonnet release.
10. Retractable roof control.
Control for all four windows.
11 . Storage compartment.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating / air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (DSC/ASR systems) button.
Parking sensors button.
PEUGEOT services button.

 53
 54
11
FAMILIARISATION

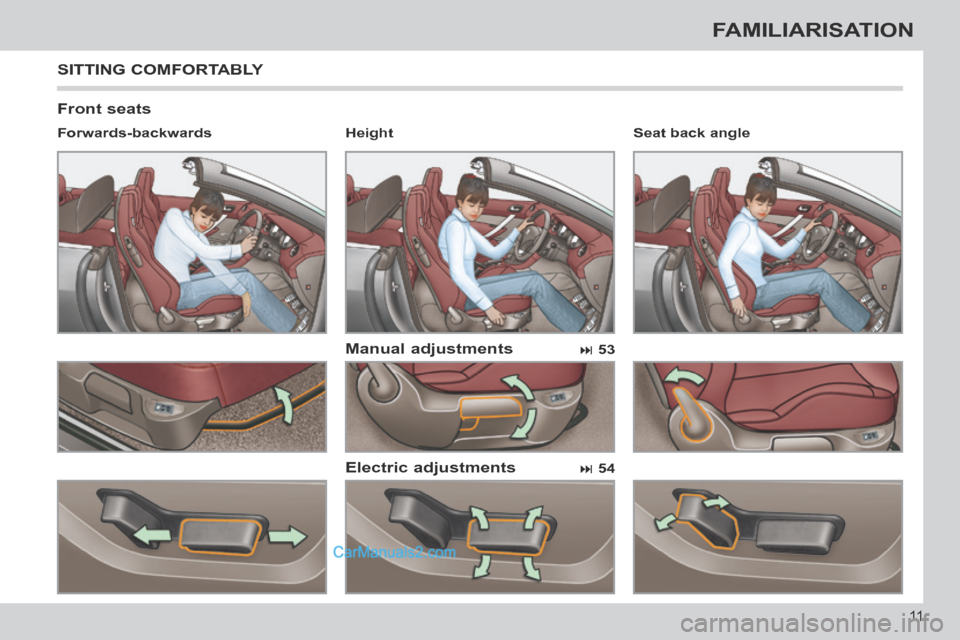

Front seats Manual adjustments
Forwards-backwards Seat back angle
Height
SITTING COMFORTABLY
Electric adjustments

!i
 88
 60
 55
 57
 56
12
FAMILIARISATION
SITTING COMFORTABLY

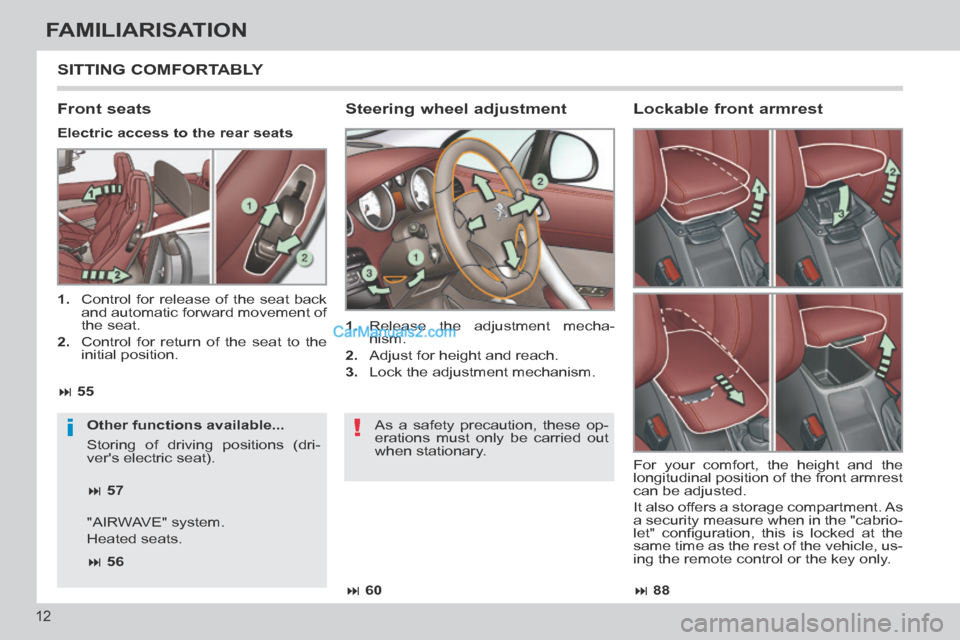

Steering wheel adjustment
1. Release the adjustment mecha-nism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
Front seats
Other functions available...
Storing of driving positions (dri-
ver's electric seat).
Electric access to the rear seats
Lockable front armrest
For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle, us-
ing the remote control or the key only.
As a safety precaution, these op-
erations must only be carried out
when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for return of the seat to the initial position.
"AIRWAVE" system.
Heated seats.

i
 97
 58  60
 59
13
FAMILIARISATION
SITTING COMFORTABLY

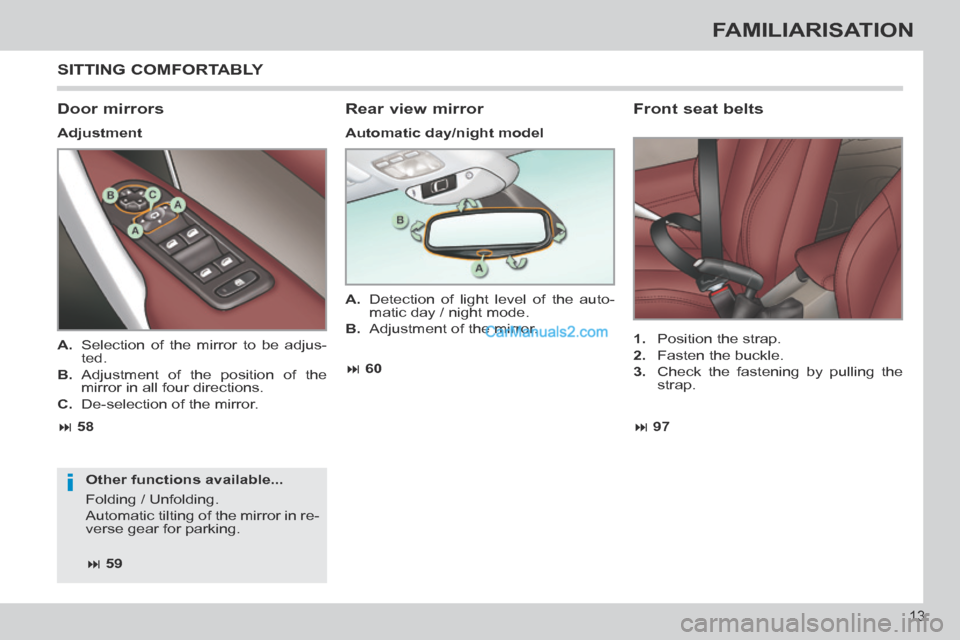

Door mirrors
Adjustment
Other functions available...
Folding / Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
Rear view mirror Front seat belts
1. Position the strap.
2. Fasten the buckle.
3. Check the fastening by pulling the
strap.
A. Selection of the mirror to be adjus-
ted.
B. Adjustment of the position of the mirror in all four directions.
C. De-selection of the mirror. Automatic day/night model
A. Detection of light level of the auto-
matic day / night mode.
B. Adjustment of the mirror.

 76 93 83  82
14
FAMILIARISATION
SEEING CLEARLY

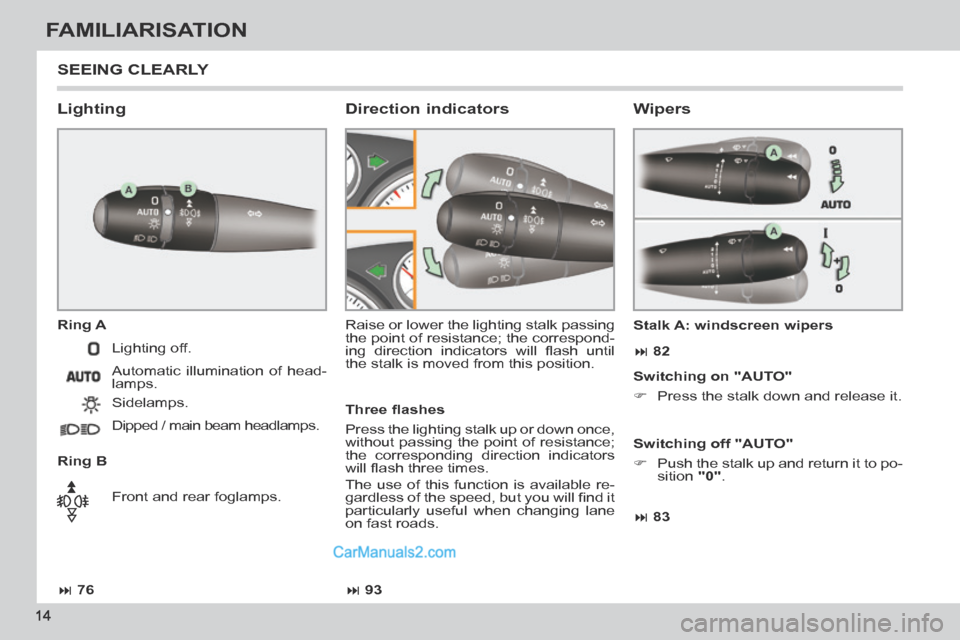

Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.
Direction indicators
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps. Stalk A: windscreen wipers
Wipers
Three fl ashes
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.
Switching on "AUTO"
 Press the stalk down and release it.
Switching off "AUTO"
 Push the stalk up and return it to po-
sition "0" .
