2013.5 Peugeot 308 CC Owner's Manual - RHD (UK. Australia)

07
247

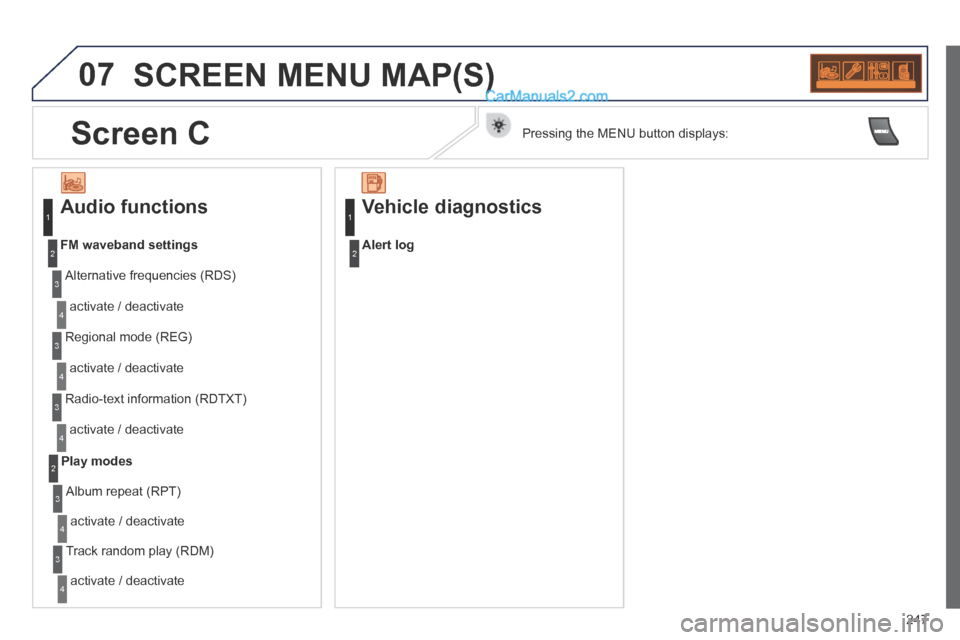

SCREEN MENU MAP(S)
Audio functions
Alternative frequencies (RDS)
activate / deactivate
FM waveband settings
Regional mode (REG)
activate / deactivate
Radio-text information (RDTXT)
activate / deactivate
1
2
3
4
3
4
3
4
Play modes
Album repeat (RPT)
activate / deactivate
Track random play (RDM)
activate / deactivate
2
3
4
3
4
Vehicle diagnostics
Alert log
1
2
Screen C Pressing the MENU button displays:

07
248

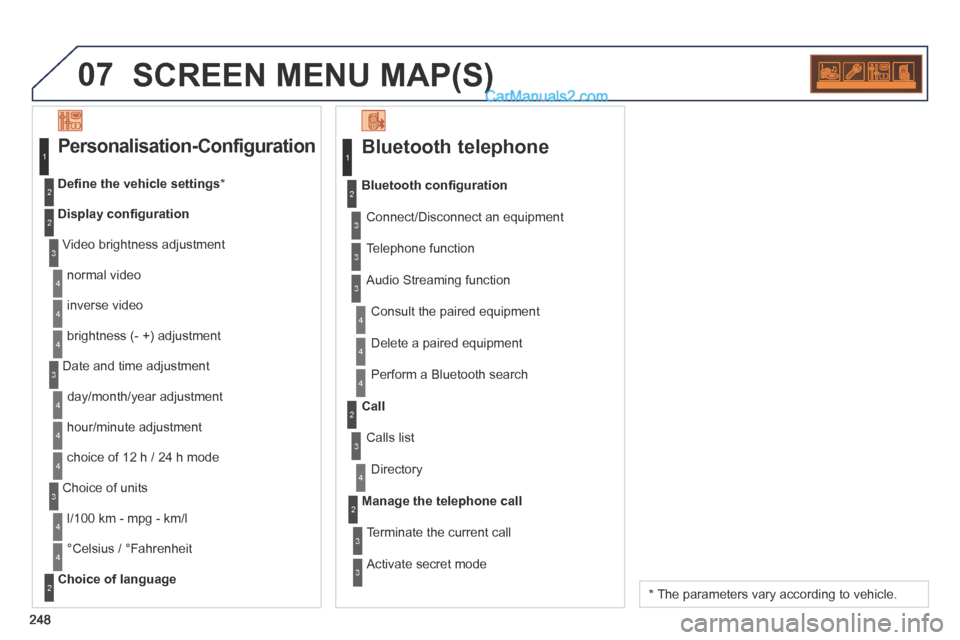

SCREEN MENU MAP(S)
Bluetooth telephone
Connect/Disconnect an equipment
Consult the paired equipment
Bluetooth confi guration
Telephone function
Audio Streaming function
Delete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
Video brightness adjustment
Display confi guration
Defi ne the vehicle settings *
Personalisation-Configuration
normal video
inverse video
brightness (- +) adjustment
Date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h / 24 h mode
Choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The parameters vary according to vehicle.

249

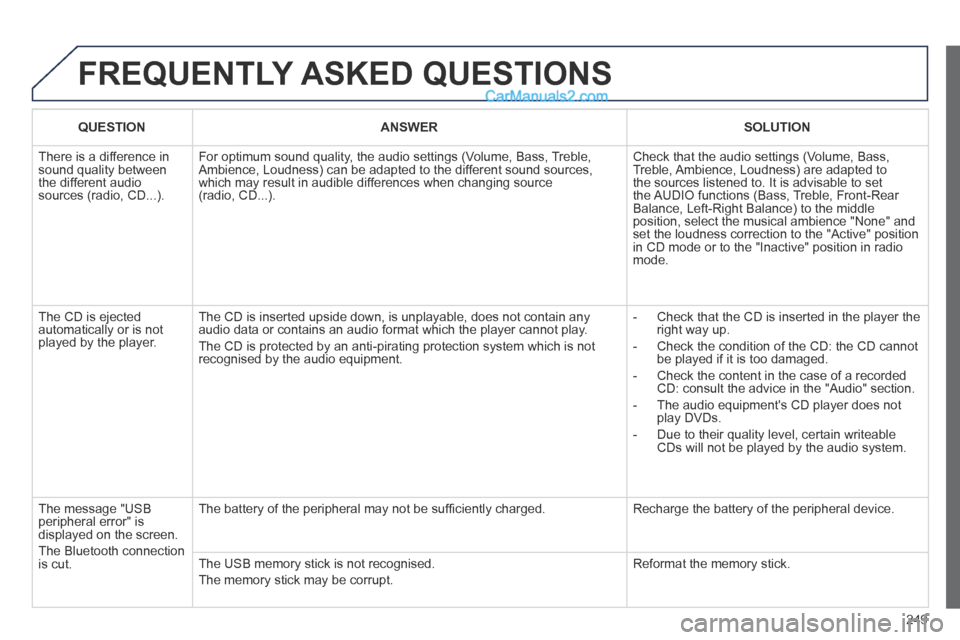

FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

250

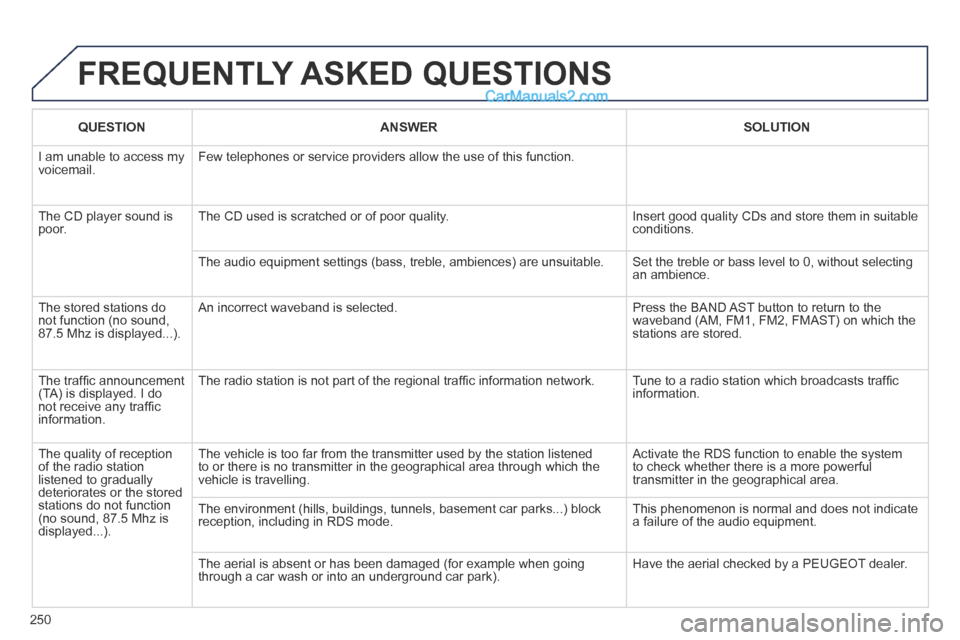

FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
I am unable to access my voicemail. Few telephones or service providers allow the use of this function.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.\
Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.

251
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

252
VISUAL SEARCH
EXTERIOR
Boot ......................................71, 73
Temporary puncture repair kit ........................... 140-144
Changing a wheel .............. 145-148
- tools
- removing / refi tting
Changing bulbs ..................153-154
- rear lamps
- 3rd brake lamp
- number plate lamps Parking sensors .................
128-129
Towbar ...................................... 167
Towing ............................... 165-166
Remote control key
................61-65
- opening / closing
- unlocking / partial opening of the boot
- anti-theft protection
- starting
- battery Accessories .......................168-169
Retractable roof ......................... 6-7
Fuel tank ................................ 74-75 Door mirrors ...........................
58-59
Side spotlamps ................... 80, 152
Doors ..................................... 70-72
- opening / closing
- central locking
- emergency locking
Alarm ..................................... 66-67
Electric windows .................... 68-69
Lighting controls ....................
76-80
Directional lighting ...................... 81
Headlamp height adjustment ... 80-81
Changing bulbs ..................150-152
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ..................... 94
Trajectory control ........................ 95
Tyre under-inflation detection .......................... 122-123
Snow chains ............................. 149
Tyre pressures .......... 122, 144, 175

253

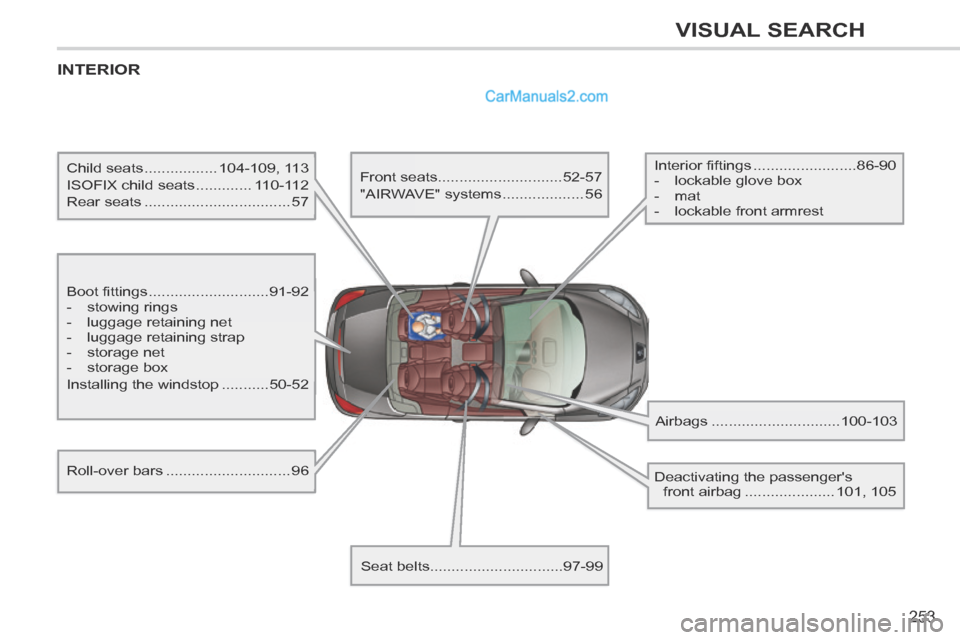

VISUAL SEARCH
INTERIOR
Boot fittings ............................91-92
- stowing rings
- luggage retaining net
- luggage retaining strap
- storage net
- storage box
Installing the windstop ........... 50-52
Child seats .................
104-109, 113
ISOFIX child seats ............. 110-112
Rear seats .................................. 57 Front seats
............................. 52-57
"AIRWAVE" systems ................... 56
Seat belts ............................... 97-99 Airbags ..............................
100-103
Interior fiftings ........................
86-90
- lockable glove box
- mat
- lockable front armrest
Roll-over bars ............................. 96
Deactivating the passenger's
front airbag ..................... 101, 105

254

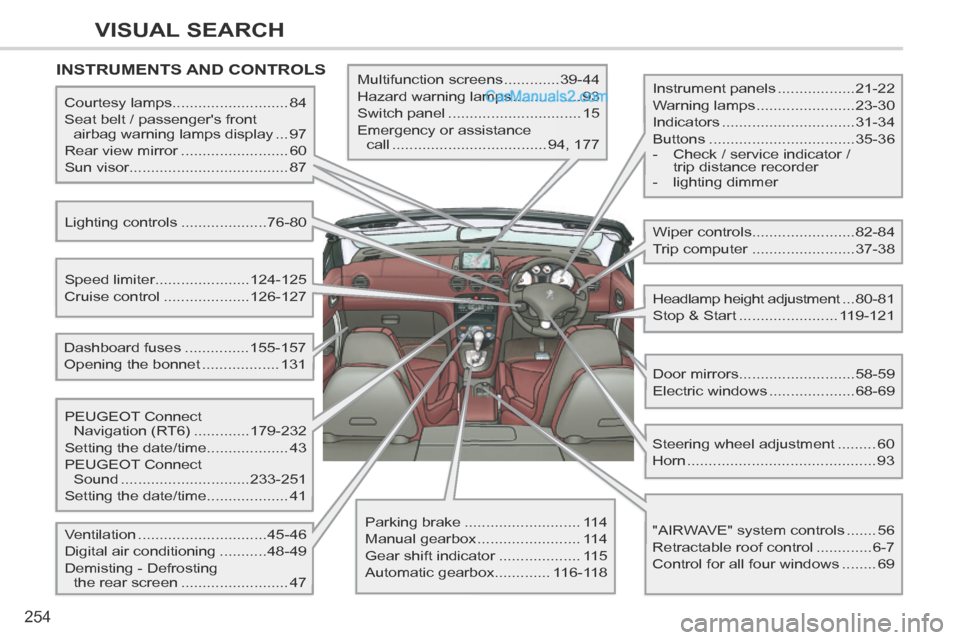

VISUAL SEARCH
INSTRUMENTS AND CONTROLS
Instrument panels ..................21-22
Warning lamps ....................... 23-30
Indicators ............................... 31-34
Buttons .................................. 35-36
- Check / service indicator / trip distance recorder
- lighting dimmer
Courtesy lamps
........................... 84
Seat belt / passenger's front airbag warning lamps display ... 97
Rear view mirror ......................... 60
Sun visor ..................................... 87
Lighting controls .................... 76-80
Ventilation .............................. 45-46
Digital air conditioning ........... 48-49
Demisting - Defrosting the rear screen ......................... 47
PEUGEOT
Connect
Navigation (RT6) ............. 179-232
Setting the date/time ...................43

PEUGEOT Connect
Sound .............................. 233-251
Setting the date/time ...................41
Dashboard fuses ...............
155-157
Opening the bonnet .................. 131
Speed limiter
...................... 124-125
Cruise control .................... 126-127 Multifunction screens .............
39-44
Hazard warning lamps ................ 93
Switch panel ............................... 15
Emergency or assistance call .................................... 94, 177
Wiper controls........................ 82-84
Trip computer ........................ 37-38
Headlamp height adjustment ... 80-81
Stop & Start ....................... 119-121
Door mirrors ........................... 58-59
Electric windows .................... 68-69
"AIRWAVE" system controls ....... 56
Retractable roof control ............. 6-7
Control for all four windows ........ 69
Parking brake ...........................
114
Manual gearbox ........................ 114
Gear shift indicator ................... 115
Automatic gearbox .............116-118 Steering wheel adjustment .........
60
Horn ............................................ 93
