2013.5 Peugeot 308 CC Owner's Manual - RHD (UK. Australia)

3
!
i
55
COMFORT

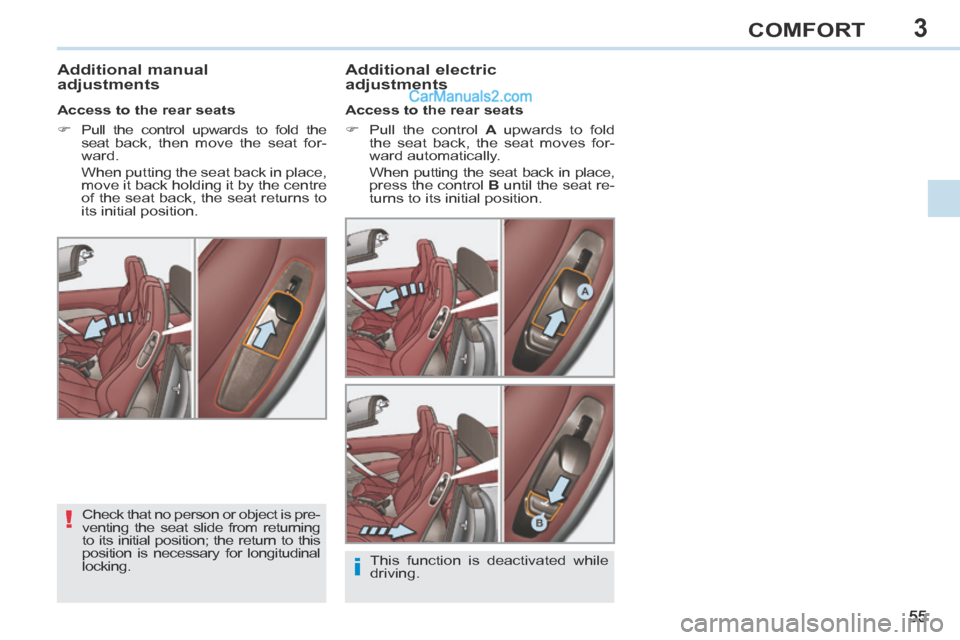

Additional manual
adjustments Additional electric
adjustments
Access to the rear seats
 Pull the control
A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place, press the control B until the seat re-
turns to its initial position.
Access to the rear seats
 Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place, move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object is pre-
venting the seat slide from returning
to its initial position; the return to this
position is necessary for longitudinal
locking. This function is deactivated while
driving.

3
i!
i
56
COMFORT

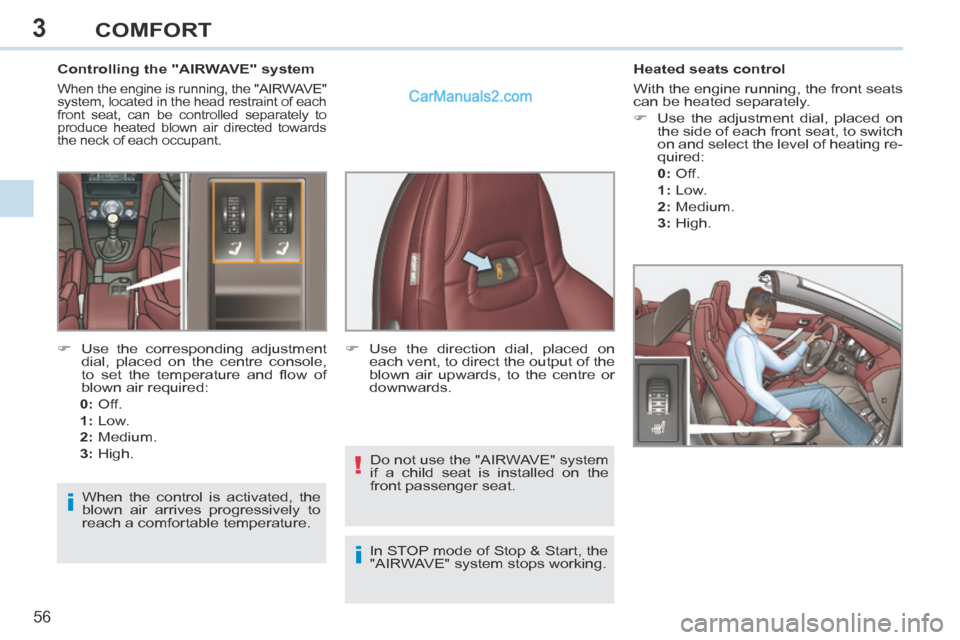

Controlling the "AIRWAVE" system
When the engine is running, the "AIRWAVE"
system, located in the head restraint of each
front seat, can be controlled separately to
produce heated blown air directed towards
the neck of each occupant.
Heated seats control
With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
 Use the corresponding adjustment dial, placed on the centre console,
to set the temperature and fl ow of
blown air required:
0: Off.
1: Low.
2: Medium.
3: High.  Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. Do not use the "AIRWAVE" system
if a child seat is installed on the
front passenger seat.
In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.

3
!
!
57
COMFORT

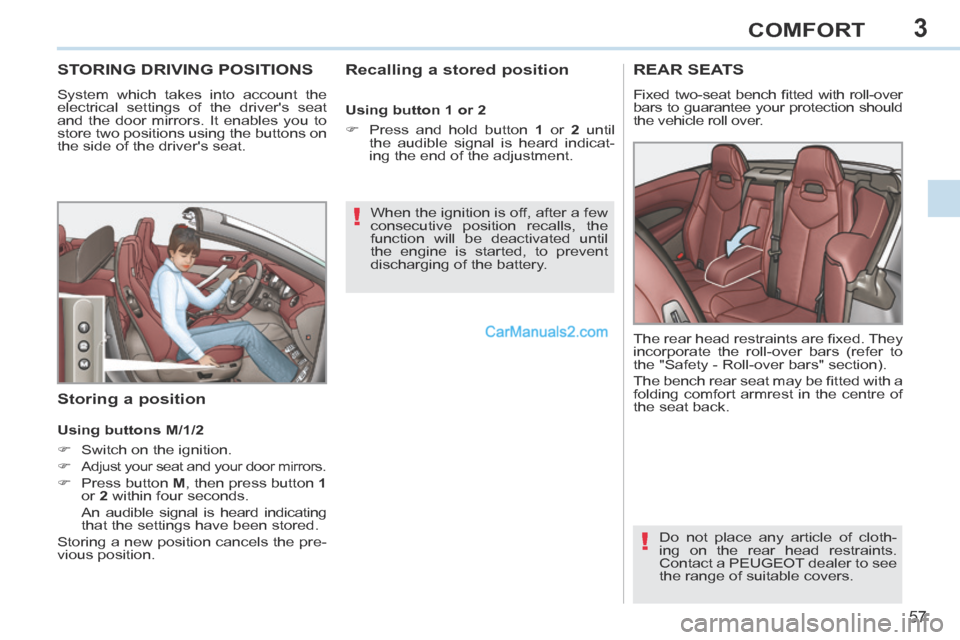

STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.
Recalling a stored position
Storing a position
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2
 Switch on the ignition.

Adjust your seat and your door mirrors.
 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-over
bars to guarantee your protection should
the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers.
The rear head restraints are fi xed. They
incorporate the roll-over bars (refer to
the "Safety - Roll-over bars" section).
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2
 Press and hold button
1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.

3
!
i
i
!
58
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

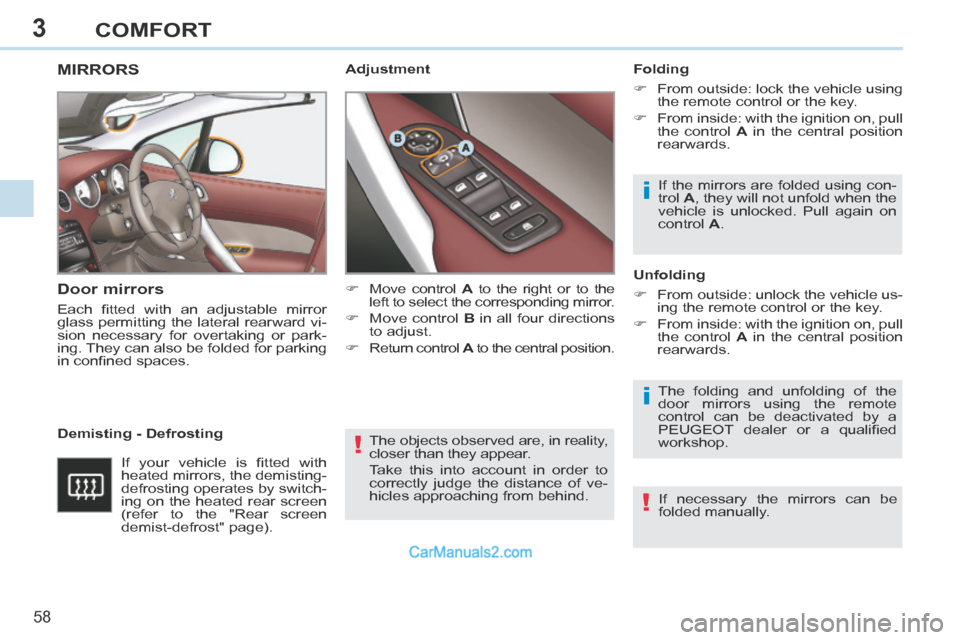

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces. Folding
 From outside: lock the vehicle using
the remote control or the key.
 From inside: with the ignition on, pull the control A in the central position
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting Unfolding
 From outside: unlock the vehicle us-
ing the remote control or the key.
 From inside: with the ignition on, pull the control A in the central position
rearwards. If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates by switch-
ing on the heated rear screen
(refer to the "Rear screen
demist-defrost" page).  Move control
A to the right or to the
left to select the corresponding mirror.
 Move control B in all four directions
to adjust.
 Return control A to the central position.
If necessary the mirrors can be
folded manually.
Adjustment

3
59
COMFORT

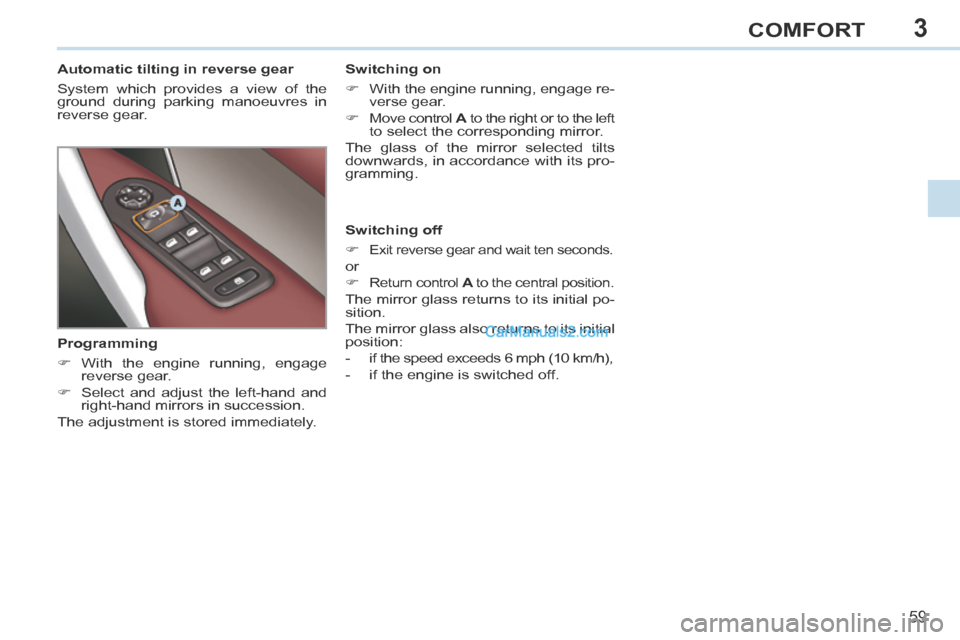

Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear. Switching on
 With the engine running, engage re-
verse gear.
 Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
 With the engine running, engage reverse gear.
 Select and adjust the left-hand and right-hand mirrors in succession.
The adjustment is stored immediately. Switching off

Exit reverse gear and wait ten seconds.
or

Return control
A to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.

3
!
i
!
60
COMFORT

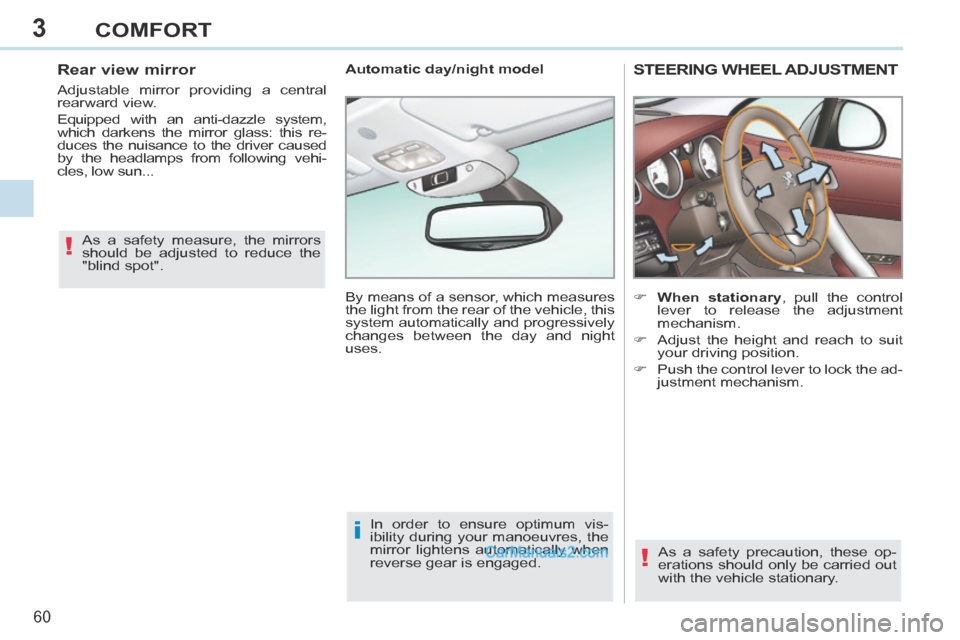

STEERING WHEEL ADJUSTMENT
 When stationary , pull the control lever to release the adjustment
mechanism.
 Adjust the height and reach to suit your driving position.
 Push the control lever to lock the ad- justment mechanism.
As a safety precaution, these op-
erations should only be carried out
with the vehicle stationary.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...

4
61
ACCESS
Unlocking and partial opening of the
boot  Press this button for more than two seconds to un-
lock the boot. The boot
opens slightly.
This action unlocks the vehicle fi rst.  Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using the
remote control

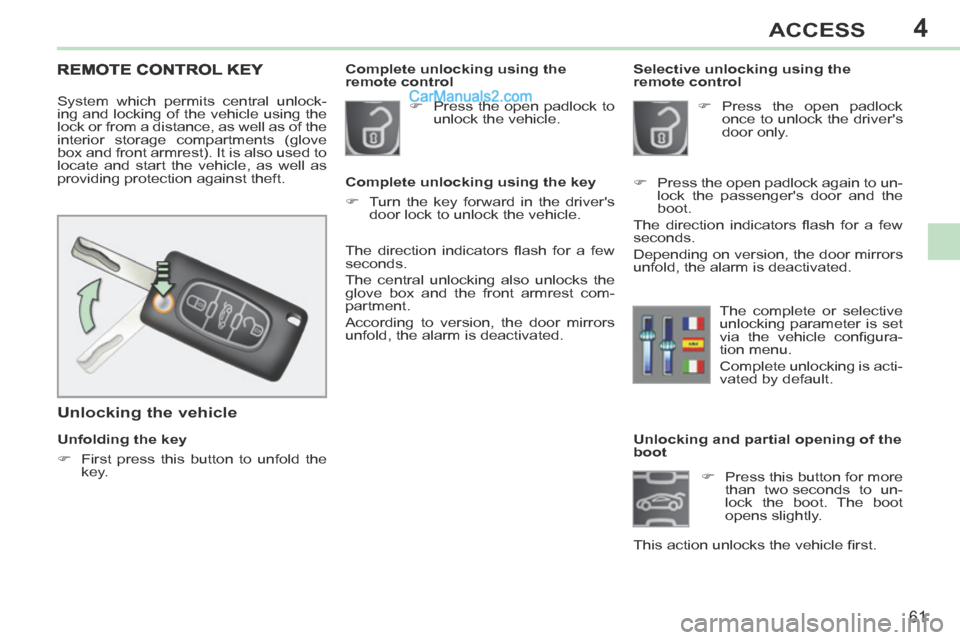

REMOTE CONTROL KEY
System which permits central unlock-
ing and locking of the vehicle using the
lock or from a distance, as well as of the
interior storage compartments (glove
box and front armrest). It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
 First press this button to unfold the
key.
Unlocking the vehicle
The direction indicators fl ash for a few
seconds.
The central unlocking also unlocks the
glove box and the front armrest com-
partment.
According to version, the door mirrors
unfold, the alarm is deactivated.  Press the open padlock to
unlock the vehicle.
Complete unlocking using the key
 Turn the key forward in the driver's door lock to unlock the vehicle.
Complete unlocking using the
remote control
 Press the open padlock again to un-lock the passenger's door and the
boot.
The direction indicators fl ash for a few
seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
The complete or selective
unlocking parameter is set
via the vehicle confi gura-
tion menu.
Complete unlocking is acti-
vated by default.

4
!
i
i
62
ACCESS
Folding the key
 First press this button to fold the key.
If you do not press the button when fold-
ing the key, there is a risk of damage to
the mechanism. Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone
inside the vehicle when it is dead-
locked.
If one of the doors or the boot is still
open, the central locking does not
take place.
If a door or the boot is not opened
after unlocking the vehicle, the
v ehicle will lock itself again auto-
matically after thirty seconds but
without reactivating the alarm. Deadlocking using the remote
control
Deadlocking using the key
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
 Press the closed padlock to lock the vehicle com-
pletely.
 Press the closed padlock again within fi ve seconds
to deadlock the vehicle.

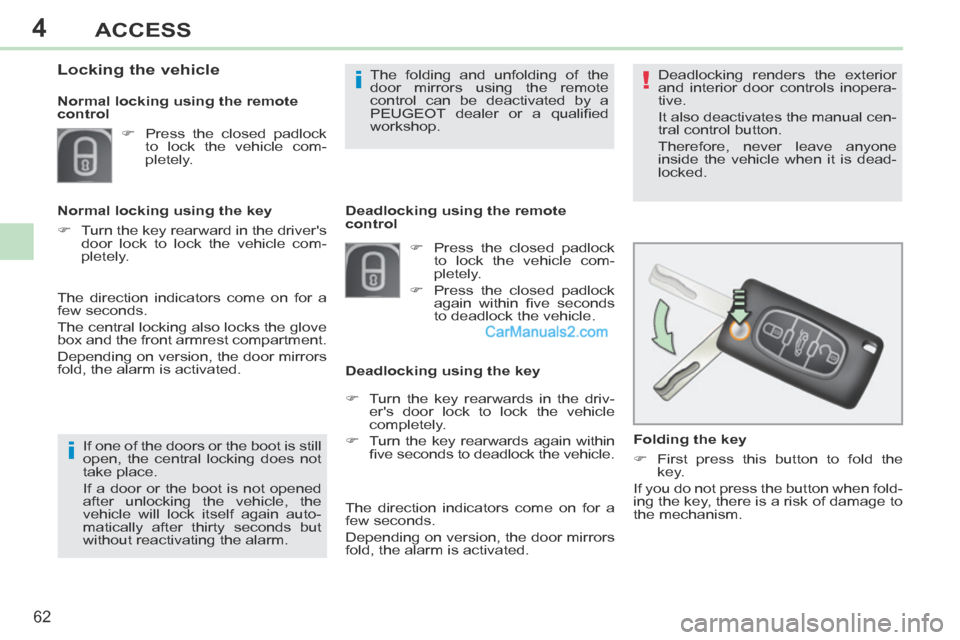

Locking the vehicle
 Press the closed padlock to lock the vehicle com-
pletely.
Normal locking using the key
 Turn the key rearward in the driver's door lock to lock the vehicle com-
pletely.
Normal locking using the remote
control
The direction indicators come on for a
few seconds.
Depending on version, the door mirrors
fold, the alarm is activated.
The direction indicators come on for a
few seconds.
The central locking also locks the glove
box and the front armrest compartment.
Depending on version, the door mirrors
fold, the alarm is activated.
 Turn the key rearwards in the driv-er's door lock to lock the vehicle
completely.
 Turn the key rearwards again within fi ve seconds to deadlock the vehicle.
