Cigarette lighter/12 V
accessory socket



To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.


To connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.




















USB port / auxiliary
socket

Connected to the USB port, the
portable device charges automatically
while in use.
The "AUX "
connection box, located in the
centre console, comprises an auxiliary JACK
socket and/or a USB port.
It permits the connection of a portable device,
such as a digital audio player of the iPod
® or
USB memory stick type.
It reads certain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them on the multifunction
screen.
For more information on the use of this
equipment, refer to the "Audio and telematics"
section.

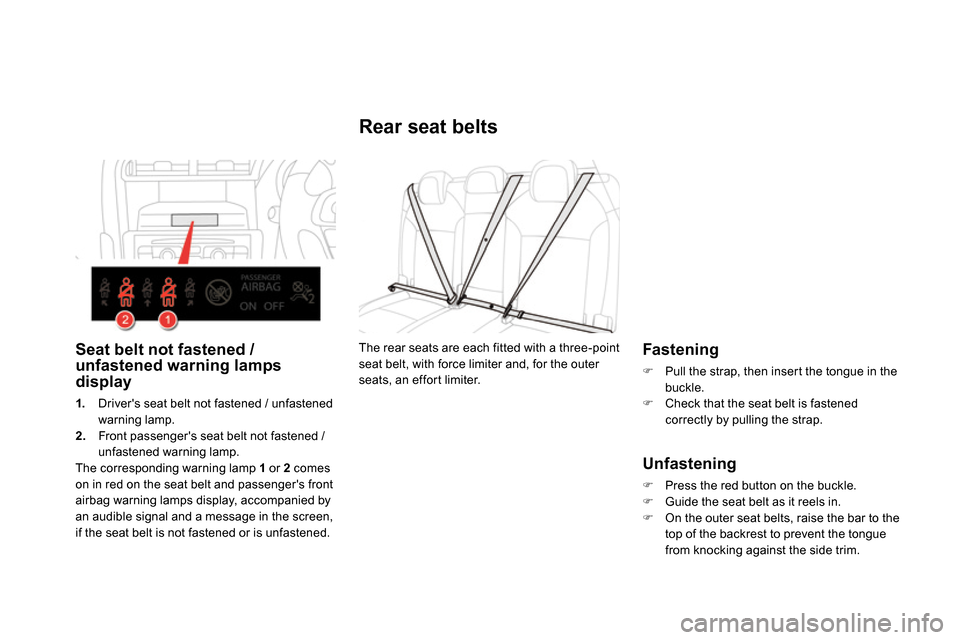

Rear seat belts


Fastening




Pull the strap, then insert the tongue in the
buckle.


Check that the seat belt is fastened
correctly by pulling the strap.



Unfastening




Press the red button on the buckle.


Guide the seat belt as it reels in.


On the outer seat belts, raise the bar to the
top of the backrest to prevent the tongue
from knocking against the side trim.
The rear seats are each fitted with a three-point
seat belt, with force limiter and, for the outer
seats, an effort limiter.

Seat belt not fastened /
unfastened warning lamps
display


1.
Driver's seat belt not fastened / unfastened
warning lamp.

2.
Front passenger's seat belt not fastened /
unfastened warning lamp.
The corresponding warning lamp 1
or 2
comes
on in red on the seat belt and passenger's front
airbag warning lamps display, accompanied by
an audible signal and a message in the screen,
if the seat belt is not fastened or is unfastened.

183Safety

Seat belt unfastened warning
lamp in the instrument panel
This warning lamp comes on in the
instrument panel when one or more rear
passengers unfasten their seat belt.

Seat belt unfastened warning
lamps display

3.
Right hand rear seat belt warning lamp.

4.
Centre rear seat belt warning lamp.

5.
Left hand rear seat belt warning lamp.
When the ignition is switched on, with the
engine running or when the vehicle is moving at
less than 12 mph (20 km/h), the corresponding
warning lamps 3
, 4
and 5
come on in red for
approximately 30 seconds, if the seat belt is not
fastened.
When the vehicle is moving at more than 12 mph
(20 km/h), the corresponding warning lamps 3
,
4
and 5
come on in red, accompanied by an
audible signal and a message in the screen, if a
rear passenger has unfastened their seat belt.
From approximately 12 mph (20 km/h),
this warning lamp flashes for two minutes
accompanied by an audible signal of increasing
volume. Once these two minutes have elapsed,
this warning lamp remains on until the one or
more rear passengers fasten their seat belt.

187Safety

Deactivation

Only the passenger's front airbag can be
deactivated:



insert the key in the passenger airbag
deactivation switch,


turn it to the "OFF"
position,


then, remove the key keeping the switch in
the new position.
According to version, this warning
lamp comes on in the instrument
panel and/or in the seat belt and
passenger's front airbag warning lamps display
when the ignition is on and until the airbag is
reactivated. To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear facing" child seat on the front
passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.


Reactivation

When you remove the child seat, turn the
switch to the "ON"
position to reactivate the
airbag and so assure the safety of your front
passenger in the event of an impact.

With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamps display for approximately one
minute, if the passenger's front airbag
is activated.


Operating fault

If this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified
workshop to have the system checked. The
airbags may no longer be deployed in the event
of a serious impact.

Electric parking brake


The electric parking brake combines
2 operational modes:


- Automatic Application/Release

Application is automatic when the engine
stops, release is automatic on use of the
accelerator (activated by default),

- Manual Application/Release

The parking brake can be applied /
released manually by pulling control
lever A
.
Do not place any object (packet of
cigarettes, telephone...) between the
gear lever and the electric parking
brake control lever.
It is recommended that you do not
apply the parking brake in very cold
conditions (ice) and during towing
(breakdown, caravan...). Deactivate the
automatic functions and release the
parking brake manually.

If this warning lamp comes on in
the instrument panel, the automatic
mode is deactivated.

Programming the mode

Depending on the country of sale of the vehicle,
the automatic application when the engine is
switched off and the automatic release when
you press the accelerator can be deactivated.
Activation / deactivation is done
using the vehicle configuration
menu; refer to the section covering
the configuration of your vehicle's
systems.
The parking brake is then applied and released
manually. When the driver's door is opened,
there is an audible signal and a message is
displayed if the brake is not applied.

195Driving
With the ignition on or the engine running, to
release the parking brake, press
on the brake

pedal
or the accelerator, pull then release

control A
.


Manual release


Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed, not
flashing.



Manual application

With the vehicle stationary, to apply the parking
brake whether the engine is running or off, pull

control lever A
.
The application of the parking brake is
confirmed by:


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message "Parking
brake on".
When the driver’s door is opened with the
engine running, a message is displayed
accompanied by an audible signal if the parking
brake has not been applied, except in the case
of an automatic gearbox with the gear lever in
position P
. The full application of the parking brake is
confirmed by:


- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,

- display of the message "Parking
brake off ".

If you pull control lever A
without pressing
the brake pedal, the parking brake will
not be released and a warning lamp will
come on in the instrument panel.


Maximum application

If necessary, you can make a maximum
application
of the parking brake. This is
obtained by means of a long pull
on the control
lever A
, until you see the message "Parking
brake on maximum" and a beep is heard.

Maximum application is essential:



- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,

- when the gradient you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing).

In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels
towards the pavement and engage a
gear when you park.
After a maximum application, the
release time will be longer.

With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.



Automatic application,
engine off

In the case of towing, a loaded vehicle
or parking on a gradient, turn the front
wheels towards the pavement and
engage a gear when you park.

Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed (not
flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message "Parking
brake on". The application of the parking brake is
confirmed by:

Automatic release

The electric parking brake releases
automatically and progressively
when you
press the accelerator:



Manual gearbox:
press down fully on the
clutch pedal, engage first gear or reverse,
press on the accelerator pedal and move off.


Electronic gearbox
: select position A
, M

or R
then press on the accelerator pedal.


Automatic gearbox
: select position D
, M

or R
then press the accelerator pedal.


When stationary, with the engine running, do
not press the accelerator pedal unnecessarily,
as you may release the parking brake.


Full release of the parking brake is confirmed by:


- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,

- display of the message "Parking
brake off ".

197Driving
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually
apply the parking
brake by pulling
control lever A
.


Immobilising the vehicle,
engine running

The emergency braking must only be
used in exceptional circumstances.

Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed, not
flashing.
The application of the parking brake is
confirmed by:


- illumination of the braking
warning lamp and the P
warning
lamp in the control lever A
,

- display of the message "Parking
brake on".
When the driver’s door is opened, a message is
displayed accompanied by an audible signal, if
the parking brake has not been applied, except
in the case of an automatic gearbox with the
gear lever in position P
.


Particular situations


In certain situations (e.g. starting the engine),
the parking brake can automatically alter its
force. This is normal operation.
To advance your vehicle a few centimetres
without starting the engine, but with the ignition
on, press on the brake pedal and release the
parking brake by pulling
then releasing
the
control lever A
. The full release of the parking
brake is confirmed by the warning lamps in
the control lever A
and in the instrument panel
going off and display of the message "Parking
brake off ".
If the parking brake develops a fault while
applied
or if the battery runs flat, an
emergency release is always possible.



Emergency braking



In the event of failure of the electronic
stability control system, signalled
by the illumination of this warning
lamp, braking stability is then not
guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever A
. In the event of a failure of the main ser vice
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A
will stop the vehicle.
The electronic stability control provides stability
during emergency braking.
If the emergency braking malfunctions,
the message "Parking brake faulty" will be
displayed.
