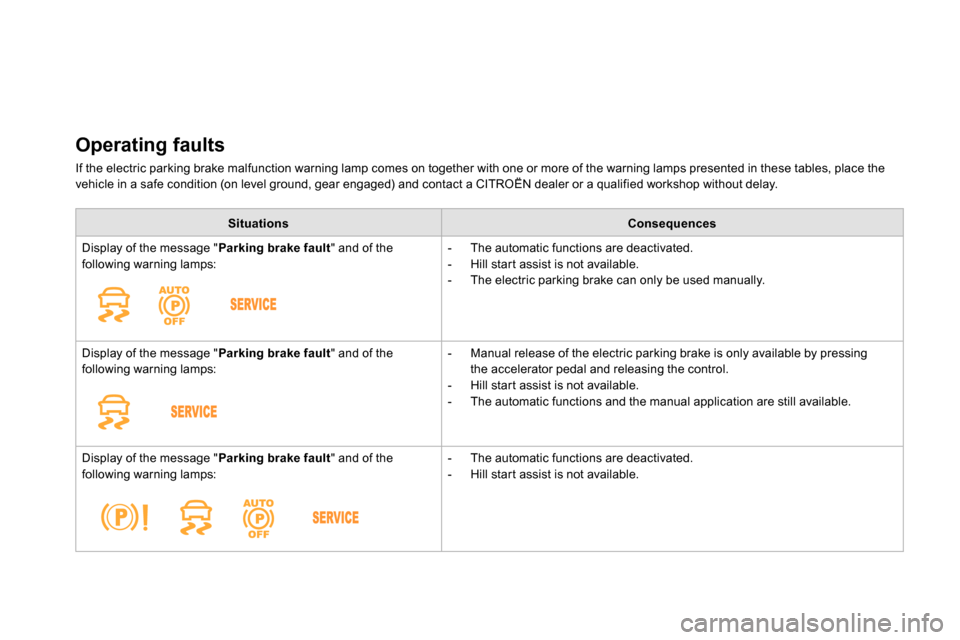

Operating faults

If the electric parking brake malfunction warning lamp comes on together with one or more of the warning lamps presented in these tables, place the
vehicle in a safe condition (on level ground, gear engaged) and contact a CITROËN dealer or a qualified workshop without delay.


Situations



Consequences


Display of the message " Parking brake fault
" and of the
following warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

- The electric parking brake can only be used manually.
Display of the message " Parking brake fault
" and of the
following warning lamps:

- Manual release of the electric parking brake is only available by pressing
the accelerator pedal and releasing the control.

- Hill start assist is not available.

- The automatic functions and the manual application are still available.
Display of the message " Parking brake fault
" and of the
following warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

201Driving


Situations



Consequences


To apply the electric parking brake:



immobilise the vehicle and switch off the ignition.


pull the control for at least 5 seconds or until application is complete.


switch on the ignition and check the switching on of the electric parking brake
warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:



switch on the ignition.


pull the control and hold it for approximately 3 seconds then release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with
the ignition on, these procedures will not work. Place the vehicle on level ground
and have it checked by a CITROËN dealer or a qualified workshop. and possibly


flashing
Display of the message " Parking brake fault
" and of the
following warning lamps:


- Only the automatic application on switching off the engine and automatic
release on acceleration functions are available.

- The manual application/release of the electric parking brake and the
emergency braking are not available.
and possibly

flashing


Battery fault

- If the battery warning lamp comes on you must stop immediately as soon as
the traffic allows. Stop and immobilise your vehicle (if necessary, place the
two chocks under the wheels).

- Apply the electric parking brake before switching off the engine.

205Driving

Gear lever positions


N.
Neutral

R.
Reverse

1, 2, 3, 4, 5, 6. Gears in sequential mode.

AUTO.
This comes on when the automated
mode is selected. It switches off on
changing to sequential mode.



Displays in the instrument panel

Moving off



N
flashes in the instrument panel,
accompanied by an audible signal and a
message in the multifunction screen, if the
gear lever is not in position N
on starting.


Select position N
.


Press the brake pedal down fully.


Start the engine.

N
appears in the instrument panel
screen.


Select automated mode (position A
) or
sequential mode (position M
) or reverse
(position R
).


Release the parking brake unless it is
programmed to automatic mode.


Progressively take your foot off the
brake pedal.


Accelerate away.

AUTO
and 1
, 1
or R
appear in the
instrument panel screen.

You must press the brake pedal when
starting the engine.
The Foot on brake
warning
lamp comes on the instrument
panel, accompanied by an
audible signal and a message in the
screen, if the brake pedal is not pressed
on starting the engine.

Automatic gearbox


Gear selection gate

Six speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Four driving modes are offered:


- automatic
operation for electronic
management of the gears by the gearbox,

- sport
programme for a more dynamic style
of driving,

- snow
programme to improve driving when
traction is poor,

- manual
operation for sequential changing
of the gears by the driver.


1.
Gear lever.

2.
Button "S"
(spor t)
.

3.
Button " 
" (snow)
.


Gear lever


P.
Park.


- Immobilisation of the vehicle, parking brake
on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle stationary,
engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, parking brake
on.

- Starting the engine.

D.
Automatic operation.

M +/-
. Manual operation with sequential
changing of the six gears.



Press for wards to change up through the
gears.
or



Press rear wards to change down through
the gears.



Displays in the instrument panel

When you move the lever in the gate to select
a position, the corresponding indicator is
displayed in the instrument panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic driving)

S.
Sport
programme


. Snow
programme

1 to 6.
Gear engaged during manual operation

-.
Invalid value during manual operation

Manual operation




Select position M
for sequential
changing
of the six gears.


Push the lever towards the +
sign to
change up a gear.


Pull the lever towards the -
sign to change
down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; other wise, the gearbox will operate
temporarily in automatic mode.

D
disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1

automatically.
The sport and snow programmes do not
operate in manual mode.

Sport and snow programmes


Sport programme "S"




Press button "S"
, after starting the engine.
The gearbox automatically favours a dynamic
style of driving.

S
appears in the instrument panel.


Snow programme " 
"




Press button " 
", after starting the engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and drive
when traction is poor.


appears in the instrument panel.



Return to automatic
operation



At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode.
These two special programmes supplement the
automatic operation in very specific conditions
of use.

211Driving

Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).



Stopping the vehicle

Before switching off the engine, you can
engage position P
or N
to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle, unless it is programmed
to automatic mode.

If the lever is not in position P
, when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, there is an audible signal and a
message appears.



Return the lever to position P
;
the audible signal stops and the
message disappears.




Operating fault

When the ignition is on, the lighting of this
warning lamp, accompanied by an audible
signal and a message in the multifunction
screen, indicates a gearbox malfunction.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P

to R
and from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Have it checked by a CITROËN dealer or a
qualified workshop.
This warning lamp may also come on if a door
is opened.
You risk damaging the gearbox:


- if you press the accelerator and
brake pedals at the same time,

- if you force the lever from position P

to another position when the
battery is flat.
To reduce fuel consumption when
stationary for long periods with the
engine running (traffic jam...), position
the gear lever at N
and apply the
parking brake, unless it is programmed
in automatic mode.

215Driving

Under-inflation alert


The loss of pressure detected does
not always lead to visible deformation
of the tyre. Do not rely on just a visual
check.

This alert is also displayed when one or
more wheels is not fitted with a sensor.

The alert is maintained until the tyre
or tyres concerned is reinflated or
repaired.

The aler t is given by the fixed illumination
of this warning lamp, accompanied by
an audible signal, and depending on
equipment, the display of a message.
In the event of a problem on one of the tyres,
the symbol or the message appears, according
to equipment, to identify it.


Reduce speed, avoid sudden steering
movements or harsh brake applications.


Stop as soon as it is safe to do so.


In the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (according to equipment),
or


if you have a compressor, the one in the
temporary puncture repair kit for example,
check the four tyre pressures when cold,
or


if it is not possible to check the tyre
pressures at the time, drive carefully at
reduced speed.


Operating fault

The flashing and then fixed illumination
of the under-inflation warning lamp
accompanied by the illumination of the
"ser vice" warning lamp indicates a fault
with the system.
In this case, monitoring of the tyre pressures is
not assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.

217Driving

Going into engine START mode

The "ECO"
warning lamp goes off
and the engine starts automatically:


- with a manual gearbox
, when you fully

depress the clutch pedal,

- with an electronic gearbox
:


●
gear lever in position A
or M
, when you
release the brake pedal,

●
or gear lever in position N
and the brake
pedal released, when you move the gear
lever to position A
or M
,

●
or when you engage reverse gear.




Special cases: START invoked
automatically
If the system has been deactivated
in STOP mode, the engine restarts
immediately. With a manual gearbox in STOP mode,
if a gear is engaged without fully
depressing the clutch pedal, a warning
lamp comes on or an alert message
is displayed asking you to depress the
clutch pedal to restart the engine.
At any time, press the "ECO OFF"
switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by the display of a
message.

Deactivation

In this case the "ECO"
warning
lamp flashes for few seconds, then
goes off.

This operation is per fectly normal.
For safety reasons or to ensure smooth
operation, START mode is invoked
automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox or 7 mph
(11 km/h) with an electronic gearbox,

- the electric parking brake is being applied,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
