Page 59 of 400
57Monitoring
Manual test in the type 2 instrument panel central screen
This function allows you to check the status of the vehicle systems (reminder of the "activated"/"deactivated" status of the configurable functions) and to
display the alerts log.
With the engine running, to start a manual
test, briefly press the ".../000"
button on
the instrument panel. The following information appears successively
in the instrument panel central screen:
- engine oil level indicator
(see corresponding section),
- ser vice indicator (see corresponding
section),
- under-inflation detection (if your vehicle
is fitted with this system; see the "Safety"
section),
- current warnings and alert messages,
if any (see corresponding section for the
warning lamp or system concerned),
- status of configurable functions
(see "Multifunction screens"). This information also appears every
time the ignition is switched on
(automatic test).
Page 60 of 400

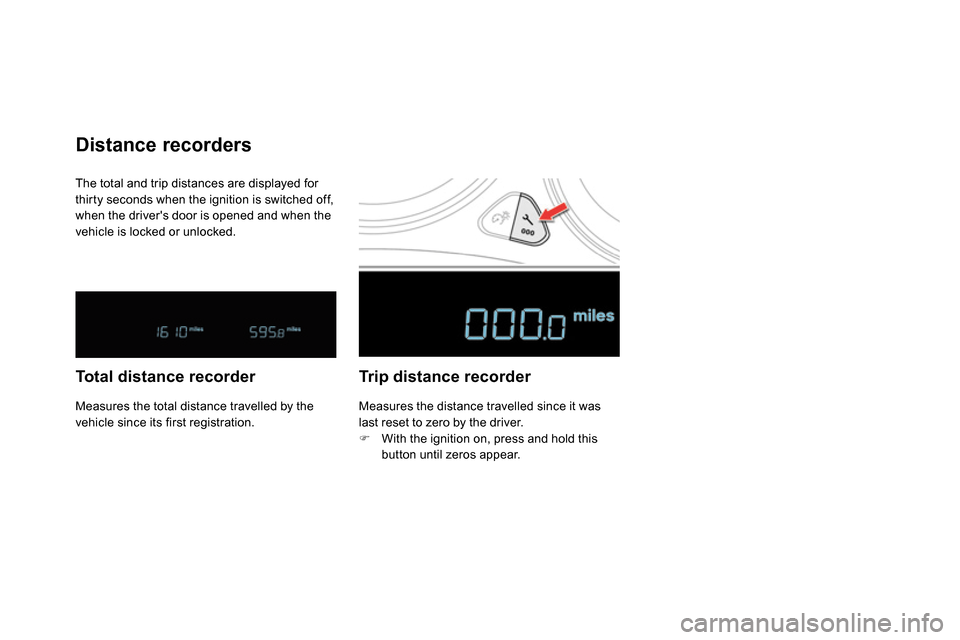

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Distance recorders
Total distance recorder
Trip distance recorder
Measures the distance travelled since it was
last reset to zero by the driver.
With the ignition on, press and hold this
button until zeros appear.
Measures the total distance travelled by the
vehicle since its first registration.
Page 66 of 400
Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- parking sensor information,
- parking space measurement,
- current audio source,
- telephone or Bluetooth system information,
- trip computer (refer to the end of the
section),
- alert messages,
- settings menus for the screen and the
vehicle equipment.
Displays in the screen
From the control panel of your audio system,
you can press:
button A
to chooses between the display
of audio information in full screen or the
shared display of audio and trip computer
information,
the "MENU"
button for access to the main
menu
,
the "
" or "
" buttons to scroll through the
items on the screen,
the "
" or "
" buttons to change a setting
value,
the "OK"
button to confirm,
or
the "Back"
button to abandon the
operation in progress.
Controls
Press the "MENU"
button for access to the
main menu
:
- "Multimedia",
- "Telephone",
- "Trip computer",
- "Bluetooth connection",
- "Personalisation-configuration",
Press the "
" or "
" button to select the
menu required, then confirm by pressing
the "OK"
button.
Main menu
Page 67 of 400
65Multifunction screens
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB / FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and Telematics"
section.
"Multimedia" menu
"Trip computer" menu
This menu allows you to view information on
the status of the vehicle.
Warning log
This summarises the status and warning
messages for systems (active, not active or
faulty), displaying them in succession in the
multifunction screen.
Press the "MENU"
button for access to the
main menu.
Press the arrows, then the "OK"
button to
select the " Tr i p c o m p u t e r
" menu.
In the " Tr i p c o m p u t e r
" menu, select the
" Warning log" line and confirm.
"Telephone" menu
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and Telematics"
section.
"Bluetooth
connection" menu
Wit the audio system on, this menu allows a
Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" application, refer to the "Audio and
Telematics" section.
Page 68 of 400
Defi ne the vehicle parameters
- "Driving assistance":
●
"Parking brake automatic" (Automatic
electric parking brake; see the "Driving"
section),
●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear; see the
" Visibility" section),
●
"Speeds memorised" (Memorising
speeds; see the "Driving" section).
- " Vehicle lighting" (see the " Visibility"
section):
●
"Directional headlamps" (Main /
additional directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see the " Visibility"
section:
●
"Follow-me-home headlamps"
(Automatic operation of headlamps after
switching off the ignition),
●
" Welcome lighting" (Exterior and interior
welcome lighting).
For example: setting of the duration of the
"follow-me-home" lighting
Press the "
" or "
" buttons, to select the
"Define the vehicle parameters" menu,
then the " OK
" button.
Press the "
" or "
" buttons to select the
"Interior lighting" line, then the "OK"
button;
then follow the same procedure to select the
"Follow-me-home headlamps" line. This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
- "Access to the vehicle" (see the "Access"
section):
●
"Plip action" (Selective unlocking of the
driver's door),
●
"Unlocking boot only" (Selective
unlocking of the boot).
"Personalisation-
configuration" menu
This menu gives access to the following
functions:
- "Define the vehicle parameters",
- "Choice of language",
- "Display configuration",
- "Choice of sounds".
Page 69 of 400
67Multifunction screens
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"
button to confirm.
Choice of language
Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.
Display confi guration
This menu gives access to the following
settings:
- "Choice of units",
- "Date and time adjustment",
- "Display parameters",
- "Brightness".
Choice of sounds
This menu allows you to choose a family of
polyphonic sounds from the four available.
These sounds are grouped together in a family
and are adapted to suit the situation and
context (alert, confirmation, rejection, direction
indicators, lighting left on, key in ignition...).
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"
box
and confirm or press the "Back"
button to
cancel.
Adjusting the date and time
Press the "
" or "
" button to display
the "Display configuration" menu, then
press "OK"
.
Press the "
" or "
" button to select the
"Date and time adjustment" button, then
press "OK"
.
Press the "
" or "
" button to select
the setting to modify. Confirm by
pressing "OK"
, then modify the setting and
confirm again to save the modification.
Adjust the settings one by one, confirming
with the "OK"
button.
Press the "
" or "
" button, then the "OK"
button to select the "OK"
box and confirm
or the "Back"
button to cancel.
Page 70 of 400
Colour screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value displayed
flashes if there is a risk of ice),
- parking sensor information,
- parking space measurement,
- audio functions,
- directory and telephone information,
- satellite navigation system information.
Displays in the screen
From the navigation system control panel, to
select one of the applications:
press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "PHONE"
or
"SETUP"
button for access to the
corresponding menu,
turn the dial A
to select a function, an item
in a list,
press button B
to confirm the selection,
or
press the "ESC"
button to abandon the
current operation and return to the previous
display.
Controls
For more information on these applications,
refer to the "Audio and Telematics" section.
Page 71 of 400
69Multifunction screens
"SETUP" menu
Press the "SETUP"
button for access to its
menu. You can choose from the following
functions:
- "Display configuration",
- " Voice synthesis".
Display confi guration
This menu is used to set the brightness of the
screen, the screen colour scheme and the date
and time.
Voice synthesis
This menu is used to adjust the volume for
guidance messages and to select the type of
voice (male or female).
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.
Setting the date and time
- Press SETUP
.
- Select "Display configuration" and confirm.
- Select "Set date and time" and confirm.
Select "Minute adjustment via GPS" to have the
minutes set automatically by satellite reception.
- Select the setting to modify. Confirm it by
pressing OK
, then modify the setting and
confirm again to save the modification.
- Adjust the settings one by one.
- Select "OK"
in the screen then confirm to
save the setting.
