2013.5 Citroen DS4 RHD display

Approaching the maximum engine speed,
the bars are displayed in red and flash,
to indicate to you the need to change up a gear.







Rev counter


Choice of sounds

This menu allows you to choose a family of
polyphonic sounds from the four available.
These sounds are grouped together in a family
and are adapted to suit the situation and
context (alert, confirmation, rejection, direction
indicators, lighting left on, key in ignition...).



Display confi guration

This menu is used to configure:


- the display language of the central screen,
from a pre-defined list,

- the units: temperature (°Celsius or
°Fahrenheit) and fuel consumption
(l/100 km, mpg or km/l),

- the graphical presentation of the central
screen, from a pre-defined list.

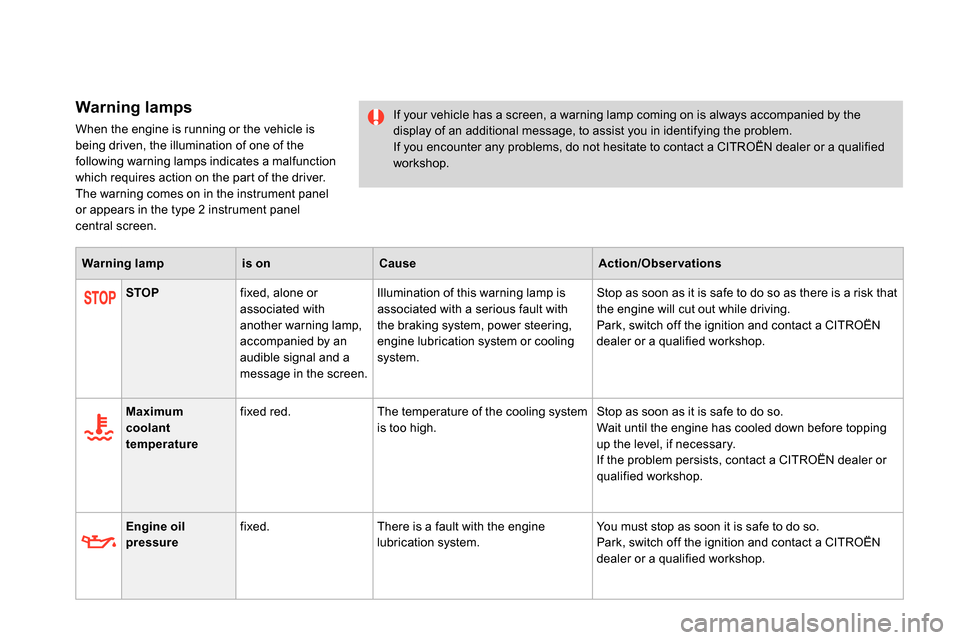

Warning lamps

When the engine is running or the vehicle is
being driven, the illumination of one of the
following warning lamps indicates a malfunction
which requires action on the part of the driver.
The warning comes on in the instrument panel
or appears in the type 2 instrument panel
central screen. If your vehicle has a screen, a warning lamp coming on is always accompanied by the
display of an additional message, to assist you in identifying the problem.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified
workshop.



Warning lamp



is on



Cause



Action/Observations






STOP


fixed, alone or
associated with
another warning lamp,
accompanied by an
audible signal and a
message in the screen. Illumination of this warning lamp is
associated with a serious fault with
the braking system, power steering,
engine lubrication system or cooling
system. Stop as soon as it is safe to do so as there is a risk that
the engine will cut out while driving.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.




Maximum
coolant
temperature


fixed red. The temperature of the cooling system
is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.




Engine oil
pressure


fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.

47Monitoring




Service


temporarily,
accompanied by a
message. A minor malfunction has occurred for
which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen, such as, for example:


- the opening of the doors, boot or bonnet,

- the engine oil level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission filter on
Diesel vehicles (see "Checks - § Checks/Particle
emissions filter").
For any other malfunctions, contact a CITROËN dealer
or a qualified workshop.

fixed, accompanied
by a message and an
audible signal. A major malfunction has occurred
for which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen and contact a CITROËN dealer
or a qualified workshop.

Warning lamp



is on



Cause



Action/Observations



Particle
emissions filter
(Diesel)
fixed, accompanied
by an audible signal
message on the risk of
blockage of the particle
emissions filter. This indicates that the particle
emissions filter is starting to become
saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied by
an audible signal and
and a message that the
particle emissions filter
additive level is too low.

This indicates the low level of the
additive reservoir. Have the reser voir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.

Lighting dimmer


fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.



Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"
child seat. Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.





Automatic wiping


fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Warning lamp



is on



Cause



Action/Observations




Stop & Start


fixed. When the vehicle stops (red lights,
traffic jams,...) the Stop & Start
system has put the engine into STOP
mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.


Parking space
sensors


fixed. The parking space sensors function
is selected. To start measurement, operate the direction indicator
on the side of the space to be measured, and do not
exceed 12 mph (20 km/h). A message is displayed
once the measurement has been completed.

53Monitoring




Passenger's
airbag system


fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. Set the control to the "ON"
position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.

Warning lamp



is on



Cause



Action/Observations













Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

This information is displayed for a few seconds
when the ignition is switched on, at the same
time as the ser vice information.















Engine oil level indicator

The vehicle must be on level ground
and the engine must have been off
for more than 30 minutes for this level
check to be accurate.

Oil level correct

Oil level incorrect

This is indicated by the flashing of "OIL"

or the display of a specific message in
the instrument panel, coupled with the service
warning lamp and accompanied by an audible
signal.
If the low oil level is confirmed by a check
using the dipstick, the level must be topped up
to avoid damage to the engine.


Oil level indicator error

This is indicated by the flashing of "OIL--"

or the display of a specific message in the
instrument panel. Contact a CITROËN or a
qualified workshop.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of damage to
the engine),

- B
= min; top up the level via
the oil filler cap, using the
correct grade of oil for your
engine.




Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.

55Monitoring
This information is displayed for a few seconds
after switching on the ignition. It informs the
driver when the next ser vice is due,
in accordance with the manufacturer's
servicing schedule.
The point at which the ser vice is due is
calculated from the last ser vice indicator zero
reset. It is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.







Service indicator


Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next ser vice is due.

For example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km) remain
before the next service is due

Example:
560 miles (900 km) remain before
the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.
A few seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.


More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice information
appears in the instrument panel central screen.

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
The distance remaining may be
weighted by the time factor, depending
on the type of driving.
Therefore, the spanner may also come
on if you have exceeded the two year
service interval.









Service indicator zero reset

After each ser vice, the ser vice indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:



switch off the ignition,


press and hold the ".../000"
trip distance
recorder zero reset button,


switch on the ignition; the distance recorder
display begins a countdown,


when the screen indicates "=/0"
and the
spanner disappears, release the button. This operation cannot be carried
out while a reminder of the ser vicing
information is being displayed.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.


Recalling the service information

You can recall the ser vice information at any
time.



Briefly press the ".../000"
trip distance
recorder zero reset button.
The ser vice information is displayed for a
few seconds, in the total distance recorder
line or in the type 2 instrument panel
central screen.




Service overdue

For a few seconds after the ignition is switched on,
the spanner flashes
to indicate that the ser vice
must be carried out as soon as possible.

Example:
the ser vice is overdue by 180 miles
(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:
