In the event of the electric parking brake
malfunctioning or the battery running flat, an
emergency device can be used to release the
parking brake manually.









Emergency release




Immobilise the vehicle (or keep it stationary,
if the brake pedal is pressed), with the
engine running, by engaging first gear
(manual gearbox), position P
(automatic
gearbox) or position M
or R
(elec tronic
gearbox).


Switch off the engine but leave the ignition
on. If it is not possible to immobilise the
vehicle, do not operate the control and
contact a CITROËN dealer or a qualified
workshop without delay.


Immobilise the vehicle by placing the chocks
in front or behind the two front wheels,
opposite to the direction of the slope.

Access to tools

The tools are stowed in the storage box under
the boot carpet.

B
Chocks*.

C
Release crank*.
* Available according to equipment: if these
tools are not present, contact a CITROËN
dealer or a qualified workshop to obtain them.

203Driving








6-speed manual gearbox




Raise the ring under the knob and move
the gear lever to the left then for wards.


Engaging reverse gear

As a safety precaution and to facilitate
starting of the engine:


- always select neutral,

- press the clutch pedal.


Only engage reverse gear when the
vehicle is stationary with the engine at idle.

Engaging 5 th
or 6 th
gear




Move the lever fully to the right to engage
5 th or 6 th
gear.

Six-speed electronic gearbox which offers a
choice between the comfort of fully automatic
operation or the pleasure of manual gear
changing.
There are two driving modes:


- automated
mode for automatic control
of the gears by the gearbox, without any
action on the part of the driver

- manual
mode for sequential gear changing
by the driver using the steering mounted
paddles.
In automated mode, you can temporarily take
over control of gear changing.

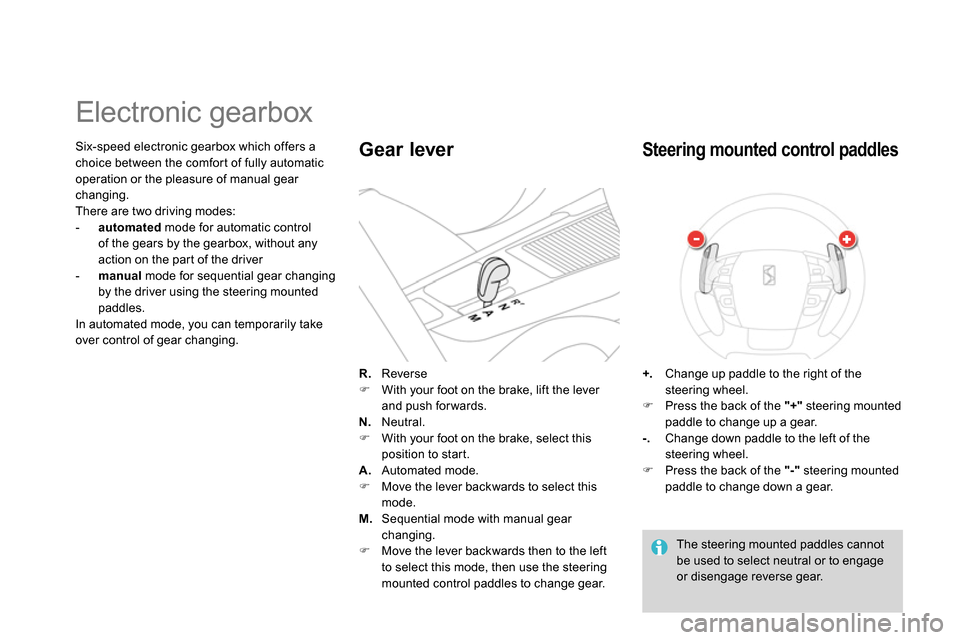

Electronic gearbox


R.
Reverse



With your foot on the brake, lift the lever
and push for wards.

N.
Neutral.



With your foot on the brake, select this
position to start.

A.
Automated mode.



Move the lever backwards to select this
mode.

M.
Sequential mode with manual gear
changing.



Move the lever backwards then to the left
to select this mode, then use the steering
mounted control paddles to change gear.



Gear lever


+.
Change up paddle to the right of the
steering wheel.



Press the back of the "+"
steering mounted
paddle to change up a gear.

-.
Change down paddle to the left of the
steering wheel.



Press the back of the "-"
steering mounted
paddle to change down a gear.


Steering mounted control paddles


The steering mounted paddles cannot
be used to select neutral or to engage
or disengage reverse gear.

For optimum acceleration, for example
when overtaking another vehicle, press
the accelerator pedal firmly past the
point of resistance.


Temporary control of gear
changing
You can temporarily take over control of
gear changing using the "+"
and "-"
steering
mounted paddles: if the engine speed allows,
the request to change gear is acted on.
This function allows you to anticipate certain
situations such as overtaking a vehicle or the
approach to a corner.
After a few moments without any action on
the control paddles, the gearbox resumes
automatic control of the gears.



Manual mode




Select position A
.


Automated mode


AUTO
and the gear engaged
appear in the instrument panel
screen.
The gearbox operates in auto-active mode,
without any action on the part of the driver. It
continuously selects the most suitable gear for:


- optimisation of fuel consumption,

- the style of driving,

- the profile of the road.

- the vehicle load.



Select position M
.
The gears engaged appear in succession in the
instrument panel screen.
The gear change requests are
only acted on if the engine speed
permits. It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearbox
changes down automatically to allow the
vehicle to accelerate in the correct gear.
On sharp acceleration, the gearbox will not
change up unless the driver acts on the gear
lever or the steering mounted paddles.

Never select neutral N
when driving.
Never select neutral N
while the vehicle
is moving.

You can change mode at any time by
moving the gear lever from A
to M
or
the other way round.

207Driving

Stopping the vehicle
Operating fault

With the ignition on, the flashing of AUTO
,
accompanied by an audible signal and a
message in the screen, indicates a malfunction
of the gearbox.
Have it checked by a CITROËN dealer or a
qualified workshop.

When immobilising the vehicle, with
the engine running, you must place the
gear lever in neutral N
.
Before carrying out any work in the
engine compartment, ensure that the
gear lever is in neutral N
and that the
parking brake is applied.
Whatever the circumstances, you must
manually apply the parking brake when
parking, unless the parking brake is
programmed in automatic mode.
Before switching off the engine, you can:


- move to position N
to engage neutral,
or

- leave the gear engaged; in this case, it will
not be possible to move the vehicle. To engage reverse gear R
, the vehicle must be
immobilised with your foot on the brake pedal.



Select position R
.

At low high speed, if reverse gear is requested,
the N
indicator flashes and the gearbox goes
into neutral automatically. To engage reverse,
put the gear lever in position N
, then position R
.
In both cases, you must apply the parking
brake
to immobilise the vehicle.


Reverse


Engagement of reverse gear is
accompanied by an audible signal.

Automatic gearbox


Gear selection gate

Six speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Four driving modes are offered:


- automatic
operation for electronic
management of the gears by the gearbox,

- sport
programme for a more dynamic style
of driving,

- snow
programme to improve driving when
traction is poor,

- manual
operation for sequential changing
of the gears by the driver.


1.
Gear lever.

2.
Button "S"
(spor t)
.

3.
Button " 
" (snow)
.


Gear lever


P.
Park.


- Immobilisation of the vehicle, parking brake
on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle stationary,
engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, parking brake
on.

- Starting the engine.

D.
Automatic operation.

M +/-
. Manual operation with sequential
changing of the six gears.



Press for wards to change up through the
gears.
or



Press rear wards to change down through
the gears.



Displays in the instrument panel

When you move the lever in the gate to select
a position, the corresponding indicator is
displayed in the instrument panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic driving)

S.
Sport
programme


. Snow
programme

1 to 6.
Gear engaged during manual operation

-.
Invalid value during manual operation

209Driving

Moving off




With your foot on the brake, select
position P
or N
.


Start the engine.
If this procedure is not followed, there is an
audible signal, accompanied by a message in
the multifunction screen.



With the engine running, press the brake
pedal.


Release the parking brake, unless it is
programmed to automatic mode.


Select position R
, D
or M
,


Gradually release the brake pedal.
The vehicle moves off immediately.

If position N
is engaged inadvertently
while driving, allow the engine to
return to idle then engage position D
to
accelerate.
When the engine is running at idle, with
the brakes released, if position R
, D

or M
is selected, the vehicle moves
even without the accelerator being
pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.



Automatic operation




Select position D
for automatic
changing
of the six gears.
The gearbox then operates in auto-adaptive
mode, without any inter vention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the lever, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.

Never select position N
while the
vehicle is moving.
Never select positions P
or R
unless
the vehicle is completely stationary.

Manual operation




Select position M
for sequential
changing
of the six gears.


Push the lever towards the +
sign to
change up a gear.


Pull the lever towards the -
sign to change
down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; other wise, the gearbox will operate
temporarily in automatic mode.

D
disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1

automatically.
The sport and snow programmes do not
operate in manual mode.

Sport and snow programmes


Sport programme "S"




Press button "S"
, after starting the engine.
The gearbox automatically favours a dynamic
style of driving.

S
appears in the instrument panel.


Snow programme " 
"




Press button " 
", after starting the engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and drive
when traction is poor.


appears in the instrument panel.



Return to automatic
operation



At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode.
These two special programmes supplement the
automatic operation in very specific conditions
of use.
