Customisable colour instrument panel - Type 1



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear efficiency indicator or gear lever
position and gear engaged (electronic or
automatic gearbox).

3.
Analogue speedometer (mph or km/h).

4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.


Dials and screens
Control buttons


7.
Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
warning lamp.

10.
Range (miles or km).


A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation of the
background colour of the screens.

C.
Lighting dimmer (available in night mode).

D.
Reminder of the servicing information
Reset the service indicator or the trip
mileage recorder.

39Monitoring


1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear efficiency indicator or gear lever
position and gear for an electronic or
automatic gearbox.

3.
Speedometer (mph or km/h).

4.
Central screen.

5.
Fuel gauge and associated low fuel level
warning lamp.

Dials and screens


6.
Trip mileage recorder (miles or km).

7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder.
(miles or km)



Control buttons




















Customisable colour instrument panel - Type 2



A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation of the
background colour of the screens.

C.
Dashboard lighting dimmer (in night mode).

D.
Start a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.

This information is displayed for a few seconds
when the ignition is switched on, at the same
time as the ser vice information.















Engine oil level indicator

The vehicle must be on level ground
and the engine must have been off
for more than 30 minutes for this level
check to be accurate.

Oil level correct

Oil level incorrect

This is indicated by the flashing of "OIL"

or the display of a specific message in
the instrument panel, coupled with the service
warning lamp and accompanied by an audible
signal.
If the low oil level is confirmed by a check
using the dipstick, the level must be topped up
to avoid damage to the engine.


Oil level indicator error

This is indicated by the flashing of "OIL--"

or the display of a specific message in the
instrument panel. Contact a CITROËN or a
qualified workshop.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of damage to
the engine),

- B
= min; top up the level via
the oil filler cap, using the
correct grade of oil for your
engine.




Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.

55Monitoring
This information is displayed for a few seconds
after switching on the ignition. It informs the
driver when the next ser vice is due,
in accordance with the manufacturer's
servicing schedule.
The point at which the ser vice is due is
calculated from the last ser vice indicator zero
reset. It is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.







Service indicator


Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next ser vice is due.

For example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km) remain
before the next service is due

Example:
560 miles (900 km) remain before
the next ser vice is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.
A few seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.


More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice information
appears in the instrument panel central screen.

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
The distance remaining may be
weighted by the time factor, depending
on the type of driving.
Therefore, the spanner may also come
on if you have exceeded the two year
service interval.









Service indicator zero reset

After each ser vice, the ser vice indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:



switch off the ignition,


press and hold the ".../000"
trip distance
recorder zero reset button,


switch on the ignition; the distance recorder
display begins a countdown,


when the screen indicates "=/0"
and the
spanner disappears, release the button. This operation cannot be carried
out while a reminder of the ser vicing
information is being displayed.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.


Recalling the service information

You can recall the ser vice information at any
time.



Briefly press the ".../000"
trip distance
recorder zero reset button.
The ser vice information is displayed for a
few seconds, in the total distance recorder
line or in the type 2 instrument panel
central screen.




Service overdue

For a few seconds after the ignition is switched on,
the spanner flashes
to indicate that the ser vice
must be carried out as soon as possible.

Example:
the ser vice is overdue by 180 miles
(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:

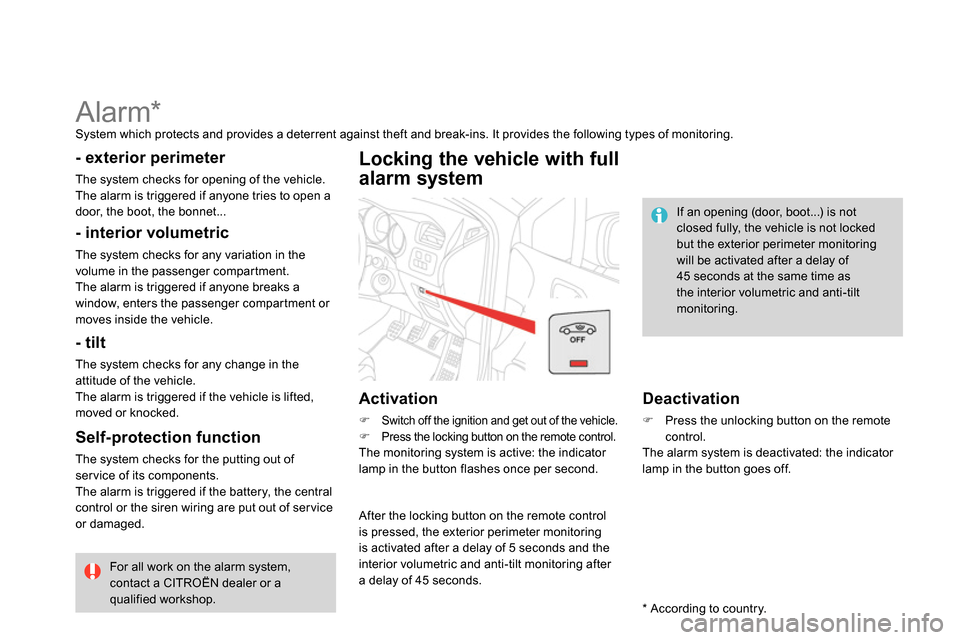

Alarm *
System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring.


- exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...




- interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.




Locking the vehicle with full
alarm system

- tilt

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.




Self-protection function

The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.


Activation




Switch off the ignition and get out of the vehicle.


Press the locking button on the remote control.
The monitoring system is active: the indicator
lamp in the button flashes once per second.
After the locking button on the remote control
is pressed, the exterior perimeter monitoring
is activated after a delay of 5 seconds and the
interior volumetric and anti-tilt monitoring after
a delay of 45 seconds.

Deactivation




Press the unlocking button on the remote
control.
The alarm system is deactivated: the indicator
lamp in the button goes off.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitoring
will be activated after a delay of
45 seconds at the same time as
the interior volumetric and anti-tilt
monitoring.

*
According to country.
