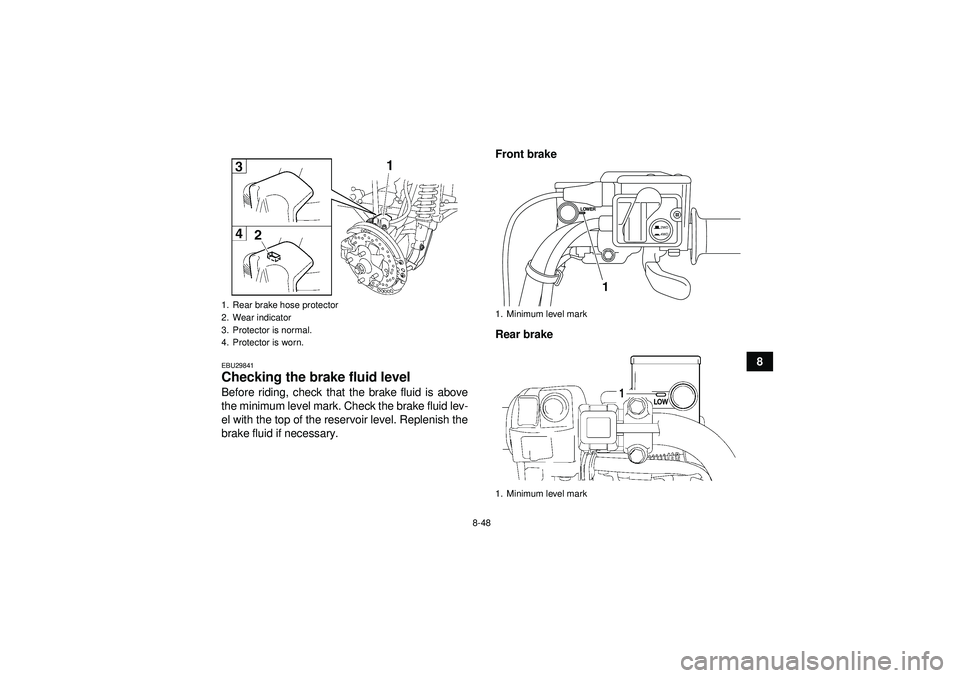

EBU29841Checking the brake fluid level Before riding, check that the brake fluid is above
the minimum level mark. Check the brake fluid lev-
el with the top of the reservoir level. Replenish the
brake fluid if necessary.Front brake
Rear brake1. Rear brake hose protector
2. Wear indicator
3. Protector is normal.
4. Protector is worn.
1. Minimum level mark
1. Minimum level mark
2WD
4WD
1
U1HS60E0.book Page 48 Tuesday, April 26, 2011 7:53 PM

8-49
8
WARNING
EWB02720Improper maintenance can result in loss of
braking ability. Observe these precautions:
Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
Be careful that water does not enter the
brake fluid reservoir when refilling. Water
will significantly lower the boiling point of
the fluid and may result in vapor lock.
NOTICEECB01160Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately.As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the
brake pads for wear and the brake system for leak-
age. If the brake fluid level goes down suddenly,
have a Yamaha dealer check the cause before fur-
ther riding.EBU24291Changing the brake fluid Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.
Oil seals: Replace every two years.
Brake hoses: Replace every four years.
Specified brake fluid:
DOT 4
U1HS60E0.book Page 49 Tuesday, April 26, 2011 7:53 PM

8-50
8
EBU27772Checking the front and rear brake lever
free play The front and rear brake lever free play must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. The brake le-
vers should have no free play as shown. If there is
free play, have a Yamaha dealer check the brake
system.
Front brakeRear brake
EBU29072Adjusting the brake pedal free play The brake pedal free play must be adjusted at the
intervals specified in the periodic maintenance and
lubrication chart.TIP
Always perform this maintenance completely in
the following order whenever adjusting the rear
brake.
Before adjusting the brake pedal free play,
check the rear brake pads for wear.
1. No brake lever free play
1. No brake lever free play
U1HS60E0.book Page 50 Tuesday, April 26, 2011 7:53 PM

8-51

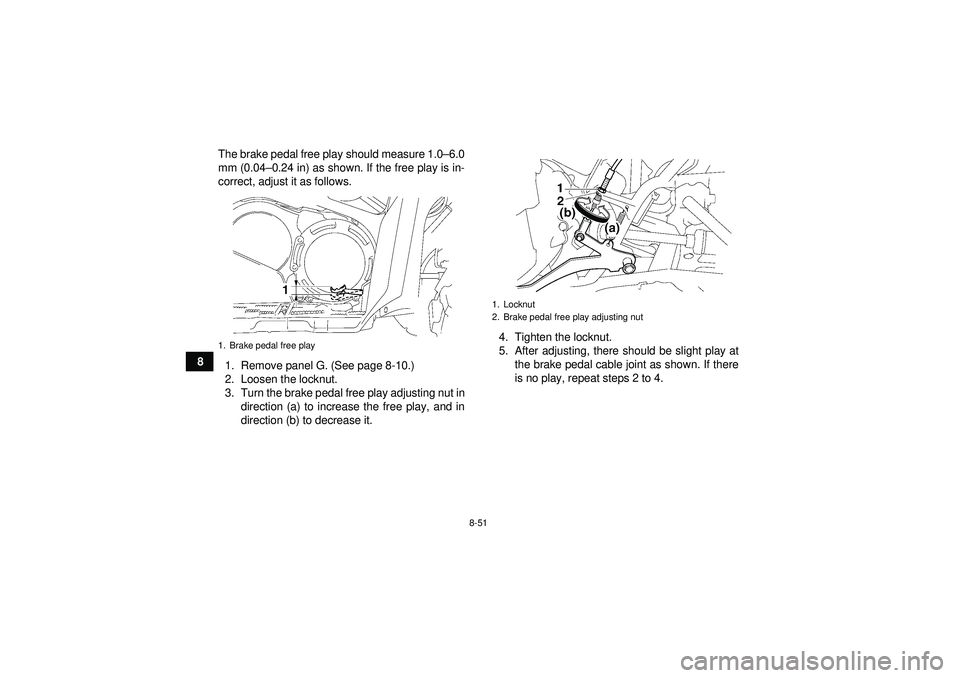

8The brake pedal free play should measure 1.0
–6.0
mm (0.04 –0.24 in) as shown. If the free play is in-
correct, adjust it as follows.
1. Remove panel G. (See page 8-10.)
2. Loosen the locknut.
3. Turn the brake pedal free play adjusting nut in direction (a) to increase the free play, and in
direction (b) to decrease it. 4. Tighten the locknut.
5. After adjusting, there should be slight play at
the brake pedal cable joint as shown. If there
is no play, repeat steps 2 to 4.
1. Brake pedal free play
1. Locknut
2. Brake pedal free play adjusting nut
U1HS60E0.book Page 51 Tuesday, April 26, 2011 7:53 PM

8-52
8
6. Install the panel.
If the correct free play cannot be obtained, have a
Yamaha dealer adjust it.
TIPWhen adjusting the rear brake pedal free play:
Be sure not to step on the brake pedal.
Make sure the rear brake lever and brake pedal
do not move.

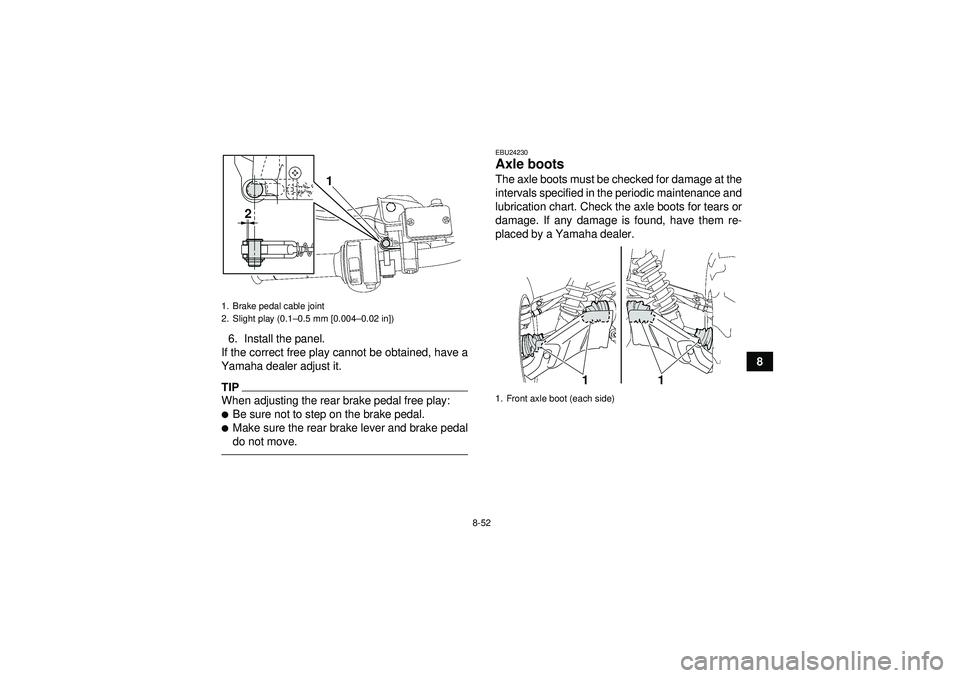

EBU24230Axle boots The axle boots must be checked for damage at the
intervals specified in the periodic maintenance and
lubrication chart. Check the axle boots for tears or
damage. If any damage is found, have them re-
placed by a Yamaha dealer.
1. Brake pedal cable joint
2. Slight play (0.1 –0.5 mm [0.004– 0.02 in])
1
2
1. Front axle boot (each side)
1
1
U1HS60E0.book Page 52 Tuesday, April 26, 2011 7:53 PM

8-53
8
EBU24902Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02581
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.EBU24912Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. Rear axle boot (each side)Recommended lubricant:Yamaha Chain and Cable Lube or engine oil
1
1
Recommended lubricant:
Silicone grease
U1HS60E0.book Page 53 Tuesday, April 26, 2011 7:53 PM

8-54
8

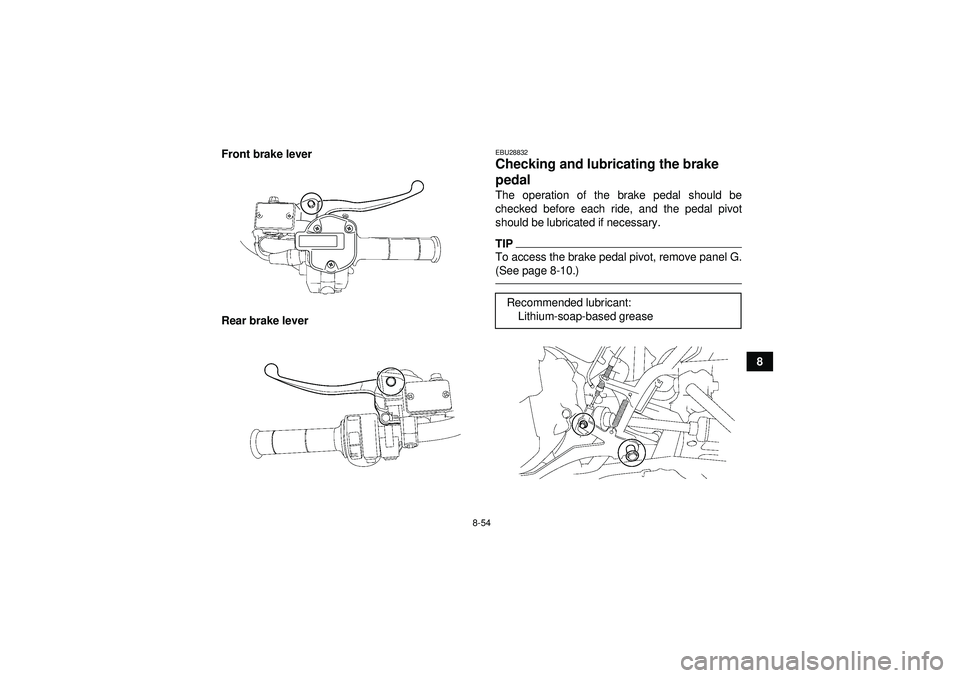

Front brake lever
Rear brake lever
EBU28832Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel G.
(See page 8-10.)Recommended lubricant:
Lithium-soap-based grease
U1HS60E0.book Page 54 Tuesday, April 26, 2011 7:53 PM

8-55
8

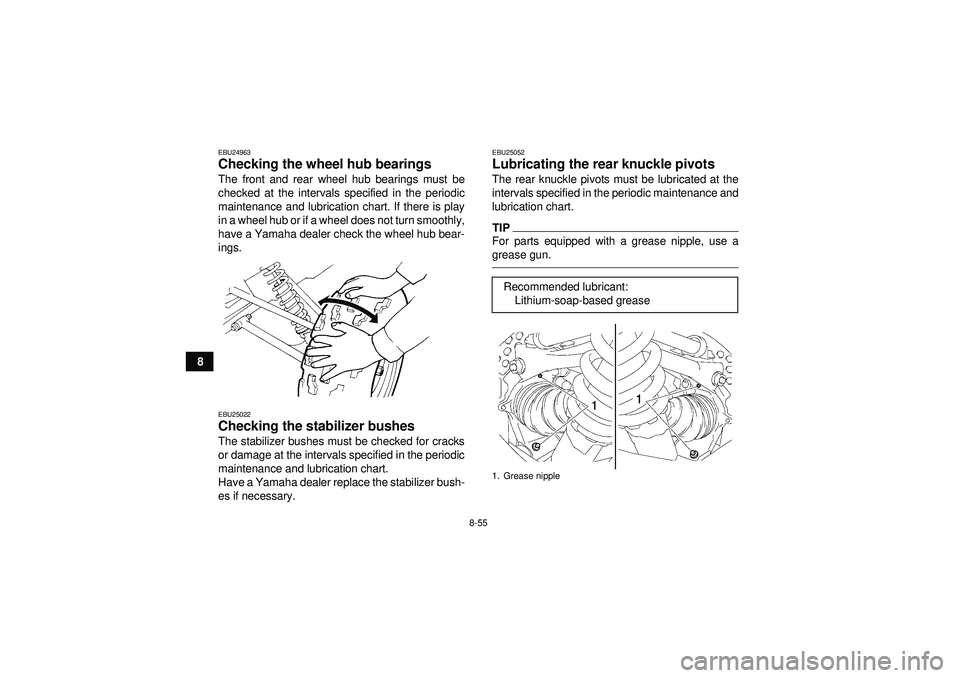

EBU24963Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.EBU25022Checking the stabilizer bushes The stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the stabilizer bush-
es if necessary.
EBU25052Lubricating the rear knuckle pivots The rear knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance and
lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.Recommended lubricant:Lithium-soap-based grease1. Grease nipple
