2012 YAMAHA GRIZZLY 550 Owners Manual

Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1 GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-17
CROSSING THROUGH SHALLOW WATER ................................................... 7-18
RIDING OVER ROUGH TERRAIN ........... 7-21
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-23
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1 Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for the emission control system ........................... 8-3
General maintenance and lubrication chart ......................................................... 8-5 Removing and installing panels ................8-10
Removing the radiator grills ......................8-20
Checking the spark plug ...........................8-20
Engine oil and oil filter cartridge ................8-22
Final gear oil .............................................8-27
Differential gear oil ....................................8-29
Coolant .....................................................8-32
Cleaning the air filter element ...................8-39
Cleaning the spark arrester ......................8-42
V-belt case drain plug ...............................8-44
Adjusting the throttle lever free play .........8-45
Valve clearance ........................................8-46
Adjusting the drive select lever safety
system cable ...........................................8-46
Brakes .......................................................8-46
Checking the front and rear brake pads ...8-46
Checking the rear brake hose protectors ................................................8-47
Checking the brake fluid level ...................8-48
Changing the brake fluid ...........................8-49
Checking the front and rear brake lever free play ..................................................8-50
Adjusting the brake pedal free play ..........8-50
Axle boots .................................................8-52
Checking and lubricating the cables .........8-53
Checking and lubricating the front and rear brake levers .....................................8-53
U1HS60E0.book Page 2 Tuesday, April 26, 2011 7:53 PM

Checking and lubricating the brake pedal ...................................................... 8-54
Checking the wheel hub bearings ............ 8-55
Checking the stabilizer bushes ................ 8-55
Lubricating the rear knuckle pivots ........... 8-55
Lubricating the steering shaft ................... 8-56
Battery ...................................................... 8-56
Replacing a fuse ...................................... 8-59
Replacing a headlight bulb ....................... 8-61
Adjusting a headlight beam ...................... 8-63
Replacing the tail/brake light bulb ............ 8-63
Removing a wheel .................................... 8-64
Installing a wheel ...................................... 8-65
Troubleshooting ....................................... 8-66
Troubleshooting charts ............................. 8-67
CLEANING AND STORAGE .......................... 9-1 Cleaning ..................................................... 9-1
Storage ....................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1 Identification numbers .............................. 11-1
U1HS60E0.book Page 3 Tuesday, April 26, 2011 7:53 PM

1-1
1
EBU29680
LOCATION OF THE WARNING AND SPECIFICATION LABELS

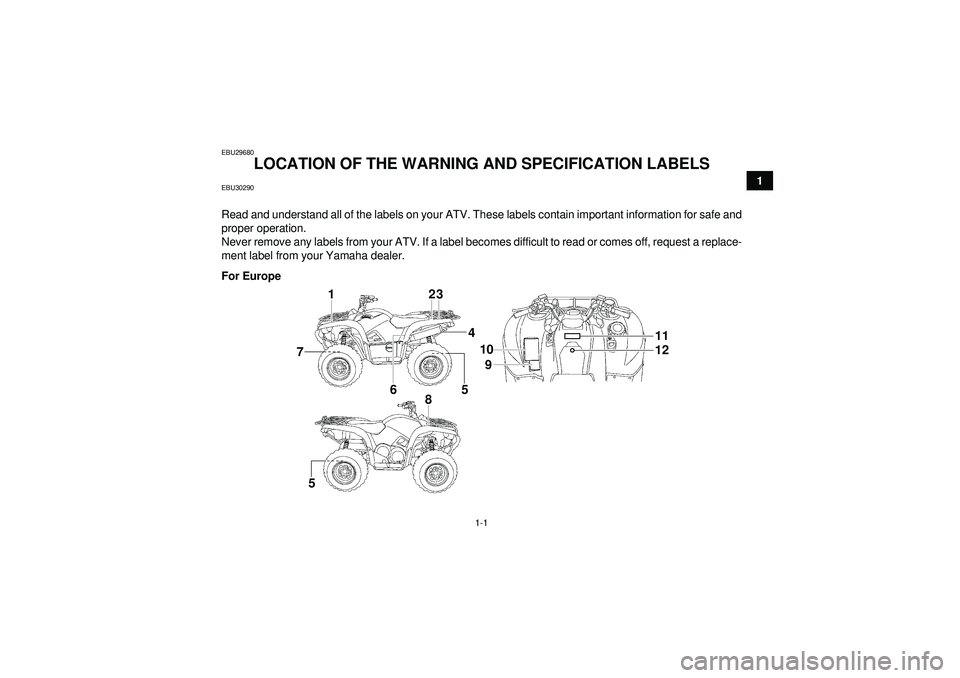

EBU30290Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
For Europe
123
4
65
7
810
9 11
12
5
U1HS60E0.book Page 1 Tuesday, April 26, 2011 7:53 PM

1-2
1
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
1HP-F817R-10< 85 kg
( 187 lbs)
35.0 kPa
0.35 kgf/cm²
5.0 psi 30.0 kPa
0.30 kgf/cm²
4.4 psi
1HP-F816M-M0
YAMAHA
1HP-F817R-00< 45 kg
( 99 lbs)
1P0-F816P-20
YAMAHA
1HP-F2259-21
1
2
3 4
5
6
U1HS60E0.book Page 2 Tuesday, April 26, 2011 7:53 PM

1-3
1
37S-F816N-00< 0.5 kg
( 1 lb )
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN YFM550FWAD
27.5 kW
294 kg
2011
1HS-F155A-00
1P0-F816L-20
YAMAHA
7
8 9
U1HS60E0.book Page 3 Tuesday, April 26, 2011 7:53 PM

1-4
1
37S-F816S-00
1P0-F816R-00
YAMAHA
1011
12
U1HS60E0.book Page 4 Tuesday, April 26, 2011 7:53 PM

1-5
1
Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’
s manual.
ALWAYS use an approved helmet and
protective gear.
NEVER permit children under age 6 to
operate this ATV.
Operation of this ATV by children under the
age of 6 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER permit children under age 10 to
operate this ATV.
Operation of this ATV by children under the
age of 10 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16. NEVER permit children under age 12 to
operate this ATV.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER operate this ATV if you are under
age 16.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER use on paved roads.
NEVER carry passengers.
U1HS60E0.book Page 5 Tuesday, April 26, 2011 7:53 PM

1-6
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
U1HS60E0.book Page 6 Tuesday, April 26, 2011 7:53 PM
