2012 YAMAHA GRIZZLY 550 Owners Manual

10-1
10
EBU25961
SPECIFICATIONS
Dimensions:Overall length:2065 mm (81.3 in)
Overall width: 1180 mm (46.5 in)
Overall height:
1240 mm (48.8 in)
Seat height: 905 mm (35.6 in)
Wheelbase: 1250 mm (49.2 in)
Ground clearance:
275 mm (10.8 in)
Minimum turning radius: 3200 mm (126 in)Weight:With oil and fuel:
294.0 kg (648 lb)Noise and vibration level:Noise level (77/311/EEC):YFM5FGPB 79.0 dB(A)@2950 r/min
YFM5FGPHB 79.0 dB(A)@2950 r/min
Vibration on seat (EN1032, ISO5008): YFM5FGPB Will not exceed 0.5 m/s ²
YFM5FGPHB Will not exceed 0.5 m/s ²
Vibration on handlebar (EN1032, ISO5008): YFM5FGPB Will not exceed 2.5 m/s ²
YFM5FGPHB Will not exceed 2.5 m/s ²
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Forward-inclined single cylinder
Displacement:
558 cm ³
Bore × stroke:
92.0 × 84.0 mm (3.62 × 3.31 in)
Compression ratio: 9.30 : 1
Starting system:
Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:
YAMALUBE
U1HS60E0.book Page 1 Tuesday, April 26, 2011 7:53 PM

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.22 L (0.23 US qt, 0.19 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):0.24 L (0.25 US qt, 0.21 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:YFM550FAB Unleaded gasoline only
YFM550FADB Unleaded gasoline only
YFM5FGPB Regular unleaded gasoline only
YFM5FGPHB Regular unleaded gasoline only
Fuel tank capacity: 20.0 L (5.28 US gal, 4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Fuel injection:Throttle body:ID mark: 28P7 10Spark plug (s):Manufacturer/model:
NGK/LMAR6A-9
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U1HS60E0.book Page 2 Tuesday, April 26, 2011 7:53 PM

10-3
10
Spark plug gap:0.8 –0.9 mm (0.031 –0.035 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio: 41/21 × 24/18 × 33/9 (9.544)
Transmission type: V-belt automatic
Operation:
Left hand operation
Reverse gear: 23/14 × 28/23 (2.000)
Low range: 31/16 (1.938)
High range:
31/27 (1.148)Chassis:Frame type:Steel tube frame
Caster angle:
5.0 °
Trail: 26.0 mm (1.02 in)
Front tire:Type:Tubeless
Size:
AT25 x 8-12
Manufacturer/model: YFM550FAB CHENG SHIN/C828
YFM550FADB CHENG SHIN/C828
YFM5FGPB MAXXIS/MU19
YFM5FGPHB MAXXIS/MU19Rear tire:Type:
Tubeless
Size: AT25 x 10-12
Manufacturer/model: YFM550FAB CHENG SHIN/C828
YFM550FADB CHENG SHIN/C828
YFM5FGPB MAXXIS/MU20
YFM5FGPHB MAXXIS/MU20Loading:Maximum loading limit:220.0 kg (485 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:Front:35.0 kPa (0.350 kgf/cm ², 5.0 psi)
Rear: 30.0 kPa (0.300 kgf/cm ², 4.4 psi)
U1HS60E0.book Page 3 Tuesday, April 26, 2011 7:53 PM

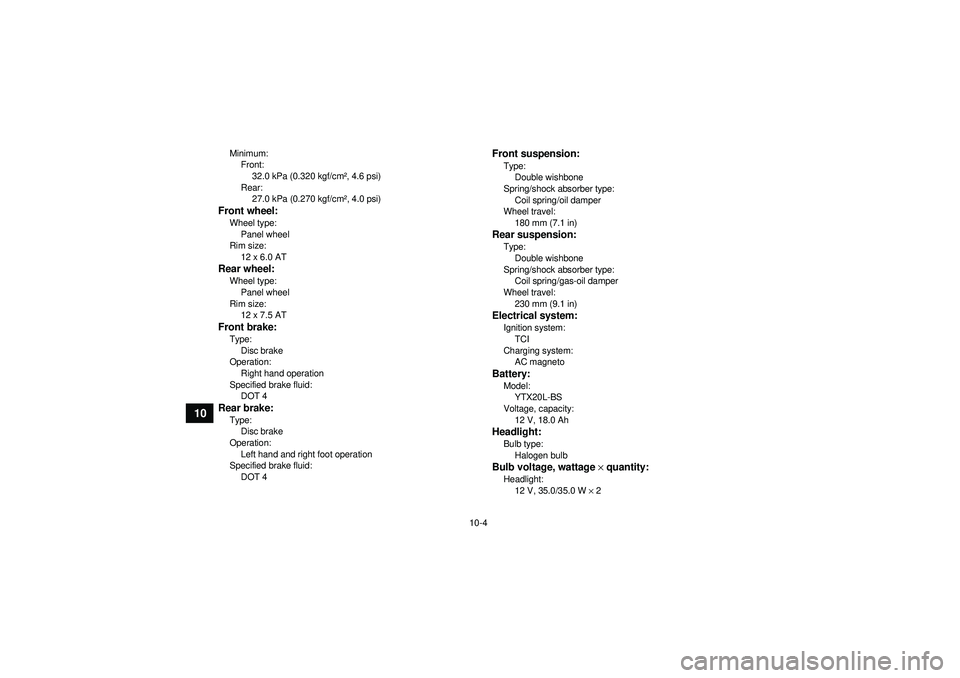

10-4
10
Minimum:Front:
32.0 kPa (0.320 kgf/cm ², 4.6 psi)
Rear: 27.0 kPa (0.270 kgf/cm ², 4.0 psi)Front wheel:Wheel type:
Panel wheel
Rim size: 12 x 6.0 ATRear wheel:Wheel type:
Panel wheel
Rim size: 12 x 7.5 ATFront brake:Type:
Disc brake
Operation: Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:Disc brake
Operation: Left hand and right foot operation
Specified brake fluid:
DOT 4
Front suspension:Type:Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 180 mm (7.1 in)Rear suspension:Type:
Double wishbone
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 230 mm (9.1 in)Electrical system:Ignition system:TCI
Charging system: AC magnetoBattery:Model:YTX20L-BS
Voltage, capacity: 12 V, 18.0 AhHeadlight:Bulb type:Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35.0/35.0 W × 2
U1HS60E0.book Page 4 Tuesday, April 26, 2011 7:53 PM

10-5
10
Tail/brake light:12 V, 5.0/21.0 W × 1
Meter lighting: EL (Electroluminescent)
Neutral indicator light:
LED
Reverse indicator light: LED
Coolant temperature warning light: LED
Engine trouble warning light:
LED
EPS warning light: YFM550FADB LED
YFM5FGPB LED
YFM5FGPHB LED
Park indicator light:
LED
On-Command four-wheel-drive/differential gear lock
indicator:
LCD
High-range indicator light: LED
Low-range indicator light: LED
Differential gear lock indicator light:
LEDFuses:Main fuse:40.0 A
Fuel injection system fuse:
15.0 A EPS fuse:
YFM550FADB 40.0 A
YFM5FGPB 40.0 A
YFM5FGPHB 40.0 A
Headlight fuse:
10.0 A
Signaling system fuse: 5.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse:
10.0 A
Four-wheel-drive motor fuse: 10.0 A
Radiator fan fuse: 20.0 A
EBU30400For EUR only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
U1HS60E0.book Page 5 Tuesday, April 26, 2011 7:53 PM

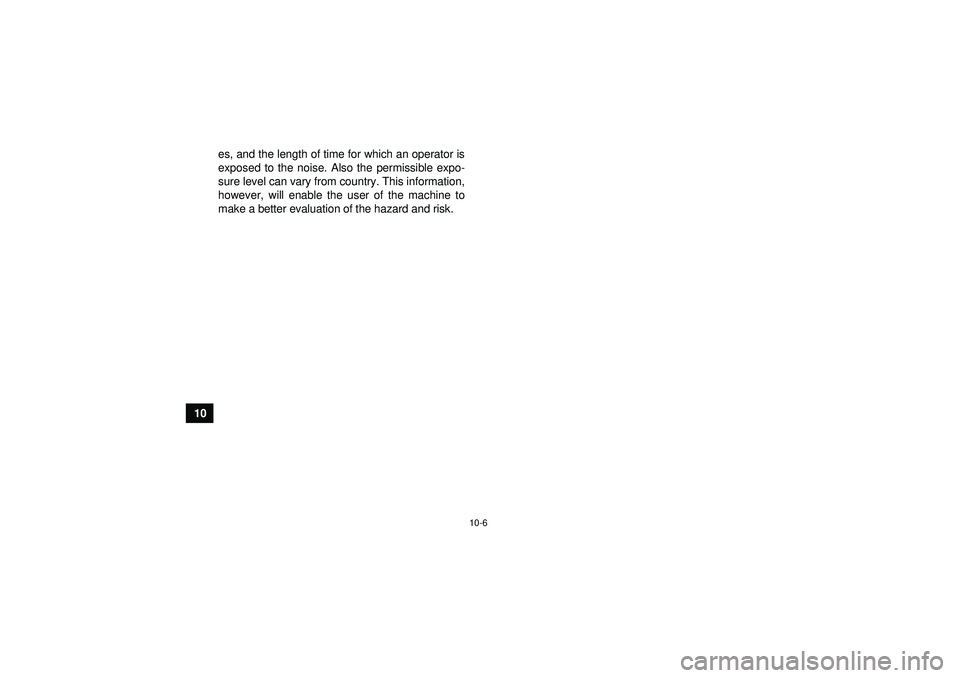

10-6
10es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.
U1HS60E0.book Page 6 Tuesday, April 26, 2011 7:53 PM

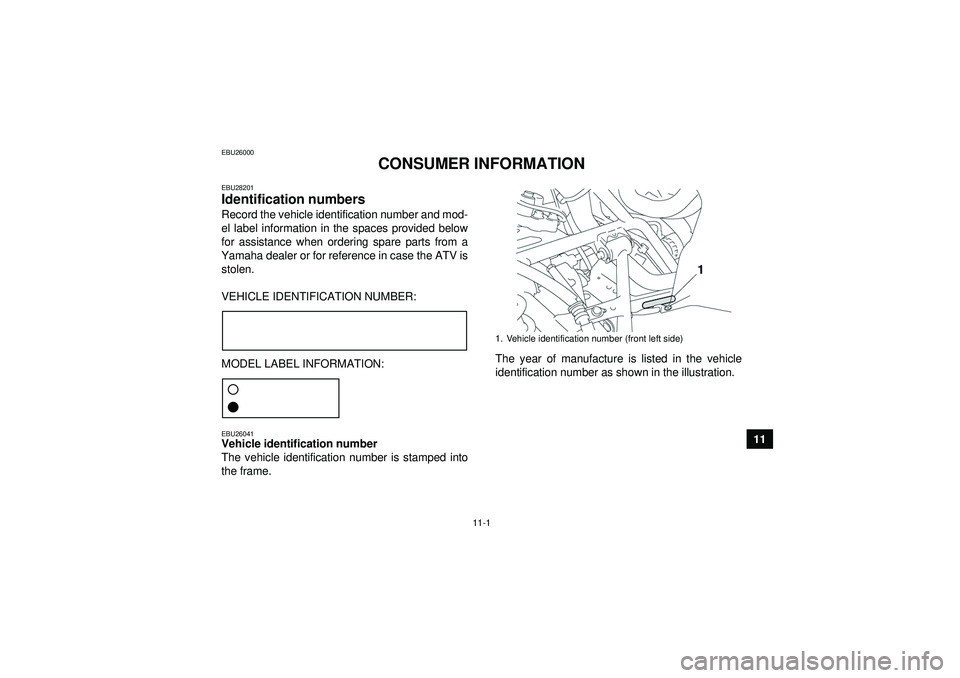

11-1
11
EBU26000
CONSUMER INFORMATION
EBU28201Identification numbers Record the vehicle identification number and mod-
el label information in the spaces provided below
for assistance when ordering spare parts from a
Yamaha dealer or for reference in case the ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26041Vehicle identification number
The vehicle identification number is stamped into
the frame. The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
1. Vehicle identification number (front left side)
U1HS60E0.book Page 1 Tuesday, April 26, 2011 7:53 PM

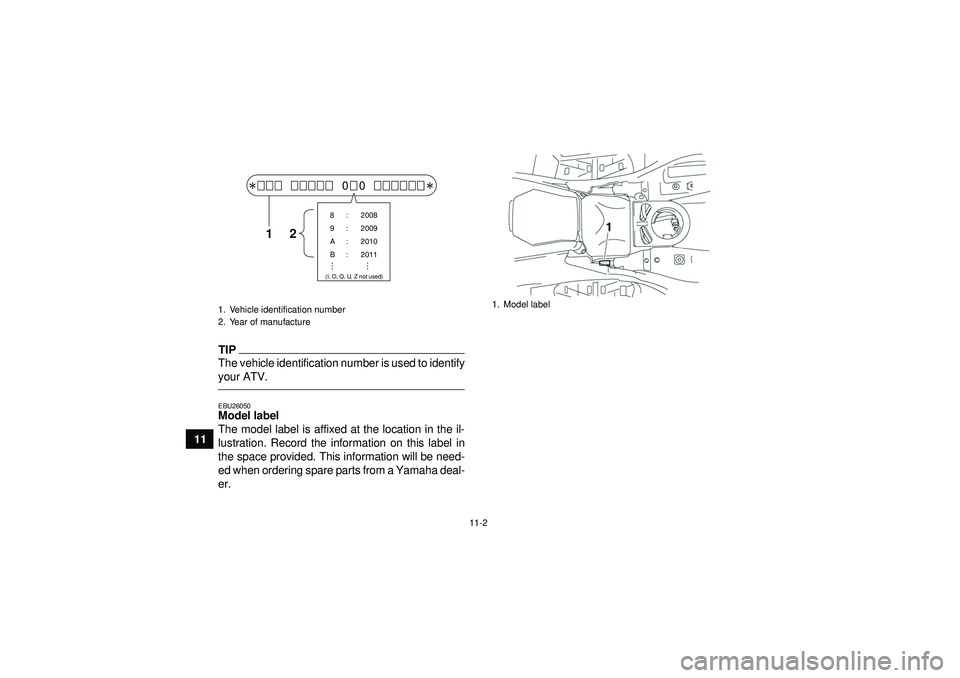

11-2
11
TIPThe vehicle identification number is used to identify
your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
1. Model label
