2012 VOLVO S80 Owner´s Manual

02 Locks and alarm
Locks
02

65
Unlocking/opening the trunk from the
passenger compartment
G022853

Press the button on the lighting panel (1) to
unlock and pop open the trunk
NOTE
The taillights will illuminate automatically for
a short period when the trunk has been
opened.
Unlocking the trunk with the key blade
If the remote key is not functioning properly,
the trunk can be unlocked with the detachable
key blade. See page 57 for information on
removing the key blade from the remote key.
Pull out the cover over the trunk’s keyhole.
Unlock the trunk by inserting the key blade
in the keyhole and turning a half turn coun-
terclockwise as shown in the illustration.
Locking the trunk with the remote key
Press the lock button on the remote, see
page 54
The alarm indicator on the dashboard will begin
flashing to show that the vehicle is locked and
that the alarm has been armed.
NOTE
•If the doors are locked while the trunk is
open, the trunk will remain unlocked
until the vehicle is relocked by pressing
the Lock button on the remote key.
•On keyless drive vehicles, the gear
selector must be in the Park (P) position,
all doors and the trunk must be closed
and the ignition must be switched off
before the vehicle can be locked.

02 Locks and alarm
Locks
02
66
Opening the trunk from the inside (U.S.
models only)
G022920
Opening the trunk from the inside
The vehicle is equipped with a florescent han-
dle on the inside of the trunk lid, which can be
used in an emergency situation to open the
trunk from the inside. Pull the handle down to
release the trunk lid. After use, the handle must
be pushed back into its original position before
the trunk can be closed.
This handle is not intended to be used to
anchor the trunk lid when long loads are being
transported.
WARNING
•Keep vehicle doors and trunk locked
and keep keys out of a child’s reach.
Unsupervised children could lock them-
selves in an open trunk and risk injury.
Children should be taught not to play in
vehicles.
•On hot days, the temperature in the
trunk or vehicle interior can rise very
quickly. Exposure of people to these
high temperatures for even a short
period of time can cause heat-related
injury or death. Small children are par-
ticularly at risk.

02 Locks and alarm
Alarm
02

67 The alarm system
The alarm is automatically armed whenever the
vehicle is locked with the remote key or
optional Personal Car Communicator.
When armed, the alarm continuously monitors
a number of points on the vehicle. The follow-
ing conditions will trigger the alarm:
•The hood is forced open.
•The trunk is forced open
•A door is forced open.
•The ignition slot is tampered with.
•An attempt is made to start the vehicle with
a non-approved key (a key not coded to
the car's ignition).
•If there is movement in the passenger com-
partment (if the vehicle is equipped with
the accessory movement sensor).
•The vehicle is lifted or towed (if the vehicle
is equipped with the accessory inclination
sensor).
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
A message will appear in the information dis-
play if a fault should occur in the alarm system.
Contact a trained and qualified Volvo service
technician.
NOTE
Do not attempt to repair any of the compo-
nents in the alarm system yourself. This
could affect the insurance policy on the
vehicle.
The alarm indicator light
The status of the alarm system is indicated by
the red indicator light on the dashboard (see
illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes at one-second
intervals – the alarm is armed
•The indicator light flashes rapidly before
the remote key is inserted in the ignition
slot and the ignition is put in mode I—the
alarm has been triggered.
Arming the alarm

Press the Lock button on the remote key.
One long flash of the turn signals will con-
firm that the alarm is armed.
Alarm confirmation settings can be changed in
MY CAR, under Car settings
Lock
settings
Keyless entry. See page 127 for
a description of the menu system.
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

02 Locks and alarm
Alarm
02
68
Disarming the alarm

Press the Unlock button on the remote key.
> Two short flashes from the car's direc-
tion indicators confirm that the alarm
has been deactivated and that all doors
are unlocked.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the Unlock button on the remote key
or by inserting the remote key in the ignition
slot. Two short flashes from the car's direction
indicators confirm that the alarm has been
turned off.
Other alarm-related functions
Automatic re-armingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
re-arm after 2 minutes unless a door or the
trunk has been opened.
Audible/visual alarm signal
•An audible alarm signal is given by a bat-
tery powered siren. The alarm cycle lasts
for 30 seconds.
•The visual alarm signal is given by flashing
all turn signals for approximately 5 minutes
or until the alarm is turned off.
Remote key not functioningIf the remote key is not functioning properly,
the alarm can be turned off and the vehicle can
be started as follows:
1. Open the driver's door with the key blade
(see page 57 for information on detaching
the key blade).
> This will trigger the alarm.
2. Insert the remote key into the ignition slot
(also on vehicles with the optional keyless
drive). This will turn off the alarm.
3. Start the engine.
Reduced alarm function
Turning off the accessory alarm sensorsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
The vehicle's menu system is used for turning
off these sensors (see page 127 for a descrip-
tion of the menu system).
1.
Go into the menu under
Car settings.
2.
Select
Reduced Guard (Press OK/
MENU to choose).
3. Two alternatives are now available:
•Activate once. If this alternative is
selected, Reduced guard See
manual will appear in the instrument
panel display and the accessory incli-
nation and movement alarm sensors will
be deactivated when the vehicle is
locked.
•Ask when exiting. If this alternative is
selected, a message will appear in the
center console display each time the
engine is turned off. Press OK/MENU to
accept and the accessory inclination
and movement alarm sensors will be

02 Locks and alarm
Alarm
02
69
deactivated when the vehicle is locked.
Press EXIT to cancel.
4.
Press OK/MENU and lock the vehicle.
The next time the engine is started, the alarm
system will be reset and
Full guard will appear
in the instrument panel display. The accessory
inclination and movement alarm sensors will be
reactivated.
In either of the alternatives, if you prefer not to
deactivate the accessory inclination and move-
ment alarm sensors, do not make a choice in
the menu or press EXIT and lock the vehicle.

70* Option/accessory, for more information, see Introduction.
Instruments and controls........................................................................ 72
Ignition modes........................................................................................ 80
Seats....................................................................................................... 82
Steering wheel........................................................................................ 88
Lighting................................................................................................... 90
Wipers and washers................................................................................ 96
Power windows....................................................................................... 99
Mirrors................................................................................................... 101
Compass*.............................................................................................. 103
Power moonroof*.................................................................................. 104
HomeLink
® Wireless Control System*.................................................. 106
Starting the engine................................................................................ 109
Transmission......................................................................................... 113
Brakes................................................................................................... 116
Parking brake........................................................................................ 119

YOUR DRIVING ENVIRONMENT

03 Your driving environment
Instruments and controls
03
72

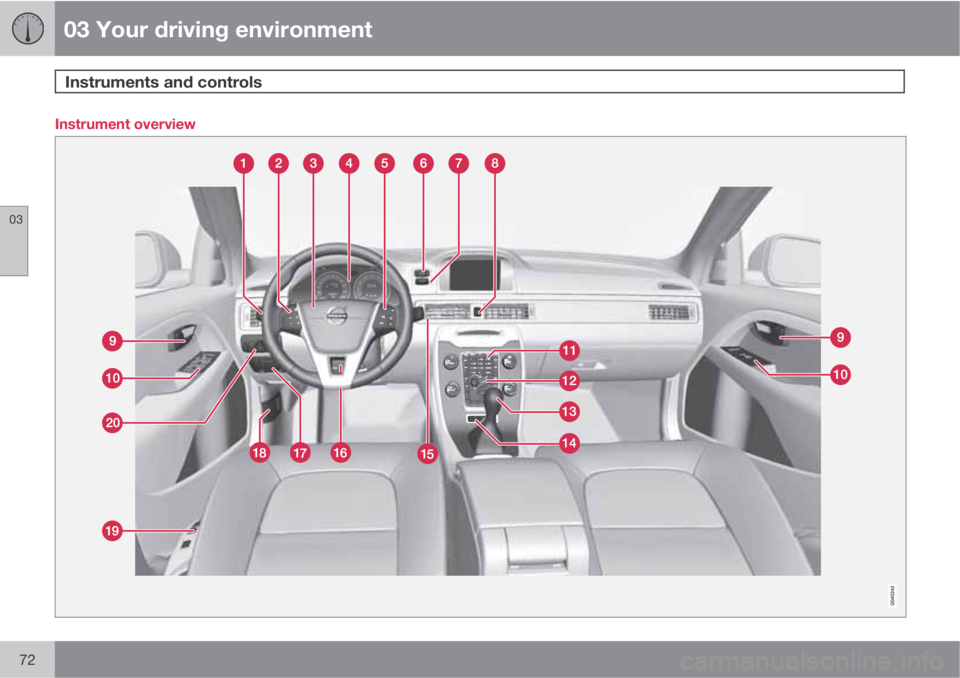

Instrument overview
