2012 VOLVO S80 Owner´s Manual

08 Maintenance and specifications
Vehicle care
08

337
ommends the use of Volvo rubber floor mats.
Consult your Volvo retailer.
Spots on interior plastic, metal, or wood
surfaces
Cleaning interior plastic components should
be done with a cleaning agent specially
designed for this purpose. Consult your Volvo
retailer.

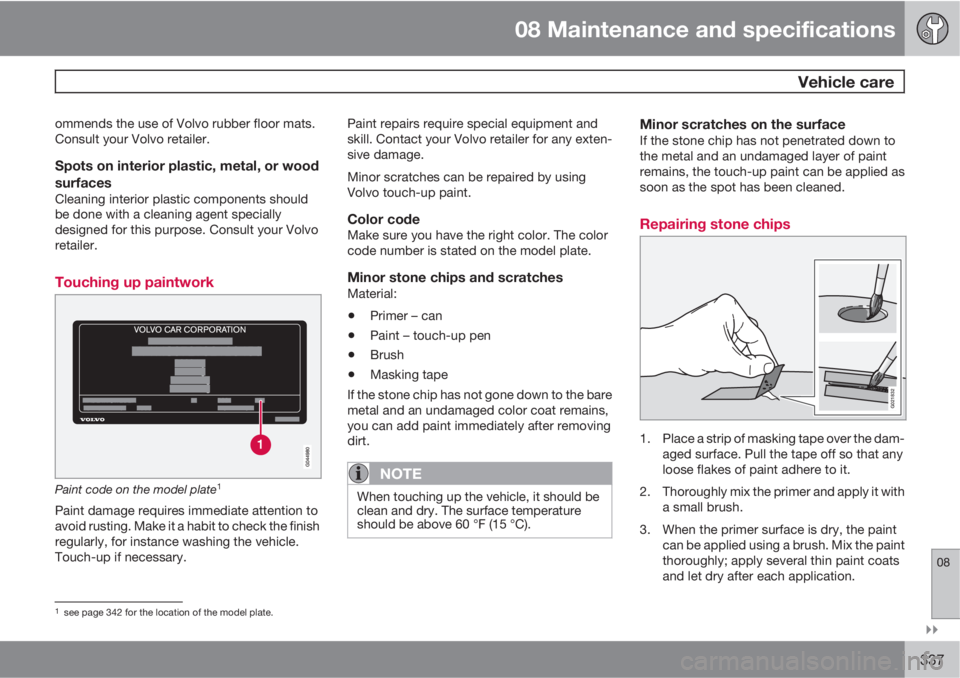

Touching up paintwork
Paint code on the model plate1
Paint damage requires immediate attention to
avoid rusting. Make it a habit to check the finish
regularly, for instance washing the vehicle.
Touch-up if necessary.Paint repairs require special equipment and
skill. Contact your Volvo retailer for any exten-
sive damage.
Minor scratches can be repaired by using
Volvo touch-up paint.
Color codeMake sure you have the right color. The color
code number is stated on the model plate.
Minor stone chips and scratchesMaterial:
•Primer – can
•Paint – touch-up pen
•Brush
•Masking tape
If the stone chip has not gone down to the bare
metal and an undamaged color coat remains,
you can add paint immediately after removing
dirt.
NOTE
When touching up the vehicle, it should be
clean and dry. The surface temperature
should be above 60 °F (15 °C).
Minor scratches on the surfaceIf the stone chip has not penetrated down to
the metal and an undamaged layer of paint
remains, the touch-up paint can be applied as
soon as the spot has been cleaned.
Repairing stone chips
G021832
1. Place a strip of masking tape over the dam-
aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with
a small brush.
3. When the primer surface is dry, the paint
can be applied using a brush. Mix the paint
thoroughly; apply several thin paint coats
and let dry after each application.
1see page 342 for the location of the model plate.

08 Maintenance and specifications
Vehicle care
08
338
4. If there is a longer scratch, you may want
to protect surrounding paint by masking it
off
5. After a few days, polish the touched-up
areas. Use a soft rag and a small amount
of polish.

08 Maintenance and specifications

08
339

340

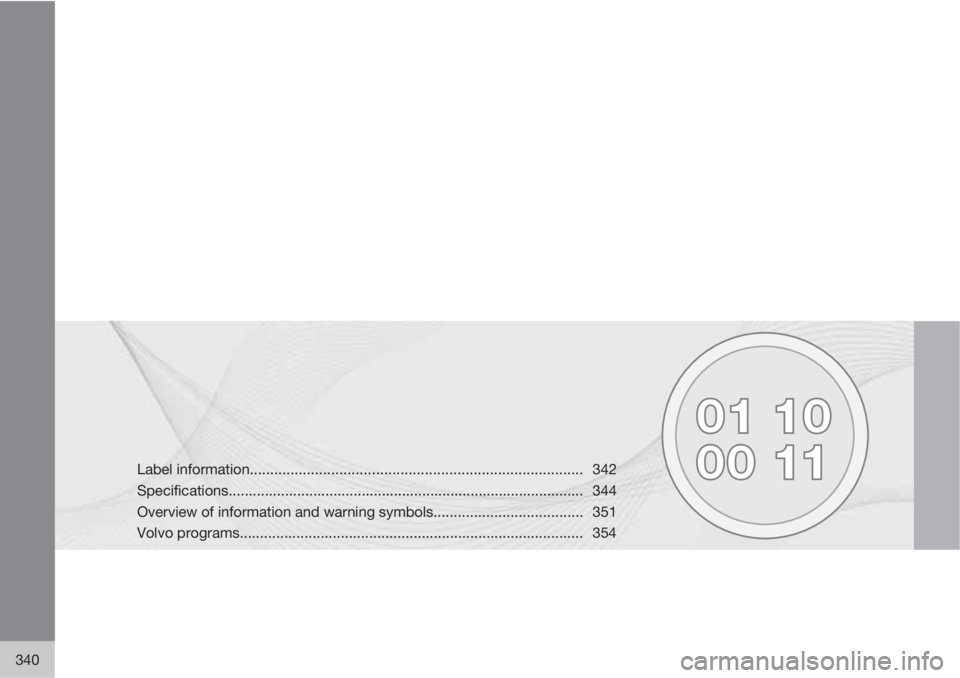

Label information.................................................................................. 342
Specifications........................................................................................ 344
Overview of information and warning symbols..................................... 351
Volvo programs..................................................................................... 354

SPECIFICATIONS

09 Specifications
Label information 09
342

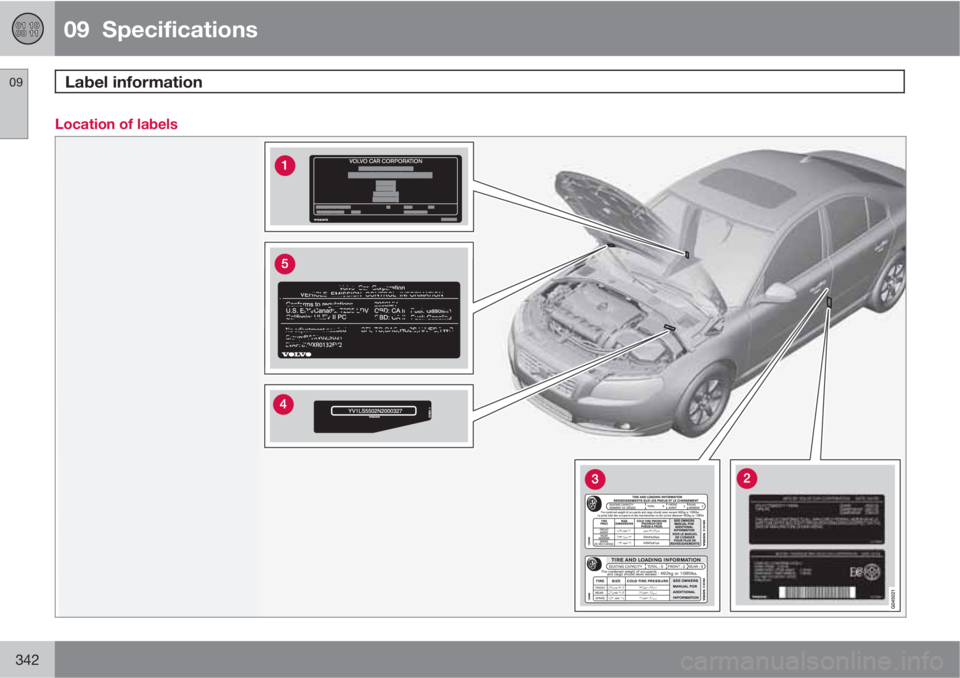

Location of labels

09 Specifications
Label information09
343 List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The
model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear pas-
senger's door must be open in order to see
it.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Tire inflation
pressures. This label indicates the correct
inflation pressures for the tires that were on
the vehicle when it left the factory. Cana-
dian models have the upper decal; U.S.
models have the lower one.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

09 Specifications
Specifications 09
344
Dimensions–S80
PositionDimensionin (mm)
AWheelbase111.6 (2835)
BLength191 (4851)
CLoad length, floor, seatback down75.9 (1927)
DLoad length, floor43.1 (1094)
EHeight58.8 (1493)
FLoad height14.5 (368)
