09 Specifications
Specifications09

345
PositionDimensionin (mm)
GTrack, front62.5 (1588)A
62.1 (1578)B
HTrack, rear62.4 (1585)A
62 (1575)B
ILoad width, floor44.5 (1130)
JWidth73.3 (1861)
73.9 (1876)
C
KWidth incl. door mirrors (folded out)82.9 (2106)
LWidth incl. door mirrors (folded in)75.1 (1907)
AWith 16" wheelsBWith 17" wheelsCModels with the optional keyless drive
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWDA: 4820 lbs
6-cyl. turbo AWD
B: 5020 lbs
6-cyl. FWDA: 2190 kg
6-cyl. turbo AWD
B: 2280 kg
Capacity weight6-cyl. FWD: 905 lbs
6-cyl. Turbo AWD: 890 lbs6-cyl. FWD: 410 kg
6-cyl. turbo AWD: 400 kg

09 Specifications
Specifications 09
346

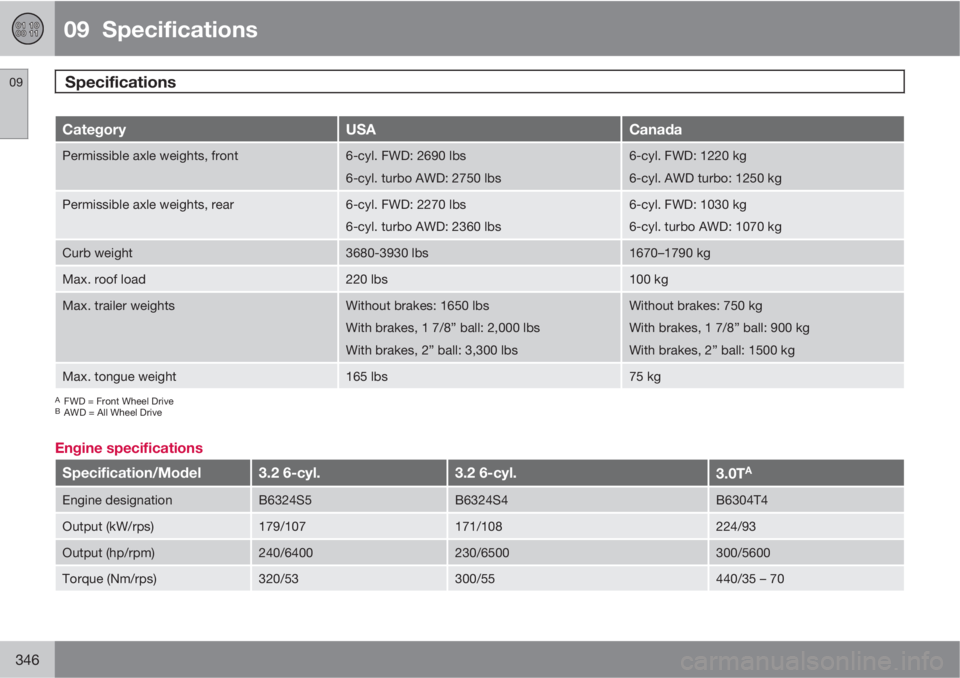

CategoryUSACanada
Permissible axle weights, front6-cyl. FWD: 2690 lbs
6-cyl. turbo AWD: 2750 lbs6-cyl. FWD: 1220 kg
6-cyl. AWD turbo: 1250 kg
Permissible axle weights, rear6-cyl. FWD: 2270 lbs
6-cyl. turbo AWD: 2360 lbs6-cyl. FWD: 1030 kg
6-cyl. turbo AWD: 1070 kg
Curb weight3680-3930 lbs1670–1790 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel DriveBAWD = All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Engine designationB6324S5B6324S4B6304T4
Output (kW/rps)179/107171/108224/93
Output (hp/rpm)240/6400230/6500300/5600
Torque (Nm/rps)320/53300/55440/35 – 70

09 Specifications
Specifications09

347
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Torque (ft. lbs./rpm)236/3200221/3300325/2100 – 4200
No. of cylinders666
Bore (in/mm)3.3/843.3/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
AThis engine may not be available on all markets
Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained

09 Specifications
Specifications 09
348
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.

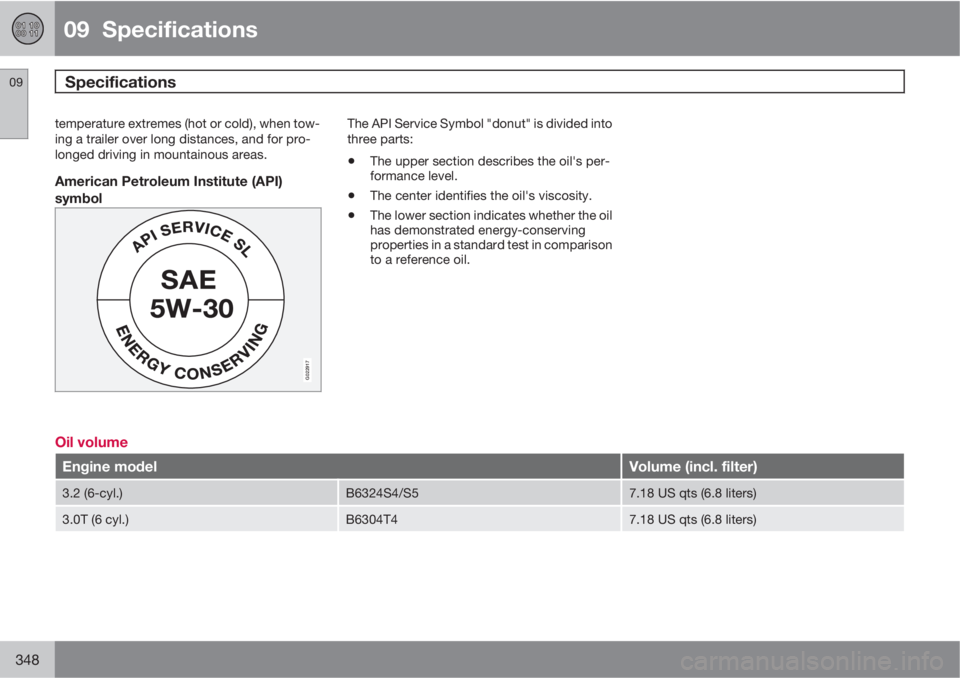

American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.
Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)

09 Specifications
Specifications09

349 Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B)
Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
AUnder normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.BModels without headlight washers

09 Specifications
Specifications 09
350
Electrical system
General information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.
Performance, battery
Engine3.2 6-cyl./3.0T
Voltage (V)12
Cold start capacity (A)520 – 700
Reserve capacity (min)100 – 135
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).

09 Specifications
Overview of information and warning symbols09

* Option/accessory, for more information, see Introduction.351 Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their meaning and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to
indicate a problem related to safety and/or
drivability. A message will also appear in the
main instruments panel's display.
Information symbol
The information symbol lights up and a
text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.
Symbols in the main instrument panel
Warning symbols
SymbolDescriptionP.
no.
Low oil pressure76
A
Parking brake76
SRS airbags76
Seat belt reminder77
Generator not charg-
ing77
A
Fault in the brake sys-
tem77
Warning symbol77
ACanadian models
Indicator symbols
SymbolDescriptionP.
no.
Fault in the Active
Bending Light
(ABL)*system75
A
Malfunction indicator
light75
A
Anti-lock brake sys-
tem (ABS)75
Rear fog light on75
Stability system
(DSTC), Trailer Stabil-
ity Assist*75
Tire pressure monitor-
ing sensor (TPMS)75
Low fuel level75
Information symbol,
see text in information
display75

09 Specifications
Overview of information and warning symbols 09
352* Option/accessory, for more information, see Introduction.
SymbolDescriptionP.
no.
High beam indicator74
Left turn signal indica-
tor74
Right turn signal indi-
cator74
ACanadian models
Other information symbols
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *151,
157
Adaptive Cruise Con-
trol *151,
157
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *151,
157
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
Adaptive Cruise Con-
trol*151,
157
Radar sensor*154
Camera*
Laser sensor*171
Collision Warning with
Full Auto-brake and
Pedestrian Detection*173
SymbolDescriptionP.
no.
Driver Alert System*175
Active Bending Lights
(ABL)*91
Fuel filler door (arrow
indicates it is on right
side of vehicle)74
Rain sensor*96
Driver Alert System*176
Driver Alert System*,
Lane Departure Warn-
ing*178
Driver Alert System*,
Lane Departure Warn-
ing*178
Adaptive Cruise Con-
trol *151,
157
