2012 VOLVO S80 Owner´s Manual

05 Infotainment
Rear Seat Entertainment (RSE)*
05
* Option/accessory, for more information, see Introduction.249
RSE AUX menuAUX menu
AUX input volume
Day/Night mode
Display off
Reset all AUX settings
RSE A/V-AUX menuA/V AUX menu
A/V AUX input volume
Day/Night mode
Display off
Reset all A/V-AUX settings
RSE iPod menuiPod menu
Random
Day/Night mode
Display off
Reset all iPod settings
RSE BluetoothŸŸ menuBluetooth menu
Random
Day/Night modeDisplay off
Reset all Bluetooth settings

05 Infotainment
Remote control*
05
250* Option/accessory, for more information, see Introduction.
Remote control1
The remote control included with the Rear Seat
Entertainment system (RSE)* can be used to
control all of the infotainment system's func-
tions.
To use the remote, begin by pressing its
button to select a screen (L: left rear
screen, F: front screen, or R: right rear screen).
Continue by pointing the remote toward the
selected rear screen's IR transceiver (see the
illustration on page 241) or to the front screen's
IR transceiver located to the right of the INFO
button on the center console (see page 207 for
the location of this button).
To control one of the rear RSE screens, select
L (left)/R (right) using the remote's
but-
ton. Continue by pointing the remote at the
selected screen's IR transceiver (see the illus-
tration on page 241 for its location).
WARNING
To help avoid the risk of injuries in the event
of sudden braking or a collision, always
stow loose objects such as the remote con-
trol, cell phones, cameras, etc. in the glove
compartment or other storage compart-
ments when not in use.
The scroll wheel has the same function as
TUNE in the center console control panel.
NOTE
Avoid exposing the remote control to strong
sunlight, for instance by leaving it on the
dashboard. This could cause problems with
its batteries.
ButtonFunction
Select a screen (L: left rear), (F:
front) or (R: right rear)
Switch to the optional Volvo Nav-
igation system
Select one of the infotainment
system's radio wavebands (AM,FM1, etc.)
Select one of the infotainment
system's sources (Disc, USB,
etc.)
Select the BluetoothŸ hands-free
feature
Fast reverse, change tracks/
songs
Play/pause
1Vehicles with the optional Rear Seat Entertainment system only.

05 Infotainment
Remote control*
05
* Option/accessory, for more information, see Introduction.251
ButtonFunction
Stop
Fast forward, change tracks/
songs
DVD menu
Go back one step in a menu, can-
cel a function or delete entered
characters
Navigate up/down
Navigate right/left
Confirm a selection or go to the
current source's main menu
Reduce volume
Increase volume
0-9Use to select preset channels or
enter characters
ButtonFunction
One-button access to frequently
used functions (which must be
programmed into the button, see
page 207)
Information about the current
film, song, etc., or to display
information not currently shown
on the screen
Select language for audio tracks
Subtitles, select subtitle lan-
guage
Not in use
Replacing batteriesThe remote control runs on four AA/LR6 bat-
teries.
NOTE
The batteries' normal service life ranges
from 1-4 years, depending on how often the
remote is used. If the remote is not working
properly, try replacing the four AA/LR6 bat-
teries.
It is advisable to have extra batteries on long
trips.
1. Press down on the battery cover and slide
it in the direction indicated in the illustra-
tion.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Slide the cover back into place.
Worn out batteries should be disposed of in an
environmentally responsible manner.

05 Infotainment
Infotainment system menus
05
252
Navigating in the menus
Infotainment settings are made via the sys-
tem's menus. Press one of the mode buttons
(RADIO, MEDIA, or TEL—see the illustration
on page 202) to select it and access its specific
menus. When a mode has been selected, press
OK/MENU to access its menus.
Menu selections can be made using the con-
trols in the center console and certain functions
can also be controlled from the steering wheel
keypad. Each mode is described in its respec-
tive section.
Controls in the center console
RADIO
MEDIA
TEL
TUNE
OK/MENU
Search pathsThroughout this manual, search paths to the
menu system functions are listed as shown in
the following example: Audio settings
Equalizer, if the following steps have been
taken first:
1.
Press the desired mode button, (RADIO,
MEDIA, etc). Continue pressing the button
to navigate through the various selections
displayed (e.g.,
FM1). Release the button
and wait several seconds to automatically
accept the selection or turn TUNE and
press OK/MENU.
2.
Turn TUNE or use the thumb wheel on the
steering wheel keypad to scroll to the
desired menu selection, such as
Audio
settings, and press OK/MENU to confirm
a selection.
3.
Turn TUNE again to scroll to the desired
submenu (e.g.,
Equalizer) where applica-
ble and press OK/MENU.
RADIO menus
Main AM menuAM menu
Show presets
Scan
Audio settings1
Sound stage
Equalizer
Volume compensation
Reset all audio settings
Main FM1/FM2 menuFM menu
Show radio text
Show presets
Scan
Advanced settings
Reset all FM settings
Audio settings1
1The audio settings are the same for all infotainment system modes

05 Infotainment
Infotainment system menus
05

* Option/accessory, for more information, see Introduction.253
Main Sirius1*/Sirius2* menuSirius1
SIRIUS radio off. Press RADIO button
to activate SIRIUS.
Sirius2
SIRIUS radio off. Press RADIO button
to activate SIRIUS.
Song memory
Add song
Song Seek
Delete song
View song memory
Channel list information
Station name
Artist
Title
Information
Show presets
Category list
Advanced SIRIUS settings
Skip options
Channel skip listLock options
Channel lock list
Unlock all channels
Temporarily unlock all chan-
nels
Change code
Audio settings1
MEDIA menus
Main CD Audio menuDisc menu
Random
Scan
Audio settings1
Main CD/DVD Data menuDisc menu
Play/Pause
Stop
Random
Repeat folder
Change subtitlesChange audio track
Scan
Audio settings1
Main DVD Video menuDisc menu
DVD disc menu
Play/Pause/Continue
Stop
Subtitles
Audio tracks
Advanced settings
Angle
DivX® VOD code
Audio settings1
Main iPod menuiPod menu
Random
Scan
Audio settings1
1The audio settings are the same for all infotainment system modes

05 Infotainment
Infotainment system menus
05
254
Main USB menuUSB menu
Play/Pause
Stop
Random
Repeat folder
Select USB device
Change subtitles
Change audio track
Scan
Audio settings1
Main Bluetooth media menuBluetooth menu
Random
Change device
Remove Bluetooth device
Scan
Bluetooth software version in car
Audio settings1
Main AUX menuAUX menu
AUX input volume
Audio settings1
TEL menus
Main BluetoothŸŸ hands-free menuPhone menu
Call lists
All calls
Missed calls
Answered calls
Dialed calls
Call duration
Phone book
Search
New contact
Speed dials
Receive vCard
Memory status
Clear phone bookChange phone
Remove Bluetooth device
Phone settings
Discoverable
Sounds and volume
Download phone book
Bluetooth software version in
car
Call options
Auto answer
Voicemail number
Disconnect phone
1The audio settings are the same for all infotainment system modes

05 Infotainment

05
255

256

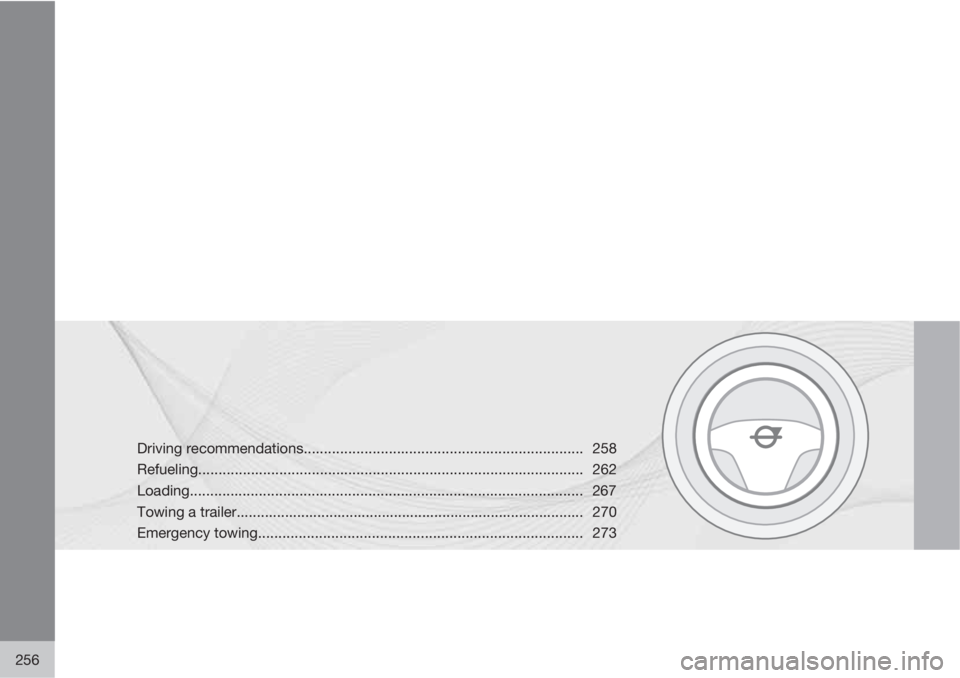

Driving recommendations..................................................................... 258
Refueling............................................................................................... 262
Loading................................................................................................. 267
Towing a trailer...................................................................................... 270
Emergency towing................................................................................ 273
