2012 VOLKSWAGEN JETTA SPORTWAGEN Owners Manual

Side view

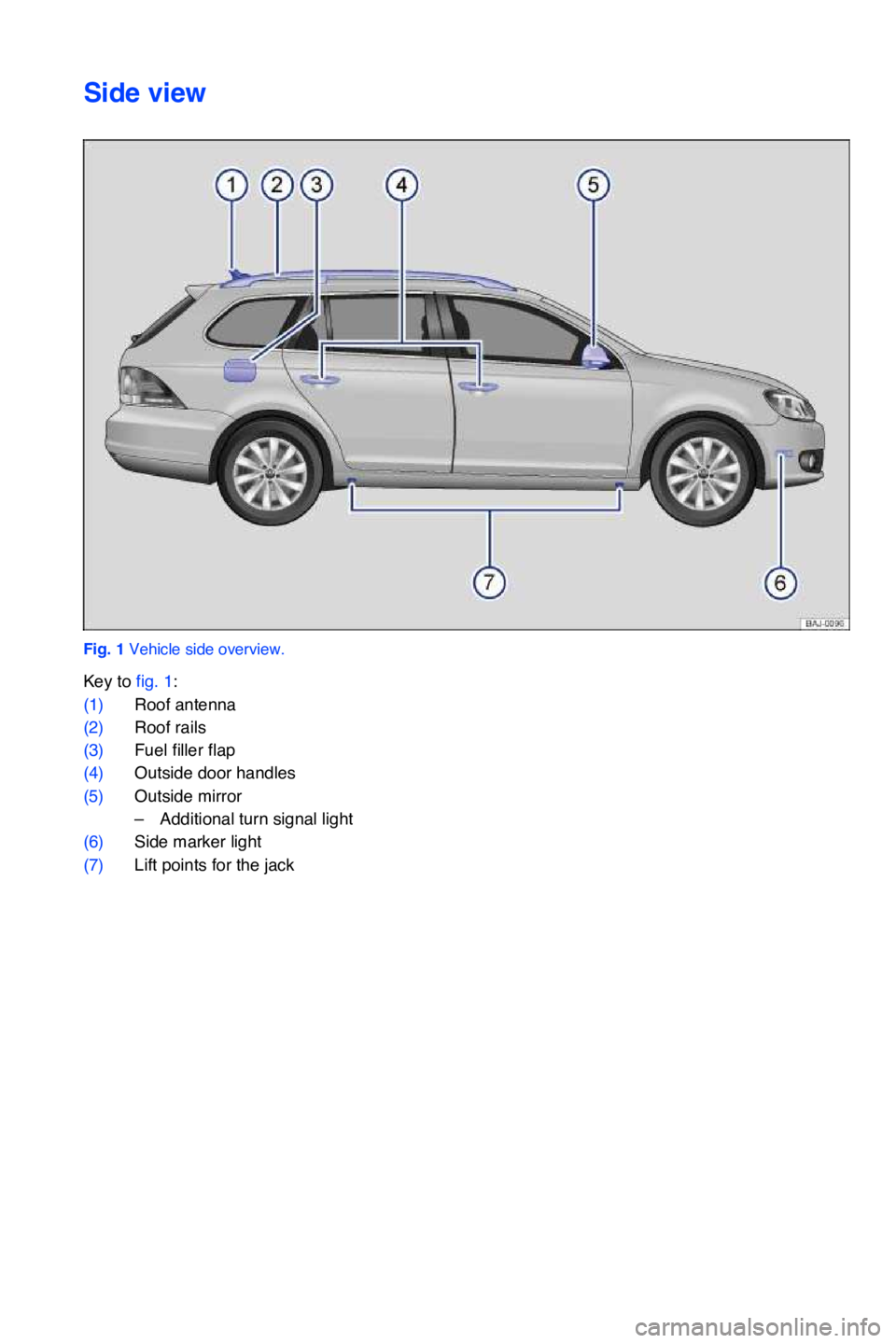

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1)Roof antenna
(2)Roof rails
(3)Fuel filler flap
(4)Outside door handles
(5)Outside mirror
–Additional turn signal light
(6)Side marker light
(7)Lift points for the jack

Front view
Fig. 2 Vehicle front overview.
Key to fig. 2:

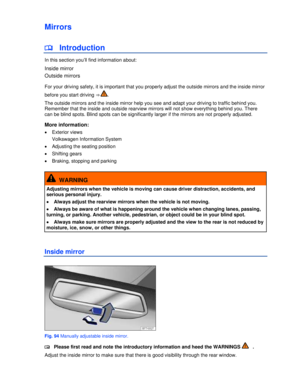

(1)Inside mirror
(2)Front windshield
(3)Front windshield wipers
(4)Engine hood

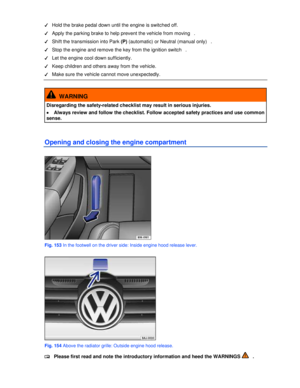

(5)Engine hood release

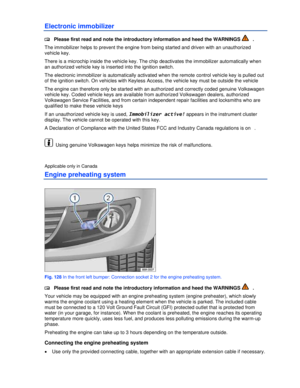

(6)Headlights ,
(7)Fog lights/static cornering lights (if equipped)
(8)Front license plate bracket
(9)Threaded hole for the front towing eye (behind cover)

Rear view

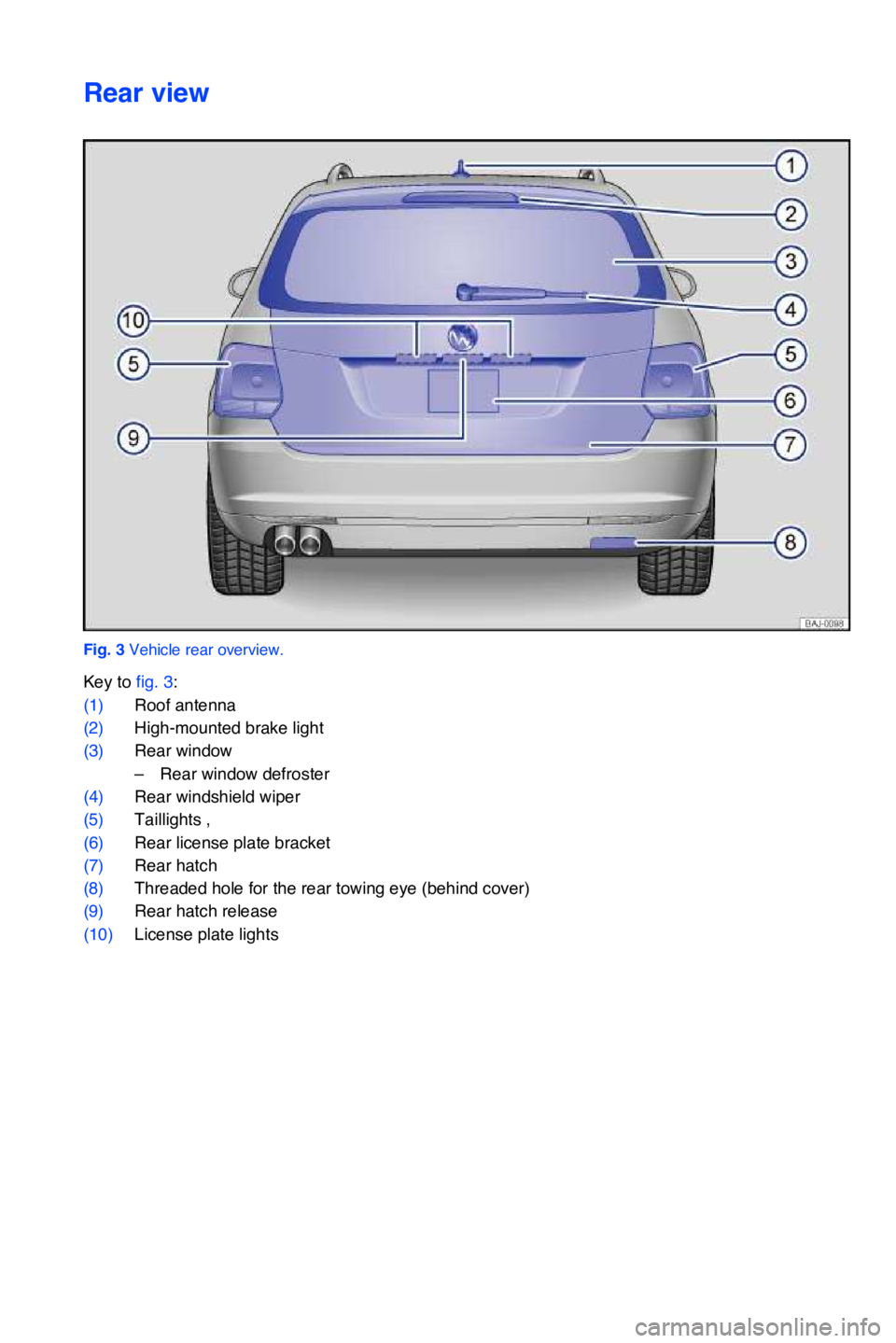

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1)Roof antenna
(2)High-mounted brake light
(3)Rear window
–Rear window defroster
(4)Rear windshield wiper
(5)Taillights ,
(6)Rear license plate bracket
(7)Rear hatch
(8)Threaded hole for the rear towing eye (behind cover)
(9)Rear hatch release
(10)License plate lights

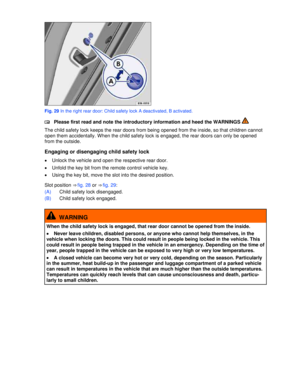

Driver door overview
Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1)Door handle
(2)Indicator light for power locking system and anti-theft alarm system (if equipped)

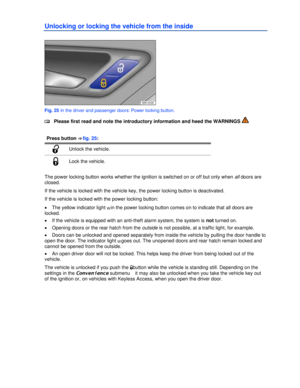

(3)Power locking button for locking and unlocking the vehicle 0 – 1
(4)Switch for adjusting the outside mirror
–Adjusting outside mirrors , – / – 2
–Outside mirror heating ?
(5)Lever for releasing the engine hood
(6)Bottle holder

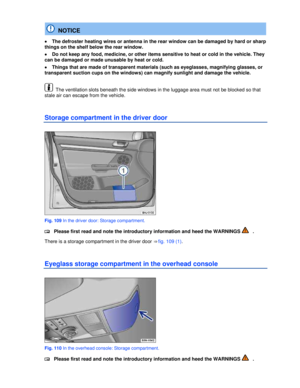

(7)Storage compartment
(8)Buttons for operating the power windows
–Power windows
–Safety switch for rear power windows_
(9)Rear hatch release button
(10)Reflector

Driver side overview

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Headlight switch

(7) Multi-function steering wheel controls
– Volume setting for radio, navigation system notifications (if applicable), or telephonecalls &
– '
– Mute switching for radio or activation of voice control \f
– Display Phone main menu or accept telephone calls -
– Audio, Navigation

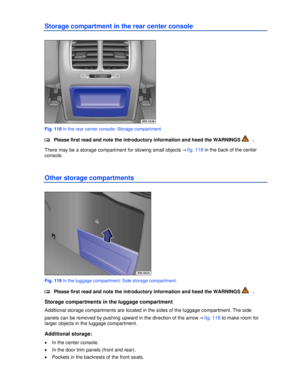

Center console overview
Applicable only in the United States
Upper center console

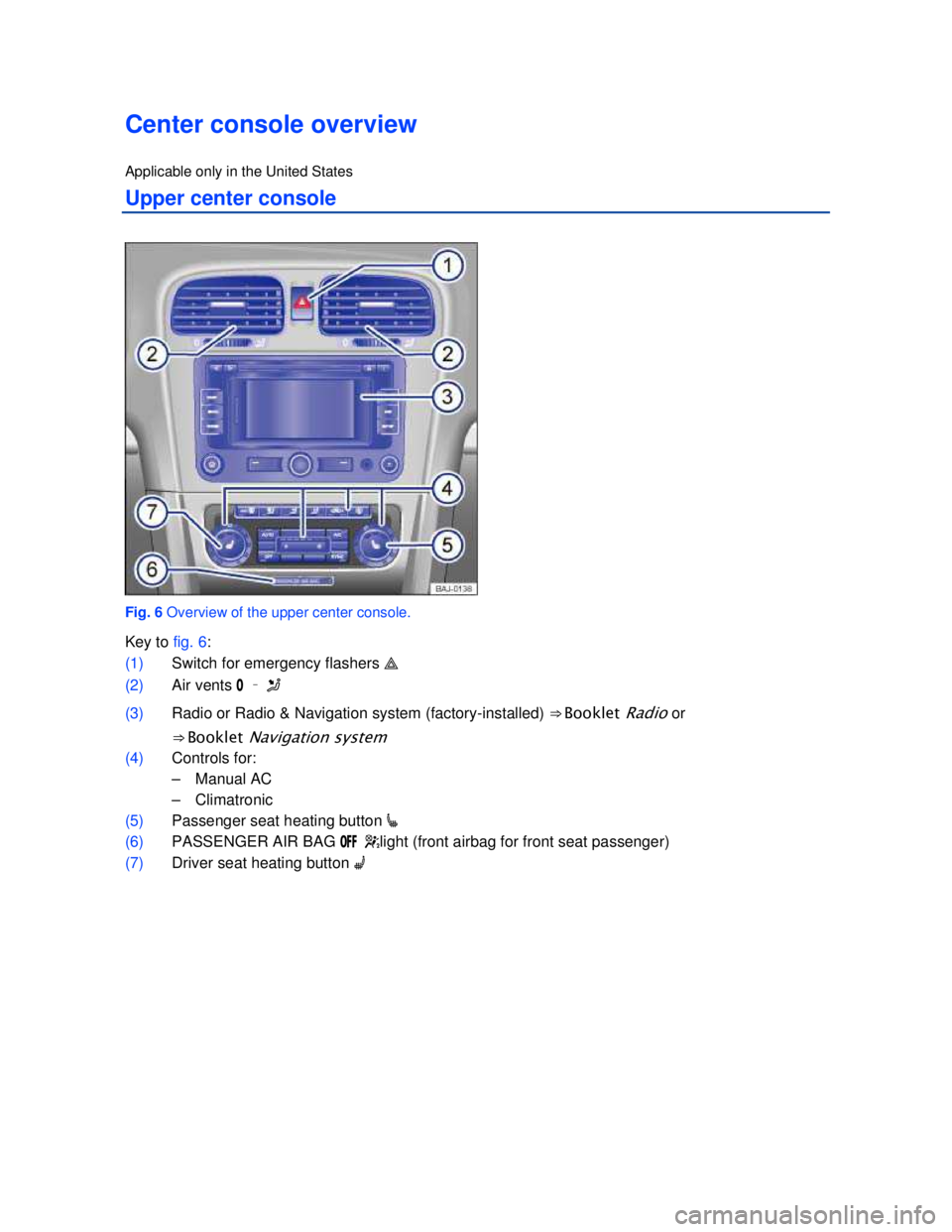

Fig. 6 Overview of the upper center console.
Key to fig. 6:

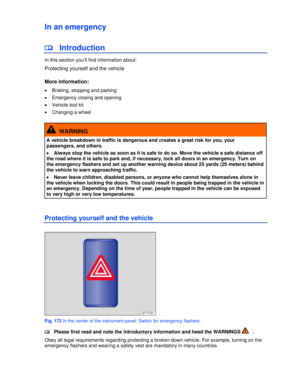

(1) Switch for emergency flashers
(2) Air vents / – J
(3) Radio or Radio & Navigation system (factory-installed) ⇒ Booklet Radio or
⇒ Booklet Navigation system

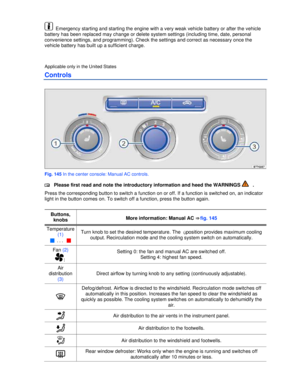

(4) Controls for:
– Manual AC
– Climatronic
(5) Passenger seat heating button [
(6) PASSENGER AIR BAG /&& light (front airbag for front seat passenger)
(7) Driver seat heating button A

Applicable only in Canada
Upper center console

Fig. 7 Overview of upper center console.
Key to ⇒ fig. 7:
(1) Switch for emergency flashers
(2) Air vents / – J
(3) Radio or Radio & Navigation system (factory-installed) ⇒ Booklet Radio or
⇒ Booklet Navigation system
(4) Controls for:
– Manual AC
– Climatronic
(5) Passenger seat heating button [
(6) Driver seat heating button A
