2012 VOLKSWAGEN JETTA SPORTWAGEN Owners Manual

If there are multiple warning messages, the symbols are displayed for several seconds in order
of importance. The symbols are displayed until the cause has been corrected.
Compass

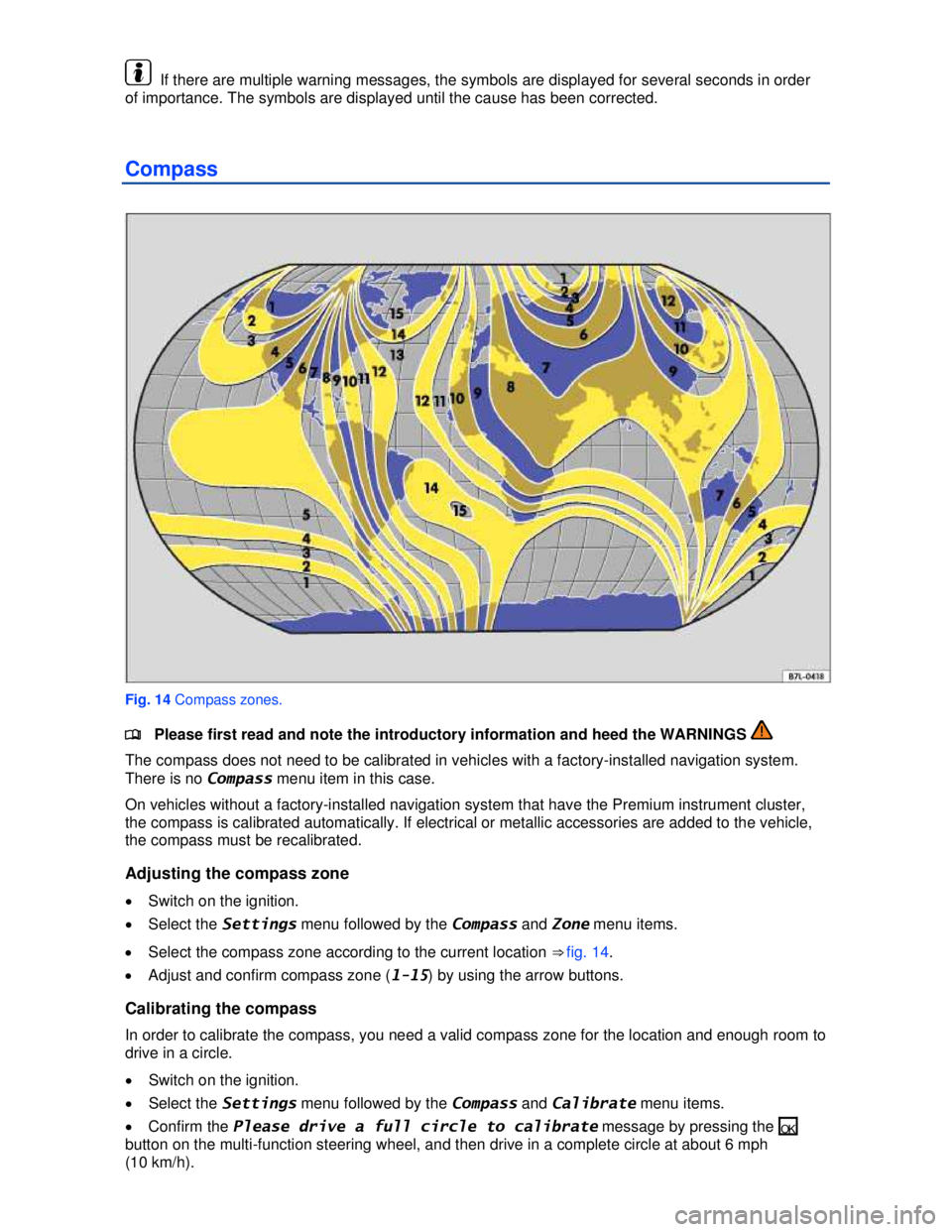

Fig. 14 Compass zones.

During calibration, CAL is shown in the instrument cluster display. The calibration is complete when
the compass direction is displayed.
Service reminder display

Vehicles with Basic text message display:
Push the E

Volkswagen Information System

Menu structure – overview

– Conv. turn sig. (convenience turn signal)
– Factory setting
– Back
▪ Time
– Hours
– Minutes
– 24 hr. mode
– Daylight save
– Back
▪ Snow tires (winter tires)
– On
– + 5 mph (10 km/h)
– - 5 mph (10 km/h)
– Back
▪ Units
– Temperature
– Consump./dist.
– Back
▪ Alt. speed dis. (alternative speed display On / Off)
▪ Service
– Info
– Reset
– Back
▪ Factory setting
Using the instrument cluster menus

Fig. 15 In vehicles without a multi-function steering wheel: Use button 1 in the windshield wiper lever to
confirm menu items and rocker switch 2 to switch menus.

Fig. 16 Right side of the multi-function steering wheel (if applicable): Controls for the menus in the instrument
cluster.

Menu Function See
MFI Multi-Function Indicator (MFI) information.
Audio
Station indicator in radio mode.
Track display in CD mode.
Track display in media mode.
⇒ Booklet Radio or
⇒ Booklet Navigation
system
Navigation
Information displays on the navigation system (if applica-
ble):
When destination guidance is active, turn arrows and
proximity bars are shown. The illustration is similar to the
symbol display in the navigation system.
If destination guidance is inactive, driving direction (com-
pass function) and the current street name are displayed.
⇒ Booklet Navigation
system
Phone Information and settings of the mobile phone package. ⇒ Booklet Mobile
Phone Package
Vehicle
status
Current warning and information messages.
This menu item is only displayed when warning or infor-
mation messages are available. The number of available
messages is shown in the display. Example: 1/1 or 2/2.

Settings
Includes the Convenience and Lights & Vision submenus,
as well as many settings, such as time, speed warning for
winter tires, language, and units.


MFI menu (Multi-Function Indicator)
