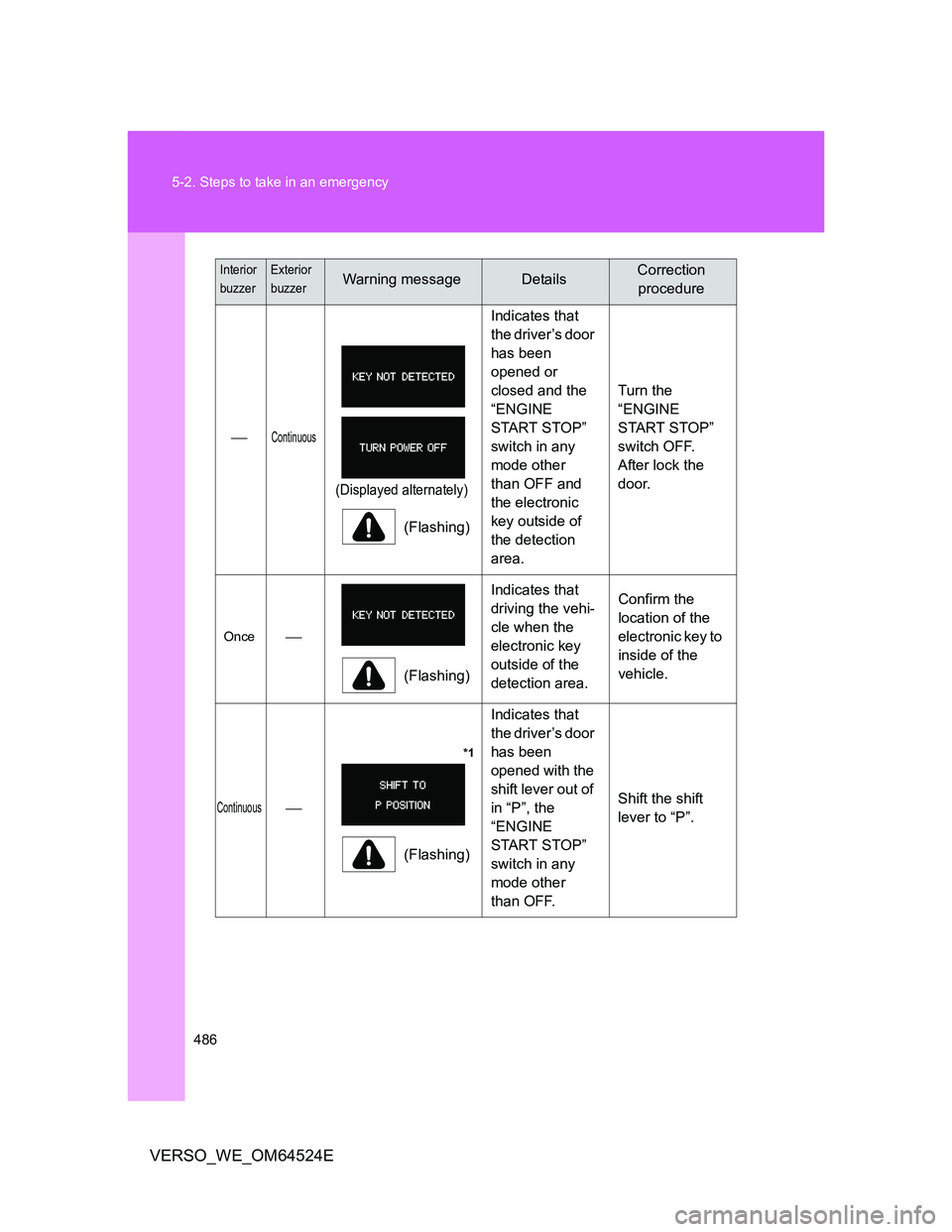

486 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Continuous
(Displayed alternately)
(Flashing)Indicates that
the driver’s door
has been
opened or
closed and the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.Turn the
“ENGINE
START STOP”
switch OFF.
After lock the
door.
Once
(Flashing)Indicates that
driving the vehi-
cle when the
electronic key
outside of the
detection area.Confirm the
location of the
electronic key to
inside of the
vehicle.
Continuous
*1
(Flashing)Indicates that
the driver’s door
has been
opened with the
shift lever out of
in “P”, the
“ENGINE
START STOP”
switch in any
mode other
than OFF.Shift the shift
lever to “P”.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
487 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Continuous
Continuous
(Displayed alternately)
(Flashing)Indicates that
the driver’s door
has been
opened or
closed with the
shift the shift
lever out of in
“P”, the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.• Shift the shift
lever to “P”.
• Confirm the
location of the
electronic key.
OnceContinuous
(Flashing)Indicates that a
door has been
closed and the
electronic key
leave in the
vehicle.Take the elec-
tronic key out-
side of the
vehicle. After
lock the door.
Once
*1
(Flashing)Indicates that
the electronic
key does not
operate prop-
erly.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashing)Indicates that
the electronic
key does not
operate prop-
erly.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

488 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Once
*1
(Flashing)Indicates that
the shift lever
out of in “P” or
“N” and turned
to the “ENGINE
START STOP”
switch OFF.Turn the
“ENGINE
START STOP”
switch OFF to
after shift the
shift lever to “P”.

Indicates that
the auto power
off function.Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
OnceIndicates that
the key battery
is low.Replace the
battery.

*1
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
489 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission*2: Vehicles with a manual transmission
*2
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice
to the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
(Flashing)
(Green
indicator
flashing)Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

490
5-2. Steps to take in an emergency
VERSO_WE_OM64524E
If you have a flat tire (vehicles with spare tire)
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to “P” (Multidrive or automatic transmis-
sion) or “R” (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 464)
Location of the spare tire, jack and tools
Vehicles without the third seat
Spare tire
Jack
handleJack
Wheel nut wrench
Towing eyelet

5
503 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.
Replacing a flat tire
Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.

506
5-2. Steps to take in an emergency
VERSO_WE_OM64524E
If you have a flat tire (vehicles with emergency tire puncture repair kit)
Your vehicle is equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily with the emergency tire puncture repair
kit.
Before repairing the vehicle
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the lever to “P” (Multidrive or automatic transmission) or
“N” (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 464)
Location of the emergency tire puncture repair kit, jack and
tools
Vehicles without the third seats
Jack
handleEmergency tire
puncture repair kit
Wheel nut wrench
Towing eyelet
Jack

512 5-2. Steps to take in an emergency
VERSO_WE_OM64524EConnect the compressor power plug.
Vehicles without smart entry & start system: The engine switch must
be in the “ACC” position.
Vehicles with smart entry & start system: The “ENGINE START
STOP” switch must be in the ACCESSORY mode.
Remove the cigarette lighter and
connect the power plug.
Check the specified inflation pressure.
The label is placed as shown in the illustration.
Left-hand drive vehicles
Right-hand drive vehicles
Power plug
Cigarette lighter
