2012 TOYOTA VERSO engine

436
4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel (left-hand drive
vehicles)
Ty p e A
Remove the lid.

441 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

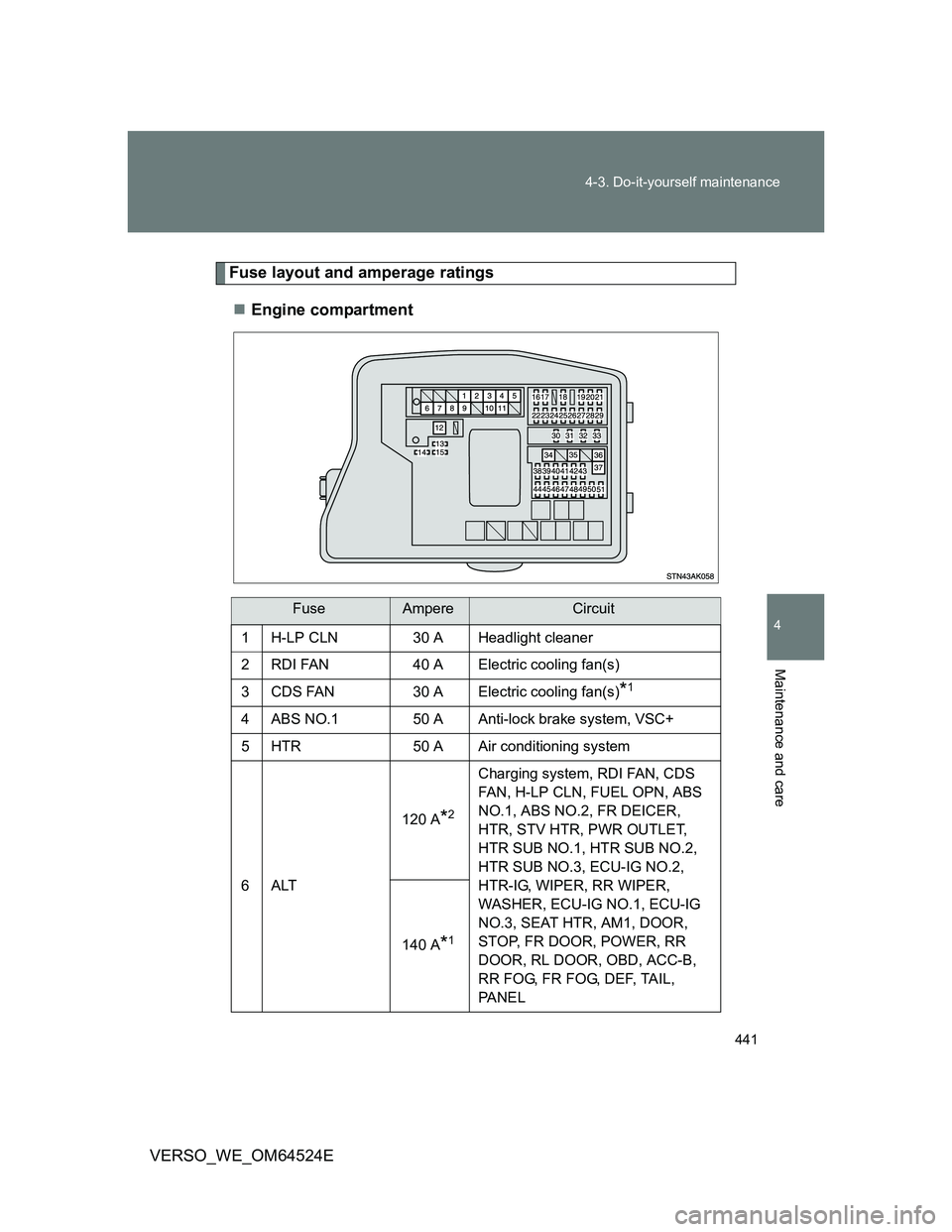

Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1H-LP CLN30 A Headlight cleaner
2RDI FAN40 A Electric cooling fan(s)
3CDS FAN30 A Electric cooling fan(s)*1
4 ABS NO.1 50 A Anti-lock brake system, VSC+
5 HTR 50 A Air conditioning system
6ALT120 A
*2
Charging system, RDI FAN, CDS
FAN, H-LP CLN, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
HTR, STV HTR, PWR OUTLET,
HTR SUB NO.1, HTR SUB NO.2,
HTR SUB NO.3, ECU-IG NO.2,
HTR-IG, WIPER, RR WIPER,
WASHER, ECU-IG NO.1, ECU-IG
NO.3, SEAT HTR, AM1, DOOR,
STOP, FR DOOR, POWER, RR
DOOR, RL DOOR, OBD, ACC-B,
RR FOG, FR FOG, DEF, TAIL,
PA N E L 140 A
*1

442 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
7 EPS 80 A Electric power steering
8GLOW
*180 A Engine glow system
9P-SYSTEM
*230 A VALVEMATIC system
10 P/I 50 A EFI MAIN, HORN, IG2, EDU
11 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
12 E-PKB 30 A No circuit
13 SPARE 10 A Spare fuse
14 SPARE 30 A Spare fuse
15 SPARE 20 A Spare fuse
16 AMP 30 A No circuit
17 DOOR NO.2 25 A Main body ECU
18 ECU-B2 10 ASmart entry & start system, air con-
ditioning system, power windows
19 ECU-B 10 AGauges and meters, main body
ECU, steering sensor, double lock-
ing system, wireless remote con-
trol, smart entry & start system
20 RAD NO.1 15 A Audio system
21 DOME 10 ALuggage compartment light, vanity
lights, engine switch light, front
door courtesy lights, personal/inte-
rior lights, personal lights, foot
lights
22 AM2 NO.2 7.5 A Starting system
23 ALT-S 7.5 A No circuit
24 TURN-HAZ 10 ATurn signal lights, emergency
flashers
25 ETCS
*210 A Electronic throttle control system
26 AM2 30 A Starting system
FuseAmpereCircuit

444 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles with diesel engine and automatic transmission
*4: Vehicles with discharge headlights
*5: Vehicles with halogen headlights47 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter, exhaust
system
*1
48 H-LP RH HI 10 A Right-hand headlight (high beam)
49 H-LP LH HI 10 A Left-hand headlight (high beam)
50 H-LP RH LO15 A
*4Right-hand discharge headlights
(low beam)
10 A
*5Right-hand headlight (low beam)
51 H-LP LH LO15 A
*4Left-hand discharge headlights
(low beam)
10 A
*5Left-hand headlight (low beam)
FuseAmpereCircuit

447 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

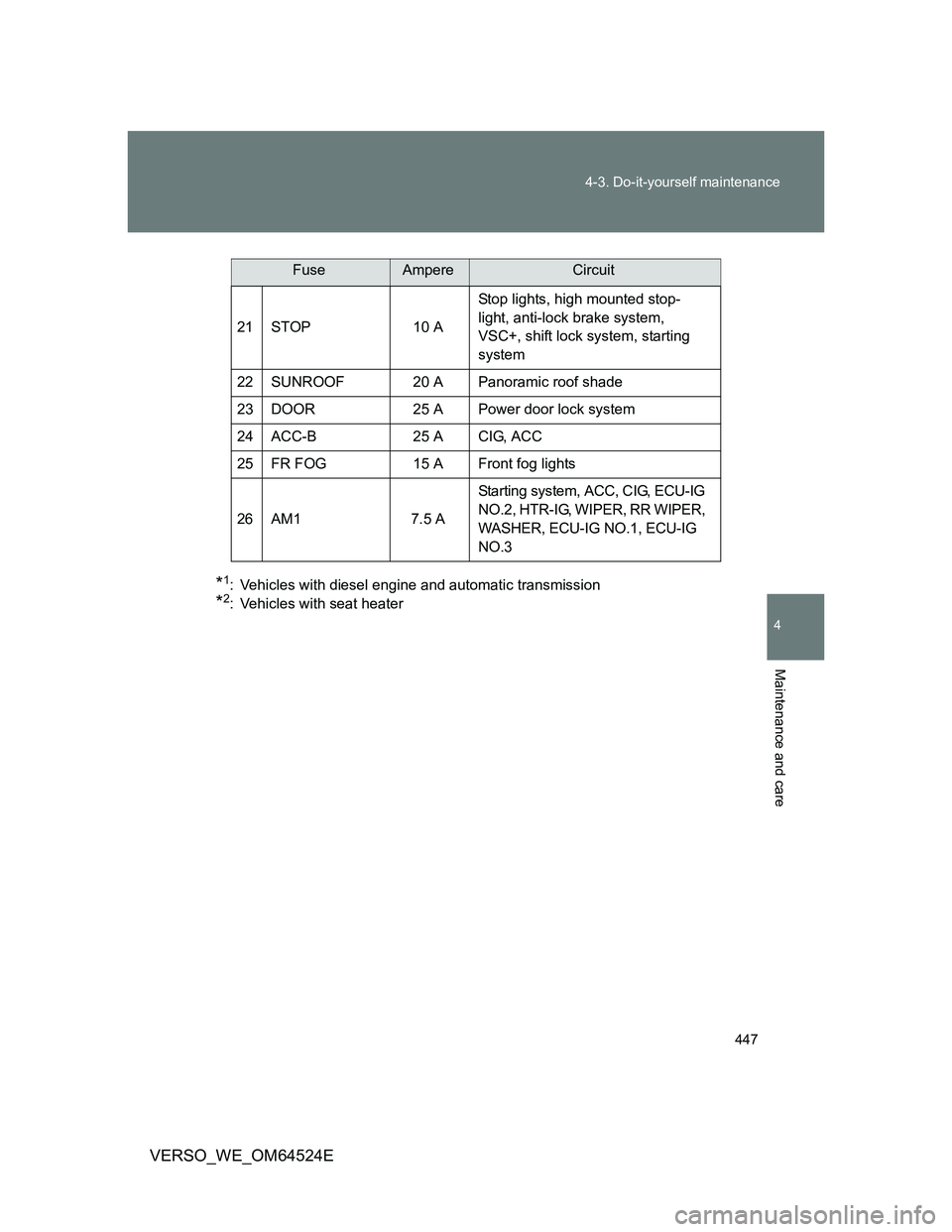

*1: Vehicles with diesel engine and automatic transmission
*2: Vehicles with seat heater21 STOP 10 AStop lights, high mounted stop-
light, anti-lock brake system,
VSC+, shift lock system, starting
system
22 SUNROOF 20 A Panoramic roof shade
23 DOOR 25 A Power door lock system
24 ACC-B 25 A CIG, ACC
25 FR FOG 15 A Front fog lights
26 AM1 7.5 AStarting system, ACC, CIG, ECU-IG
NO.2, HTR-IG, WIPER, RR WIPER,
WASHER, ECU-IG NO.1, ECU-IG
NO.3
FuseAmpereCircuit

450
4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 563)
Remove the engine compartment cover
P. 407)
Front bulb locations
Front position light
Headlight high beam
Headlight low beam
(halogen bulb)
Front turn signal light
Front fog light
(if equipped)

460 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
When replacing the front headlight, front position light and front turn
signal light bulbs
Replacing the air cleaner duct and/or washer fluid filler opening.
Left side
Right side
Replacing the engine compartment cover. (P. 407)
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
After replacing the bulbs, make sure to
secure the upper part of the air cleaner
duct with the clip.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with
the clip.

5When trouble arises
463
VERSO_WE_OM64524E
5-1. Essential information
Emergency flashers .......... 464
If your vehicle needs to
be towed ......................... 465
If you think something is
wrong .............................. 473
Fuel pump shut off system
(gasoline engine) ............ 4745-2. Steps to take in
an emergency
If a warning light turns on
or a warning buzzer
sounds... ......................... 475
If a warning message is
displayed ........................ 479
If you have a flat tire
(vehicles with spare
tire) ................................. 490
If you have a flat tire
(vehicles with emergency
tire puncture repair kit).... 506
If the engine will not
start................................. 519
If the shift lever cannot be
shifted from P (vehicles
with a Multidrive or
an automatic
transmission) .................. 522
If you lose your keys ......... 523
If you cannot operate
the back door opener...... 524
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)....... 525
If the vehicle battery is
discharged ...................... 528
If your vehicle overheats ... 532
If you run out of fuel and
the engine stalls
(diesel engine) ................ 535
If the vehicle becomes
stuck ............................... 536
If your vehicle has
to be stopped in
an emergency ................. 538
