2012 TOYOTA VERSO engine

404 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

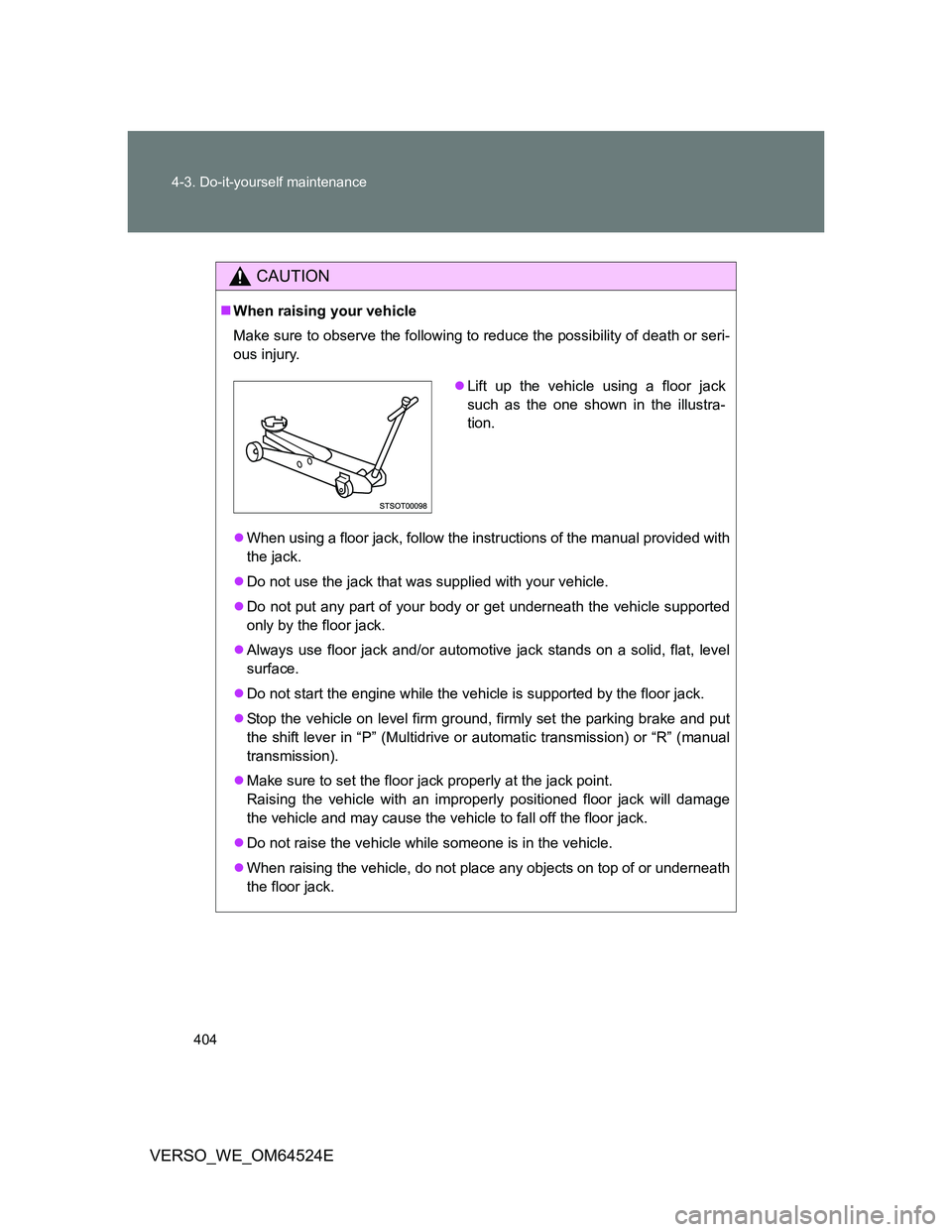

CAUTION
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
When using a floor jack, follow the instructions of the manual provided with
the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine while the vehicle is supported by the floor jack.
Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P” (Multidrive or automatic transmission) or “R” (manual
transmission).
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Engine compartment
Gasoline engine
Washer fluid tank (P. 418)
Engine coolant reservoir
(P. 413)
Engine oil level dipstick
(P. 408)
Engine oil filler cap
(P. 410)Fuse box (P. 436)
Battery (P. 415)
Electric cooling fan
Condenser (P. 415)
Radiator (P. 415)

406 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Diesel engine
Washer fluid tank (P. 418)
Engine coolant reservoir
(P. 413)
Engine oil level dipstick
(P. 408)
Engine oil filler cap
(P. 410)Fuel filter (P. 419)
Fuse box (P. 436)
Battery (P. 415)
Condenser (P. 415)
Electric cooling fans
Intercooler (P. 415)
Radiator (P. 415)

407 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

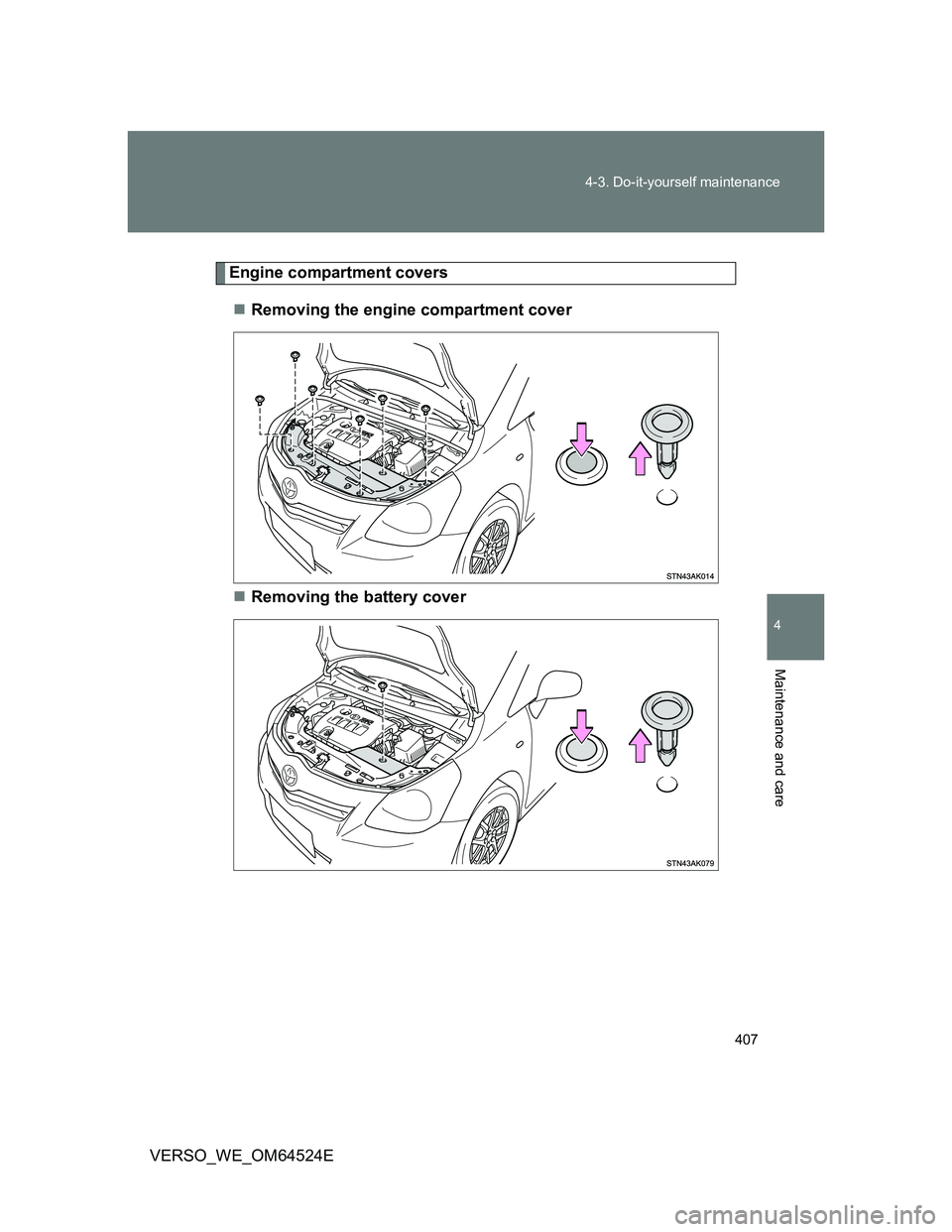

Engine compartment covers
Removing the engine compartment cover
Removing the battery cover

408 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EInstalling the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Hold a rag under the end and pull the dipstick out.
Gasoline engine
NOTICE
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

409 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EDiesel engine
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Low
Full
Wipe the dipstick and reinsert it fully.

410 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EAdding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 549
Oil quantity
(Low  Full)1ZR-FAE/2ZR-FAE/2AD-FHV engines
1.5 L (1.6 qt., 1.3 Imp.qt.)
1AD-FTV engine
1.7 L (1.8 qt., 1.5 Imp.qt.)
Items Clean funnel

411 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
A new engine consumes more oil.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
Oil consumption: Max. 1.0 L per 1000 km (1.1 qt./600 miles, 0.9 lmp.qt./
600 miles)
If you consume more than 1.0 L (1.1 qt., 0.9 lmp. qt.) every 1000 km (600
miles), contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
After changing the engine oil (diesel engine only)
The oil change system should be reset. Perform the following procedures:
Vehicles without smart entry & start system
Switch the display to trip meter A (P. 220) when the engine is run-
ning.
Turn the engine switch to the “LOCK” position.
While pressing the trip meter reset button, set the engine switch to
the “ON” position (but do not start the engine because otherwise
the reset mode will be canceled). Continue to press and hold the
button until the multi-information display indicates that the reset is
complete.
Vehicles with smart entry & start system
Switch the display to trip meter A (P. 220) when the engine is run-
ning.
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to the IGNITION ON mode (but do not start the
engine because otherwise the reset mode will be canceled). Con-
tinue to press and hold the button until the multi-information display
indicates that the reset is complete.
