400 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also a backfire could cause a fire in the engine compart-
ment.
If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

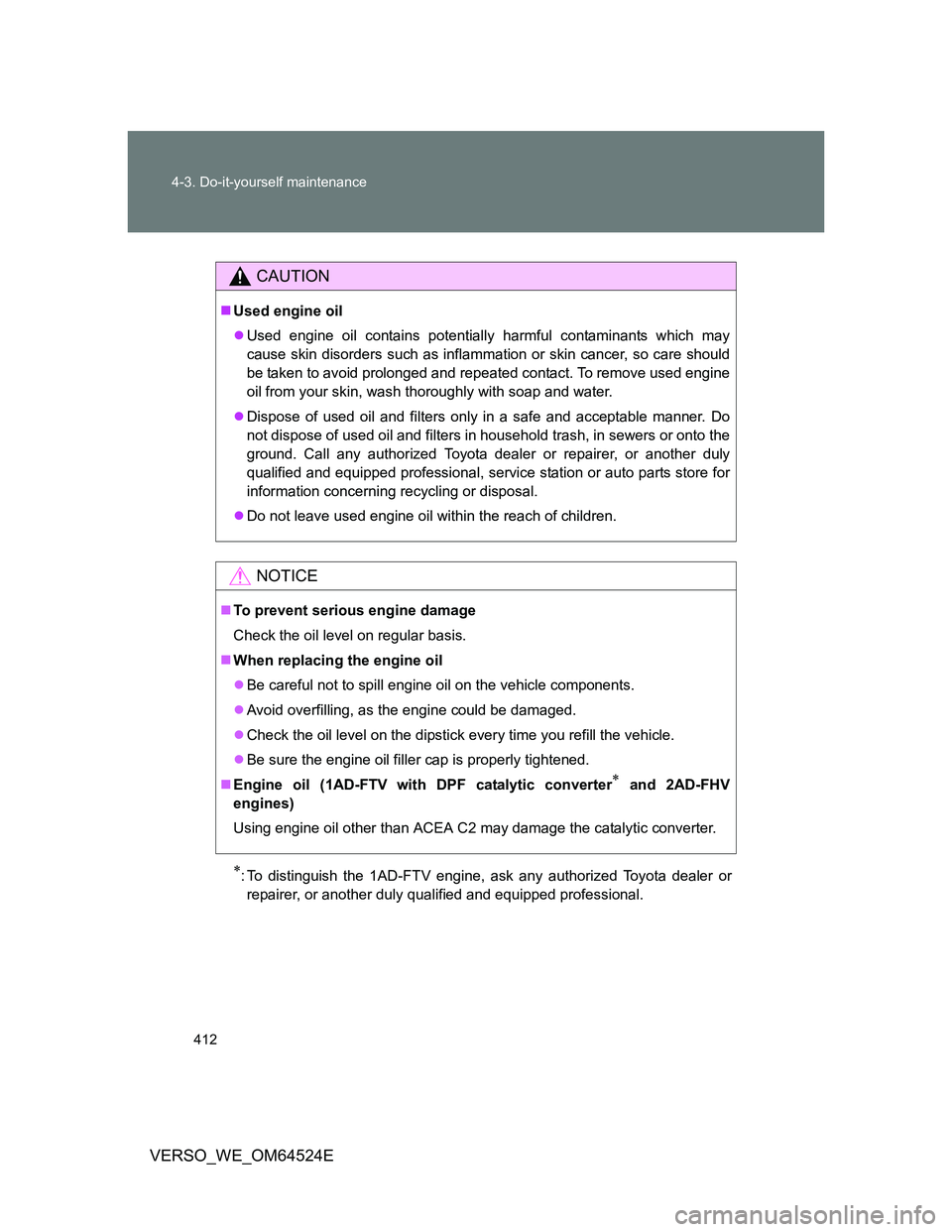

412 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
NOTICE
To prevent serious engine damage
Check the oil level on regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, as the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
Engine oil (1AD-FTV
with DPF catalytic converter and 2AD-FHV
engines)
Using engine oil other than ACEA C2 may damage the catalytic converter.

419 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Fuel filter (diesel engine only)
You may drain the fuel filter yourself. However, as the operation is dif-
ficult, we recommend having it drained by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. Even if you decide to drain it yourself, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The water in the fuel filter needs to be drained if the “DRAIN WATER
FROM FUEL FILTER” warning message is shown on the multi-infor-
mation display and a buzzer sounds. (P. 481)
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch OFF.
Place a small tray under the drain plug to catch the water and
any fuel that comes out.
Turn the drain plug counterclock-
wise about 2 to 2 1/2 turns.

428
4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
Removal method
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch OFF.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.

430 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
Hold the air gun 5 cm (2 in.)
from the filter and blow for
approximately 2 minutes at
500 kPa (5.0 kgf/cm
2 or bar, 72
psi).
If it is not available, have the
filter cleaned by any authorized
Toyota dealer or repair, or
another duly qualified and
equipped professional.
Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The“UP” marks shown on the
filter should be pointing up.

431 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Toyota Service Booklet” or “Toyota Warranty Booklet”.)
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.
When cleaning the filter, do not clean the filter with water.
