448 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EUnder the instrument panel (type B)

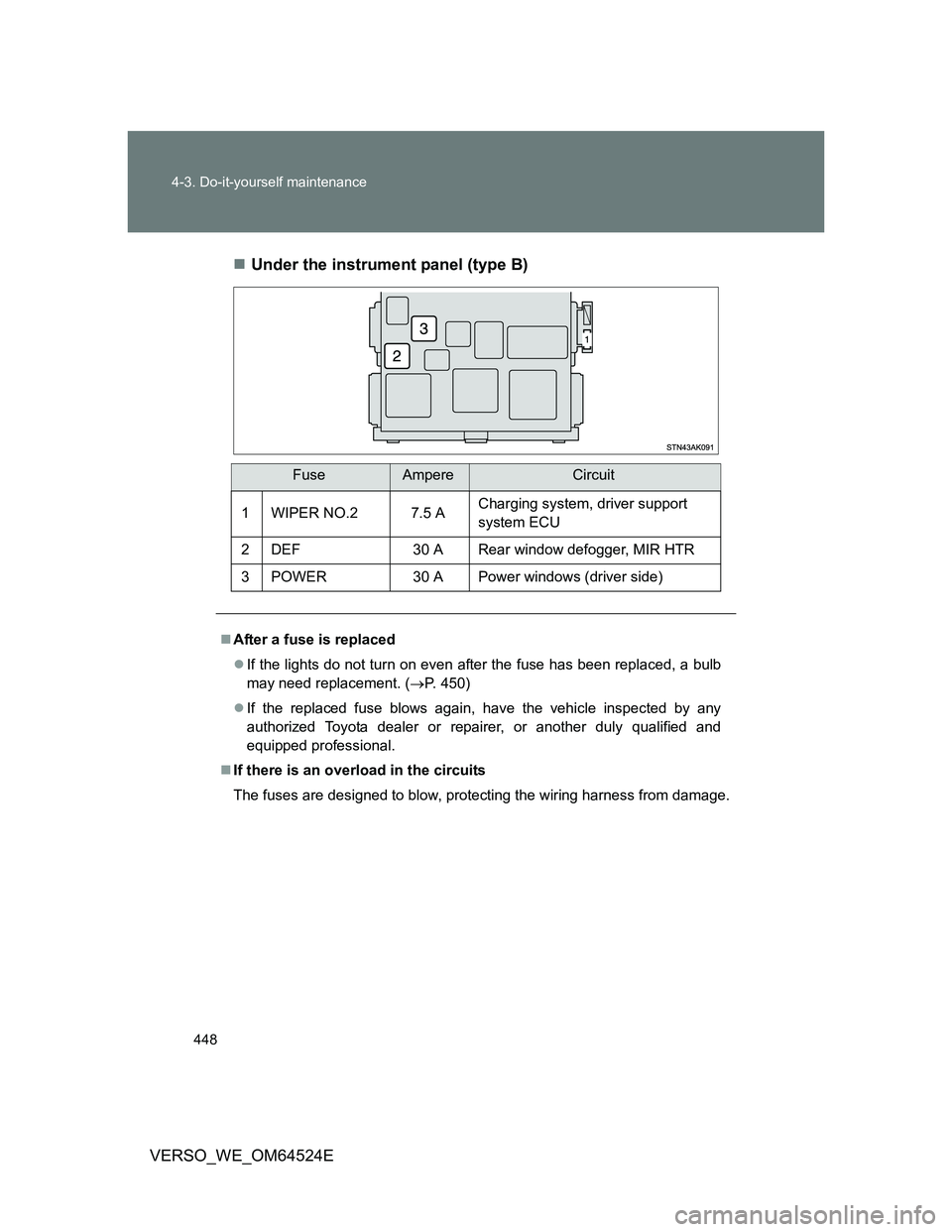

FuseAmpereCircuit
1 WIPER NO.2 7.5 ACharging system, driver support
system ECU
2 DEF 30 A Rear window defogger, MIR HTR
3 POWER 30 A Power windows (driver side)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 450)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.

450
4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 563)
Remove the engine compartment cover
P. 407)
Front bulb locations
Front position light
Headlight high beam
Headlight low beam
(halogen bulb)
Front turn signal light
Front fog light
(if equipped)

451 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Tail light
Rear fog light*2
License plate lights Rear turn
signal light
Back-up light*1
Rear fog light*1
Back-up light*2

455 4-3. Do-it-yourself maintenance
4
Maintenance and care

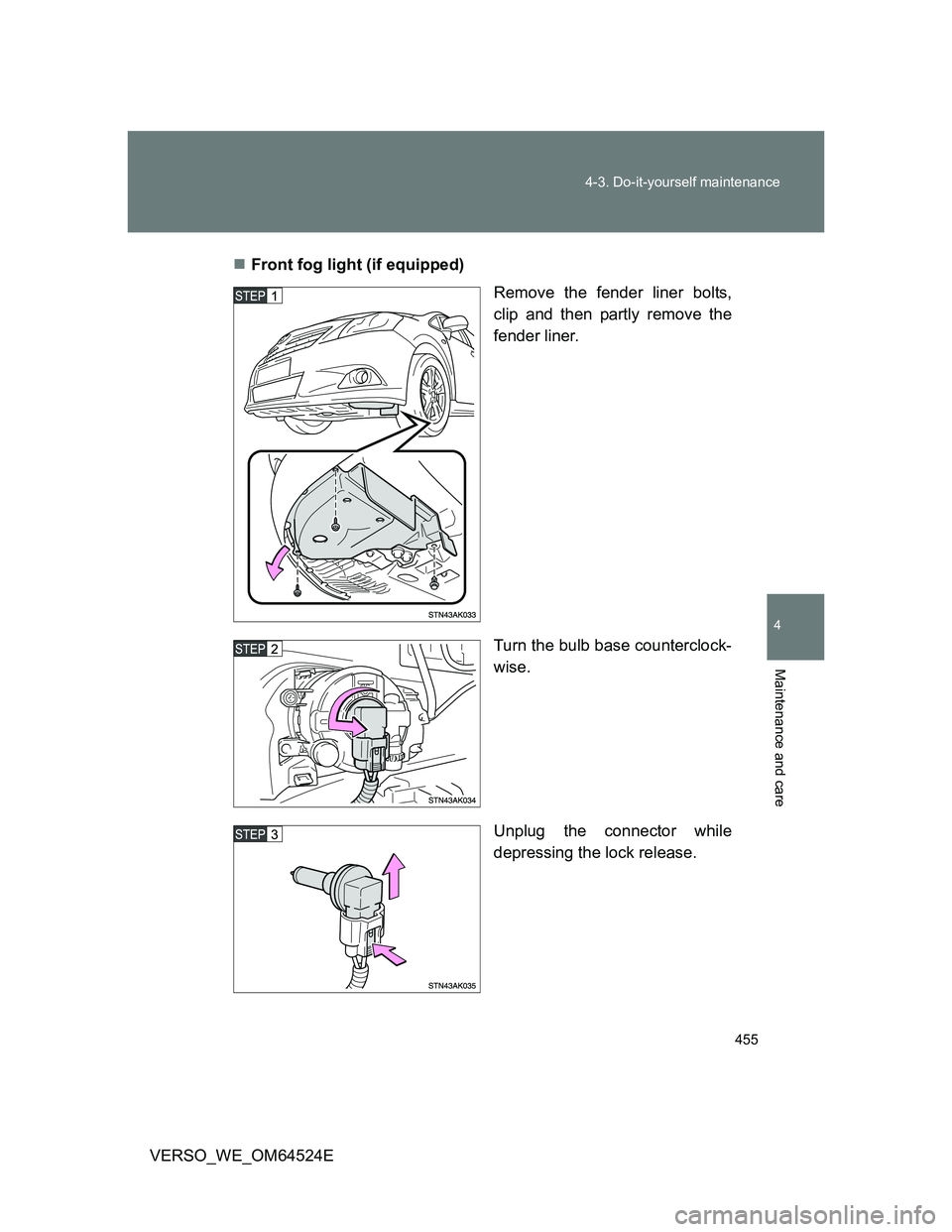

VERSO_WE_OM64524EFront fog light (if equipped)
Remove the fender liner bolts,
clip and then partly remove the
fender liner.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

458 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EBack-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light

563 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E

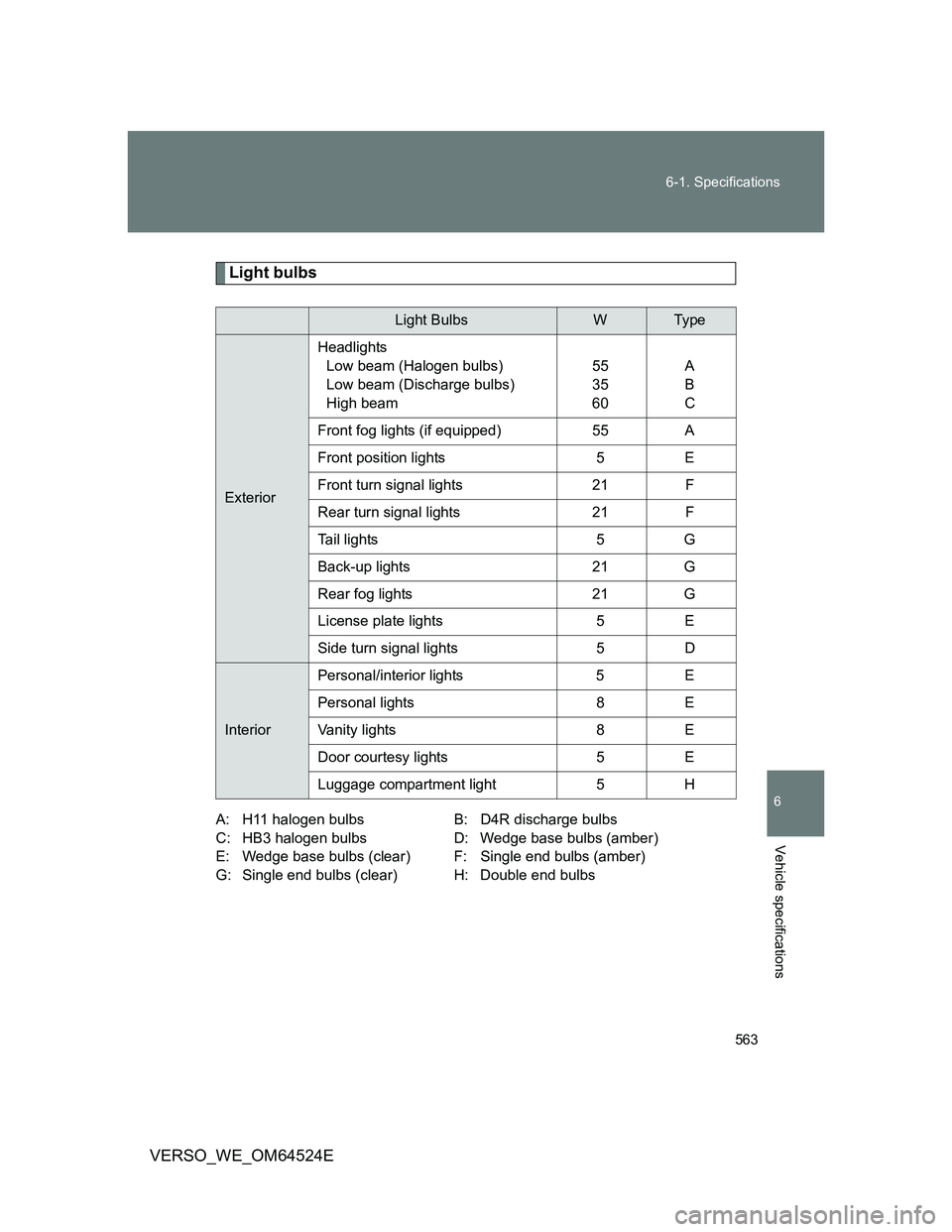

Light bulbs
A: H11 halogen bulbs B: D4R discharge bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear) F: Single end bulbs (amber)
G: Single end bulbs (clear) H: Double end bulbs
Light BulbsWTy p e
ExteriorHeadlights
Low beam (Halogen bulbs)
Low beam (Discharge bulbs)
High beam55
35
60A
B
C
Front fog lights (if equipped) 55 A
Front position lights 5 E
Front turn signal lights 21 F
Rear turn signal lights 21 F
Tail lights 5 G
Back-up lights 21 G
Rear fog lights 21 G
License plate lights 5 E
Side turn signal lights 5 D
InteriorPersonal/interior lights 5 E
Personal lights 8 E
Vanity lights 8 E
Door courtesy lights 5 E
Luggage compartment light 5 H
