2012 TOYOTA VERSO engine

5
539 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
Vehicles with smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 3 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more,
or press briefly 3 times or more

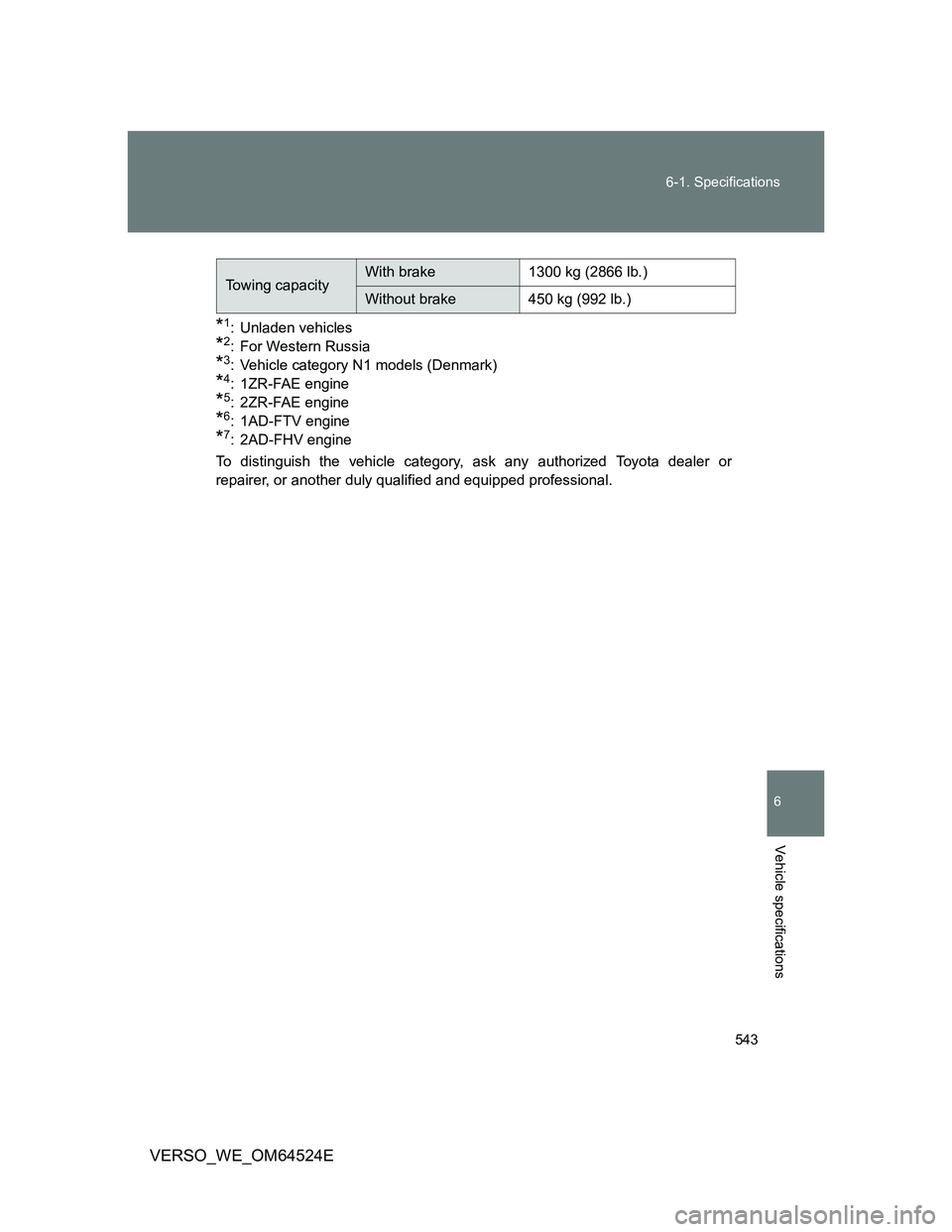

543 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
*1: Unladen vehicles
*2: For Western Russia
*3: Vehicle category N1 models (Denmark)
*4: 1ZR-FAE engine
*5: 2ZR-FAE engine
*6: 1AD-FTV engine
*7: 2AD-FHV engine
To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Towing capacityWith brake 1300 kg (2866 lb.)
Without brake 450 kg (992 lb.)

545 6-1. Specifications
6
Vehicle specifications

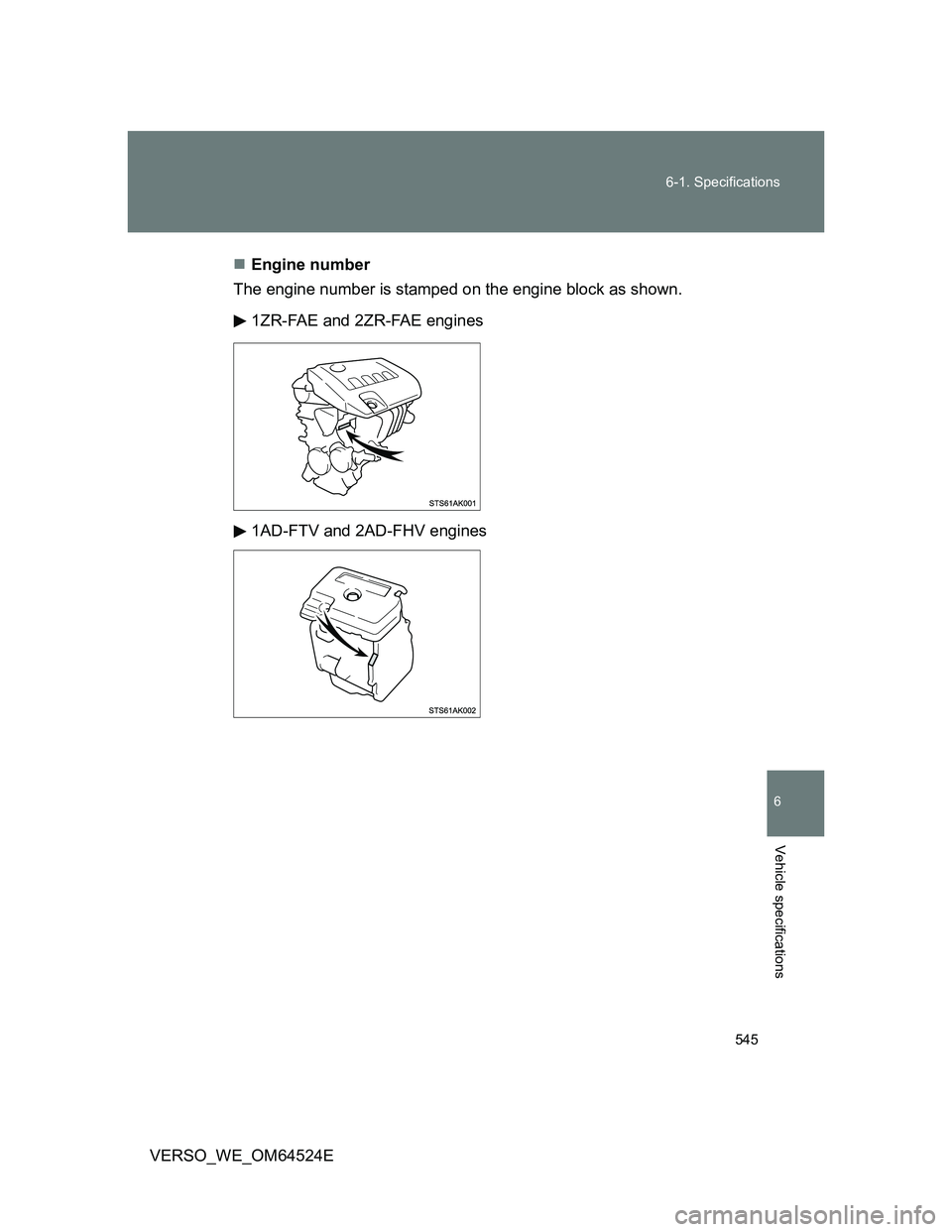

VERSO_WE_OM64524EEngine number
The engine number is stamped on the engine block as shown.
1ZR-FAE and 2ZR-FAE engines
1AD-FTV and 2AD-FHV engines

546 6-1. Specifications
VERSO_WE_OM64524E
Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FAE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
2ZR-FAE engine
1798 cm
3 (109.7 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
Vehicles with air
conditioning sys-
tem
Vehicles without air
conditioning sys-
tem7.6  10.0 mm (0.30  0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
CrankshaftGenerator
Water pump
Air
conditioning
compressor
CrankshaftGenerator
Water pump

547 6-1. Specifications
6
Vehicle specifications

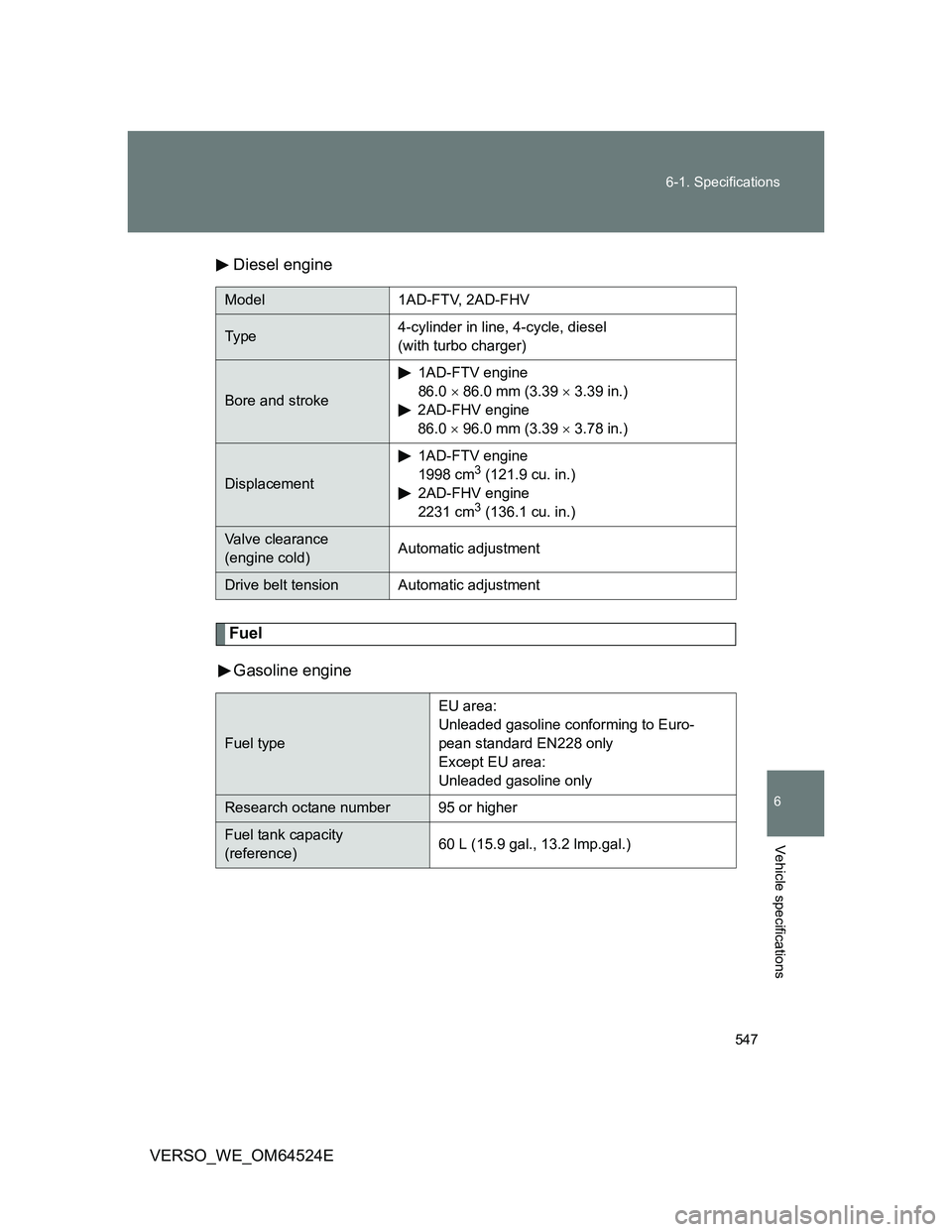

VERSO_WE_OM64524EDiesel engine
Fuel
Gasoline engine
Model 1AD-FTV, 2AD-FHV
Ty p e4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke1AD-FTV engine
86.0  86.0 mm (3.39  3.39 in.)
2AD-FHV engine
86.0  96.0 mm (3.39  3.78 in.)
Displacement1AD-FTV engine
1998 cm3 (121.9 cu. in.)
2AD-FHV engine
2231 cm
3 (136.1 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 lmp.gal.)

548 6-1. Specifications

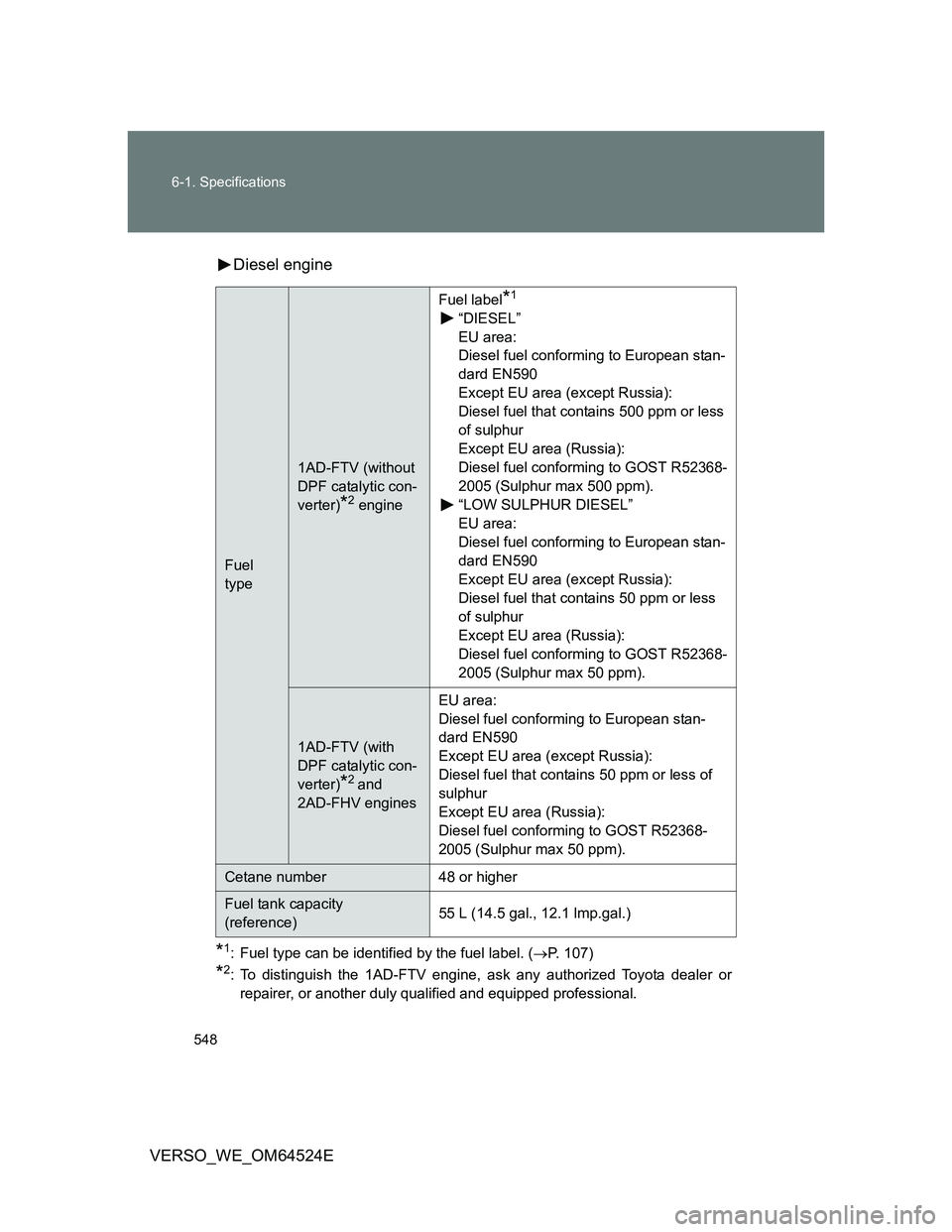

VERSO_WE_OM64524EDiesel engine
*1: Fuel type can be identified by the fuel label. (P. 1 0 7 )
*2: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Fuel
type
1AD-FTV (without
DPF catalytic con-
verter)
*2 engineFuel label
*1
“DIESEL”
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area (except Russia):
Diesel fuel that contains 500 ppm or less
of sulphur
Except EU area (Russia):
Diesel fuel conforming to GOST R52368-
2005 (Sulphur max 500 ppm).
“LOW SULPHUR DIESEL”
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less
of sulphur
Except EU area (Russia):
Diesel fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).
1AD-FTV (with
DPF catalytic con-
verter)
*2 and
2AD-FHV enginesEU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less of
sulphur
Except EU area (Russia):
Diesel fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).
Cetane number 48 or higher
Fuel tank capacity
(reference)55 L (14.5 gal., 12.1 lmp.gal.)

549 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.
Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
1ZR-FAE and 2ZR-FAE engines
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(drain and refill
- reference
*)
Gasoline engine
Diesel engine1ZR-FAE and 2ZR-FAE engines
With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
1AD-FTV engine
With filter: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Without filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
2AD-FHV engine
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)

550 6-1. Specifications

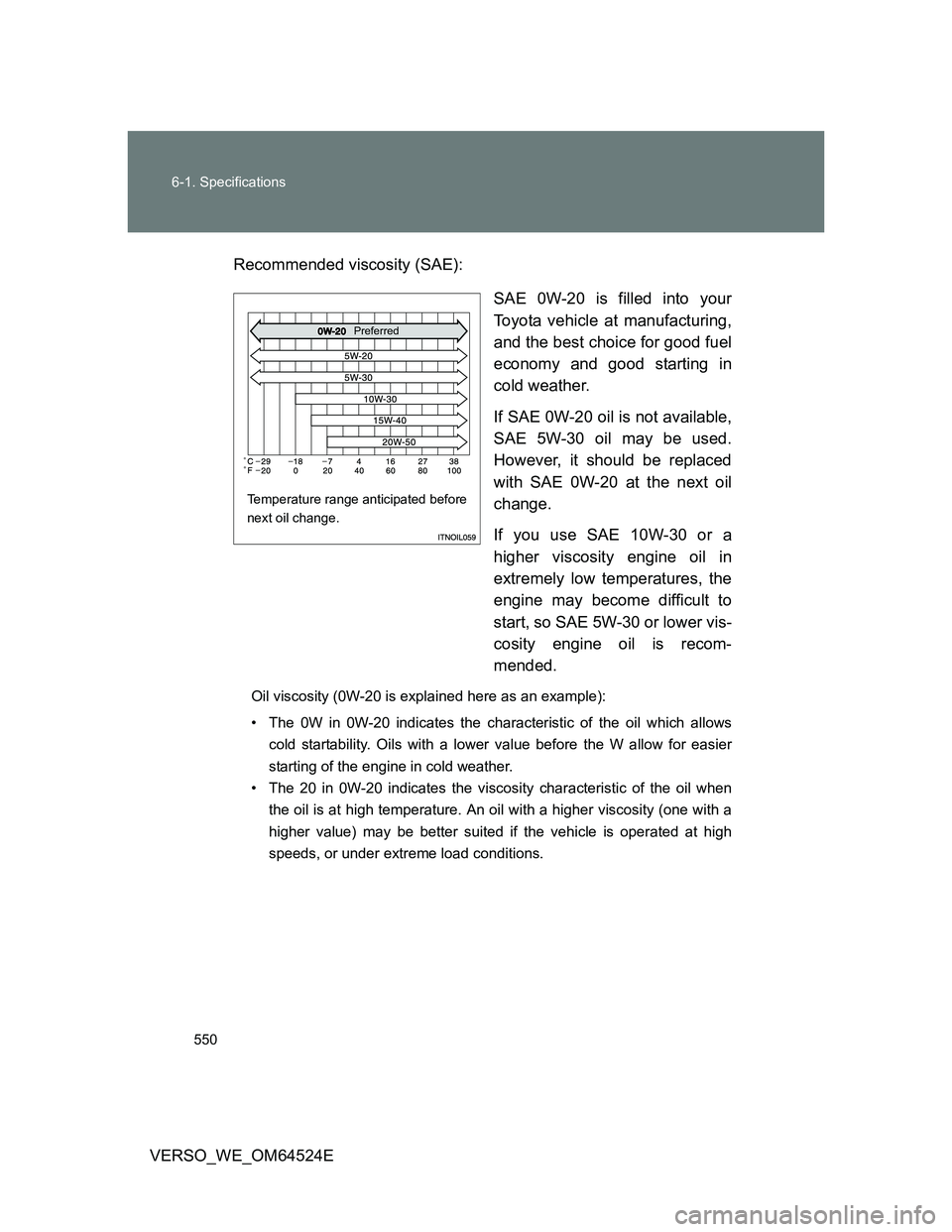

VERSO_WE_OM64524ERecommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred
