2012 TOYOTA VERSO windshield wipers

1
2
3
4
5
6
3
VERSO_WE_OM64524E
Windshield wipers and washer
...........................................246
Rear window wiper and wash-
er......................................251
2-4. Using other driving systems
Cruise control* .................... 252
Speed limiter* ..................... 256
Toyota parking assist-sen-
sor.....................................259
Driving assist systems ........ 267
Hill-start assist control......... 273
2-5. Driving information
Cargo and luggage ............. 275
Winter driving tips ............... 278
Trailer towing ...................... 282
3-1. Using the air conditioning sys-
tem and defogger
Manual air conditioning sys-
tem..................................292
Automatic air conditioning sys-
tem.................................... 297
Power heater* ..................... 304
Rear window and outside rear
view mirror defoggers ....... 306
3-2. Using the audio system
Audio system types* ........... 308
Using the radio* .................. 314
Using the CD player* .......... 319Playing back MP3 and WMA
discs* ............................... 324
Operating an iPod* ............. 330
Operating a USB memory*. 336
Optimal use of the audio sys-
tem..................................343
Using the AUX port* ........... 345
Using the steering wheel audio
switches ........................... 346
3-3. Using the interior lights
Interior lights list ................. 349
• Personal/interior lights main
switch...............................350
• Personal/interior lights ..... 351
3-4. Using the storage features
List of storage features....... 352
• Glove box ......................... 353
• Console box ..................... 354
• Console box and overhead
console..............................355
• Overhead console and cup
holders..............................356
• Cup holders and bottle hold-
ers.....................................357
• Bottle holders and auxiliary
boxes................................358
• Auxiliary boxes ................. 359
• Auxiliary boxes ................. 360
3-5. Other interior features
Sun visors .......................... 361
Vanity mirror ....................... 362
Conversation mirror............ 363
Portable ashtray ................. 364
Cigarette lighter .................. 365
Power outlet ....................... 366
3Interior features

6
VERSO_WE_OM64524E

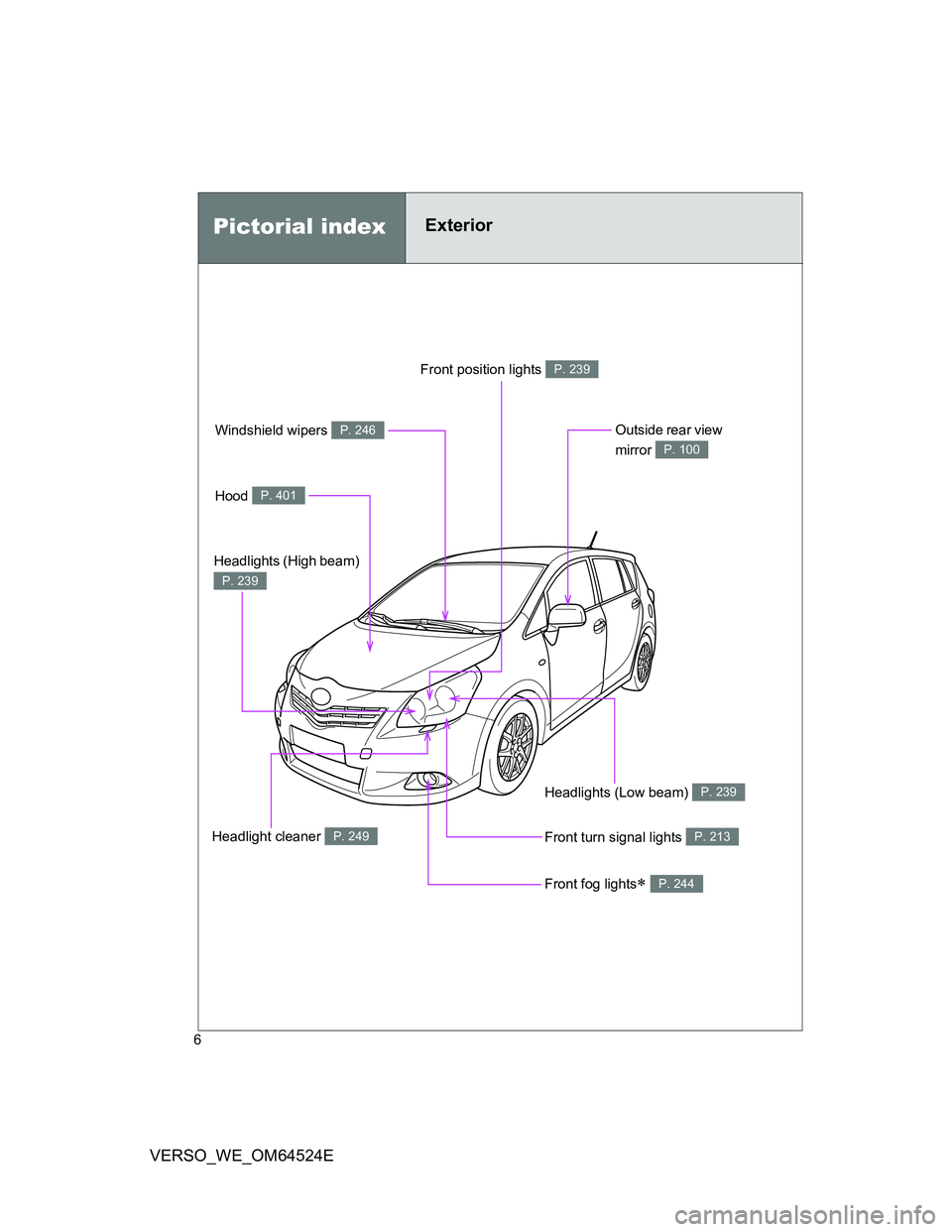

Headlights (Low beam) P. 239
Pictorial indexExterior
Front fog lights P. 244
Front turn signal lights P. 213
Hood P. 401
Windshield wipers P. 246Outside rear view
mirror
P. 100
Headlight cleaner P. 249
Headlights (High beam)
P. 239
Front position lights P. 239

17
VERSO_WE_OM64524E

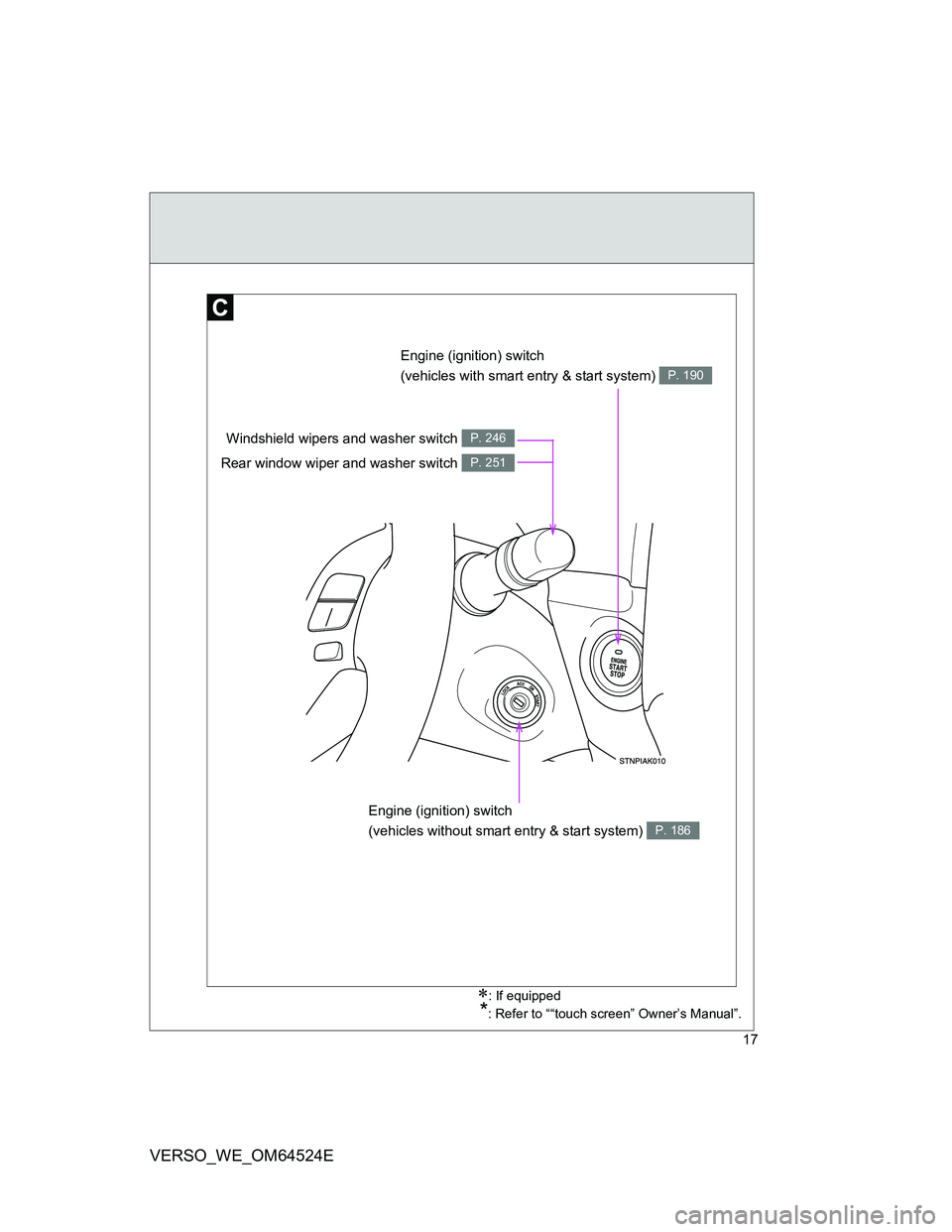

Engine (ignition) switch
(vehicles with smart entry & start system)
P. 190
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 186
Windshield wipers and washer switch
Rear window wiper and washer switch P. 246
P. 251
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

28
VERSO_WE_OM64524E
Outside rear view mirror
switches
P. 100
Headlight leveling
dial
 P. 240
VSC/TRC off switch P. 268
Tilt and telescopic steering lock release lever P. 96
Engine (ignition) switch
(vehicles with smart entry & start system)
P. 190
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 186
Instrument panel
(right-hand drive vehicles)Pictorial index
Toyota parking assist-sensor
switch
 P. 259
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 246
P. 251

2When driving
171
VERSO_WE_OM64524E
2-1. Driving procedures
Driving the vehicle ............ 172
Engine (ignition) switch
(vehicles without smart
entry & start system)....... 186
Engine (ignition) switch
(vehicles with smart
entry & start system)....... 190
Multidrive .......................... 196
Automatic transmission .... 202
Manual transmission......... 209
Turn signal lever ............... 213
Parking brake ................... 214
Horn .................................. 216
2-2. Instrument cluster
Gauges and meters .......... 217
Indicators and warning
lights ............................... 222
Multi-information display ... 226
2-3. Operating the lights and
wipers
Headlight switch ............... 239
Fog light switch ................. 244
Windshield wipers and
washer ............................ 246
Rear window wiper and
washer ............................ 2512-4. Using other driving systems
Cruise control.................... 252
Speed limiter ..................... 256
Toyota parking
assist-sensor .................. 259
Driving assist systems ...... 267
Hill-start assist control....... 273
2-5. Driving information
Cargo and luggage ........... 275
Winter driving tips ............. 278
Trailer towing .................... 282

242 2-3. Operating the lights and wipers
VERSO_WE_OM64524E
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights and tail
lights turn on automatically whenever the engine is started. (However, the
daytime running light system will be canceled when the headlight switch is
operated manually or the automatic headlight system turns on the tail lights.)
Daytime running lights are not designed for use at night.
Headlight control sensor (if equipped)
Automatic light off system
Vehicles without smart entry & start system
When the light switch is in the position, the headlight and all the
lights turn off automatically if the engine switch is turned to the “ACC”
or “LOCK” position and the driver’s door is opened.
When the light switch is in the or position, the headlights
and front fog lights turn off automatically if the engine switch is turned
to the “ACC” or “LOCK” position.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to the or position.
Vehicles with smart entry & start system
When the light switch is in the position, the headlight and all the
lights turn off automatically if the “ENGINE START STOP” switch is
turned to the ACCESSORY mode or turned OFF and the driver’s door
is opened.
When the light switch is in the or position, the headlights
and front fog lights turn off automatically if the “ENGINE START STOP”
switch is turned to the ACCESSORY mode or turned OFF.
To turn the lights on again, turn to the IGNITION ON mode, or turn the light
switch off once and then back to the or position.
The sensor may not function properly if
anything that blocks the sensor is affixed
to the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

246
2-3. Operating the lights and wipers
VERSO_WE_OM64524E

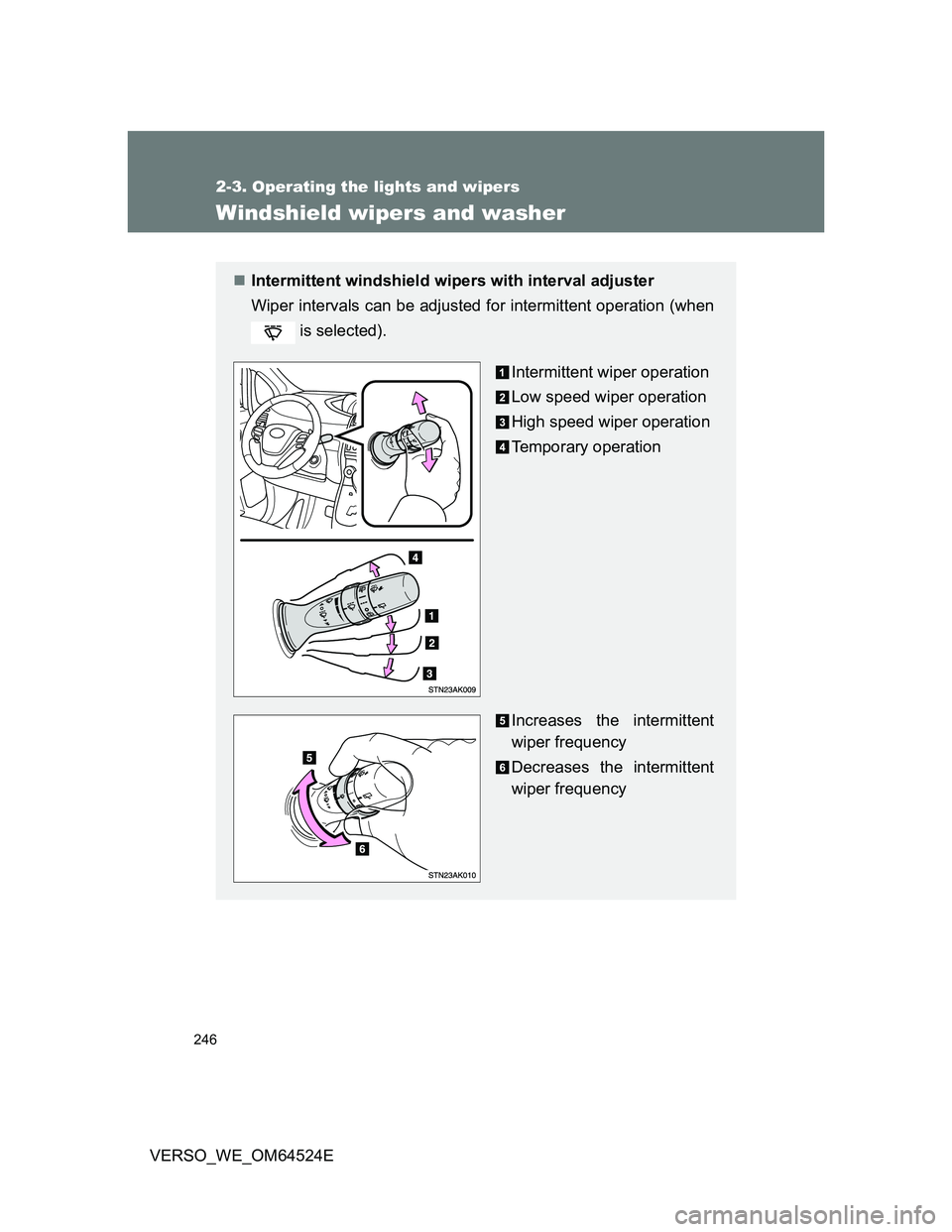

Windshield wipers and washer
Intermittent windshield wipers with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
wiper frequency
Decreases the intermittent
wiper frequency

247 2-3. Operating the lights and wipers
2
When driving
VERSO_WE_OM64524E
Wash/wipe operation
Wipers operate automati-
cally.
Vehicles with headlight
cleaner: P. 249
Rain-sensing windshield wipers (if equipped)
With “AUTO” selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume.
Rain-sensing wiper opera-
tion
Low speed wiper operation
High speed wiper operation
Temporary operation
