2012 TOYOTA VERSO inflation pressure

TABLE OF CONTENTSIndex
4
VERSO_WE_OM64524E
Seat heaters* ...................... 368
Armrest* .............................. 370
Front seatback table* .......... 371
Panoramic roof shade* ....... 373
Rear side sunshades*......... 376
Floor mat............................. 377
Luggage compartment fea-
tures..................................379
4-1. Maintenance and care
Cleaning and protecting the ve-
hicle exterior ..................... 388
Cleaning and protecting the ve-
hicle interior ...................... 392
4-2. Maintenance
Maintenance requirements . 395
4-3. Do-it-yourself maintenance
Do-it-yourself service precau-
tions .................................. 398
Hood ................................... 401
Positioning a floor jack ........ 403
Engine compartment........... 405
Tires .................................... 421
Tire inflation pressure ......... 424
Wheels ................................ 426
Air conditioning filter ........... 428
Key battery.......................... 432
Checking and replacing fus-
es.......................................436
Light bulbs .......................... 4505-1. Essential information
Emergency flashers ........... 464
If your vehicle needs to be
towed..............................465
If you think something is
wrong...............................473
Fuel pump shut off system (gas-
oline engine) .................... 474
5-2. Steps to take in an emergency
If a warning light turns on or a
warning buzzer sounds... . 475
If a warning message is dis-
played .............................. 479
If you have a flat tire (vehicles
with spare tire) ................. 490
If you have a flat tire (vehicles
with emergency tire puncture
repair kit) .......................... 506
If the engine will not start ... 519
If the shift lever cannot be shifted
from P (vehicles with a Multid-
rive or an automatic transmis-
sion) ................................. 522
If you lose your keys .......... 523
If you cannot operate the back
door opener...................... 524
If the electronic key does not op-
erate properly (vehicles with
smart entry & start sys-
tem).................................525
If the vehicle battery is dis-
charged ............................ 528
If your vehicle overheats .... 532
4Maintenance and care
5When trouble arises

7
VERSO_WE_OM64524E
Tire
Rotation
Replacement
Inflation pressure
P. 421
P. 490
P. 560
Rear window wiper P. 251
Side door P. 67
Fuel filler door P. 105
Rear fog light (left-hand drive
vehicles)
P. 244
Rear fog light
(right-hand
drive vehicles)
P. 244
Rear window defoggerP. 306
License plate lights P. 239
Tail lights P. 239
Rear turn signal lights P. 213
Back doorP. 73
Rear view monitor
system camera
*

: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

281 2-5. Driving information
2
When driving
VERSO_WE_OM64524E
CAUTION
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
Use tires of the size specified for your vehicle.
Maintain the recommended level of tire inflation pressure.
Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
Snow tires should be installed on all wheels.
Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
Do not drive in excess of the speed limit specified for the tire chains being
used or 50 km/h (30 mph), whichever is lower.
Avoid driving on bumpy road surfaces or over potholes.
Avoid sudden turns and braking, as use of chains may adversely affect
vehicle handling.
Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

286 2-5. Driving information
VERSO_WE_OM64524E826 mm (32.5 in.)
497 mm (19.6 in.)
362 mm (14.3 in.)
297 mm (11.7 in.)
355 mm (14.0 in.)
1
365 mm (14.4 in.)2
354 mm (13.9 in.)1,3
366 mm (14.4 in.)2,3
14 mm (0.6 in.)
*
:Gross vehicle mass and standard tire size1:205/60R16 tires2:215/55R17 tires3:Vehicle category N1 models (Denmark)
To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Tire information
Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi)
greater than the recommended value when towing. (P. 560)
Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
Trailer lights
Check that the turn signal lights and stoplights are operating correctly every
time you hitch up the trailer. Directly wiring up to your vehicle may damage
the electrical system and stop the lights from functioning correctly.

4Maintenance and care
387
VERSO_WE_OM64524E
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 388
Cleaning and protecting
the vehicle interior .......... 392
4-2. Maintenance
Maintenance
requirements................... 395
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 398
Hood ................................. 401
Positioning a floor jack ...... 403
Engine compartment......... 405
Tires .................................. 421
Tire inflation pressure ....... 424
Wheels .............................. 426
Air conditioning filter ......... 428
Key battery........................ 432
Checking and replacing
fuses ............................... 436
Light bulbs ........................ 450

398
VERSO_WE_OM64524E
4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition (P. 415)•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine coolant level (P. 413)• Toyota Super Long Life Coolant
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. Toyota
Super Long Life Coolant is pre-
mixed with 50% coolant and 50%
deionized water.
Engine oil levelP. 408)• Toyota Genuine Motor Oil or
equivalent
• Rag or paper towel, funnel
(used only for adding oil)
Fuses (P. 436)• Fuse with same amperage rating
as original
Radiator, condenser and inter-
cooler (P. 415)
Tire inflation pressure (P. 424)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 418)• Water washer fluid containing
antifreeze (for winter use)

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Tires
Replace the tires when the treadwear indicators show.
Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indi-
cators is shown by the “TWI” or
“ ” marks, etc., molded on
the sidewall of each tire.
Check spare tire condition and
inflation pressure if not rotated.
Tire rotation
Vehicles with a spare tire of different wheel type from the
installed tires or an emergency tire puncture repair kit
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Toyota recom-
mends that you rotate your
tires approximately every
10000 km (6000 miles).
Vehicles with a spare tire of the same wheel type as the
installed tires
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Toyota recom-
mends that you rotate your
tires approximately every
10000 km (6000 miles).
Front
Front

423 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

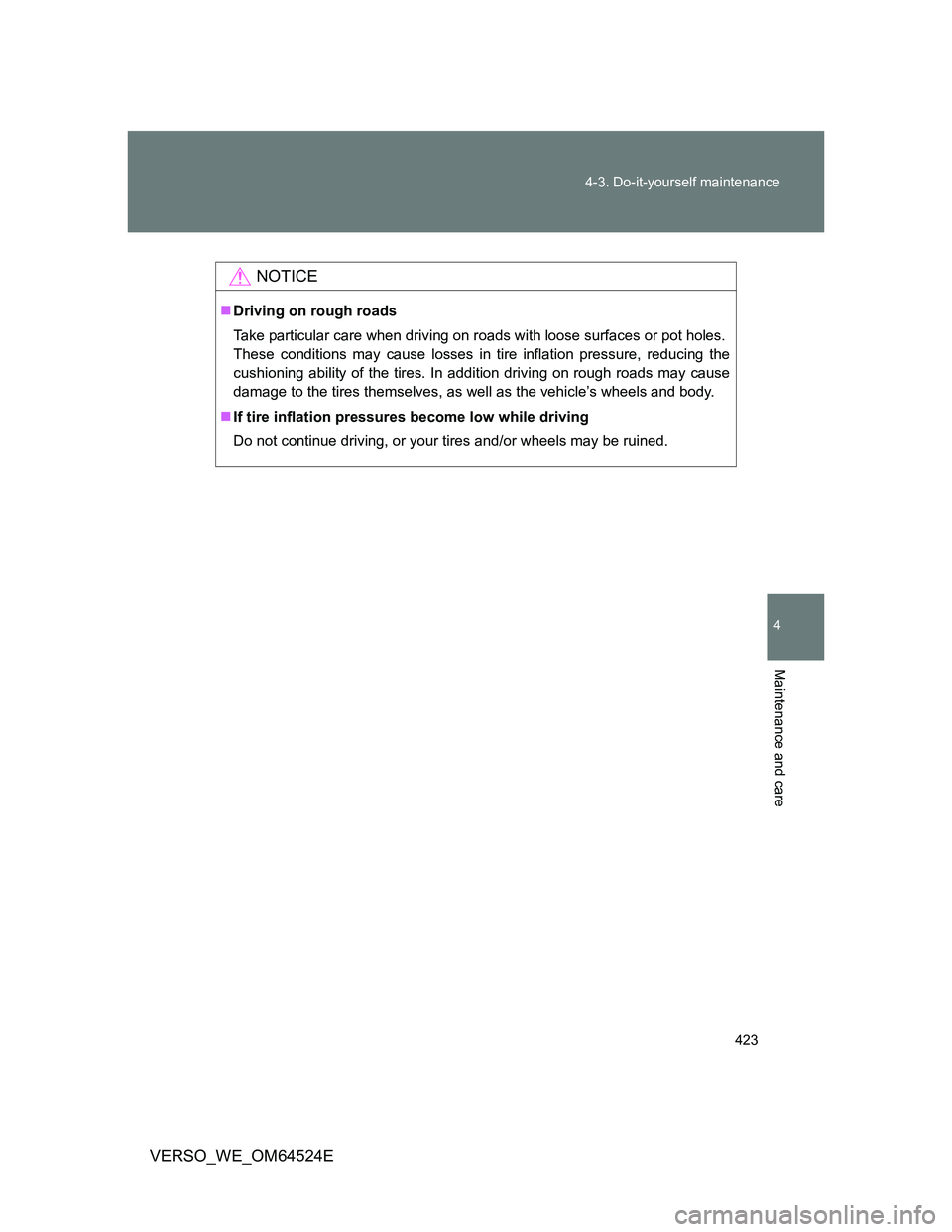

NOTICE
Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot holes.
These conditions may cause losses in tire inflation pressure, reducing the
cushioning ability of the tires. In addition driving on rough roads may cause
damage to the tires themselves, as well as the vehicle’s wheels and body.
If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
