2012 TOYOTA VERSO wipers

1
2
3
4
5
6
3
VERSO_WE_OM64524E
Windshield wipers and washer
...........................................246
Rear window wiper and wash-
er......................................251
2-4. Using other driving systems
Cruise control* .................... 252
Speed limiter* ..................... 256
Toyota parking assist-sen-
sor.....................................259
Driving assist systems ........ 267
Hill-start assist control......... 273
2-5. Driving information
Cargo and luggage ............. 275
Winter driving tips ............... 278
Trailer towing ...................... 282
3-1. Using the air conditioning sys-
tem and defogger
Manual air conditioning sys-
tem..................................292
Automatic air conditioning sys-
tem.................................... 297
Power heater* ..................... 304
Rear window and outside rear
view mirror defoggers ....... 306
3-2. Using the audio system
Audio system types* ........... 308
Using the radio* .................. 314
Using the CD player* .......... 319Playing back MP3 and WMA
discs* ............................... 324
Operating an iPod* ............. 330
Operating a USB memory*. 336
Optimal use of the audio sys-
tem..................................343
Using the AUX port* ........... 345
Using the steering wheel audio
switches ........................... 346
3-3. Using the interior lights
Interior lights list ................. 349
• Personal/interior lights main
switch...............................350
• Personal/interior lights ..... 351
3-4. Using the storage features
List of storage features....... 352
• Glove box ......................... 353
• Console box ..................... 354
• Console box and overhead
console..............................355
• Overhead console and cup
holders..............................356
• Cup holders and bottle hold-
ers.....................................357
• Bottle holders and auxiliary
boxes................................358
• Auxiliary boxes ................. 359
• Auxiliary boxes ................. 360
3-5. Other interior features
Sun visors .......................... 361
Vanity mirror ....................... 362
Conversation mirror............ 363
Portable ashtray ................. 364
Cigarette lighter .................. 365
Power outlet ....................... 366
3Interior features

6
VERSO_WE_OM64524E
Headlights (Low beam) P. 239
Pictorial indexExterior
Front fog lights P. 244
Front turn signal lights P. 213
Hood P. 401
Windshield wipers P. 246Outside rear view
mirror
P. 100
Headlight cleaner P. 249
Headlights (High beam)
P. 239
Front position lights P. 239

17
VERSO_WE_OM64524E
Engine (ignition) switch
(vehicles with smart entry & start system)
P. 190
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 186
Windshield wipers and washer switch
Rear window wiper and washer switch P. 246
P. 251
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

28
VERSO_WE_OM64524E
Outside rear view mirror
switches
P. 100
Headlight leveling
dial
 P. 240
VSC/TRC off switch P. 268
Tilt and telescopic steering lock release lever P. 96
Engine (ignition) switch
(vehicles with smart entry & start system)
P. 190
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 186
Instrument panel
(right-hand drive vehicles)Pictorial index
Toyota parking assist-sensor
switch
 P. 259
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 246
P. 251

2When driving
171
VERSO_WE_OM64524E
2-1. Driving procedures
Driving the vehicle ............ 172
Engine (ignition) switch
(vehicles without smart
entry & start system)....... 186
Engine (ignition) switch
(vehicles with smart
entry & start system)....... 190
Multidrive .......................... 196
Automatic transmission .... 202
Manual transmission......... 209
Turn signal lever ............... 213
Parking brake ................... 214
Horn .................................. 216
2-2. Instrument cluster
Gauges and meters .......... 217
Indicators and warning
lights ............................... 222
Multi-information display ... 226
2-3. Operating the lights and
wipers
Headlight switch ............... 239
Fog light switch ................. 244
Windshield wipers and
washer ............................ 246
Rear window wiper and
washer ............................ 2512-4. Using other driving systems
Cruise control.................... 252
Speed limiter ..................... 256
Toyota parking
assist-sensor .................. 259
Driving assist systems ...... 267
Hill-start assist control....... 273
2-5. Driving information
Cargo and luggage ........... 275
Winter driving tips ............. 278
Trailer towing .................... 282

239
2
When driving
VERSO_WE_OM64524E
2-3. Operating the lights and wipers

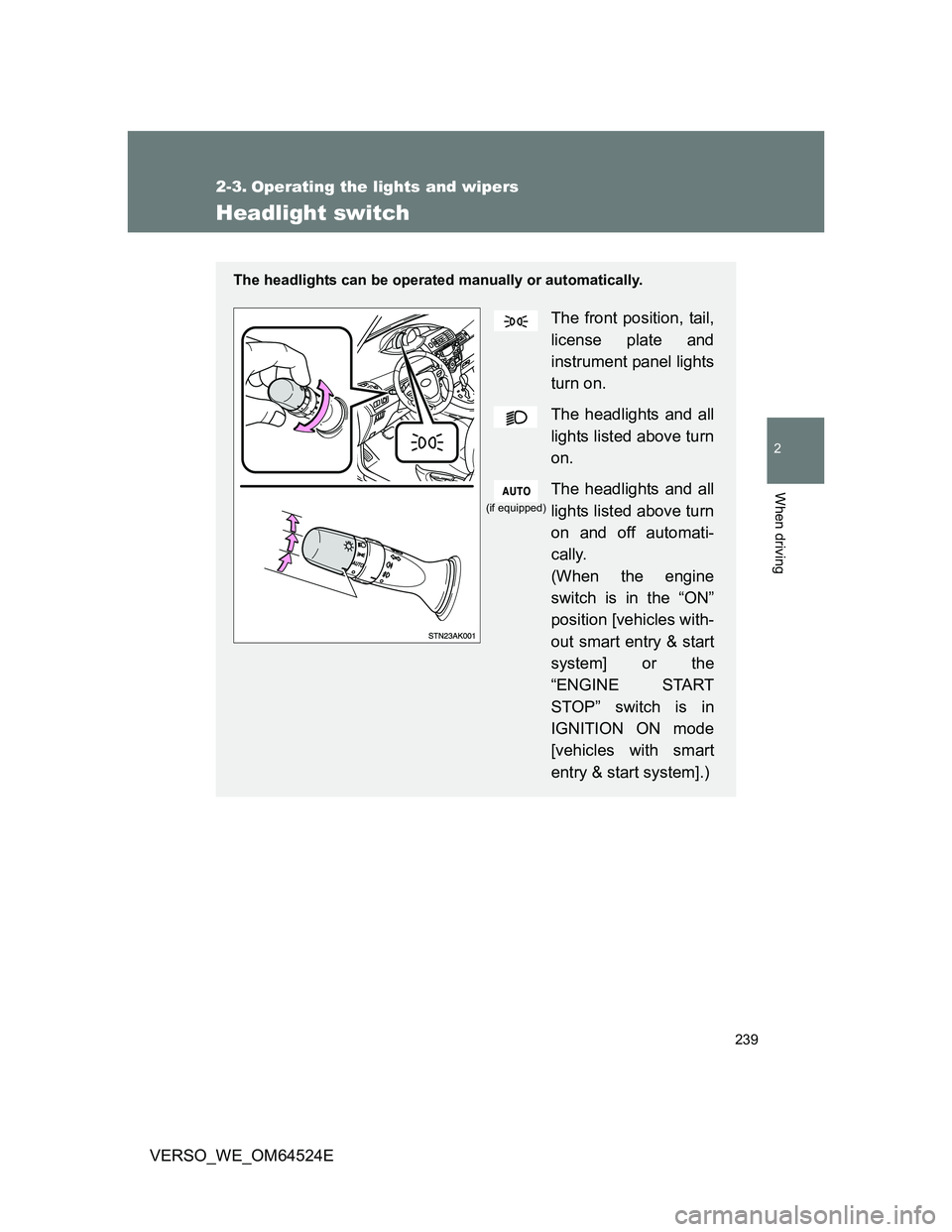

Headlight switch
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automati-
cally.
(When the engine
switch is in the “ON”
position [vehicles with-
out smart entry & start
system] or the
“ENGINE START
STOP” switch is in
IGNITION ON mode
[vehicles with smart
entry & start system].)
(if equipped)

240 2-3. Operating the lights and wipers
VERSO_WE_OM64524E
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial (vehicles with halogen headlights)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights

241 2-3. Operating the lights and wipers
2
When driving

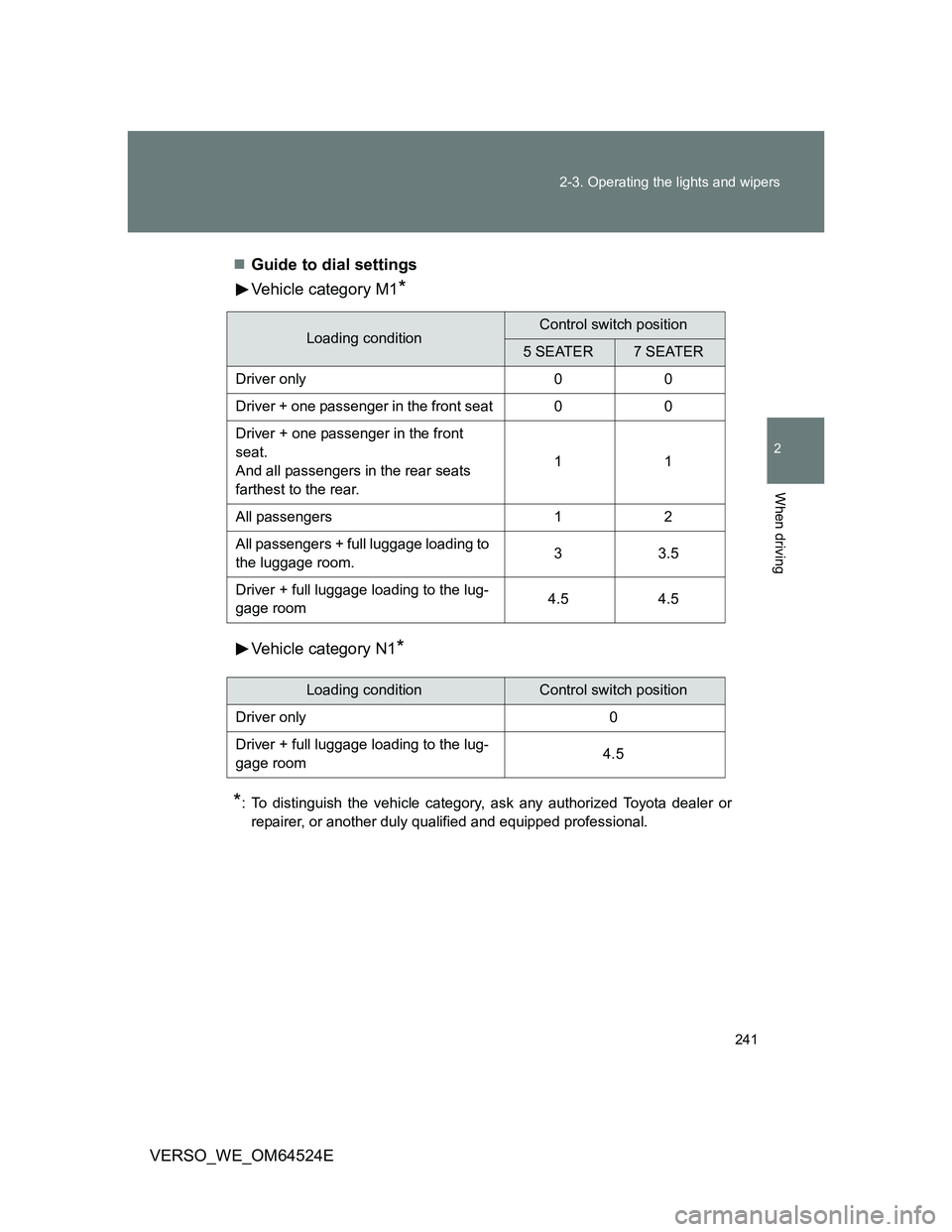

VERSO_WE_OM64524EGuide to dial settings
Vehicle category M1
*
Vehicle category N1*
*
: To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Loading conditionControl switch position
5 SEATER7 SEATER
Driver only 0 0
Driver + one passenger in the front seat 0 0
Driver + one passenger in the front
seat.
And all passengers in the rear seats
farthest to the rear.11
All passengers 1 2
All passengers + full luggage loading to
the luggage room.33.5
Driver + full luggage loading to the lug-
gage room4.5 4.5
Loading conditionControl switch position
Driver only 0
Driver + full luggage loading to the lug-
gage room4.5
