2012 TOYOTA VERSO odometer

217
2
When driving
VERSO_WE_OM64524E
2-2. Instrument cluster
Gauges and meters
Left-hand drive vehicles
Vehicles without smart entry & start system
The following gauges, meters and displays illuminate when the
engine switch is in the “ON” position.
Vehicles with smart entry & start system
The following gauges, meters and displays illuminate when the
“ENGINE START STOP” switch is in the IGNITION ON mode.
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Multi-information display
P. 226
Odometer/trip meter/instrument cluster light control and trip
meter reset button
P. 220
Fuel gauge
Displays the quantity of fuel remaining in the tank.

218 2-2. Instrument cluster
VERSO_WE_OM64524E
Odometer, trip meter and instrument cluster light control display
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
Instrument cluster light control display:
Displays the brightness of the instrument cluster light when the head-
light switch is on.

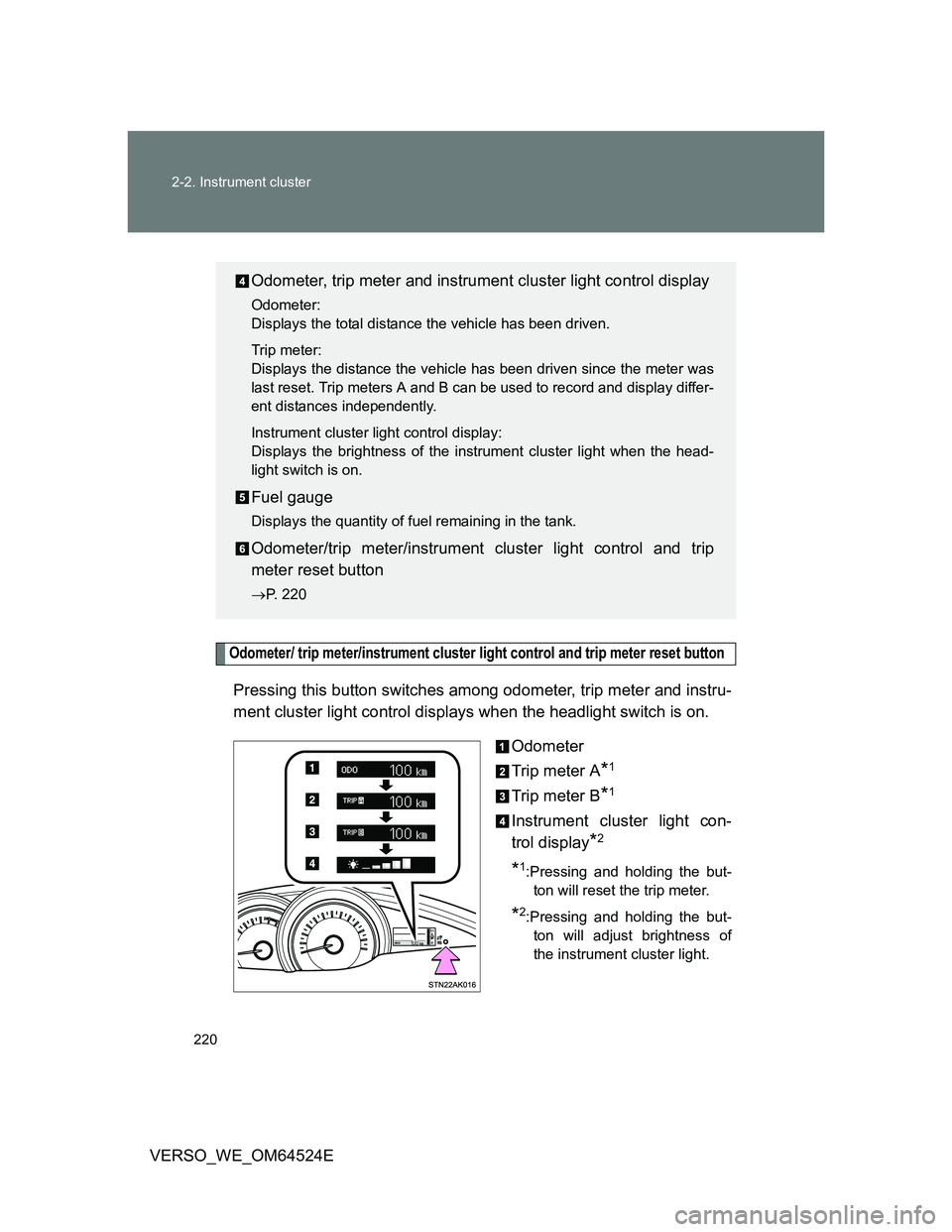

220 2-2. Instrument cluster
VERSO_WE_OM64524E
Odometer/ trip meter/instrument cluster light control and trip meter reset button
Pressing this button switches among odometer, trip meter and instru-
ment cluster light control displays when the headlight switch is on.
Odometer
Trip meter A
*1
Trip meter B*1
Instrument cluster light con-
trol display
*2
*1:Pressing and holding the but-
ton will reset the trip meter.
*2:Pressing and holding the but-
ton will adjust brightness of
the instrument cluster light.
Odometer, trip meter and instrument cluster light control display
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
Instrument cluster light control display:
Displays the brightness of the instrument cluster light when the head-
light switch is on.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter/instrument cluster light control and trip
meter reset button
P. 220

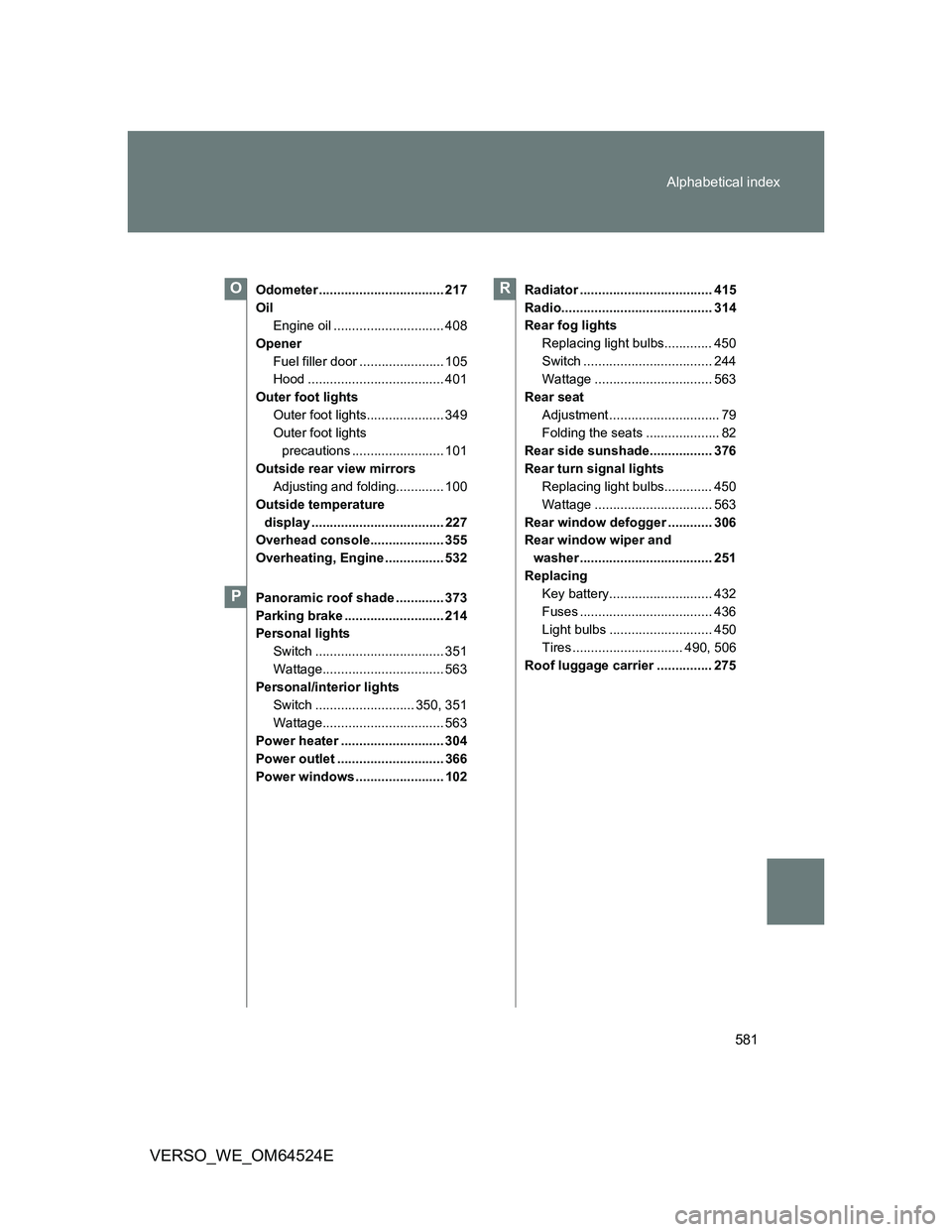

581 Alphabetical index
VERSO_WE_OM64524E
Odometer .................................. 217
Oil
Engine oil .............................. 408
Opener
Fuel filler door ....................... 105
Hood ..................................... 401
Outer foot lights
Outer foot lights..................... 349
Outer foot lights
precautions ......................... 101
Outside rear view mirrors
Adjusting and folding............. 100
Outside temperature
display .................................... 227
Overhead console.................... 355
Overheating, Engine ................ 532
Panoramic roof shade ............. 373
Parking brake ........................... 214
Personal lights
Switch ................................... 351
Wattage................................. 563
Personal/interior lights
Switch ........................... 350, 351
Wattage................................. 563
Power heater ............................ 304
Power outlet ............................. 366
Power windows ........................ 102Radiator .................................... 415
Radio......................................... 314
Rear fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Rear seat
Adjustment .............................. 79
Folding the seats .................... 82
Rear side sunshade................. 376
Rear turn signal lights
Replacing light bulbs............. 450
Wattage ................................ 563
Rear window defogger ............ 306
Rear window wiper and
washer .................................... 251
Replacing
Key battery............................ 432
Fuses .................................... 436
Light bulbs ............................ 450
Tires .............................. 490, 506
Roof luggage carrier ............... 275O
P
R
