2012 TOYOTA VERSO light

417 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

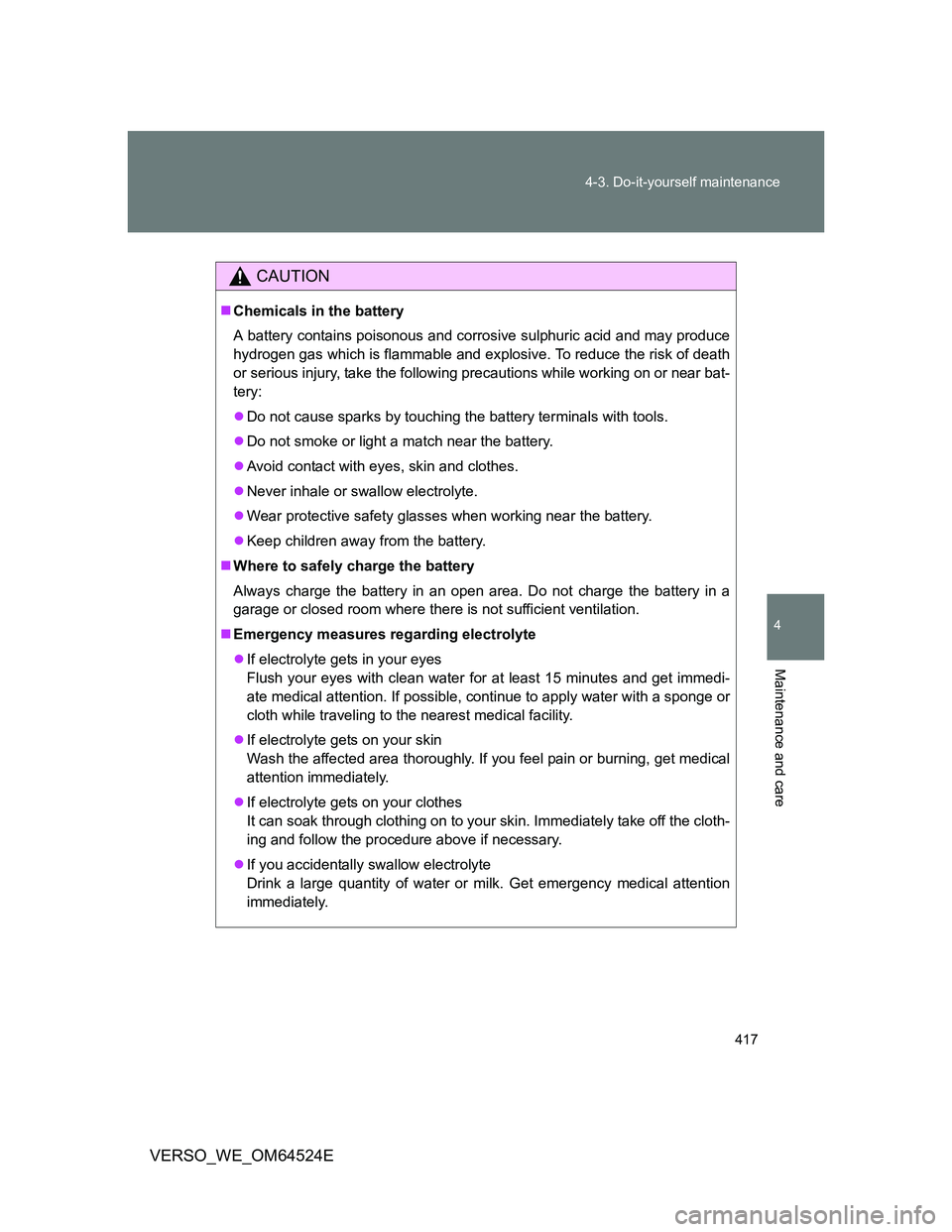

CAUTION
Chemicals in the battery
A battery contains poisonous and corrosive sulphuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near bat-
tery:
Do not cause sparks by touching the battery terminals with tools.
Do not smoke or light a match near the battery.
Avoid contact with eyes, skin and clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near the battery.
Keep children away from the battery.
Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is not sufficient ventilation.
Emergency measures regarding electrolyte
If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

441 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1H-LP CLN30 A Headlight cleaner
2RDI FAN40 A Electric cooling fan(s)
3CDS FAN30 A Electric cooling fan(s)*1
4 ABS NO.1 50 A Anti-lock brake system, VSC+
5 HTR 50 A Air conditioning system
6ALT120 A
*2
Charging system, RDI FAN, CDS
FAN, H-LP CLN, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
HTR, STV HTR, PWR OUTLET,
HTR SUB NO.1, HTR SUB NO.2,
HTR SUB NO.3, ECU-IG NO.2,
HTR-IG, WIPER, RR WIPER,
WASHER, ECU-IG NO.1, ECU-IG
NO.3, SEAT HTR, AM1, DOOR,
STOP, FR DOOR, POWER, RR
DOOR, RL DOOR, OBD, ACC-B,
RR FOG, FR FOG, DEF, TAIL,
PA N E L 140 A
*1

442 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
7 EPS 80 A Electric power steering
8GLOW
*180 A Engine glow system
9P-SYSTEM
*230 A VALVEMATIC system
10 P/I 50 A EFI MAIN, HORN, IG2, EDU
11 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
12 E-PKB 30 A No circuit
13 SPARE 10 A Spare fuse
14 SPARE 30 A Spare fuse
15 SPARE 20 A Spare fuse
16 AMP 30 A No circuit
17 DOOR NO.2 25 A Main body ECU
18 ECU-B2 10 ASmart entry & start system, air con-
ditioning system, power windows
19 ECU-B 10 AGauges and meters, main body
ECU, steering sensor, double lock-
ing system, wireless remote con-
trol, smart entry & start system
20 RAD NO.1 15 A Audio system
21 DOME 10 ALuggage compartment light, vanity
lights, engine switch light, front
door courtesy lights, personal/inte-
rior lights, personal lights, foot
lights
22 AM2 NO.2 7.5 A Starting system
23 ALT-S 7.5 A No circuit
24 TURN-HAZ 10 ATurn signal lights, emergency
flashers
25 ETCS
*210 A Electronic throttle control system
26 AM2 30 A Starting system
FuseAmpereCircuit

444 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles with diesel engine and automatic transmission
*4: Vehicles with discharge headlights
*5: Vehicles with halogen headlights47 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter, exhaust
system
*1
48 H-LP RH HI 10 A Right-hand headlight (high beam)
49 H-LP LH HI 10 A Left-hand headlight (high beam)
50 H-LP RH LO15 A
*4Right-hand discharge headlights
(low beam)
10 A
*5Right-hand headlight (low beam)
51 H-LP LH LO15 A
*4Left-hand discharge headlights
(low beam)
10 A
*5Left-hand headlight (low beam)
FuseAmpereCircuit

445 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EUnder the instrument panel (type A)
FuseAmpereCircuit
1TAIL 10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling dial, instrument cluster
lights
2 PANEL 7.5 AAir conditioning system switch,
audio system, Multidrive or auto-
matic transmission shift lever illumi-
nation, auxiliary box light, airbag
manual on-off system, emergency
flashers, cigarette lighter, head-
light cleaner switch, headlight level-
ing dial, steering switch, VSC OFF
switch, seat heater switch,
“SPORT” switch, Toyota parking
assist-sensor ECU, Toyota parking
assist-sensor switch
3 ECU-IG NO.3 10 APanoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system
4 FR DOOR 20 A Power windows (passenger side)
5 RL DOOR 20 A Power windows (rear left)
6 RR DOOR 20 A Power windows (rear right)
7 CIG 15 A Cigarette lighter

446 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
8ACC 7.5 AShift lock system, audio system,
main body ECU, power outlet
9 MIR HTR 10 A Outside rear view mirror defoggers
10 RR FOG 7.5 A Rear fog light
11 I G N 7 . 5 ASteering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, automatic
transmission
*1, starting system
12 METER 7.5 A Gauges and meters
13 SEAT HTR
*2 15 A Seat heaters
14 HTR-IG 10 A Air conditioning system
15 WIPER 25 AWindshield wipers, rain-sensing
windshield wipers
16 RR WIPER 15 A Rear window wiper
17 WASHER 15 AWindshield washers, rear window
washer
18 ECU-IG NO.1 10 AMain body ECU, electric cooling
fan(s), shift lock system, anti-lock
brake system, steering sensor,
VSC+, headlight cleaner,
SEQUENTIAL switch, automatic
headlight leveling system, Electric
Power Steering
19 ECU-IG NO.2 10 ABack-up lights, charging system,
emergency flashers, rear window
defogger, front passenger’s seat
belt reminder light, “PASSENGER
AIRBAG” indicator, air conditioning
system, Toyota parking assist-sen-
sor indicator, Toyota parking assist-
sensor switch
20 OBD 7.5 A On-board diagnosis system
FuseAmpereCircuit

447 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
*1: Vehicles with diesel engine and automatic transmission
*2: Vehicles with seat heater21 STOP 10 AStop lights, high mounted stop-
light, anti-lock brake system,
VSC+, shift lock system, starting
system
22 SUNROOF 20 A Panoramic roof shade
23 DOOR 25 A Power door lock system
24 ACC-B 25 A CIG, ACC
25 FR FOG 15 A Front fog lights
26 AM1 7.5 AStarting system, ACC, CIG, ECU-IG
NO.2, HTR-IG, WIPER, RR WIPER,
WASHER, ECU-IG NO.1, ECU-IG
NO.3
FuseAmpereCircuit

448 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EUnder the instrument panel (type B)
FuseAmpereCircuit
1 WIPER NO.2 7.5 ACharging system, driver support
system ECU
2 DEF 30 A Rear window defogger, MIR HTR
3 POWER 30 A Power windows (driver side)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 450)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
