476 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
*: Except South Africa, Morocco
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system
*;
• The electronic engine control system;
• The electronic throttle control system;
• The electronic Multidrive or automatic transmission control
system. (if equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS;
• The brake assist system (vehicles with VSC+)
Electric power steering warning light (warning buzzer)
Indicates a malfunction in the EPS system.
(Flashing)Cruise control warning light (if equipped)
Indicates a malfunction in the cruise control system.
Automatic headlight leveling system warning light
(if equipped)
Indicates a malfunction in the automatic headlight leveling
system.

5
477 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle
immediately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Toy-
ota dealer or repairer, or another duly qualified and equipped professional.
Electric power steering warning light (warning buzzer)
The electric power steering warning light may come on and the warning
buzzer may sound when the voltage is low or the voltage drops.
CAUTION
When the electric power steering warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.
Warning lightWarning light/DetailsCorrection procedure
Low fuel level warning
light
Gasoline engine:
Indicates that remaining
fuel is about 9.0 L (2.4
gal., 2.0 Imp. gal.) or less
Diesel engine:
Indicates that remaining
fuel is about 8.3 L (2.2
gal., 1.8 Imp. gal.) or lessRefuel the vehicle.

478 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
*: Driver’s and front passenger’s seat belt reminders:
The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that his/her seat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle has reached a speed of at least 20
km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.
(On the instru-
ment cluster)Driver’s seat belt
reminder light
(warning buzzer)*
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center
panel)Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his/her seat
belt.Fasten the seat belt.
Master warning light
A buzzer sounds and the
warning light comes on or
flashes to indicate that the
master warning system
has detected a malfunc-
tion.Take appropriate action in
accordance with the mes-
sage displayed on the multi-
information display.
Front passenger detection sensor and passenger seat belt reminder
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
Warning lightWarning light/DetailsCorrection procedure

5
479
5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E

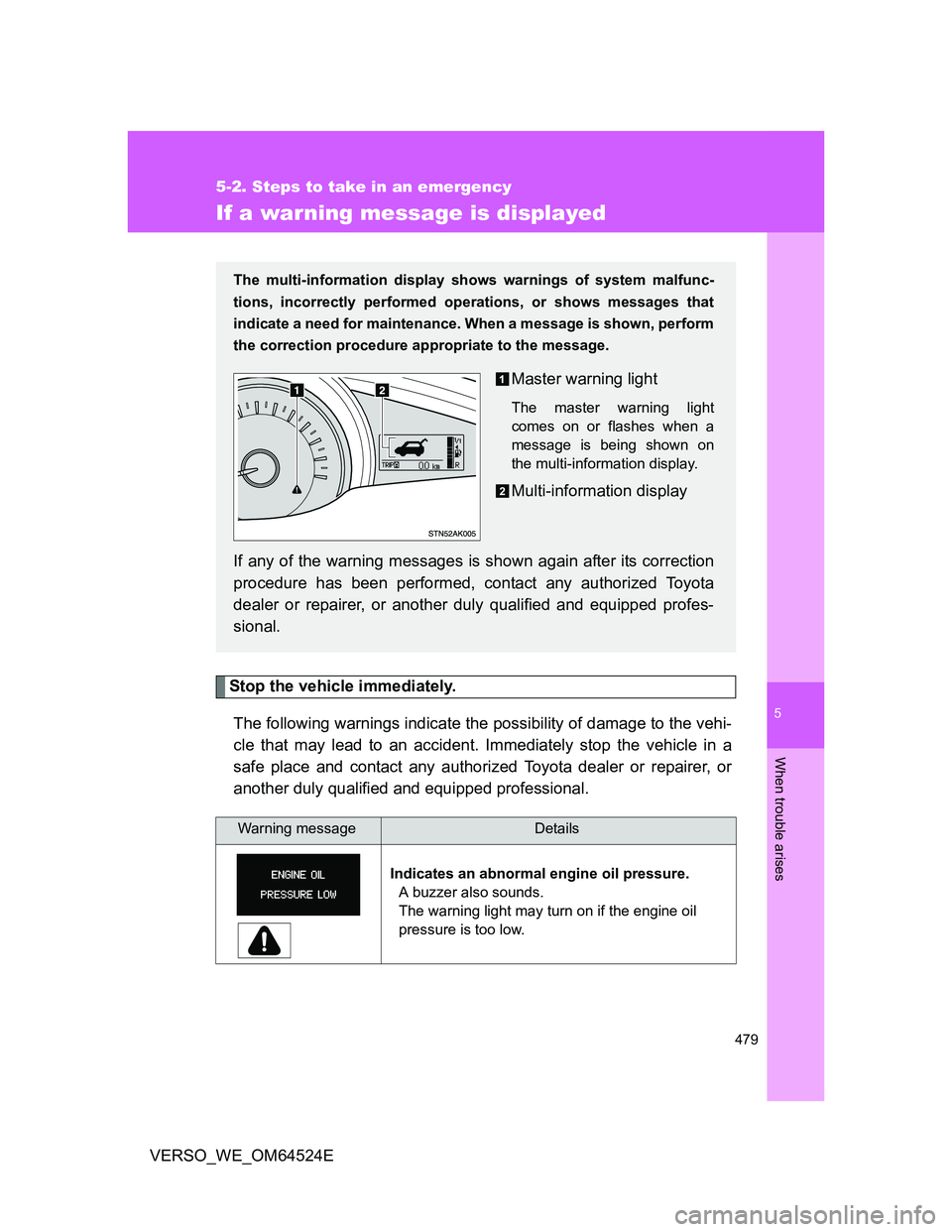

If a warning message is displayed
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning messageDetails
Indicates an abnormal engine oil pressure.
A buzzer also sounds.
The warning light may turn on if the engine oil
pressure is too low.
The multi-information display shows warnings of system malfunc-
tions, incorrectly performed operations, or shows messages that
indicate a need for maintenance. When a message is shown, perform
the correction procedure appropriate to the message.
Master warning light
The master warning light
comes on or flashes when a
message is being shown on
the multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.

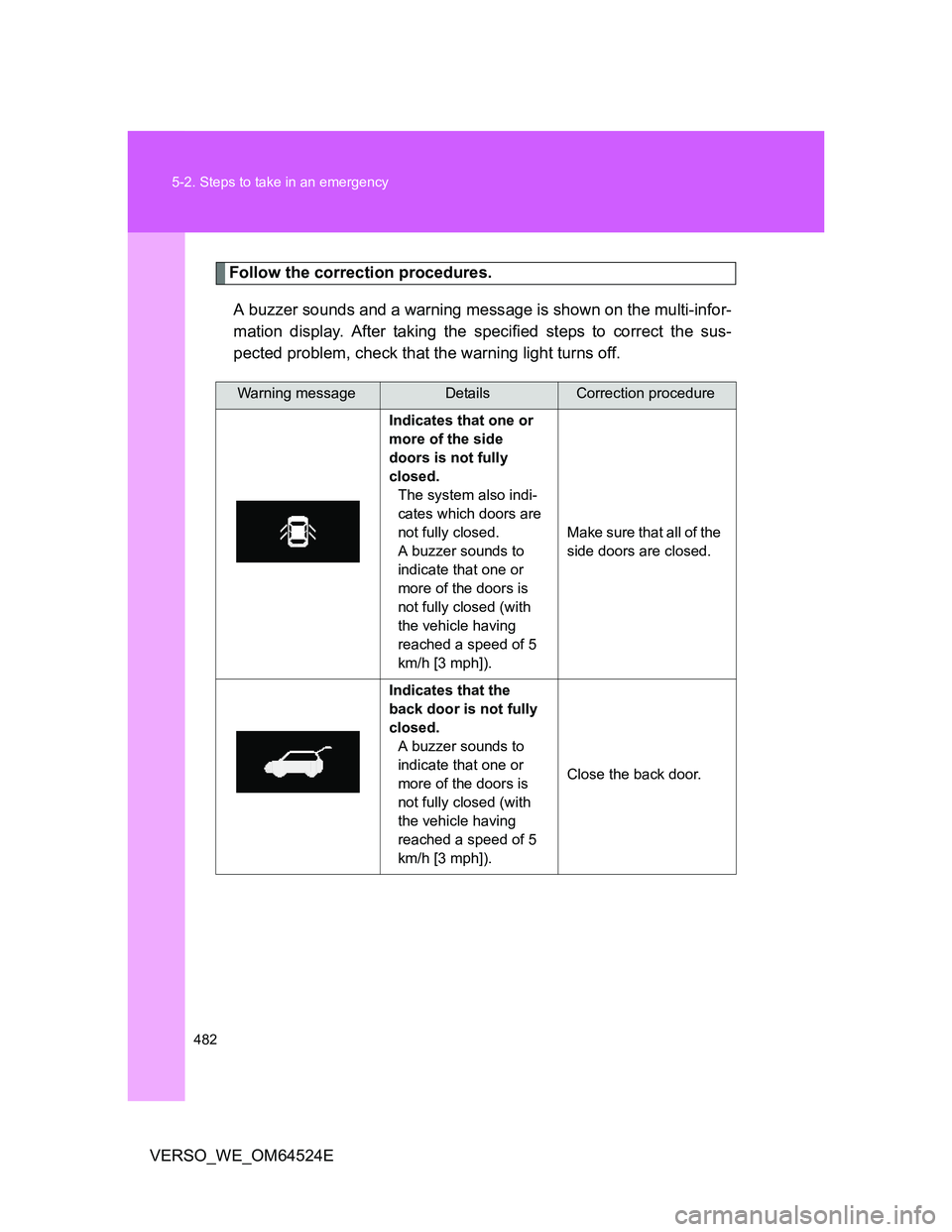

482 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Follow the correction procedures.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. After taking the specified steps to correct the sus-
pected problem, check that the warning light turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the side
doors is not fully
closed.
The system also indi-
cates which doors are
not fully closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of 5
km/h [3 mph]).Make sure that all of the
side doors are closed.
Indicates that the
back door is not fully
closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of 5
km/h [3 mph]).Close the back door.

5
483 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
(Flashing)Indicates that the
parking brake is still
engaged.
A buzzer sounds to
indicate that parking
brake is still engaged
(with the vehicle hav-
ing reached a speed
of more than 5 km/h [3
mph]).Release the parking
brake.
*1Indicates that the Mul-
tidrive or automatic
transmission fluid
temperature is too
high.
A buzzer also sounds.Stop the vehicle in a
safe place and shift
lever to “P”.
If the light does not go
off, contact any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
*2
Indicates that engine
oil level is low.
A buzzer also sounds.Check the level of
engine oil, and add if
necessary.
(Flashing)Indicates that the
headlight switch is left
on (with the key
removed and the
driver’s door opened).
A buzzer also sounds.Turn the headlight
switch off.
Warning messageDetailsCorrection procedure

484 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission *2: Diesel engine only
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
*2
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)Check the engine oil,
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset.
*2

Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)Check the change the
engine oil and oil filter
by any authorized Toy-
ota dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashing)Indicates that
an attempt was
made to start
the engine with-
out the elec-
tronic key being
present, or the
electronic key
was not func-
tioning normally.Confirm the
location of the
electronic key.
Warning messageDetailsCorrection procedure

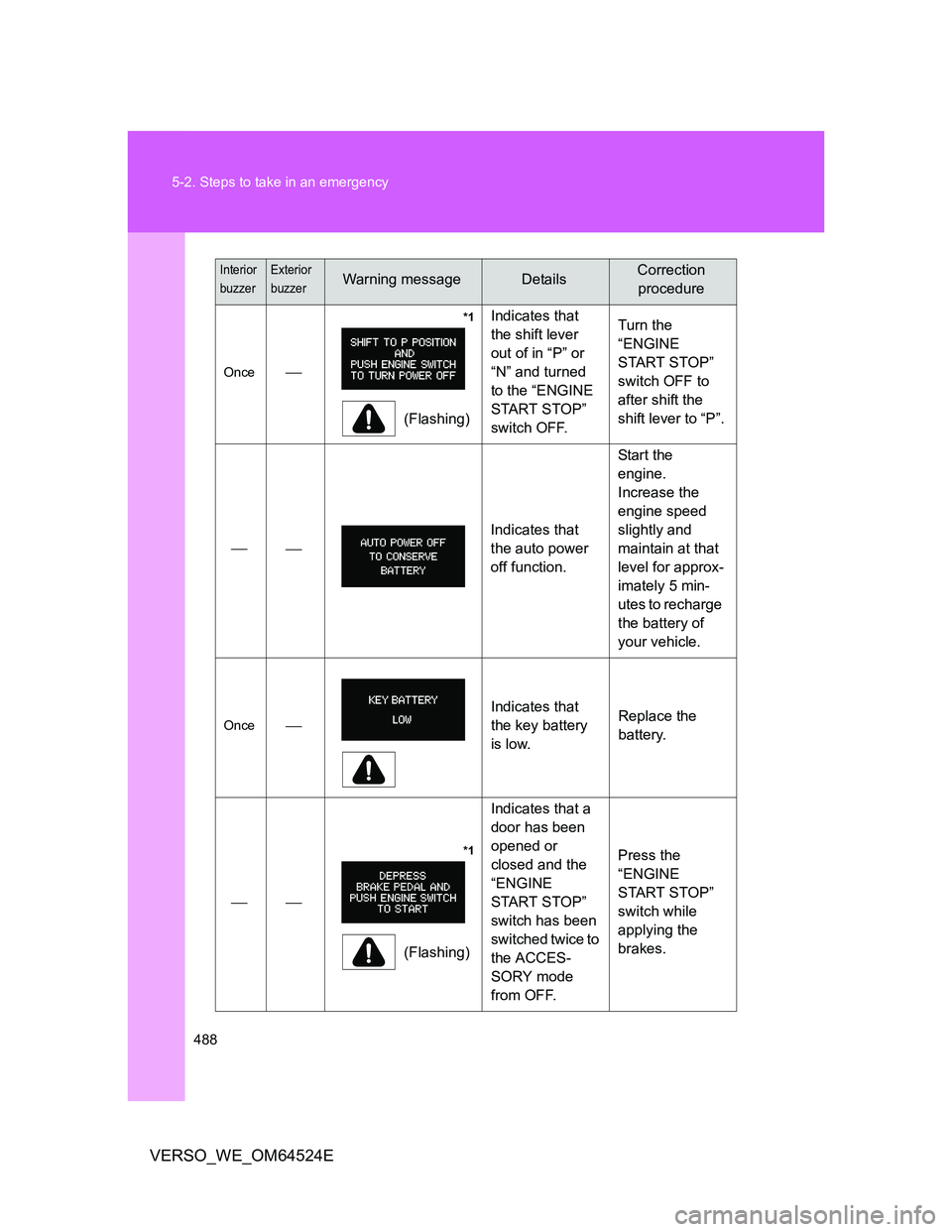

488 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Once
*1
(Flashing)Indicates that
the shift lever
out of in “P” or
“N” and turned
to the “ENGINE
START STOP”
switch OFF.Turn the
“ENGINE
START STOP”
switch OFF to
after shift the
shift lever to “P”.

Indicates that
the auto power
off function.Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
OnceIndicates that
the key battery
is low.Replace the
battery.

*1
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
