Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 563)
Remove the engine compartment cover
P. 407)
Front bulb locations
Front position light
Headlight high beam
Headlight low beam
(halogen bulb)
Front turn signal light
Front fog light
(if equipped)

451 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Tail light
Rear fog light*2
License plate lights Rear turn
signal light
Back-up light*1
Rear fog light*1
Back-up light*2

452 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Replacing light bulbs
Before replacing the front headlight, front position light and
front turn signal light bulbs
Left side
Remove the upper of the air
cleaner duct.
Remove the securing clip.
Remove the upper of the air
cleaner duct to allow easy
access to light bulbs.
After replacing the bulbs, make
sure to firmly install the upper
portion of the air cleaner duct and
secure it with the clip.
Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.

453 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EHeadlight low beam (vehicles with the halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

454 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EHeadlight high beam
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

455 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EFront fog light (if equipped)
Remove the fender liner bolts,
clip and then partly remove the
fender liner.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

456 4-3. Do-it-yourself maintenance

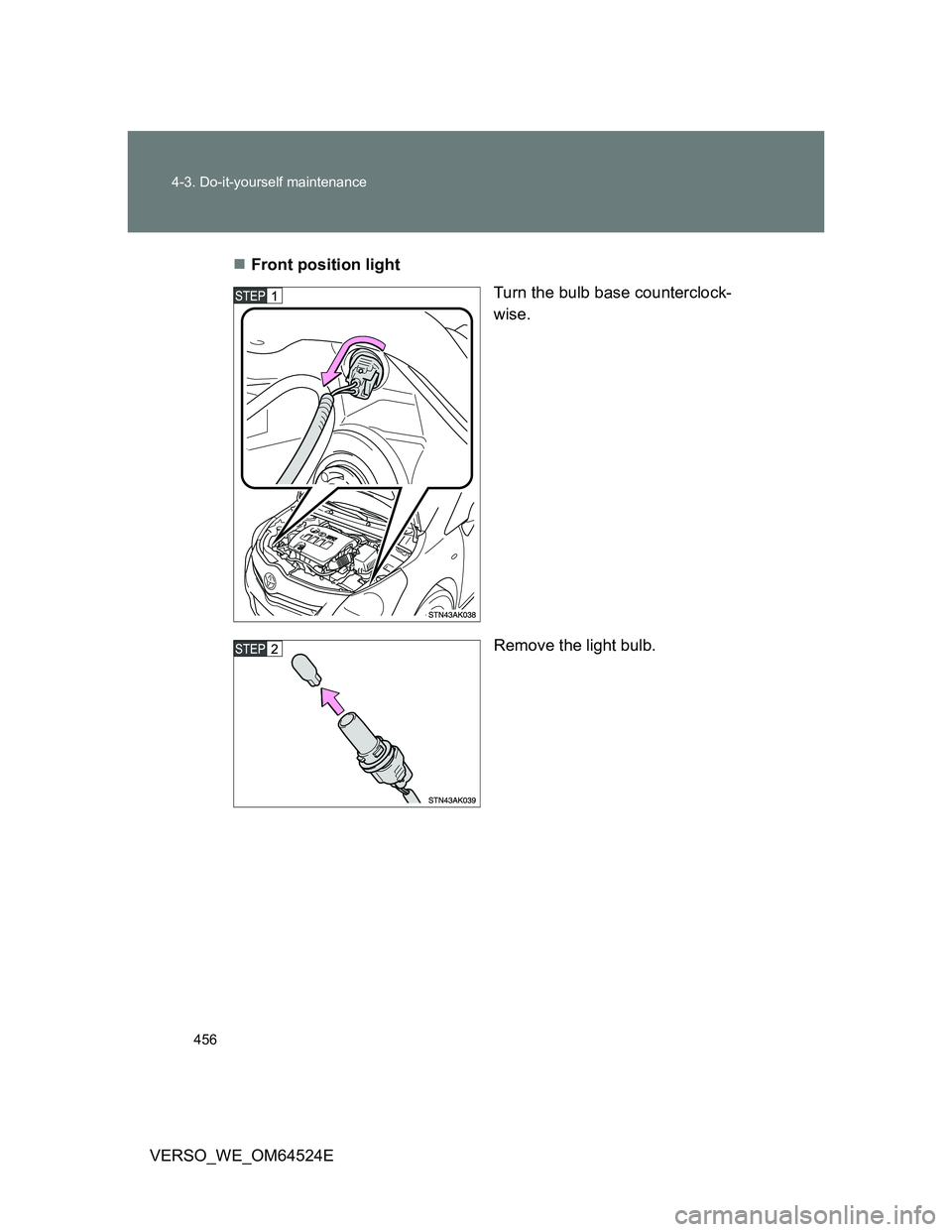

VERSO_WE_OM64524EFront position light
Turn the bulb base counterclock-
wise.
Remove the light bulb.

457 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EFront turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
