2012 TOYOTA PRIUS PLUG-IN Owners Manual

400
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To p r e v e n t d a m a g e t o t h e a s s i s t g r i p
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

401
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features

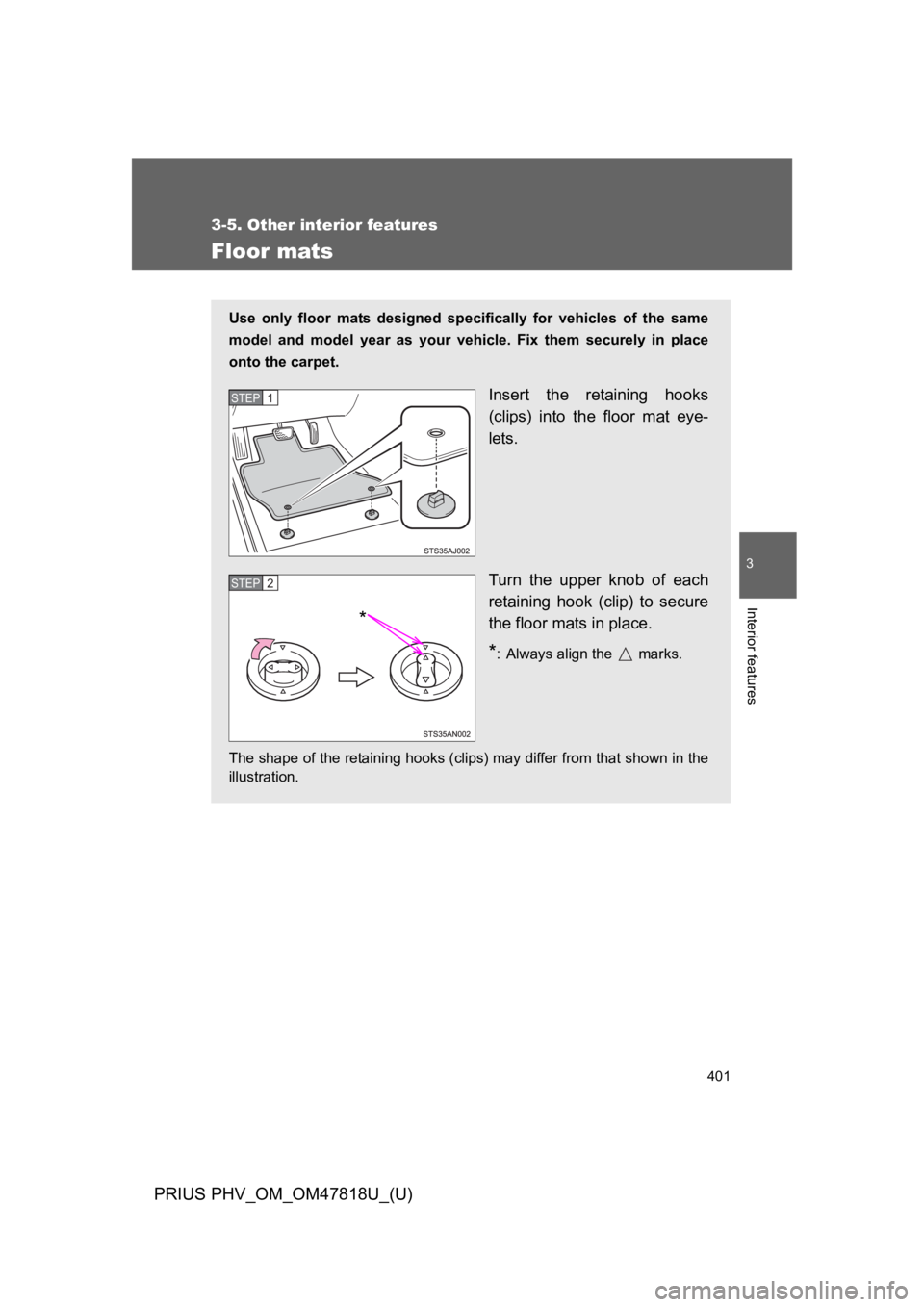

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP 1
STEP 2
*

402
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
●With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

403
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
Luggage compartment features
■Cargo hooks
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
■Auxiliary boxes
Center
Lift the center deck board.
Side
Lift the side deck board to
remove it.

404
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
Removing the luggage cover
Lift it up.
■Luggage cover
Pull out the luggage cover and
secure it to the hook brackets.

405
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
Stowing the luggage cover
Remove the side deck boards
and open the center deck board.
Flip the cover over from its
usage position so that the “TOP”
mark is facing downward, and
stow the cover.
Replace the side and the center deck boards.
STEP 1
STEP 2
“TOP” mark
STEP 3

406
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■Caution while driving
Keep the lid of each storage spaces closed while driving. In the event of sud-
den braking or sudden swerving, an accident may occur due to an occupant
being struck by an open auxiliary box or the items stored inside.
■Caution for the luggage cover
●Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
●Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, the view from the rear window may be
obstructed, which could cause an accident.
●Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.

407
3-5. Other interior features
PRIUS PHV_OM_OM47818U_(U)
3
Interior features
Garage door opener∗
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator light
∗: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems, secu-
rity systems, and other devices.
