2012 TOYOTA PRIUS PLUG-IN key

27
PRIUS PHV_OM_OM47818U_(U)
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

105
1
Before driving
PRIUS PHV_OM_OM47818U_(U)
1-3. Key information
Keys
Using the mechanical key
To t a k e o u t t h e m e c h a n i c a l k e y,
push the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (→P. 5 9 1 )
The following keys are provided with the vehicle.
Electronic keys
•Operating the smart key
system (→P. 1 0 8 , 1 2 6 )
•Operating the wireless
remote control function
(→P. 1 3 2 )
•Operating the Remote Air
Conditioning System
(→P. 3 7 1 )
Mechanical keys
Key number plate

106
1-3. Key information
PRIUS PHV_OM_OM47818U_(U)
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a mechanical key is lost, a new key can be made at your Toyota
dealer using the key number plate. (→P. 5 9 0 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not
press any buttons on the electronic key while inside the aircraft cabin. If you
are carrying an electronic key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the elec-
tronic key to emit radio waves that could interfere with the operation of the
aircraft.

107
1-3. Key information
1
Before driving
PRIUS PHV_OM_OM47818U_(U)
NOTICE
■To p r e v e n t k e y d a m a g e
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing
the key to not function properly.
■In case of a smart key system malfunction or other key-related prob-
lems
Ta k e y o u r v e h i c l e w i t h a l l t h e e l e c t r o n i c k e y s p r o v i d e d w i t h y o u r v e h i c l e t o
your Toyota dealer.
■When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining electronic keys that was
provided with your vehicle.

108
PRIUS PHV_OM_OM47818U_(U)

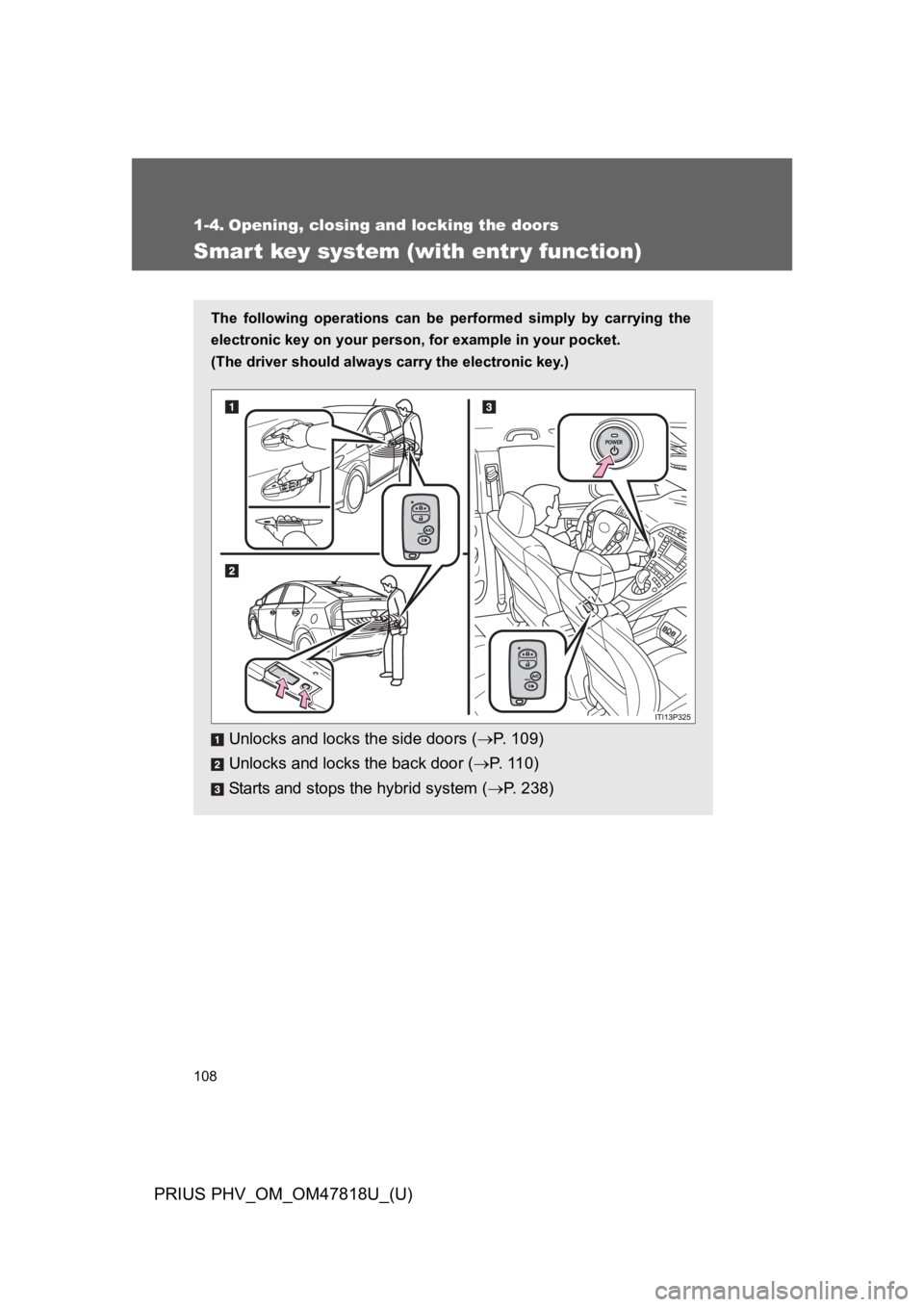

1-4. Opening, closing and locking the doors
Smart key system (with entr y function)
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the side doors (→P. 1 0 9 )
Unlocks and locks the back door (→P. 1 1 0 )
Sta rts an d stops the hybrid system (→P. 2 3 8 )

112
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47818U_(U)
■Effective range (areas within which the electronic key is
detected)
Ve h i c l e s w i t h e n t r y f u n c t i o n o f d r i v e r ’s d o o r
When locking or unlocking
the door
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
driver’s door handle.
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.
Ve h i c l e s w i t h e n t r y f u n c t i o n o f f r o n t a n d b a c k d o o r s
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handle and back door
opener switch. (Only the
doors detecting the key can
be operated.)
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.

114
1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47818U_(U)
■Alarms and warning lights
A combination of exterior and interior alarms as well as warning lights are
used to prevent theft of the vehicle and accidents resulting from erroneous
operation. Take appropriate measures in response to any warning message
shown on the multi-information display. (→P. 5 5 6 )
The following table describes circumstances and correction procedures
when only alarms are sounded.
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds once for
5 seconds*1
An attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger com-
partment
Retrieve the elec-
tronic key from the
passenger compart-
ment and lock the
doors again
An attempt was made to
exit the vehicle and lock
the doors without first turn-
ing the “POWER” switch
off
Turn the “POWER”
switch off and lock the
doors again
Exterior alarm
sounds once for
5 seconds
An attempt was made to
lock the vehicle while a
door is open
Close all of the doors
and lock the doors
again

115
1-4. Opening, closing and locking the doors
1
Before driving
PRIUS PHV_OM_OM47818U_(U)
AlarmSituationCorrection procedure
Interior alarm
pings continu-
ously*1
The “POWER” switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the “POWER” switch
was in ACCESSORY
mode)
Turn the “POWER”
switch off and close
the driver’s door
Interior alarm
sounds continu-
ously*1
When the “POWER”
switch is in ON mode or
ACCESSORY mode, an
attempt was made to open
the door and exit the vehi-
cle, and the shift position
was not in P
Shift the shift position
to P and turn the
“POWER” switch off
Interior and exte-
rior alarms sound
continuously*1
When the “POWER”
switch is in ON mode or
ACCESSORY mode, the
driver’s door was closed
after the key was carried
outside the vehicle, and
the shift position not in P
Shift the shift position
to P, turn the
“POWER” switch off
and close the driver’s
door again
