2012 TOYOTA GT86 Owners Manual

425 6-1. Specifications
6
Vehicle specifications
FT86_EE
Automatic transmission
*: The fluid capacity is provided as a reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Manual transmission
Fluid capacity* 7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid type TOYOTA Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “TOYOTA Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the automatic transmission of your
vehicle.
Gear oil capacity (Reference) 2.2 L (2.3 qt., 1.9 Imp. qt.)
Gear oil type and viscosityUse either of the following:
• “TOYOTA Genuine MG Gear Oil special
II”
• Other gear oil that meets API GL-3 and
SAE 75W-90 specifications
NOTICE
Manual transmission gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine MG
Gear Oil special II” may cause occurrences of rattling noises while idling and
poor fuel consumption.

426 6-1. Specifications
FT86_EE
Clutch
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf).
Steering
Tires and wheels
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeFMVSS No.116 fresh DOT 3 or DOT 4
brake fluid
Pedal clearance*155.0 mm (2.16 in.) min.
Pedal free play 0.2  2.0 mm (0.008  0.079 in.)
Parking brake lever travel*27  8 clicks
Fluid typeFMVSS No.116 fresh DOT 3 or DOT 4
brake fluid
Free play Less than 30 mm (1.2 in.)
Tire size 205/55R16 91V, 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size 16  6 1/2 J, 17  7 J
Wheel nut torque 120 N•m (12.2 kgf•m, 89 ft•lbf)

427 6-1. Specifications
6
Vehicle specifications
FT86_EE
Light bulbs
A: D4S discharge bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: HB3 halogen bulbs
E: Wedge base bulbs (clear) F: Double end bulbs
G: H8 halogen bulbs
Light BulbsWTy p e
ExteriorHeadlights
High beam (halogen bulbs)
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)60
35
55D
A
B
Front turn signal lights 21 C
Front position lights (vehicles with halogen
headlights)5E
Daytime running lights 13
Front fog lights (vehicles with discharge head-
lights)24
Front fog lights (vehicles with halogen head-
lights) (if equipped)35 G
Rear turn signal lights 21 C
Back-up lights 16 E
Rear fog lights 21 E
License plate lights 5 E
Side turn signal lights 5 C
InteriorVanity lights (if equipped) 2 F
Interior light 10 E
Door courtesy lights (if equipped) 5 C
Trunk light (if equipped) 5 C

428
6-1. Specifications
FT86_EE
Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
The engine is designed to operate at maximum performance using
unleaded gasoline with an octane rating of 98 or higher. If 98 RON
fuel is not readily available in your area, unleaded gasoline with an
octane rating of 95 RON may be used with no detriment to engine
durability or driveability. However, you may notice a slight decrease
in maximum engine performance and you may hear some knocking
(pinking) of an engine while using 95 RON fuel. Use of 95 RON fuel
will not affect your warranty coverage.

429 6-1. Specifications
6
Vehicle specifications
FT86_EE

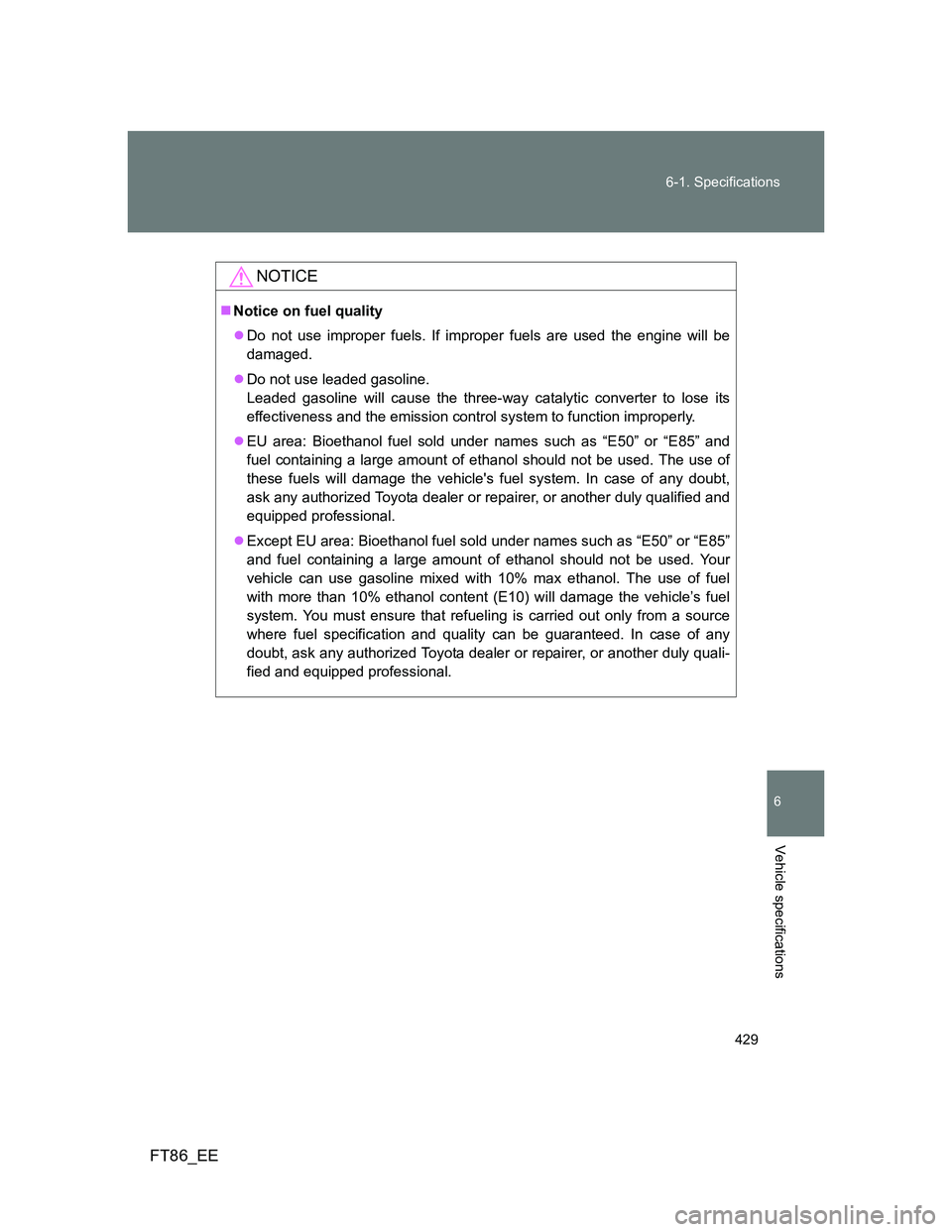

NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle's fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.

430
FT86_EE
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Smart entry
& start sys-
tem
(
P. 31)Smart entry & start sys-
temOn Off
Operation signal
(Emergency flashers) On Off
Number of permissible
times of continuous
smart lockTwice Unlimited
Wireless
remote con-
trol
(
P. 47)Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Door lock buzzer
(vehicles with a smart
entry & start system)On Off
Trunk unlocking func-
tionOn Off
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

431 6-2. Customization
6
Vehicle specifications
FT86_EE
Wireless
remote con-
trol
(
P. 47)Trunk unlocking opera-
tionPush and hold
(short)Push and hold
(long)
One short push
Two short
pushes
Automatic
light control
system
(P. 205)Light sensor sensitivity ±0% -40% to +40%
Lights
(
P. 205)Time that the low beam
headlights are on when
the vehicle is parked30 seconds60 seconds
90 seconds
120 seconds
Rear window
defogger
(
P. 252)Time elapsed before
the rear window defog-
ger turn off (vehicles
with an automatic air
conditioning system)15 seconds Continue
Illumination
(
P. 255)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedOn Off
Operation after the
engine switch is turned
offOn Off
Interior light illumination
upon approach (vehi-
cles with a smart entry
& start system)On Off
Interior light illumination On Off
ItemFunctionDefault settingCustomized
setting

432 6-2. Customization
FT86_EE
