2012 TOYOTA GT86 Owners Manual

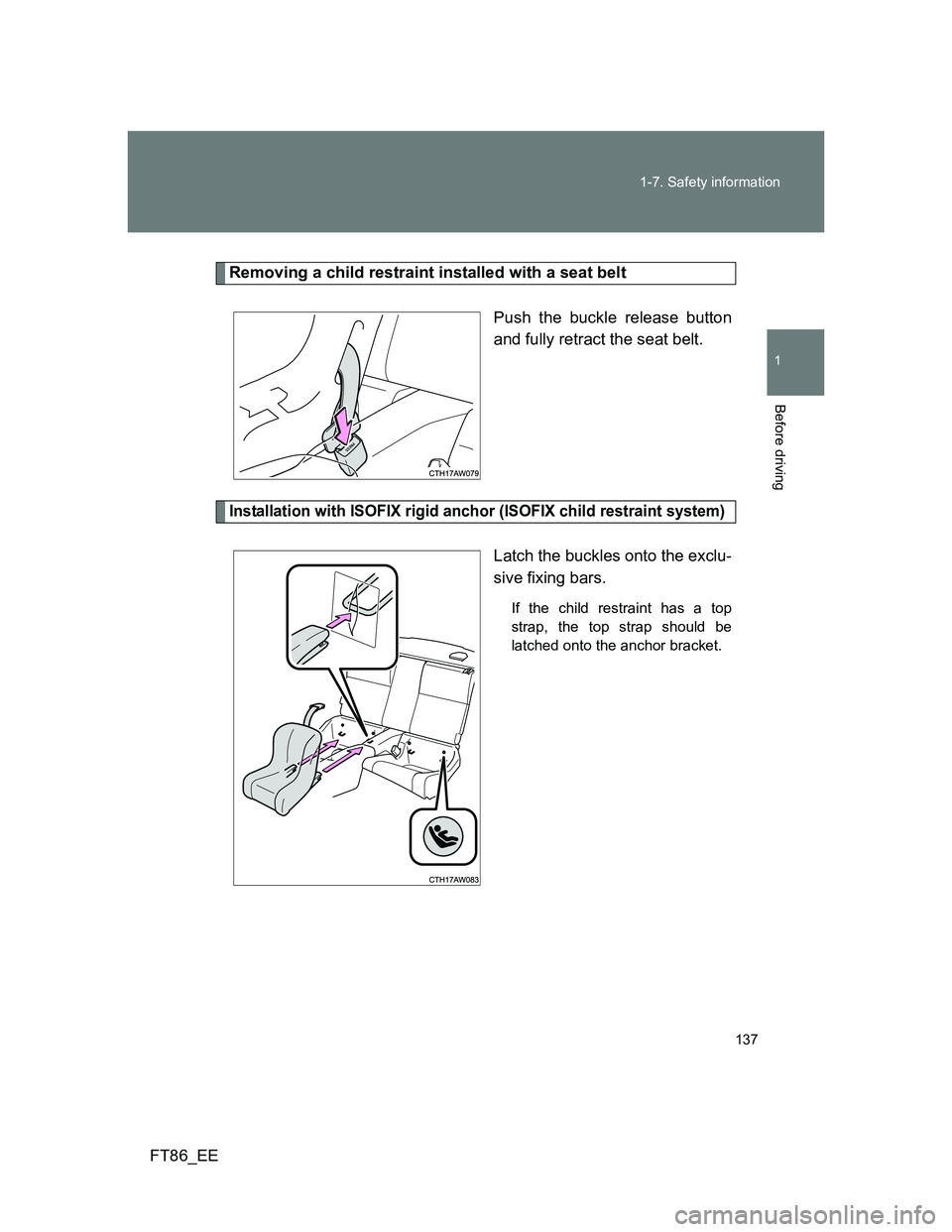

137 1-7. Safety information
1
Before driving
FT86_EE
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Latch the buckles onto the exclu-
sive fixing bars.
If the child restraint has a top
strap, the top strap should be
latched onto the anchor bracket.

138 1-7. Safety information
FT86_EE
Child restraint systems with a top strap
Secure the child restraint using a seat belt or ISOFIX rigid
anchor.
Remove the anchor bracket
cover.
Store the removed cover in a safe
place.
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
STEP 1
STEP 2
STEP 3

139 1-7. Safety information
1
Before driving
FT86_EE
When installing a child restraint system (without a lock-off) using a
seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)
When installing a child restraint system with ISOFIX rigid anchors and
a top strap
Depending on the child restraint system's size and shape, if the child
restraint system is installed to the fixing bars first, it may not be possible to
attach the top strap to the anchor bracket.
In that case, first temporarily attach the top strap to the anchor bracket,
install the child restraint system using the ISOFIX rigid anchors and then
tighten the top strap.

140 1-7. Safety information
FT86_EE
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be injured or even killed in the event of sudden braking,
sudden swerving or an accident.
If the driver's seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

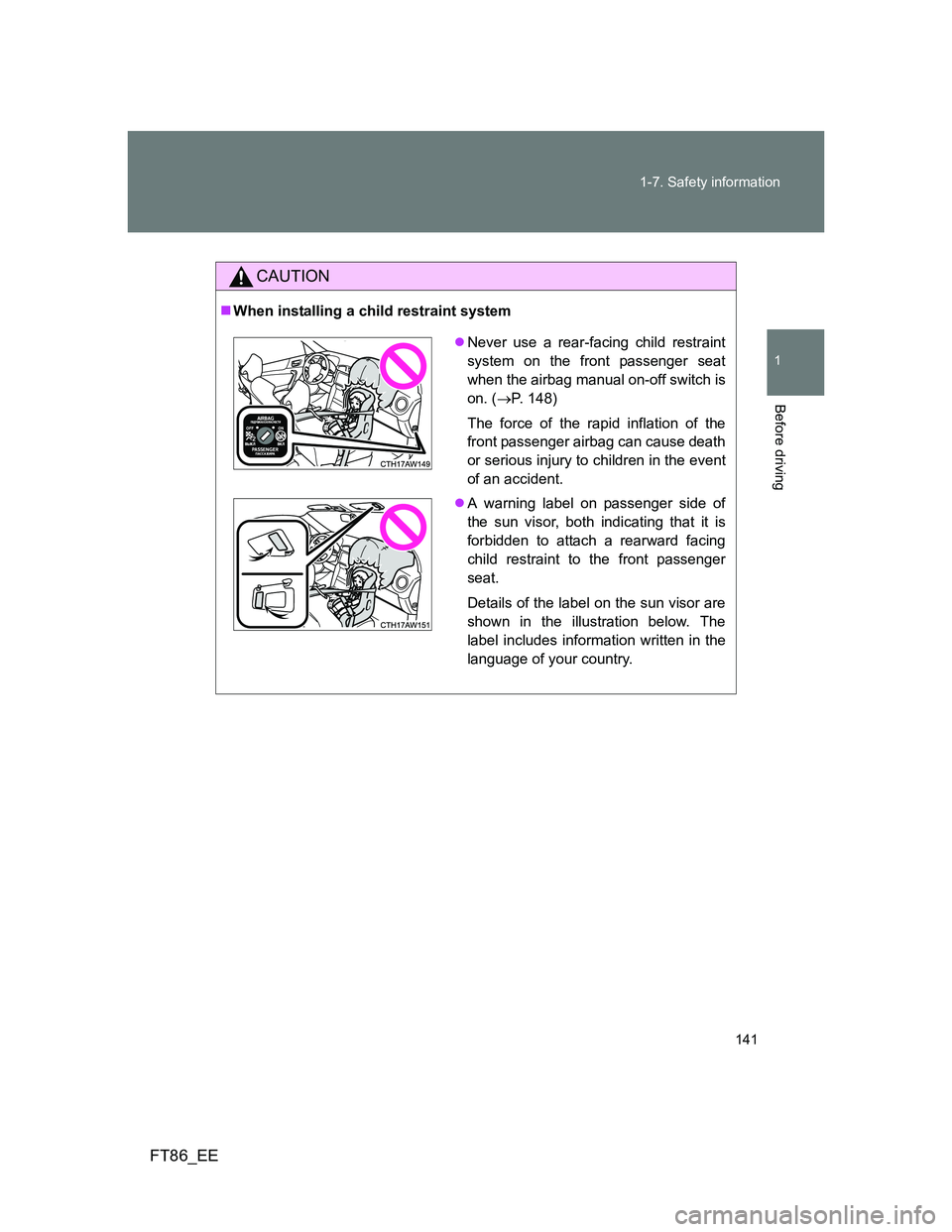

141 1-7. Safety information
1
Before driving
FT86_EE
CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 148)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
A warning label on passenger side of
the sun visor, both indicating that it is
forbidden to attach a rearward facing
child restraint to the front passenger
seat.
Details of the label on the sun visor are
shown in the illustration below. The
label includes information written in the
language of your country.

142 1-7. Safety information
FT86_EE
CAUTION
When installing a child restraint system
Ty p e A

143 1-7. Safety information
1
Before driving
FT86_EE
CAUTION
When installing a child restraint system
Ty p e B

144 1-7. Safety information
FT86_EE
CAUTION
When installing a child restraint system
Ty p e C
