2012 TOYOTA GT86 Owners Manual

145 1-7. Safety information
1
Before driving
FT86_EE
CAUTION
When installing a child restraint system
Ty p e D

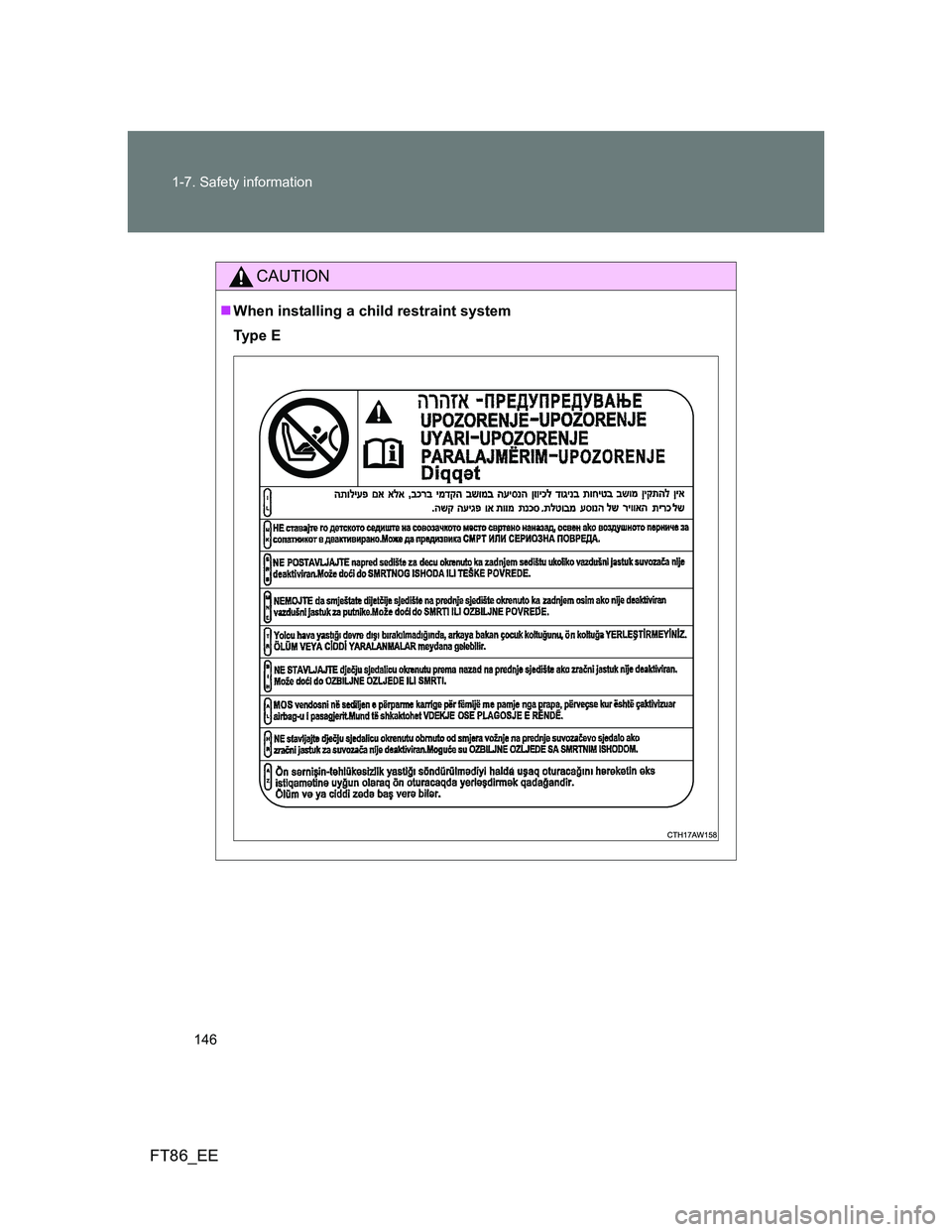

146 1-7. Safety information
FT86_EE
CAUTION
When installing a child restraint system
Ty p e E

147 1-7. Safety information
1
Before driving
FT86_EE
CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child's shoulder. The belt should be
kept away from the child's neck, but not so that it could fall off the child's
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, choking or other serious injuries may result
in death.
If this occurs and the buckle cannot be unfastened, scissors should be
used to cut the belt.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
When adjusting the front passenger seat position after installing a child
restraint system, do so slowly.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of sudden braking, sudden swerve or an accident.

148
1-7. Safety information
FT86_EE
Airbag manual on-off system
This system deactivates the front passenger airbag and front pas-
senger side airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Airbag manual on-off indica-
tor
Vehicles without a smart
entry & start system
This indicator light turns on
when the airbag system is on
(only when the engine switch is
in the “ON” position).
Vehicles with a smart entry &
start system
This indicator light turns on
when the airbag system is on
(only when the “ENGINE
START STOP” switch is in
IGNITION ON mode).
Airbag manual on-off switch

149 1-7. Safety information
1
Before driving
FT86_EE
Deactivating the front seat passenger airbag and front passenger
side airbag
Vehicles without a smart entry
& start system
Insert the key into the cylinder
and turn to the “OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with a smart entry &
start system
Insert the mechanical key into
the cylinder and rotate to the
“OFF” position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
Airbag manual on-off indicator information
If any of the following problems occur, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator light does not change when the airbag manual on-off switch
is switched to “ON” or “OFF”.

150 1-7. Safety information
FT86_EE
CAUTION
When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

2When driving
151
FT86_EE
2-1. Driving procedures
Driving the vehicle ............ 152
Engine (ignition) switch
(vehicles with a smart
entry & start system)....... 165
Engine (ignition) switch
(vehicles without a smart
entry & start system)....... 174
Automatic transmission .... 177
Manual Transmission ....... 184
Turn signal lever ............... 187
Parking brake ................... 188
Horn .................................. 189
2-2. Instrument cluster
Gauges and meters .......... 190
Indicators and warning
lights ............................... 195
Multi-information
display ............................ 200
2-3. Operating the lights and
windshield wipers
Headlight switch ............... 205
Fog light switch ................. 212
Windshield wipers and
washer ............................ 2142-4. Using other driving
systems
Cruise control.................... 217
Driving assist systems ...... 222
2-5. Driving information
Cargo and luggage ........... 227
Winter driving tips ............. 229
Trailer towing .................... 233

152
FT86_EE
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
Starting the engine
P. 165, 174
Driving
Vehicles with an automatic transmission
With the brake pedal depressed, shift the shift lever to D.
(P. 177)
Release the parking brake. (P. 188)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 184)
Release the parking brake. (P. 188)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Stopping
Vehicles with an automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P or N. (P. 177)
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake
pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (
P. 184)
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 1
STEP 2
