2012 TOYOTA GT86 Owners Manual

233
2-5. Driving information
2
When driving
FT86_EE

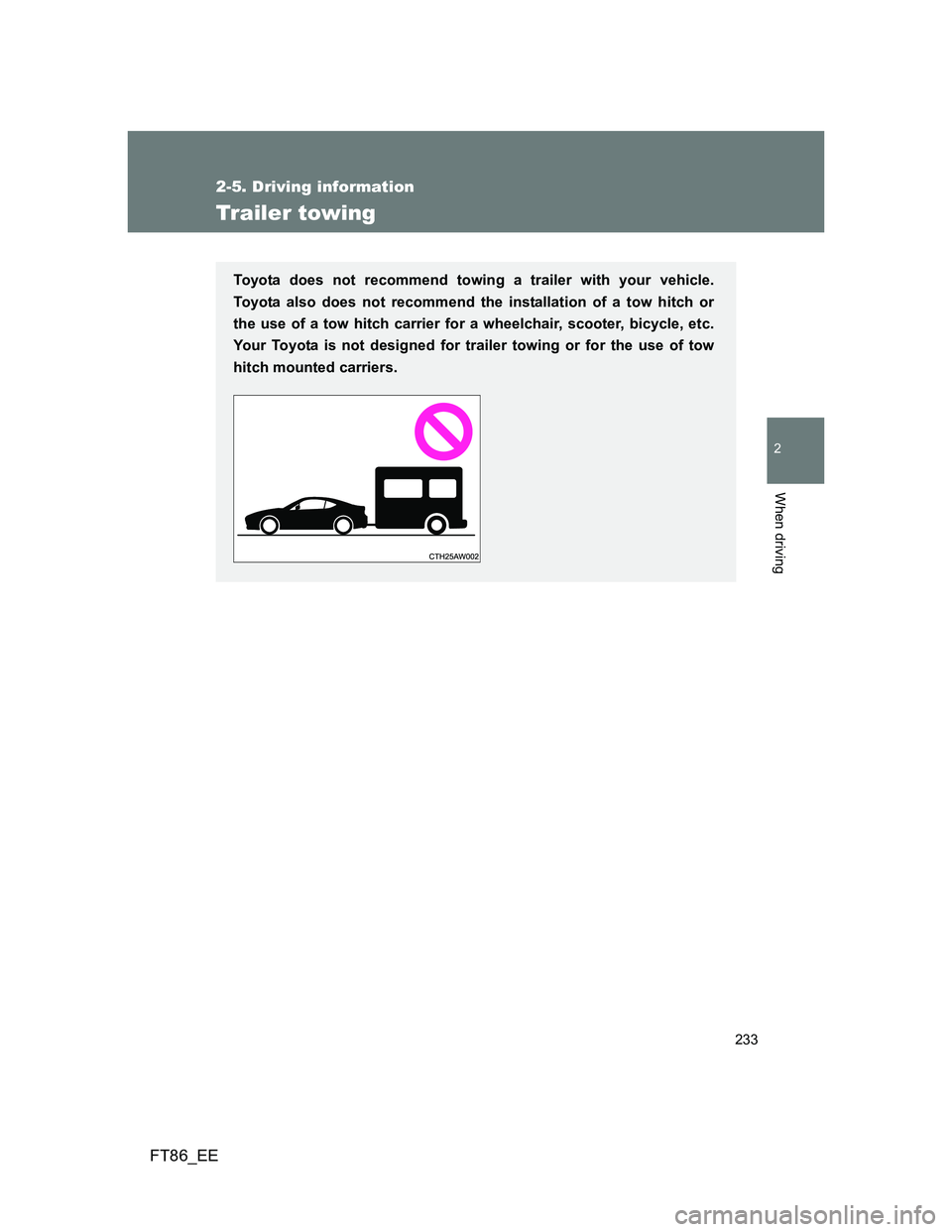

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.

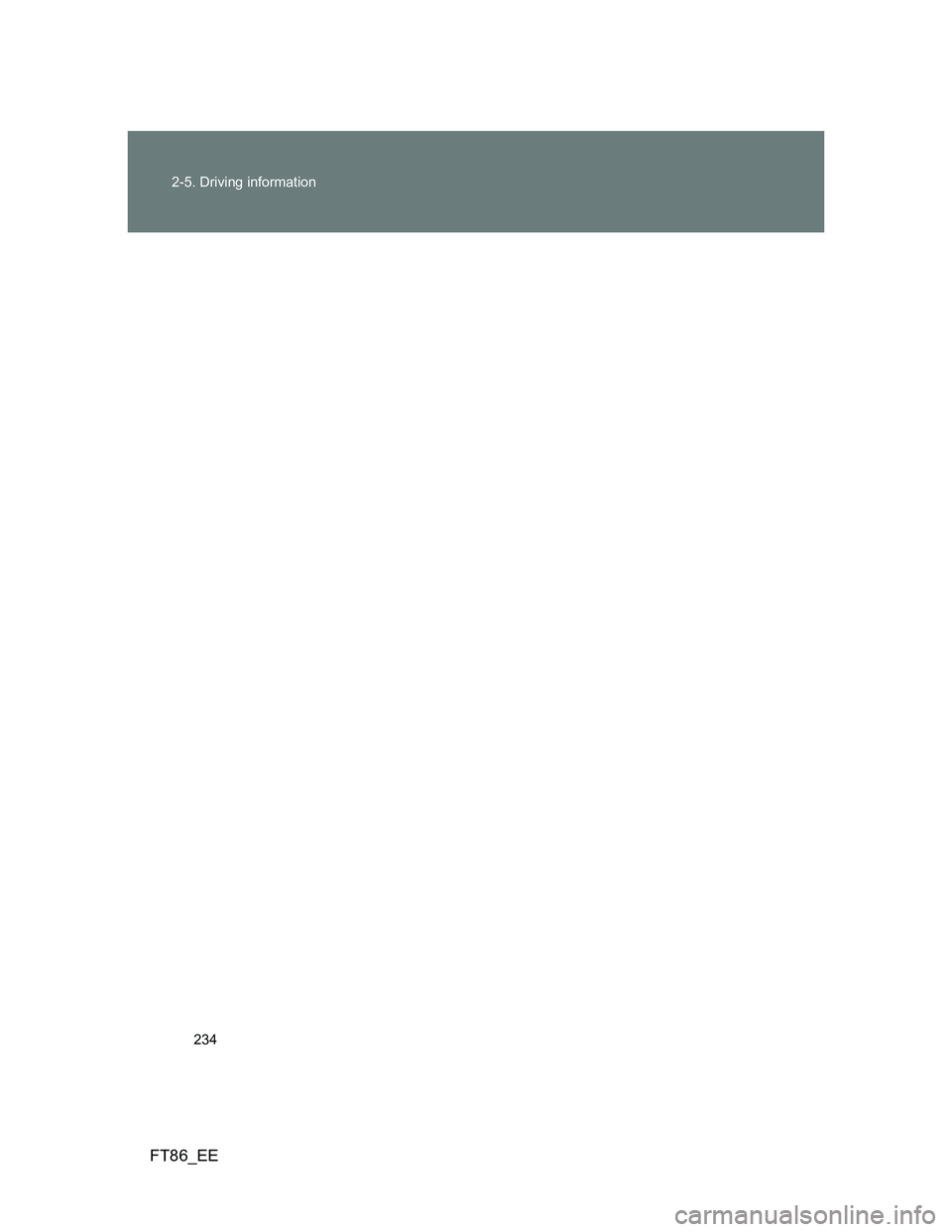

234 2-5. Driving information
FT86_EE

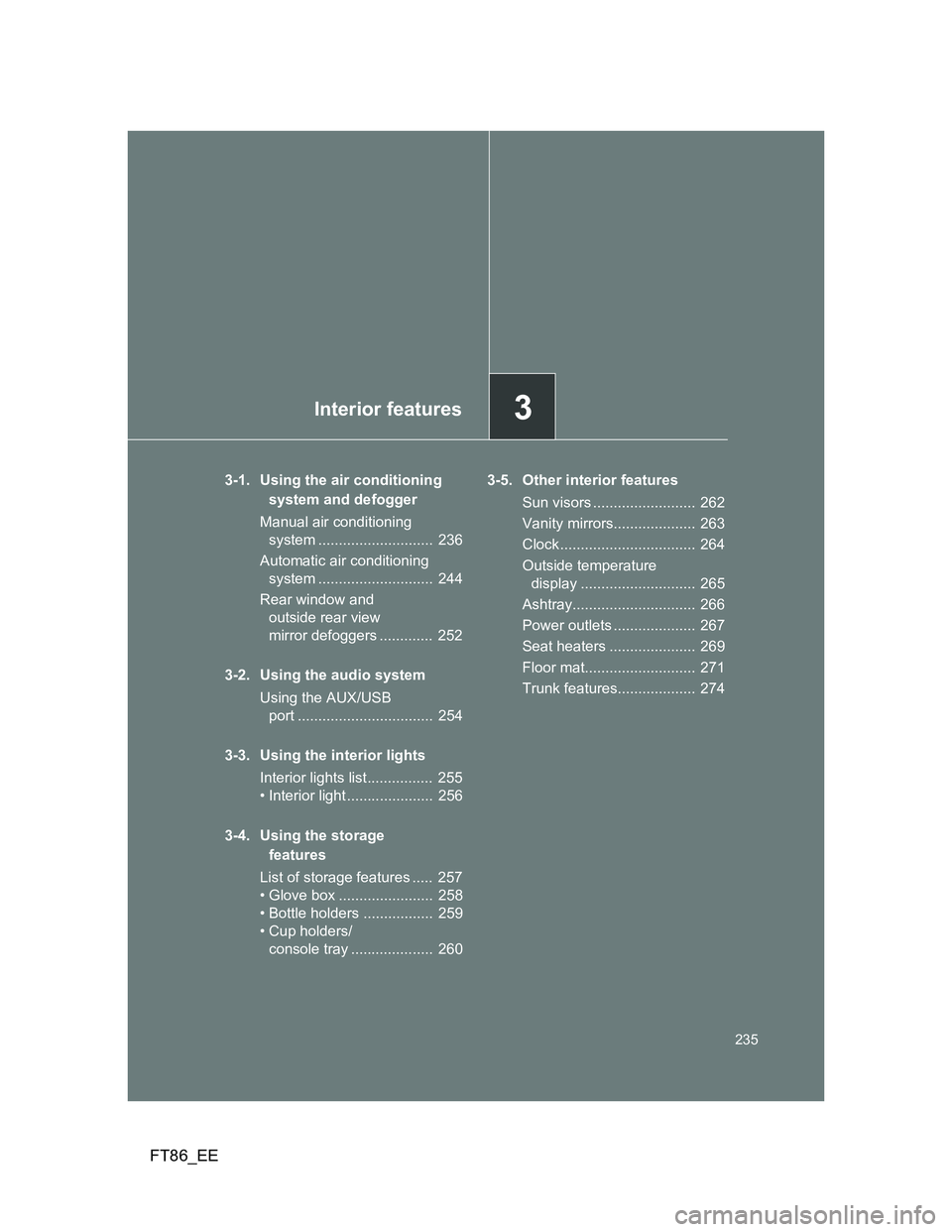

3Interior features
235
FT86_EE
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 236
Automatic air conditioning
system ............................ 244
Rear window and
outside rear view
mirror defoggers ............. 252
3-2. Using the audio system
Using the AUX/USB
port ................................. 254
3-3. Using the interior lights
Interior lights list................ 255
• Interior light ..................... 256
3-4. Using the storage
features
List of storage features ..... 257
• Glove box ....................... 258
• Bottle holders ................. 259
• Cup holders/
console tray .................... 2603-5. Other interior features
Sun visors ......................... 262
Vanity mirrors.................... 263
Clock ................................. 264
Outside temperature
display ............................ 265
Ashtray.............................. 266
Power outlets .................... 267
Seat heaters ..................... 269
Floor mat........................... 271
Trunk features................... 274

236
FT86_EE
3-1. Using the air conditioning system and defogger
Manual air conditioning system
Adjusting the settings
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
Vehicles without the button: Turn the temperature con-
trol dial clockwise to increase the temperature.
: If equipped
Fan speed control dial Air outlet selection dial
Air conditioning on/off button
(if equipped)Temperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2

237 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EEVehicles with the button: To adjust the temperature
setting, turn the temperature control dial clockwise (warm) or
counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
STEP 2
STEP 3

238 3-1. Using the air conditioning system and defogger
FT86_EE

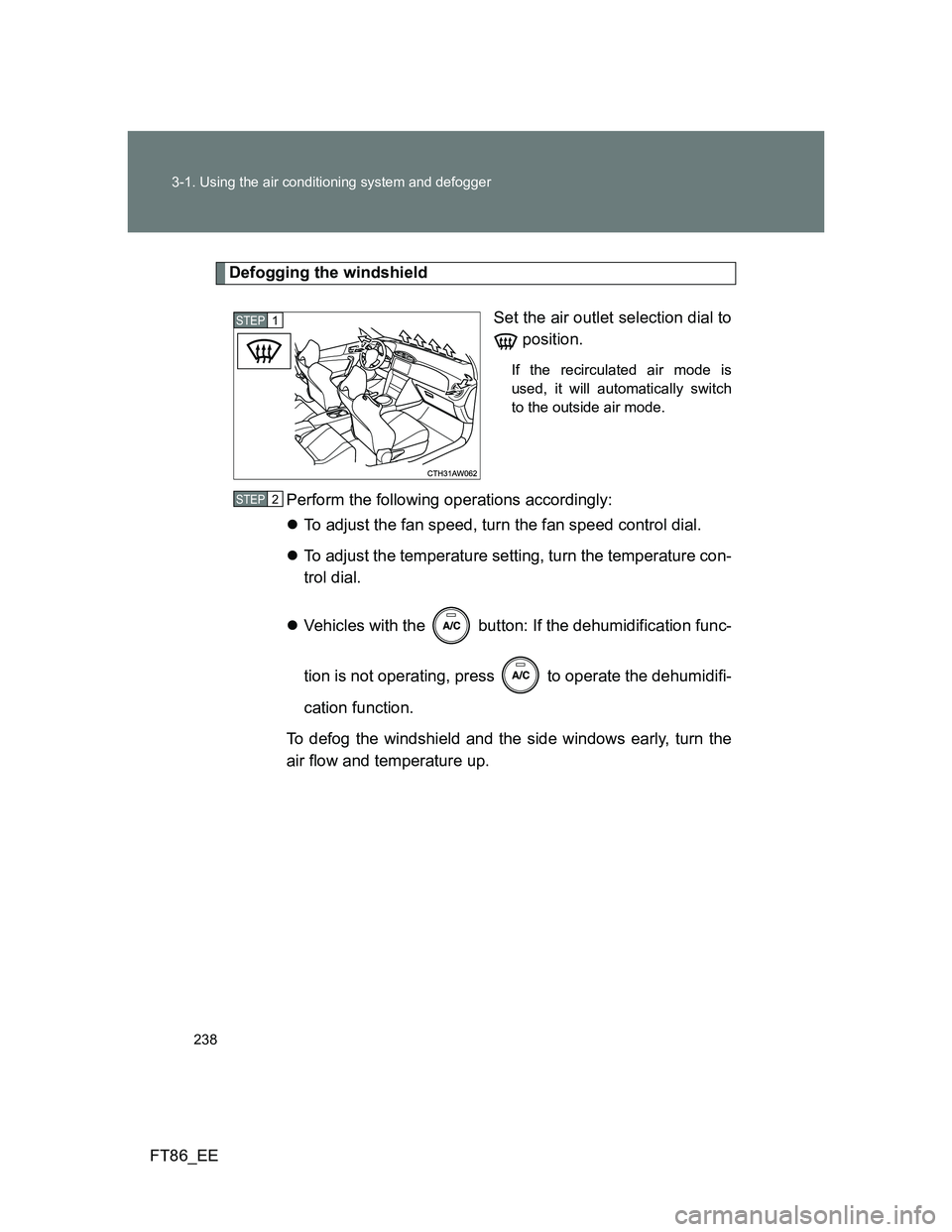

Defogging the windshield
Set the air outlet selection dial to
position.
If the recirculated air mode is
used, it will automatically switch
to the outside air mode.
Perform the following operations accordingly:
To adjust the fan speed, turn the fan speed control dial.
To adjust the temperature setting, turn the temperature con-
trol dial.
Vehicles with the button: If the dehumidification func-
tion is not operating, press to operate the dehumidifi-
cation function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.
STEP 1
STEP 2

239 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EEAir outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.

240 3-1. Using the air conditioning system and defogger
FT86_EE
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (recycles air
inside the vehicle) (indicator on) each time the button is pressed.
Adjusting the position of the air outlets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets
Direct air flow to the left or right,
up or down.
When defrosting the side win-
dows, face the right and left side
outlets toward them.
