3

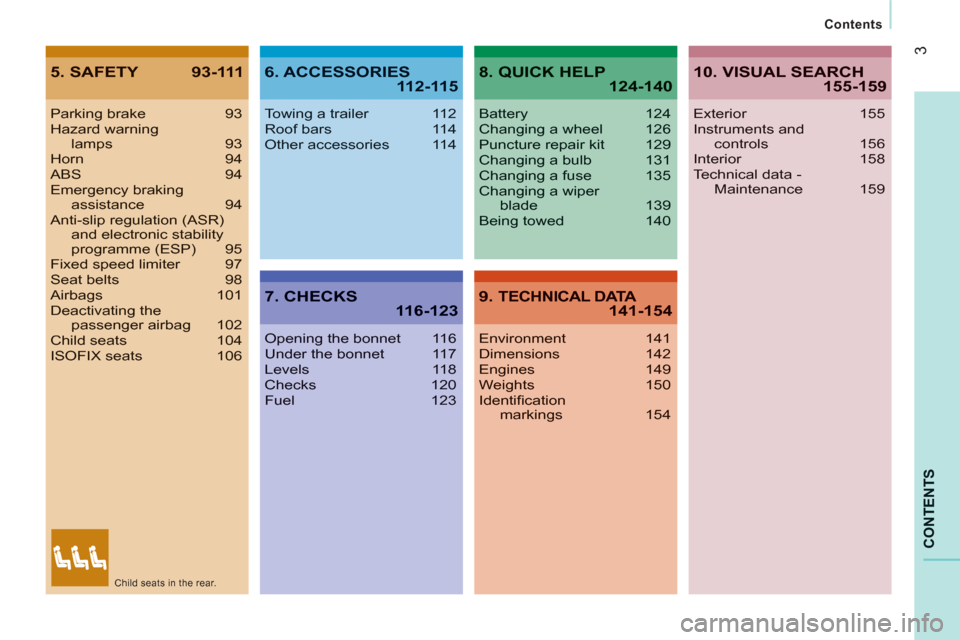

CONTENTS
Contents
5. SAFETY 93-1116. ACCESSORIES112-115
7. CHECKS 116-123
8. QUICK HELP124-140
9. TECHNICAL DATA 141-154
Parking brake 93Hazard warninglamps 93Horn 94ABS 94Emergency brakingassistance 94Anti-slip regulation (ASR) and electronic stabilityprogramme (ESP) 95Fixed speed limiter 97Seat belts 98Airbags 101Deactivating thepassenger airbag 102Child seats 104ISOFIX seats 106
Towing a trailer 112Roof bars 114Other accessories 114
Opening the bonnet 116Under the bonnet 117Levels 118Checks 120Fuel 123
Battery 124Changing a wheel 126Puncture repair kit 129Changing a bulb 131Changing a fuse 135Changing a wiperblade 139Being towed 140
Environment 141Dimensions 142Engines 149Weights 150Identifi cationmarkings 154
10. VISUAL SEARCH 155-159
Exterior 155Instruments andcontrols 156Interior 158Technical data - Maintenance 159
Child seats in the rear.

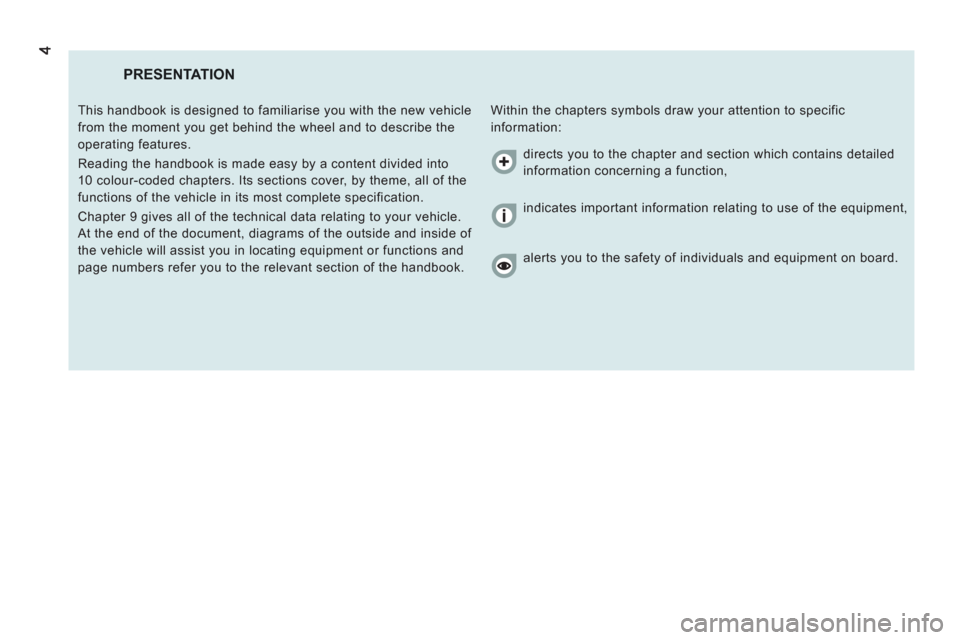

PRESENTATION
Within the chapters symbols draw your attention to specific
information: This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to describe the
operating features.
Reading the handbook is made easy by a content divided into
10 colour-coded chapters. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.
Chapter 9 gives all of the technical data relating to your vehicle.
At the end of the document, diagrams of the outside and inside of
the vehicle will assist you in locating equipment or functions and
page numbers refer you to the relevant section of the handbook. directs you to the chapter and section which contains detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipment on board.
159

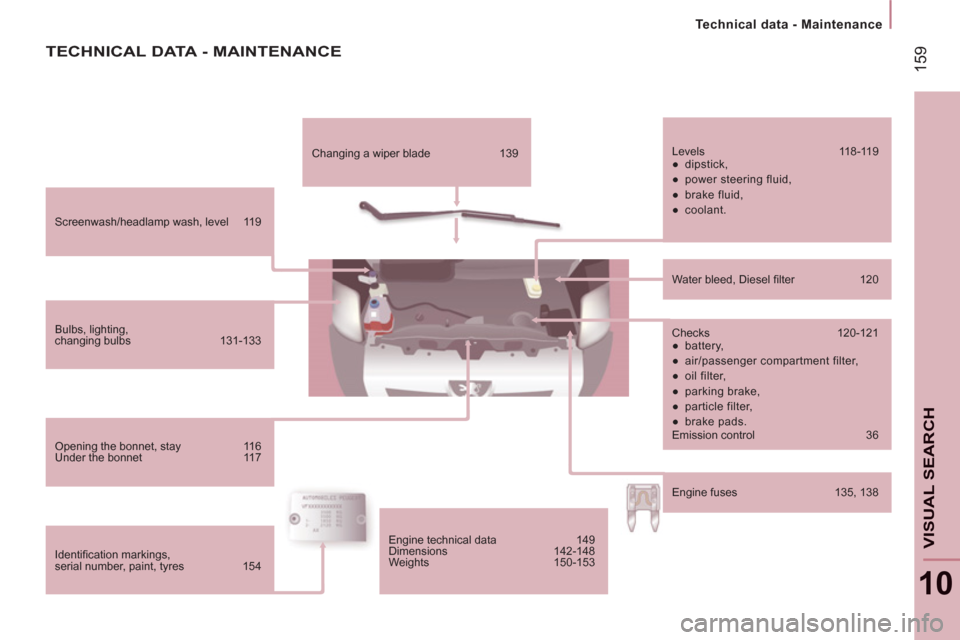

Technical data - Maintenance
10
VISUAL SEARCH
Screenwash/headlamp wash, level 119
Bulbs, lighting,
changing bulbs 131-133
Opening the bonnet, stay 116
Under the bonnet 117
Identifi cation markings,
serial number, paint, tyres 154 Changing a wiper blade 139 Levels 118-119
●
dipstick,
●
power steering fluid,
●
brake fluid,
●
coolant.
Water bleed, Diesel fi lter 120
Checks 120-121
●
battery,
●
air/passenger compartment filter,
●
oil filter,
●
parking brake,
●
particle filter,
●
brake pads.
Emission control 36
Engine fuses 135, 138
TECHNICAL DATA - MAINTENANCE
Engine technical data 149
Dimensions 142-148
Weights 150-153
