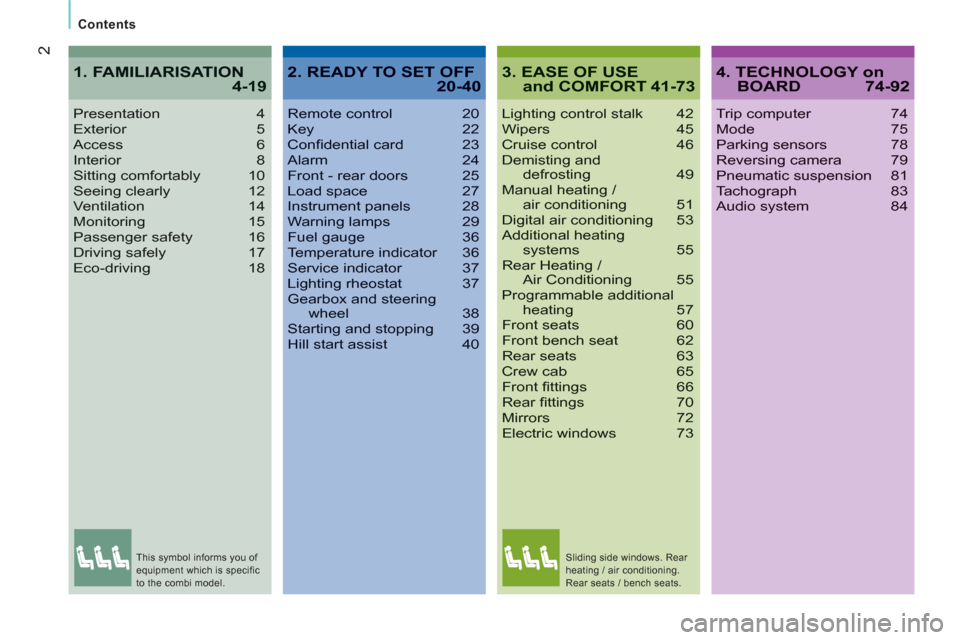

Contents
3. EASE OF USEand COMFORT 41-73
Lighting control stalk 42Wipers 45Cruise control 46Demisting anddefrosting 49Manual heating / air conditioning 51Digital air conditioning 53Additional heatingsystems 55Rear Heating /Air Conditioning 55Programmable additionalheating 57Front seats 60Front bench seat 62Rear seats 63Crew cab 65Front fi ttings 66Rear fi ttings 70Mirrors 72Electric windows 73
Presentation4Exterior 5Access6Interior 8Sitting comfortably 10Seeing clearly 12Ventilation 14Monitoring 15Passenger safety 16Driving safely 17Eco-driving 18
1. FAMILIARISATION4-194. TECHNOLOGY onBOARD 74-92
Trip computer 74Mode 75Parking sensors 78Reversing camera 79Pneumatic suspension 81Tachograph 83Audio system 84
2. READY TO SET OFF20-40
Remote control 20Key 22Confi dential card 23Alarm 24Front - rear doors 25Load space 27Instrument panels 28Warning lamps 29Fuel gauge 36Temperature indicator 36Service indicator 37Lighting rheostat 37Gearbox and steeringwheel 38Starting and stopping 39Hill start assist 40
This symbol informs you of
equipment which is specific
to the combi model. Sliding side windows. Rear
heating / air conditioning.
Rear seats / bench seats.
2
READY TO SET OFF

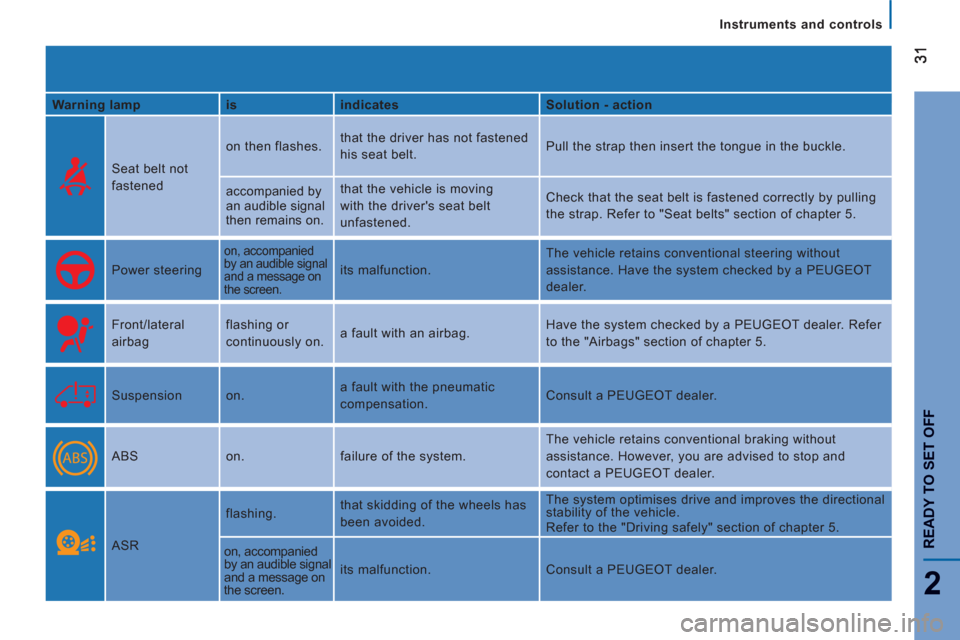

Instruments and controls
Warning lamp
is
indicates
Solution - action
Seat belt not
fastened on then flashes. that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckle.
accompanied by
an audible signal
then remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly by pulling
the strap. Refer to "Seat belts" section of chapter 5.
Power steering
on, accompanied
by an audible signal
and a message on
the screen.
its malfunction. The vehicle retains conventional steering without
assistance. Have the system checked by a PEUGEOT
dealer.
Front/lateral
airbag flashing or
continuously on. a fault with an airbag. Have the system checked by a PEUGEOT dealer. Refer
to the "Airbags" section of chapter 5.
Suspension on. a fault with the pneumatic
compensation. Consult a PEUGEOT dealer.
ABS on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer.
ASR flashing. that skidding of the wheels has
been avoided. The system optimises drive and improves the directional
stability of the vehicle.
Refer to the "Driving safely" section of chapter 5.
on, accompanied
by an audible signal
and a message on
the screen. its malfunction. Consult a PEUGEOT dealer.
155

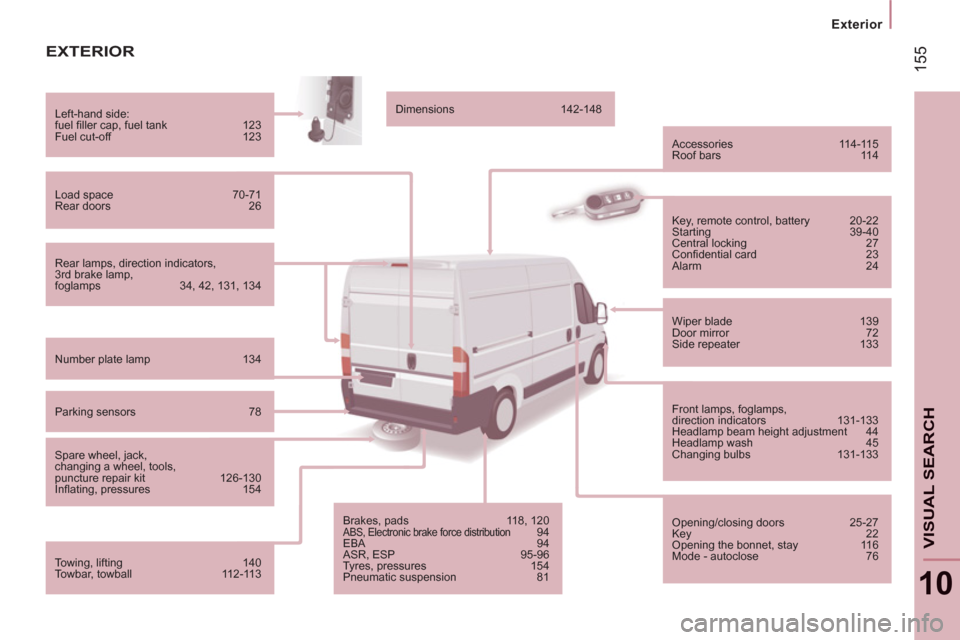

Exterior
10
VISUAL SEARC
H
EXTERIOR
Rear lamps, direction indicators,
3 rd brake lamp,
foglamps 34, 42, 131, 134 Left-hand side:
fuel fi ller cap, fuel tank 123
Fuel cut-off 123
Load space 70-71
Rear doors 26
Number plate lamp 134
Parking sensors 78
Spare wheel, jack,
changing a wheel, tools,
puncture repair kit 126-130
Infl ating, pressures 154
Towing, lifting 140
Towbar, towball 112-113 Dimensions 142-148
Accessories 114-115
Roof bars 114
Brakes, pads 118, 120
ABS, Electronic brake force distribution 94
EBA 94
ASR, ESP 95-96
Tyres, pressures 154
Pneumatic suspension 81 Key, remote control, battery 20-22
Starting 39-40
Central locking 27
Confi dential card 23
Alarm 24
Wiper blade 139
Door mirror 72
Side repeater 133
Front lamps, foglamps,
direction indicators 131-133
Headlamp beam height adjustment 44
Headlamp wash 45
Changing bulbs 131-133
Opening/closing doors 25-27
Key 22
Opening the bonnet, stay 116
Mode - autoclose 76
156

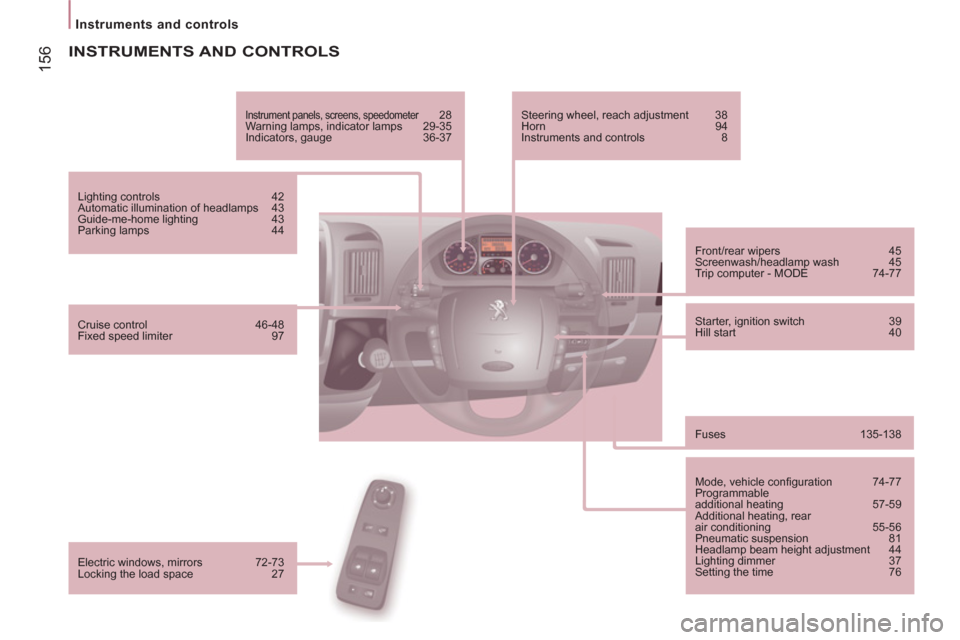

Instruments and controls
INSTRUMENTS AND CONTROLS
Instrument panels, screens, speedometer 28
Warning lamps, indicator lamps 29-35
Indicators, gauge 36-37
Lighting controls 42
Automatic illumination of headlamps 43
Guide-me-home lighting 43
Parking lamps 44
Fuses 135-138
Mode, vehicle confi guration 74-77
Programmable
additional heating 57-59
Additional heating, rear
air conditioning 55-56
Pneumatic suspension 81
Headlamp beam height adjustment 44
Lighting dimmer 37
Setting the time 76 Front/rear wipers 45
Screenwash/headlamp wash 45
Trip computer - MODE 74-77
Starter, ignition switch 39
Hill start 40 Cruise control 46-48
Fixed speed limiter 97 Steering wheel, reach adjustment 38
Horn 94
Instruments and controls 8
Electric windows, mirrors 72-73
Locking the load space 27
