2012 Peugeot Boxer dimensions

3
CONTENTS

Contents
5. SAFETY 93-1116. ACCESSORIES112-115
7. CHECKS 116-123
8. QUICK HELP124-140
9. TECHNICAL DATA 141-154
Parking brake 93Hazard warninglamps 93Horn 94ABS 94Emergency brakingassistance 94Anti-slip regulation (ASR) and electronic stabilityprogramme (ESP) 95Fixed speed limiter 97Seat belts 98Airbags 101Deactivating thepassenger airbag 102Child seats 104ISOFIX seats 106
Towing a trailer 112Roof bars 114Other accessories 114
Opening the bonnet 116Under the bonnet 117Levels 118Checks 120Fuel 123
Battery 124Changing a wheel 126Puncture repair kit 129Changing a bulb 131Changing a fuse 135Changing a wiperblade 139Being towed 140
Environment 141Dimensions 142Engines 149Weights 150Identifi cationmarkings 154
10. VISUAL SEARCH 155-159
Exterior 155Instruments andcontrols 156Interior 158Technical data - Maintenance 159

Child seats in the rear.

11 4


Equipment

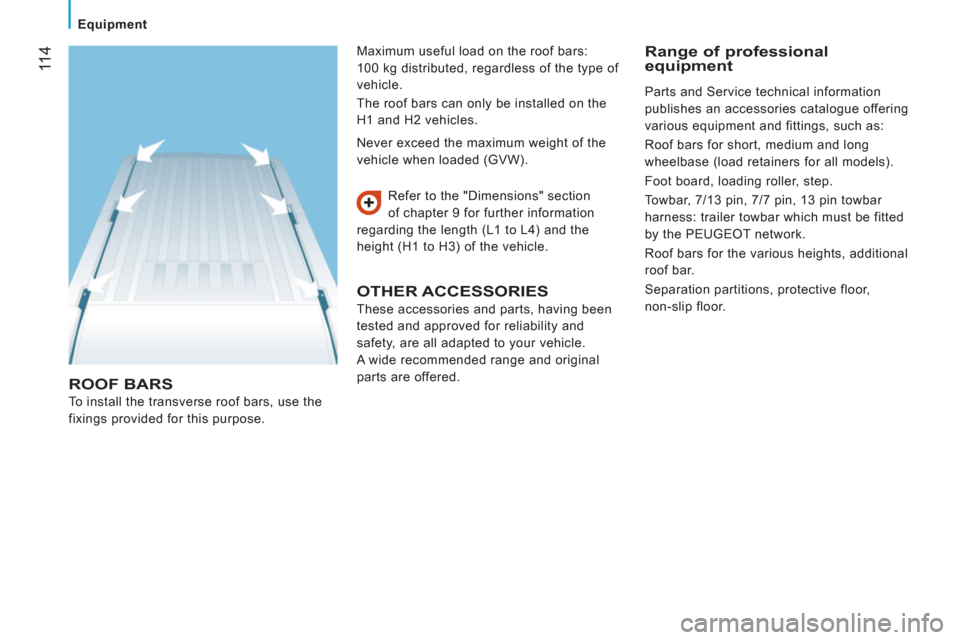

ROOF BARS

To install the transverse roof bars, use the
fixings provided for this purpose. Refer to the "Dimensions" section
of chapter 9 for further information
regarding the length (L1 to L4) and the
height (H1 to H3) of the vehicle. Never exceed the maximum weight of the
vehicle when loaded (GVW).
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle.
A wide recommended range and original
parts are offered.

Range of professional equipment
Maximum useful load on the roof bars:
100 kg distributed, regardless of the type of
vehicle.
The roof bars can only be installed on the
H1 and H2 vehicles. Parts and Service technical information
publishes an accessories catalogue offering
various equipment and fittings, such as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Foot board, loading roller, step.
Towbar, 7/13 pin, 7/7 pin, 13 pin towbar
harness: trailer towbar which must be fitted
by the PEUGEOT network.
Roof bars for the various heights, additional
roof bar.
Separation partitions, protective floor,
non-slip floor.

142


Dimensions

14
3
9
TECHNI
CAL DAT
A
Dimensions

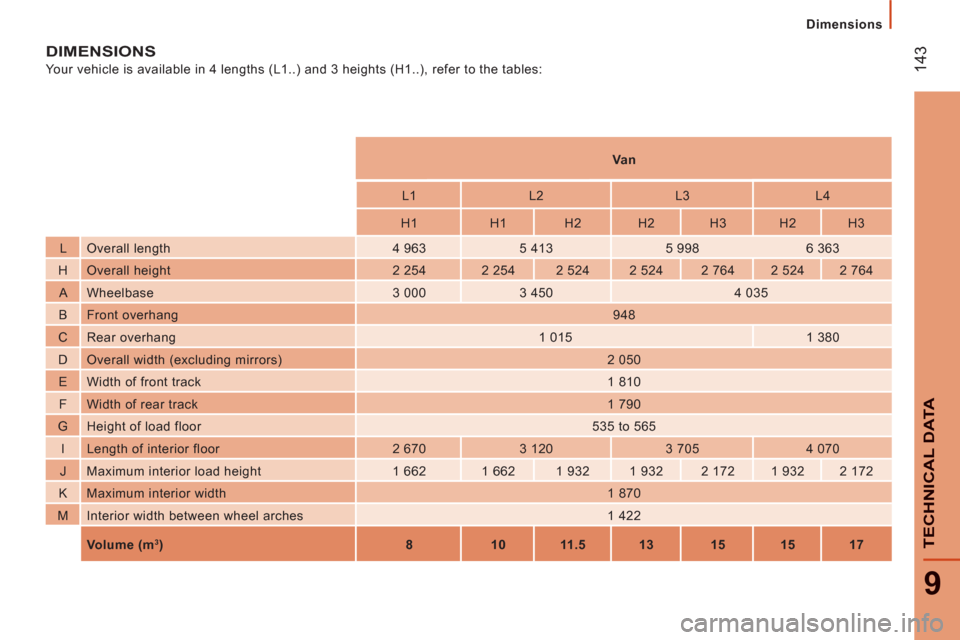

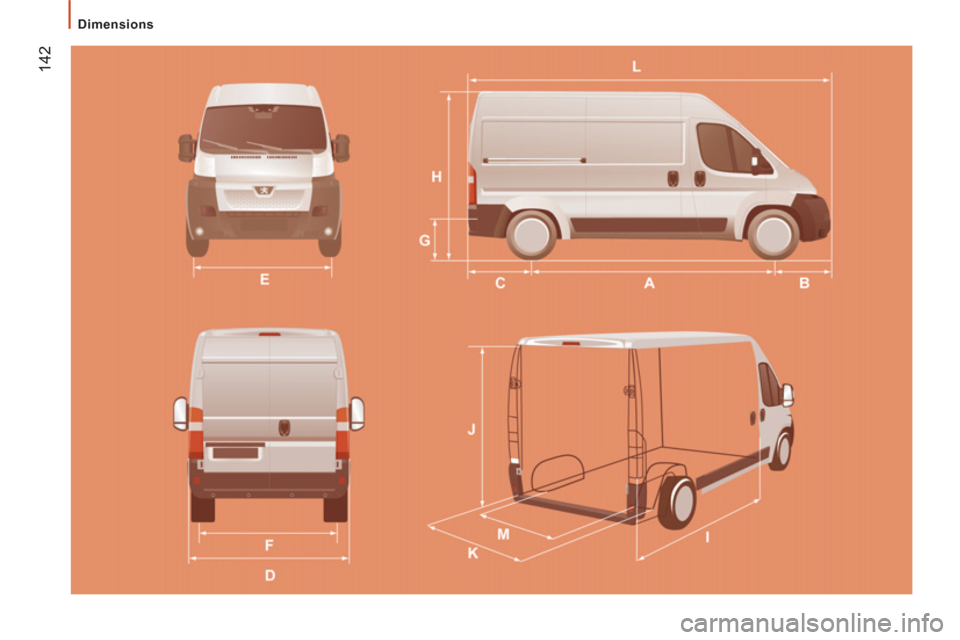

DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:


Va n


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

L Overall length
4 963
5 413
5 998
6 363

H Overall height
2 254
2 254
2 524
2 524
2 764
2 524
2 764

A Wheelbase
3 000
3 450
4 035

B Front overhang

948

C Rear overhang
1 015
1 380

D Overall width (excluding mirrors)
2 050

E Width of front track
1 810

F Width of rear track
1 790

G Height of load floor
535 to 565

I Length of interior floor
2 670
3 120
3 705
4 070

J Maximum interior load height
1 662
1 662
1 932
1 932
2 172
1 932
2 172

K Maximum interior width
1 870

M Interior width between wheel arches
1 422

Volume (m
3)

8


10


11 . 5


13


15


15


17

144


Dimensions

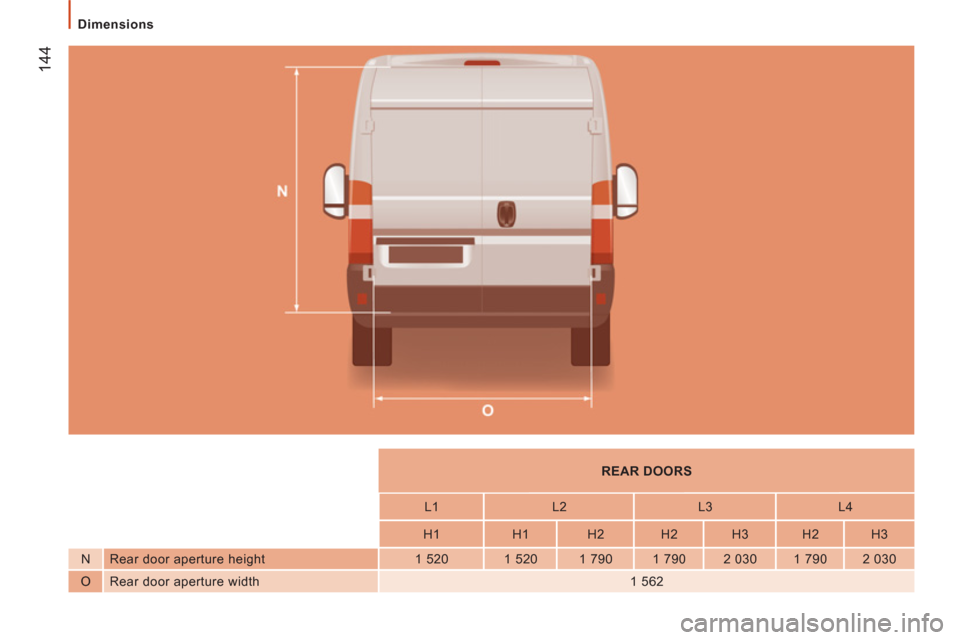

REAR DOORS


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

N Rear door aperture height
1 520
1 520
1 790
1 790
2 030
1 790
2 030

O Rear door aperture width
1 562

14
5
9
TECHNI
CAL DAT
A
Dimensions

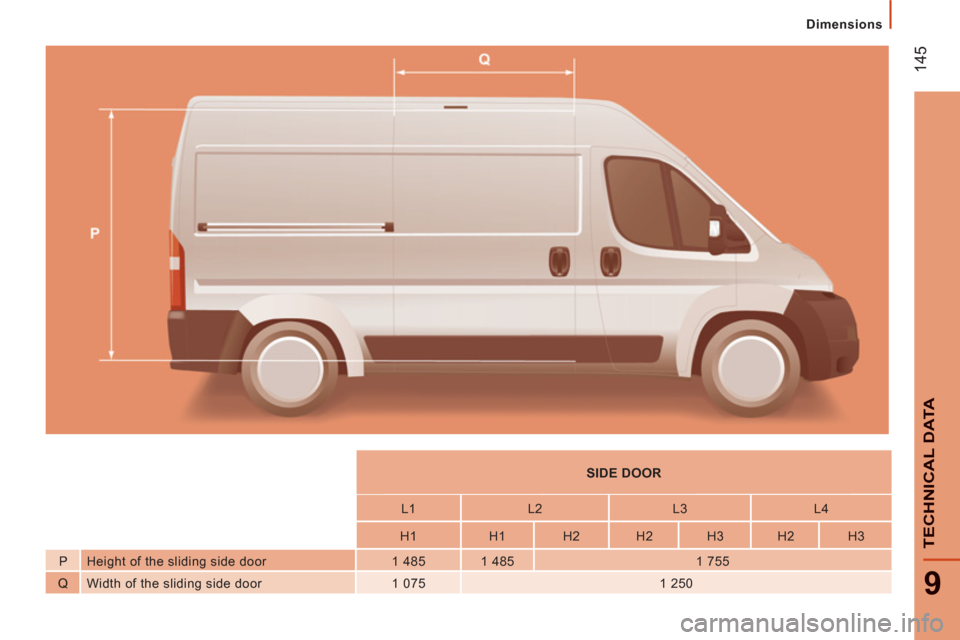

SIDE DOOR


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

P Height of the sliding side door
1 485
1 485
1 755

Q Width of the sliding side door
1 075
1 250

14
6


Dimensions

9
TECHNI
CAL DAT
A
Dimensions

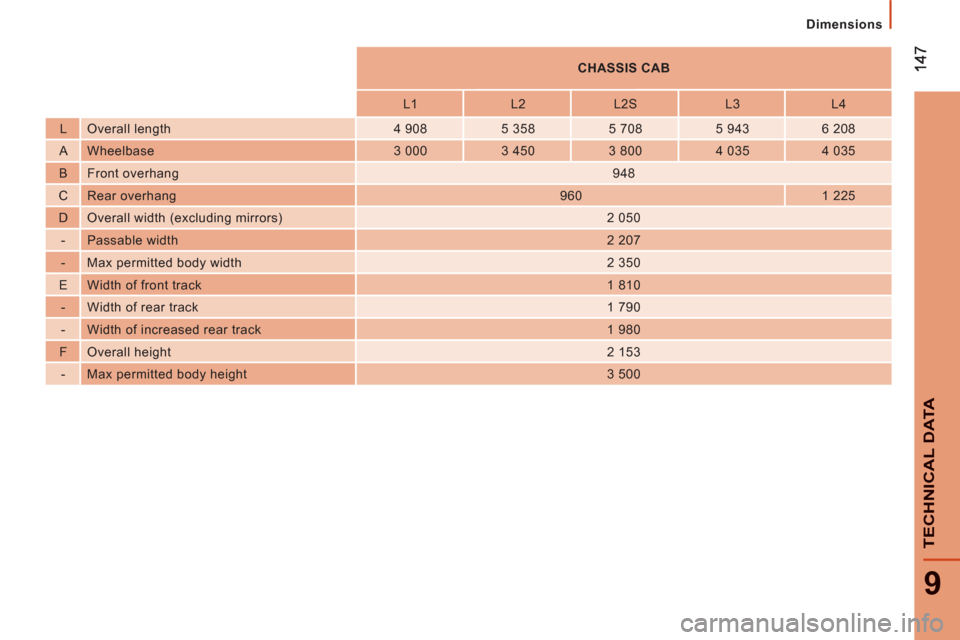

CHASSIS CAB


L1
L2
L2S
L3
L4

L Overall length
4 908
5 358
5 708
5 943
6 208

A Wheelbase
3 000
3 450
3 800
4 035
4 035

B Front overhang

948

C Rear overhang
960
1 225

D Overall width (excluding mirrors)
2 050

- Passable width

2 207

- Max permitted body width
2 350

E Width of front track
1 810

- Width of rear track
1 790

- Width of increased rear track
1 980

F Overall height

2 153

- Max permitted body height
3 500
