2012 Peugeot Boxer dimensions

14
8

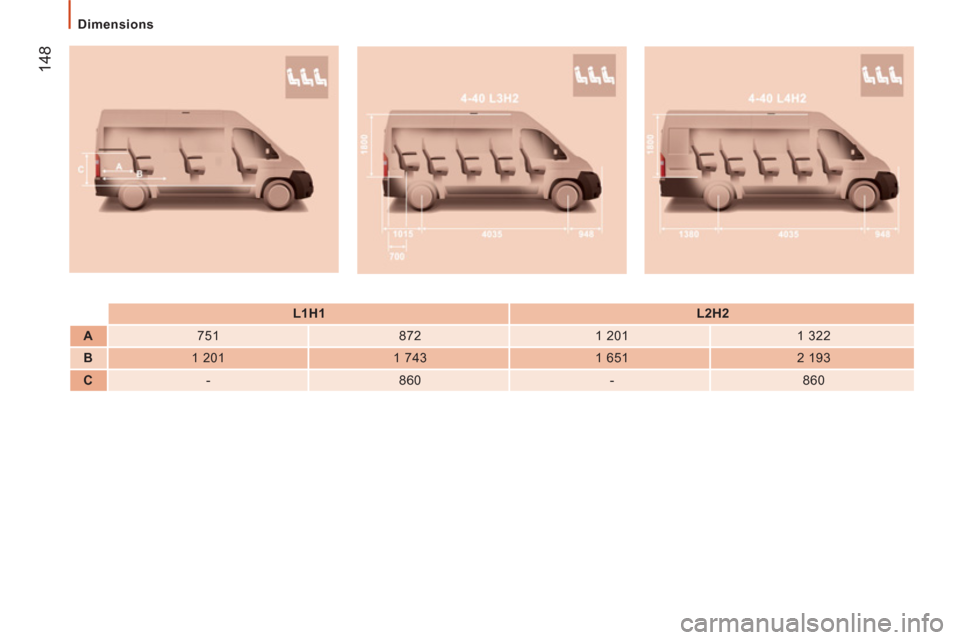

Dimensions





L1H1


L2H2



A

751
872
1 201
1 322


B

1 201
1 743
1 651
2 193


C

-
860
-
860

150

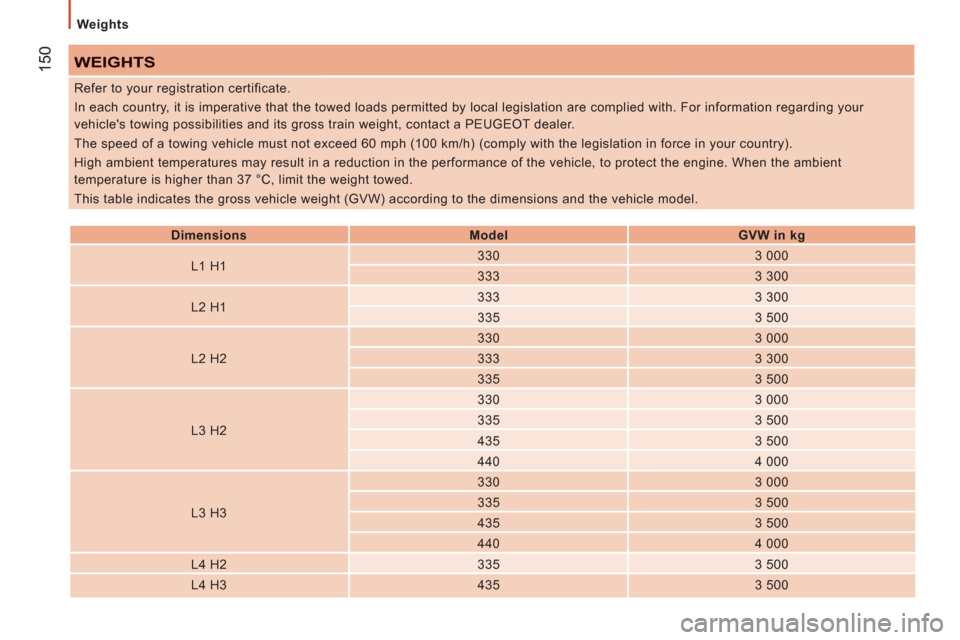

Weights

WEIGHTS



Dimensions


Model


GVW in kg


L1 H1
330
3 000

333
3 300

L2 H1
333
3 300

335
3 500

L2 H2
330
3 000

333
3 300

335
3 500

L3 H2
330
3 000

335
3 500

435
3 500

440
4 000

L3 H3
330
3 000

335
3 500

435
3 500

440
4 000

L4 H2
335
3 500

L4 H3
435
3 500 Refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.
