2012 Peugeot Boxer Benne Owner's Manual

17
5
Instruments and controls
10
VISUAL SEARCH

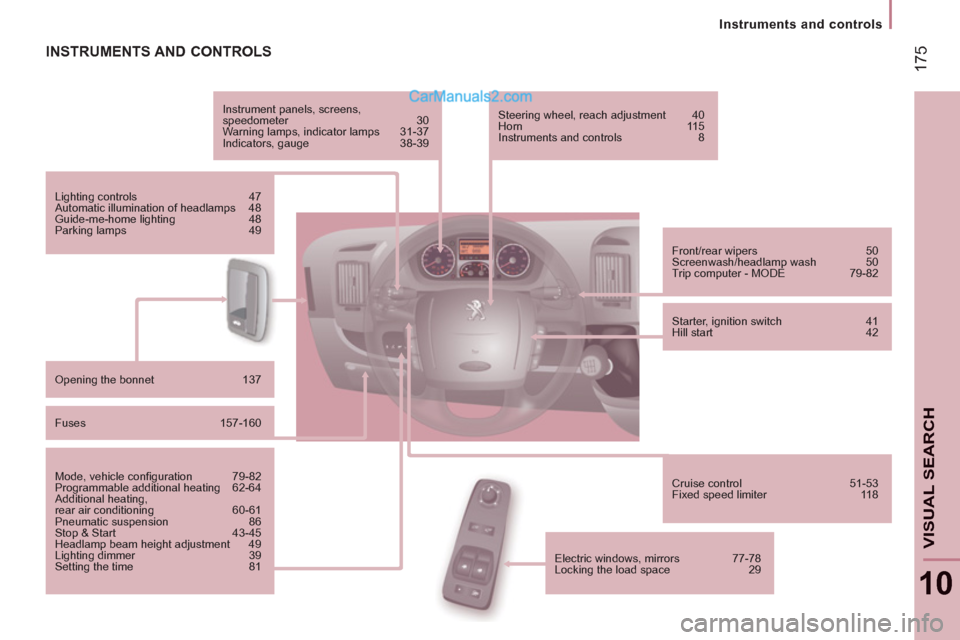

INSTRUMENTS AND CONTROLS

Instrument panels, screens,
speedometer 30
Warning lamps, indicator lamps 31-37
Indicators, gauge 38-39

Lighting controls 47
Automatic illumination of headlamps 48
Guide-me-home lighting 48
Parking lamps 49

Opening the bonnet 137

Fuses 157-160

Mode, vehicle confi guration 79-82
Programmable additional heating 62-64
Additional heating,
rear air conditioning 60-61
Pneumatic suspension 86
Stop & Start 43-45
Headlamp beam height adjustment 49
Lighting dimmer 39
Setting the time 81
Front/rear wipers 50
Screenwash/headlamp wash 50
Trip computer - MODE 79-82

Starter, ignition switch 41
Hill start 42

Cruise control 51-53
Fixed speed limiter 118
Steering wheel, reach adjustment 40
Horn 115
Instruments and controls 8

Electric windows, mirrors 77-78
Locking the load space 29

17
6

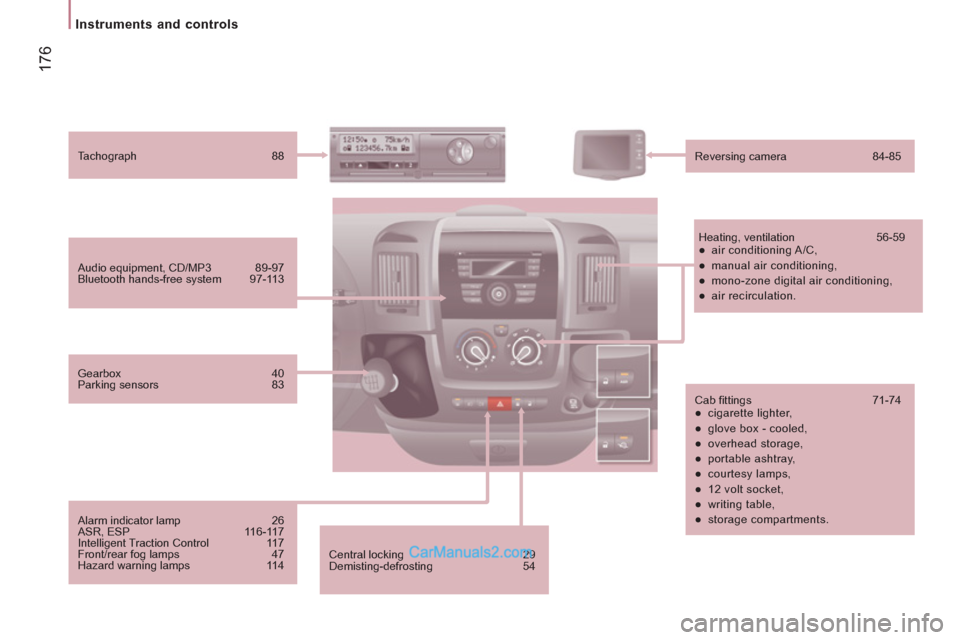

Instruments and controls



Central locking 29
Demisting-defrosting 54
Audio equipment, CD/MP3 89-97
Bluetooth hands-free system 97-113
Tachograph 88

Reversing camera 84-85

Heating, ventilation 56-59


●
air conditioning A/C,

●
manual air conditioning,

●
mono-zone digital air conditioning,

●
air recirculation.


Cab fi ttings 71-74


●
cigarette lighter,

●
glove box - cooled,

●
overhead storage,

●
portable ashtray,

●
courtesy lamps,

●
12 volt socket,

●
writing table,

●
storage compartments.



Gearbox 40
Parking sensors 83

Alarm indicator lamp 26
ASR, ESP 116-117
Intelligent Traction Control 117
Front/rear fog lamps 47
Hazard warning lamps 114

17
7

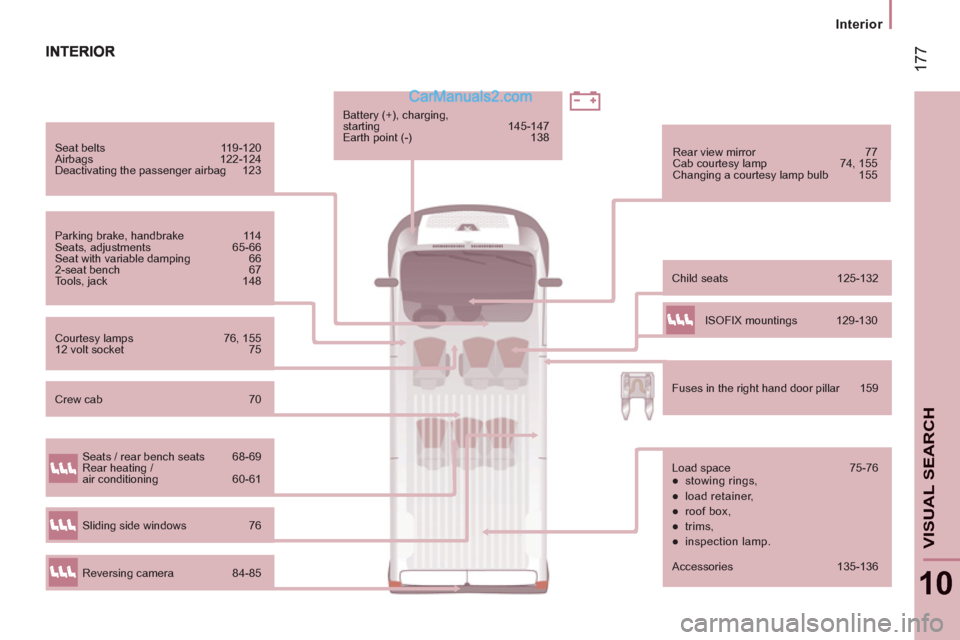

Interior

10
VISUAL SEARCH


Seat belts 119-120
Airbags 122-124
Deactivating the passenger airbag 123

Parking brake, handbrake 114
Seats, adjustments 65-66
Seat with variable damping 66
2-seat bench 67
Tools, jack 148
Child seats 125-132
Rear view mirror 77
Cab courtesy lamp 74, 155
Changing a courtesy lamp bulb 155

Courtesy lamps 76, 155
12 volt socket 75
Battery (+), charging,
starting 145-147
Earth point (-) 138

Fuses in the right hand door pillar 159


Load space 75-76


●
stowing rings,

●
load retainer,

●
roof box,

●
trims,

●
inspection lamp.

Seats / rear bench seats 68-69
Rear heating /
air conditioning 60-61

Reversing camera 84-85
Sliding side windows 76
ISOFIX mountings 129-130

Crew cab 70

Accessories 135-136

17
8


Technical data - Maintenance



Screenwash/headlamp wash, level 140

Bulbs, lighting, changing bulbs 153-155

Opening the bonnet, stay 137
Under the bonnet 138

Identifi cation markings,
serial number, paint, tyres 173
Changing a wiper blade 161
Levels 139-140


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant.


Water bleed, Diesel fi lter 141

Checks 141-142


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
parking brake,

●
particle filter,

●
brake pads.
Emission control 38

Engine fuses 157, 160


TECHNICAL DATA - MAINTENANCE


Dimensions 164-170
Weights 172

03-13

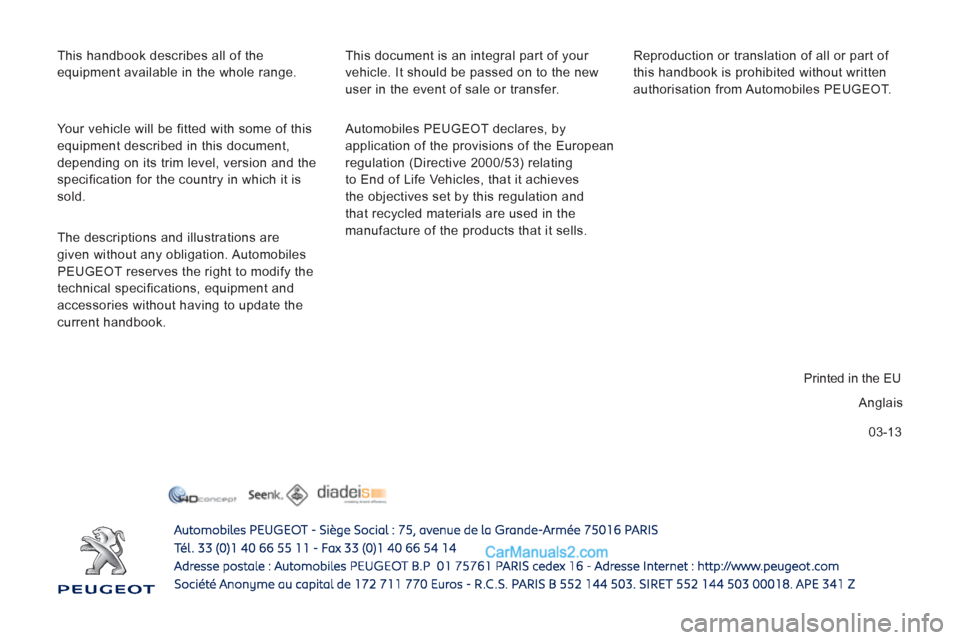

This handbook describes all of the
equipment available in the whole range.
Automobiles PEUGEOT declares, by
application of the provisions of the European
regulation (Directive 2000/53) relating
to End of Life Vehicles, that it achieves
the objectives set by this regulation and
that recycled materials are used in the
manufacture of the products that it sells.
Printed in the EU
Anglais Your vehicle will be fitted with some of this
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it is
sold.
The descriptions and illustrations are
given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifications, equipment and
accessories without having to update the
current handbook. This document is an integral part of your
vehicle. It should be passed on to the new
user in the event of sale or transfer. Reproduction or translation of all or part of
this handbook is prohibited without written
authorisation from Automobiles PEUGEOT.

Anglais
AN. 13BOX.0040www.peugeot.com
